L480mm Glass Vacuum 5l Short Path Distillation Kit

L480mm Glass Vacuum 5l Short Path Distillation Kit

Glass Vacuum 5l Short Path Distillation Kit

L480mm 5l Short Path Distillation Kit

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE

Contact Us
Request A Quote
Product Details
Applicable Industries:
Food & Beverage Factory, Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video Technical Support, Online Support
Local Service Location:
United States
Showroom Location:
United States
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 YEAR
Core Components:
Bearing, Gearbox, Motor, Pressure Vessel, Gear
Condition:
New
Power Source:
Electric
Process:
ROTARY
Voltage:
380V/110V
Power(W):
250W
Dimension(L*W*H):
480*580*535 MM
Weight:
18/24/24 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online Support
Key Selling Points:
Easy To Operate
Name:
Short Path Distillation Price
Temperature Control(℃):
Digital Temperature Contrd-180
Max Vacuum Degree(Pa):
399.9Pa(<3mmHg)
Main Engine Rotary Speed (rpm):
20-110
Remarks:
2l Short Path Distillation
Material:
G3.3
Style:
Cbd Short Path Distillation
Selling Units:
Single Item
Single Package Size :
110X35X23 Cm
Single Gross Weight:
24.000 Kg
Package Type:
Packaging: Carton Or Wooden Case Package, Customized Package Is Available.
Highlight:

Glass Vacuum 5l Short Path Distillation Kit

,

L480mm 5l Short Path Distillation Kit

Payment & Shipping Terms
Minimum Order Quantity
1-2 Units
Price
$1,231.00
Product Description

Best Price 5l Glass Vacuum cbd Short Path Distillation

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(°C) Room temperature -250
Accuracy(°C) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(°C) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30
Product Description

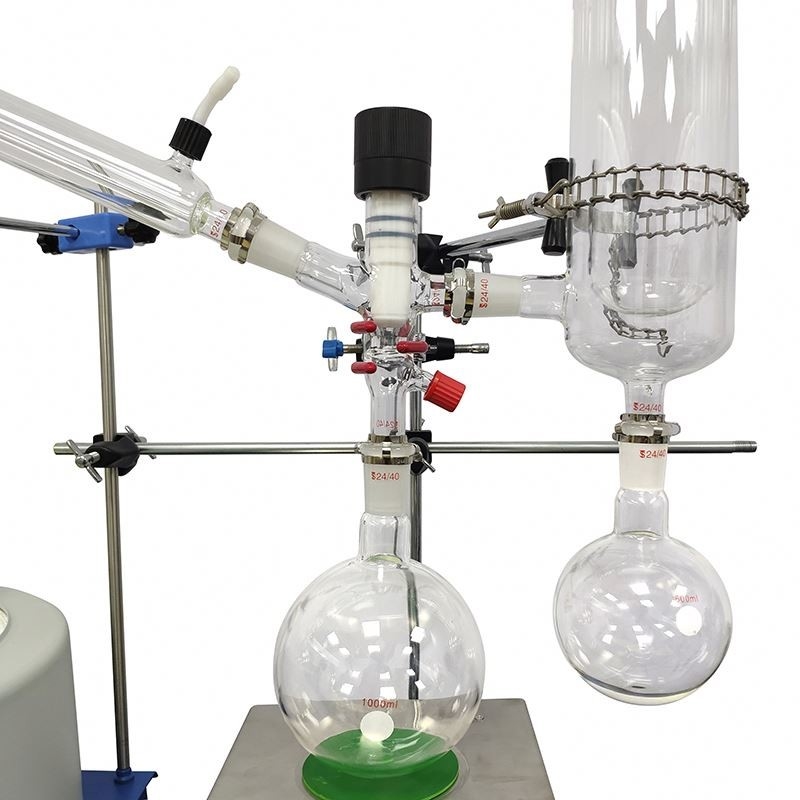

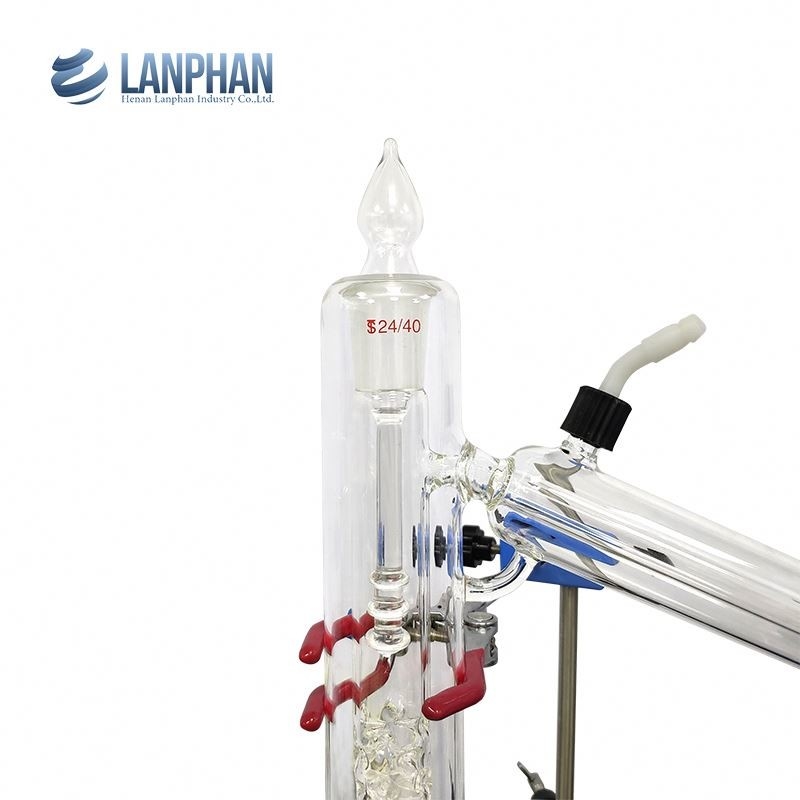

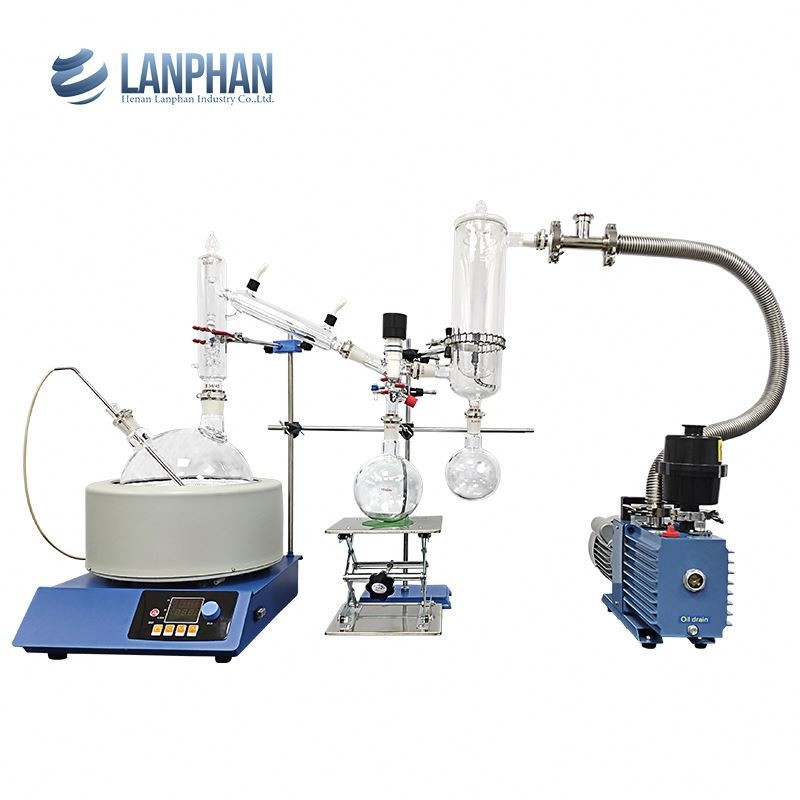

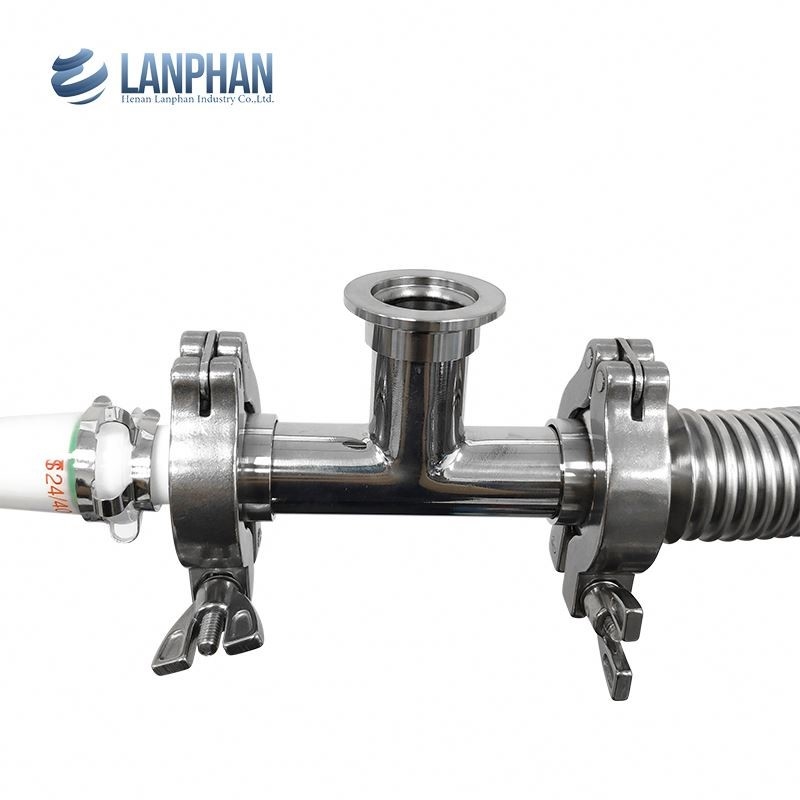

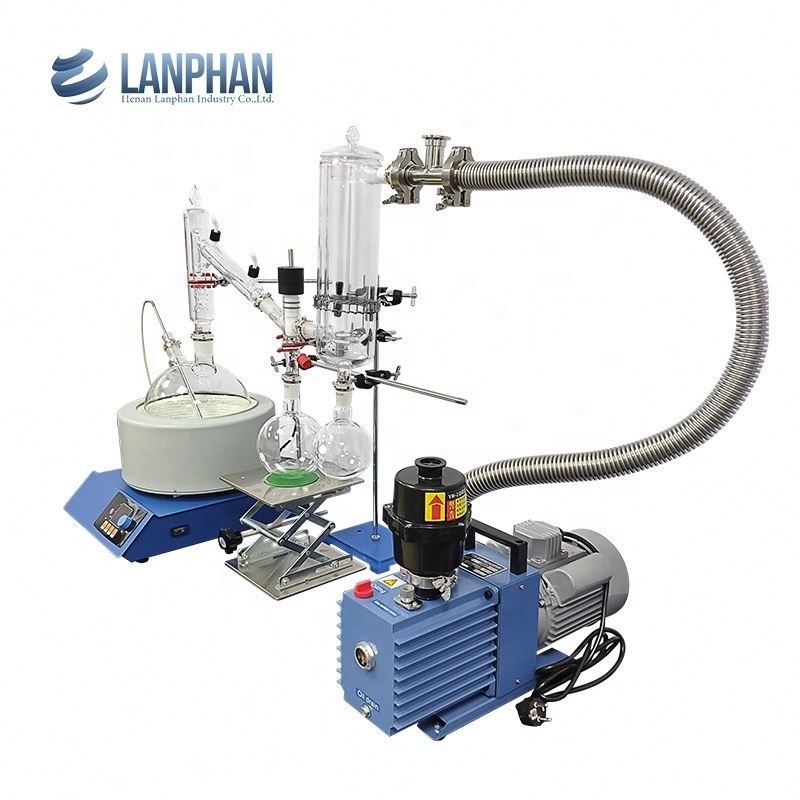

L480mm Glass Vacuum 5l Short Path Distillation Kit 0

L480mm Glass Vacuum 5l Short Path Distillation Kit 1

L480mm Glass Vacuum 5l Short Path Distillation Kit 2

L480mm Glass Vacuum 5l Short Path Distillation Kit 3

  parts name Specification No. Unit
1 2-neck Round Bottom Flask 5000ml,34/45,24/40*2 1 piece

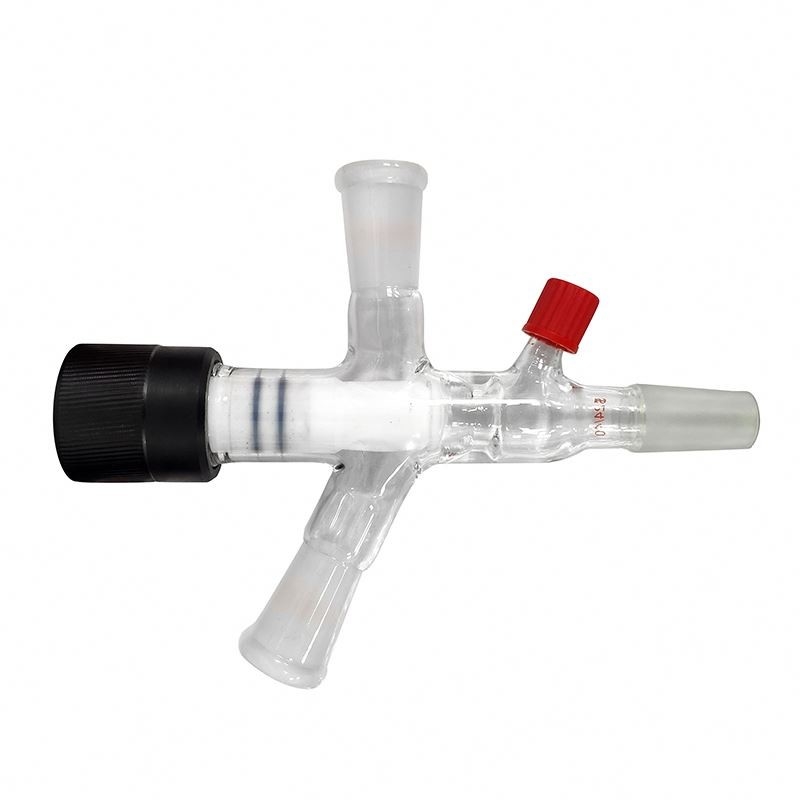

2 Distiller 34/45,24/40,14/20 1 piece
3 Fractionating device 250ml,24/40*4 1 piece
4 Round Bottom Flask 500ml,24/40 3 piece
5 cold trap 70*250mm,24/40 1 piece
6 cold trap cover 70mm 1 piece
7 Receiving Flask 1000ml,24/40 1 piece
8 Temperature casing pipe 14/20 1 piece
9 Temperature casing pipe 24/40 1 piece
10 Hollow plug 14/20 1 piece
11 Hollow plug 24/40 2 piece
12 funnel 110mm,24/40 1 piece
13 Mercury thermometer 0-360°C 1 piece
14 GL14 Cover   5 piece
15 mouth clip for Stainless steel bottle  34# 1 piece
16 mouth clip for Stainless steel bottle  24# 1 piece
17 mouth clip for plastic bottle  24# 4 piece
18 silicone tube 8*14 2 meter
19 Wood pallet 110mm 1 piece
20 Wood pallet 120mm 1 piece
21 Lifting platform (stainless steel) 150*150 1 piece
22 iron stand 140*200 1 piece
23 Cross clip 0-20mm 2 piece
24 Three claw clip large 2 piece
25 Experimental chain clip   1 piece
26 vacuum fat (50g) 7501 1 box
Total 38
27 magnetic stirrer heating mantle ZNCL-T-5000ml 1 set
Accessories main engine   1 piece
Vertical rod 500mm 1 piece
Cross clip   1 piece
External sensor 400mm 1 piece
internal sensor   1 piece
Tetrafluoro rotors   1 piece
28 rotary vane vacuum pump 2XZ-2 1 set
29 Temperature Control Low-Temperature Coolant Circulation Pump DLSB-5/20 1 set
Packing and weight&size
1 SD-5 680*530*335 1 piece
2     1 piece
3 ZNCL-T-5000ml 520*420*400,15.5kg 1 piece
4 2XZ-2 585*225*380,22kg 1 piece
5 DLSB-5/20 600*430*880,58kg 1 piece
