Max 399.9Pa 10 liter Short Path Distillation Unit

Minimum Order Quantity : 1 - 2 Units Price : $1,796.00
Packaging Details : Packaging: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2019 Warranty Of Core Components: 1 YEAR
Core Components: Engine, Motor, Pressure Vessel Condition: New
Power Source: Electric Process: ROTARY
Voltage: 380V/110V Power(W): 250W
Dimension(L*W*H): 480*580*535 MM Weight: 18/24/24 KG
Warranty: 1 YEAR, 1 Year After-sales Service Provided: Online Support
Key Selling Points: Easy To Operate Name: 10 Liter Short Path Distillation
Temperature Control(℃): Digital Temperature Contrd-180 Max Vacuum Degree(Pa): 399.9Pa(<3mmHg)
Main Engine Rotary Speed (rpm): 20-110 Remarks: Cheap Price Portable Short Path
Material: G3.3 Port: Shanghai, Tianjin, Qingdao
High Light:

10 Liter Short Path Distillation Unit


Max 399.9Pa Short Path Distillation Unit

Product Description

 cheap price chemical process 10 liter short path distillation unit

Product Description



Brief Description of distillation unit for sale

Many materials, including petroleum,heavy residue, chemical medicine, medicine and natural food, health care products, fatty acid and so on, are generally heat sensitive and viscous. Moreover, they also possess high boiling points. Separating these materials from their components and maintaining the quality of such products are only able to distillate at low boiling points or even lower than the boiling temperature. Besides, it is also capable of
When the operating vacuum is about 500 Pa, it is capable of conducting in the scratch film evaporator or falling film evaporator. However, if the distillation is operate under the high vacuum status( for instance, the pressure ranges from 0.001 to 100Pa), problems are bound to cause. Therefore, it is necessary to choose the evaporator which the vapor pressure id no less than pressure difference caused by heating and cooling surface, and the evaporator quipped with outside condenser is excluded from the distillation process under the high vacuum range.
In contrast, the short-path evaporator is quietly adaptable to this occasion, and the condenser should be placed within evaporator and opposite to heat distillation. Therefore, as a relatively new equipment which is not widely applied in industrial production, the short-path distillation is able to solve many tough issues that normal distillation technical cannot conquered.

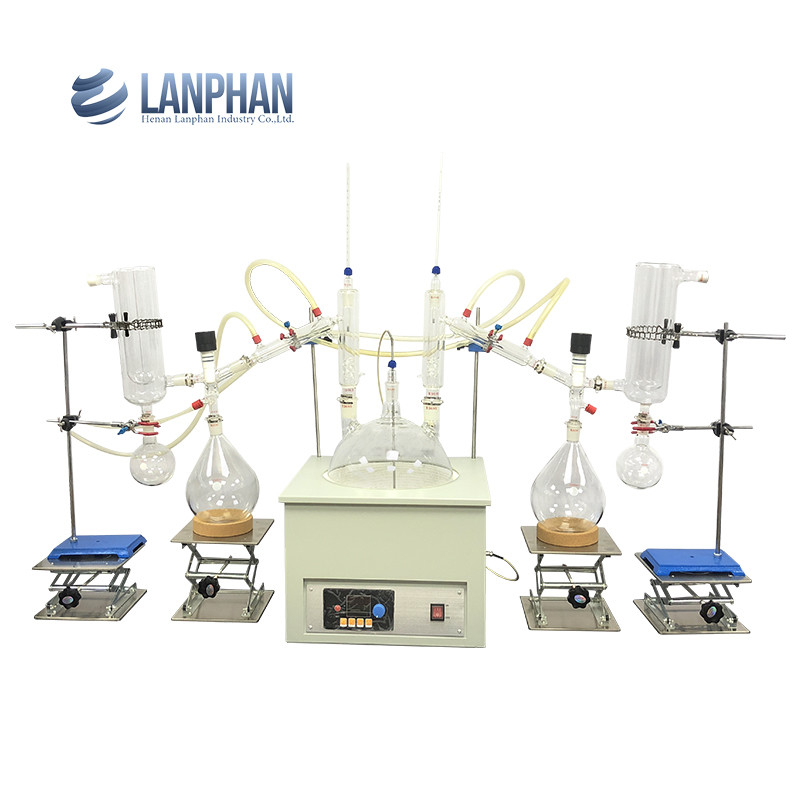

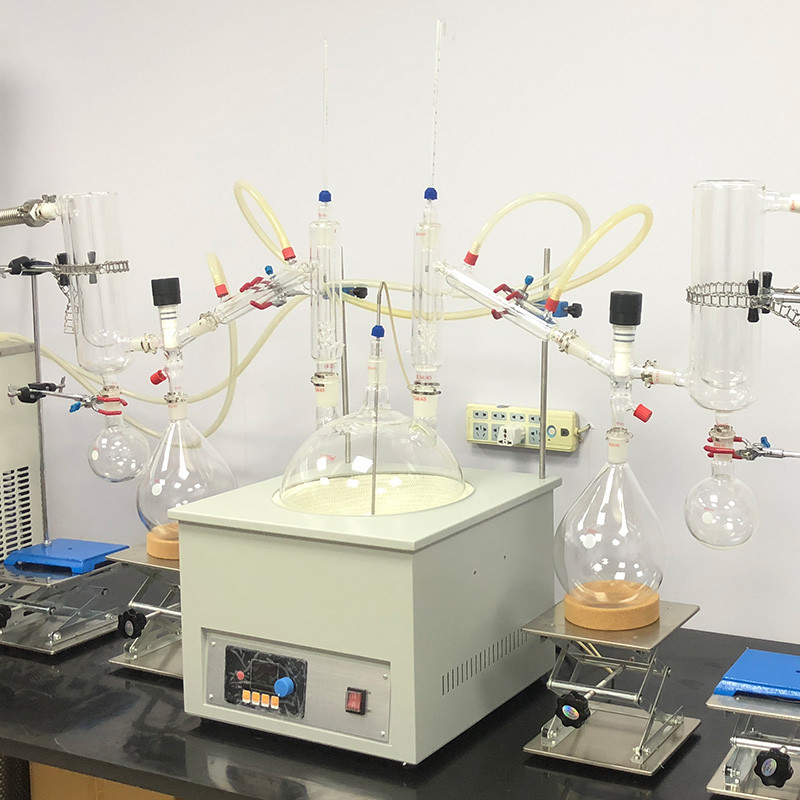

Max 399.9Pa 10 liter Short Path Distillation Unit 0Max 399.9Pa 10 liter Short Path Distillation Unit 1

  Accessories Name Specification Number Unit
1 2-neck Round Bottom Flask 10L,34/45*2,24/40 1 piece
2 Distiller 34/45,24/40,14/20 2 piece
3 Fractionating device 500ml,24/40 2 piece
4 eggplant shaped flask 2000ml,24/40 2 piece
5 cold trap 80*350mm,24/40 1 piece
6 cold trap cover 70mm 1 piece
7 Receiving Flask 2000ml,24/40 1 piece
8 Temperature casing pipe 14/20 2 piece
9 Temperature casing pipe 24/40 1 piece
10 Hollow plug 14/20 2 piece
11 Hollow plug 24/40 1 piece
12 funnel 110mm,24/40 1 piece
13 Mercury thermometer 0-360°C 2 piece
14 GL14 Cover   8 piece
15 mouth clip for Stainless steel bottle  34# 2 piece
16 mouth clip for Stainless steel bottle  24# 4 piece
17 mouth clip for plastic bottle  24# 1 piece
18 silicone tube 8*14 3 meter
19 Wood pallet 140 3 piece
20 Lifting platform (stainless steel) 200*200 2 piece
21 iron stand 140*200 1 piece
22 Cross clip 0-20mm 2 piece
23 Three claw clip large 3 piece
24 Experimental chain clip   1 piece
25 Three links (plastic) 8mm 1 piece
26 vacuum fat (50g) 7501 1 box
Total  49
27 magnetic stirrer heating mantle ZNCL-T 1 set
Accessories main engine   1
Vertical rod   2 set
Cross clip   2 piece
External sensor 500mm 1 piece
internal sensor   1 piece
Tetrafluoro rotors   1 piece
28 rotary vane vacuum pump 2XZ-4 1
29 Temperature Control Low-Temperature Coolant Circulation Pump DLSB-10/25 1

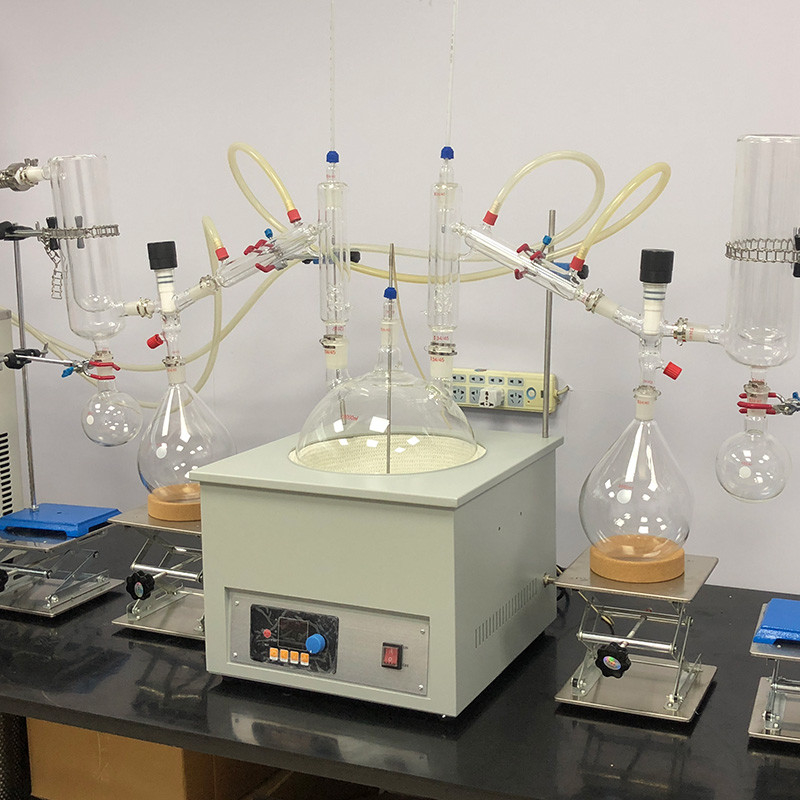

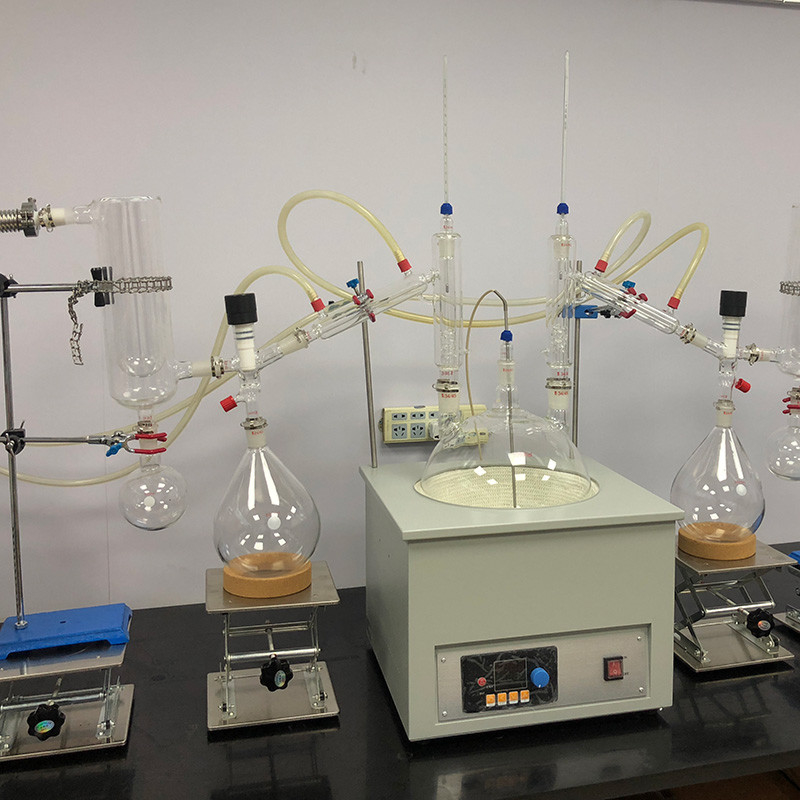

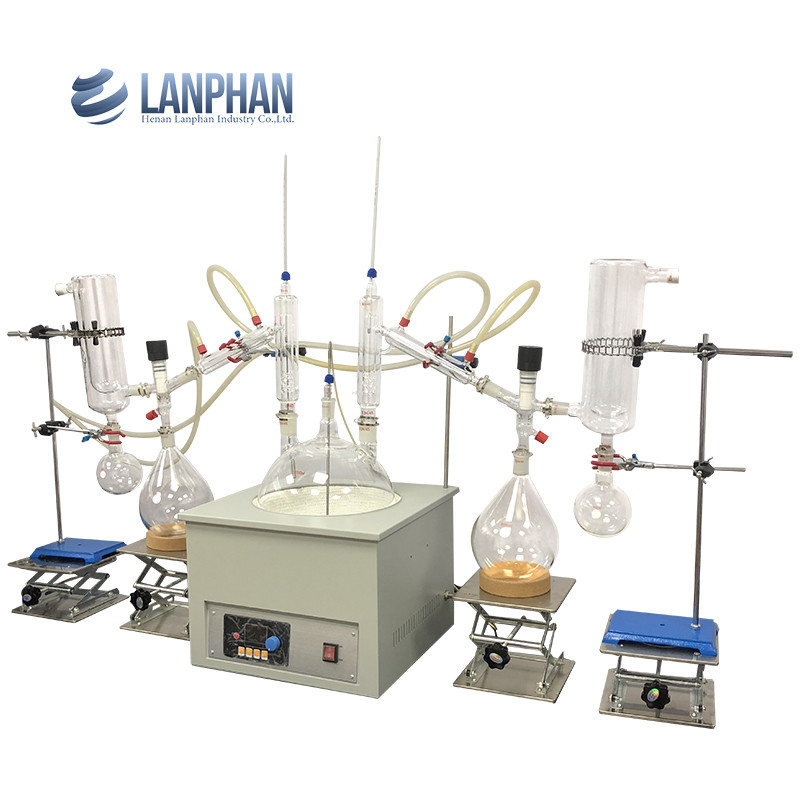

Max 399.9Pa 10 liter Short Path Distillation Unit 2Max 399.9Pa 10 liter Short Path Distillation Unit 3Max 399.9Pa 10 liter Short Path Distillation Unit 4

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(°C) Room temperature -250
Accuracy(°C) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(°C) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30
Related Products

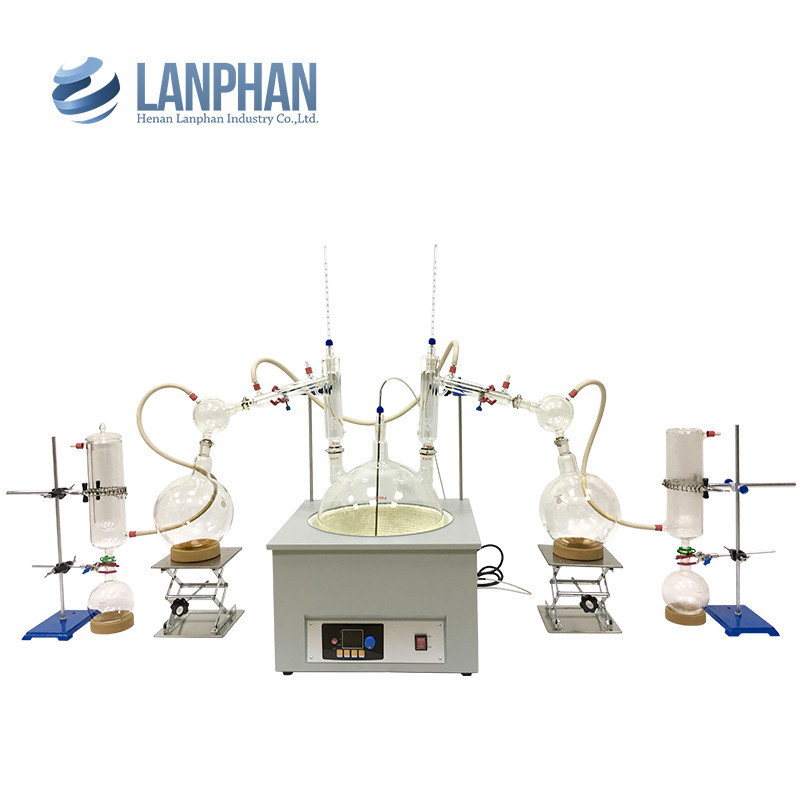

Max 399.9Pa 10 liter Short Path Distillation Unit 5
