G3.3 2L Glass Short Path Distillation Equipment

G3.3 2L Glass Short Path Distillation Equipment

G3.3 Short Path Distillation Equipment

2L Glass Short Path Distillation Equipment

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE

Contact Us
Request A Quote
Product Details
Applicable Industries:
Food & Beverage Factory, Home Use, Retail
Condition:
New
Power Source:
Electric
Process:
ROTARY
Voltage:
380V/110V
Power(W):
250W
Dimension(L*W*H):
480*580*535 MM
Weight:
18/24/24 KG
After-sales Service Provided:
Overseas Third-party Support Available, Online Support
Name:
Vacuum Distillation Equipment
Temperature Control(℃):
Digital Temperature Contrd-180
Max Vacuum Degree(Pa):
399.9Pa(<3mmHg)
Main Engine Rotary Speed (rpm):
20-110
Remarks:
Distillation Equipment
Material:
G3.3
Product Keywords:
Glass Distillation Unit
Warranty:
1 Year
Port:
Shanghai, Tianjin, Qingdao
Highlight:

G3.3 Short Path Distillation Equipment

,

2L Glass Short Path Distillation Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 - 2 Units
Price
$793.00
Packaging Details
Packaging: carton or wooden case package, customized package is available
Supply Ability
40000 Unit/Units per Month
Product Description



Lab 2L Glass Distillation Unit Wiped Film Short Path



Product Description





Lab 2L Glass Distillation Unit Wiped Film Short Path

The pressure difference between the boiling film and condensing surface is the driving force of the stem flow, and the minimum pressure will cause the flowing of steam. Under the 1mbar, the operation requires that there is the shortest distance between the boiling surface and condensing surface. The evaporator manufactured based on the principle is called the short-path distillation. The short-path distillation (molecular distillation) is equipped with a inside condenser which is opposite to the heating surface, and make the operation pressure reduce to under 0.001mbar. Its relative low boiling temperature is very suitable for the material with heat sensitive and high boiling point.



Distillation process: The material should be added from the top of the evaporator and continuously spread to the heating surface through the material covered on the rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharges through the discharge tube on the bottom of the evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.

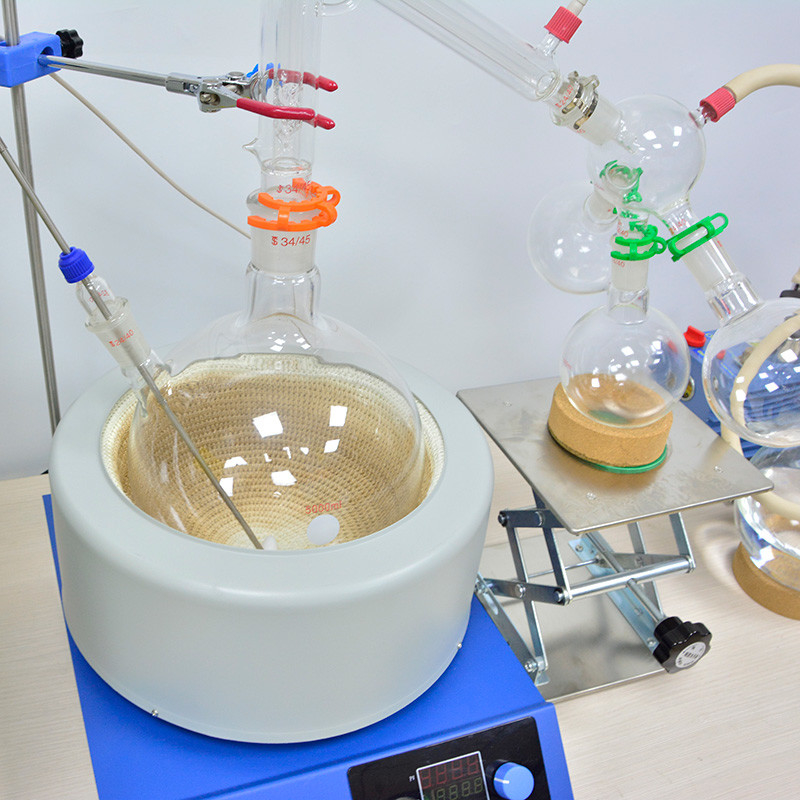

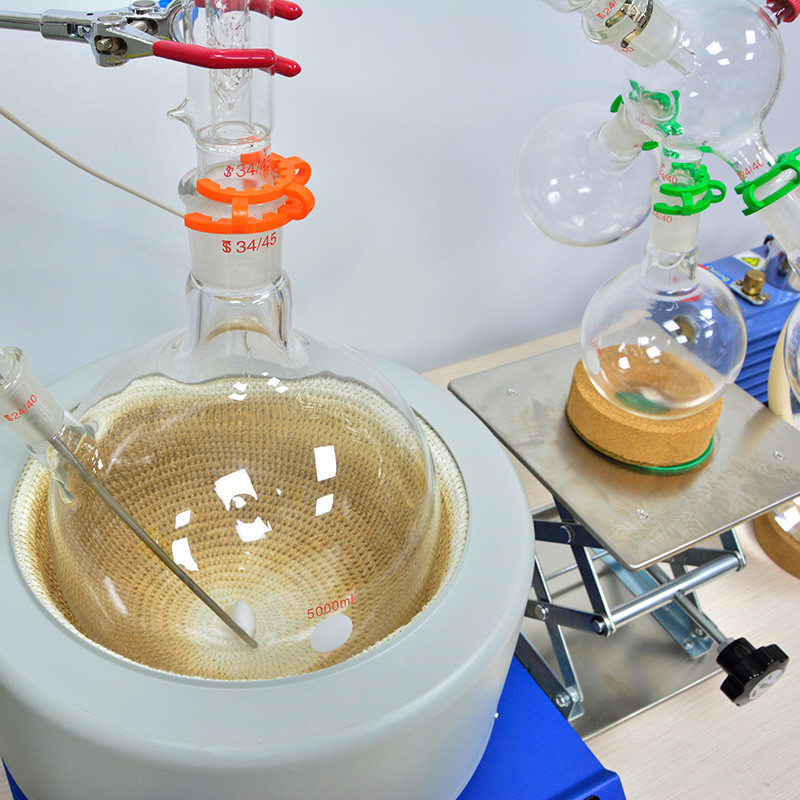

G3.3 2L Glass Short Path Distillation Equipment 0G3.3 2L Glass Short Path Distillation Equipment 1

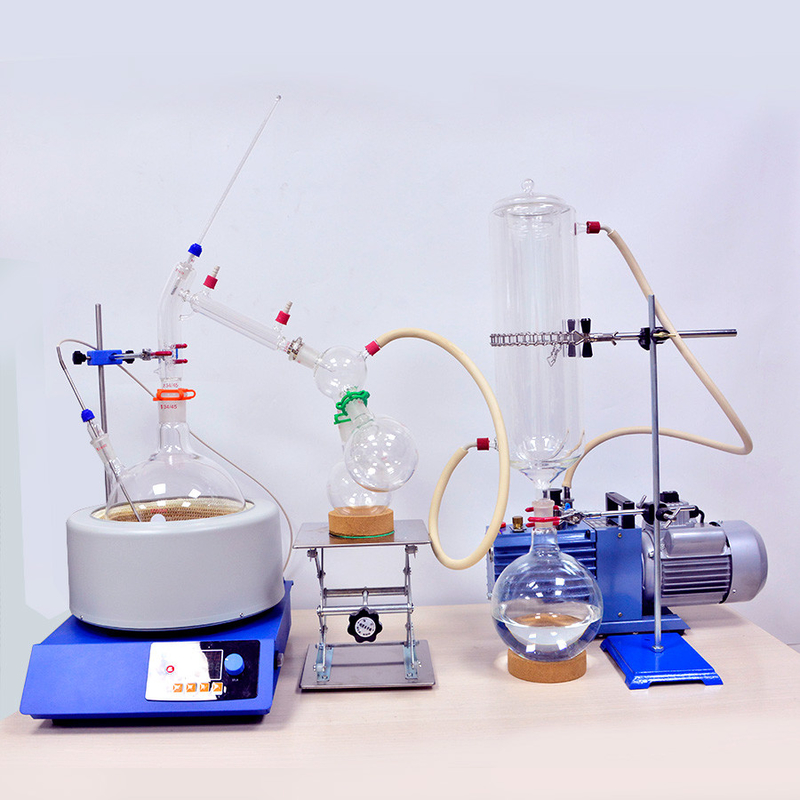

G3.3 2L Glass Short Path Distillation Equipment 2

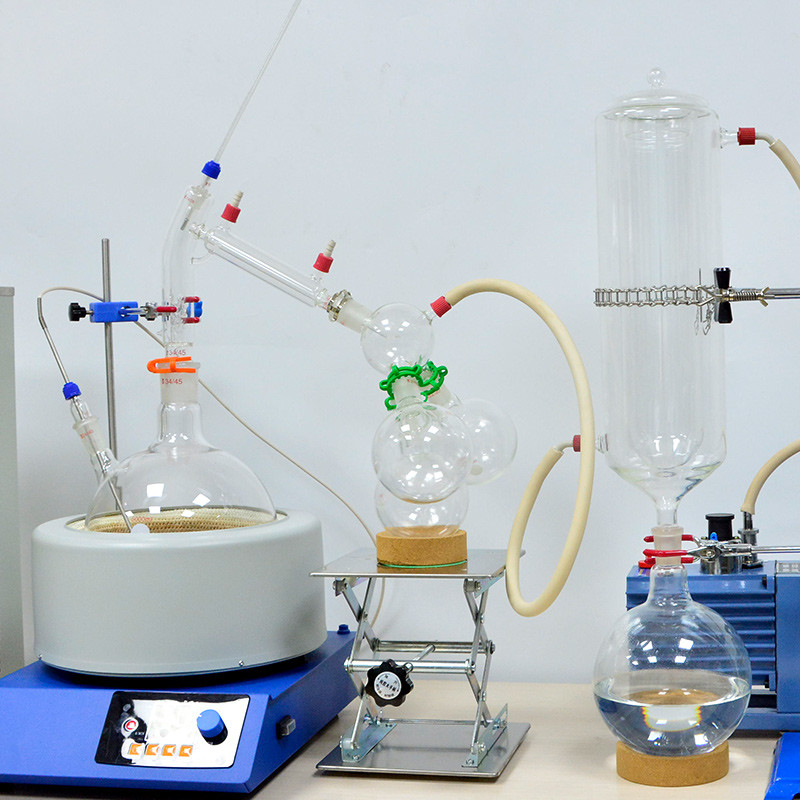

G3.3 2L Glass Short Path Distillation Equipment 3



  parts name Specification No. Unit
1 2-neck Round Bottom Flask 5000ml,34/45,24/40*2 1 piece
2 Distiller 34/45,24/40,14/20 1 piece
3 Fractionating device 250ml,24/40*4 1 piece
4 Round Bottom Flask 500ml,24/40 3 piece
5 cold trap 70*250mm,24/40 1 piece
6 cold trap cover 70mm 1 piece
7 Receiving Flask 1000ml,24/40 1 piece
8 Temperature casing pipe 14/20 1 piece
9 Temperature casing pipe 24/40 1 piece
10 Hollow plug 14/20 1 piece
11 Hollow plug 24/40 2 piece
12 funnel 110mm,24/40 1 piece
13 Mercury thermometer 0-360℃ 1 piece
14 GL14 Cover   5 piece
15 mouth clip for Stainless steel bottle  34# 1 piece
16 mouth clip for Stainless steel bottle  24# 1 piece
17 mouth clip for plastic bottle  24# 4 piece
18 silicone tube 8*14 2 meter
19 Wood pallet 110mm 1 piece
20 Wood pallet 120mm 1 piece
21 Lifting platform (stainless steel) 150*150 1 piece
22 iron stand 140*200 1 piece
23 Cross clip 0-20mm 2 piece
24 Three claw clip large 2 piece
25 Experimental chain clip   1 piece
26 vacuum fat (50g) 7501 1 box
Total 38
27 magnetic stirrer heating mantle ZNCL-T-5000ml 1 set
Accessories main engine   1 piece
Vertical rod 500mm 1 piece
Cross clip   1 piece
External sensor 400mm 1 piece
internal sensor   1 piece
Tetrafluoro rotors   1 piece
28 rotary vane vacuum pump 2XZ-2 1 set
29 Temperature Control Low-Temperature Coolant Circulation Pump DLSB-5/20 1 set
Packing and weight&size
1 SD-5 680*530*335 1 piece
2     1 piece
3 ZNCL-T-5000ml 520*420*400,15.5kg 1 piece
4 2XZ-2 585*225*380,22kg 1 piece
5 DLSB-5/20 600*430*880,58kg 1 piece

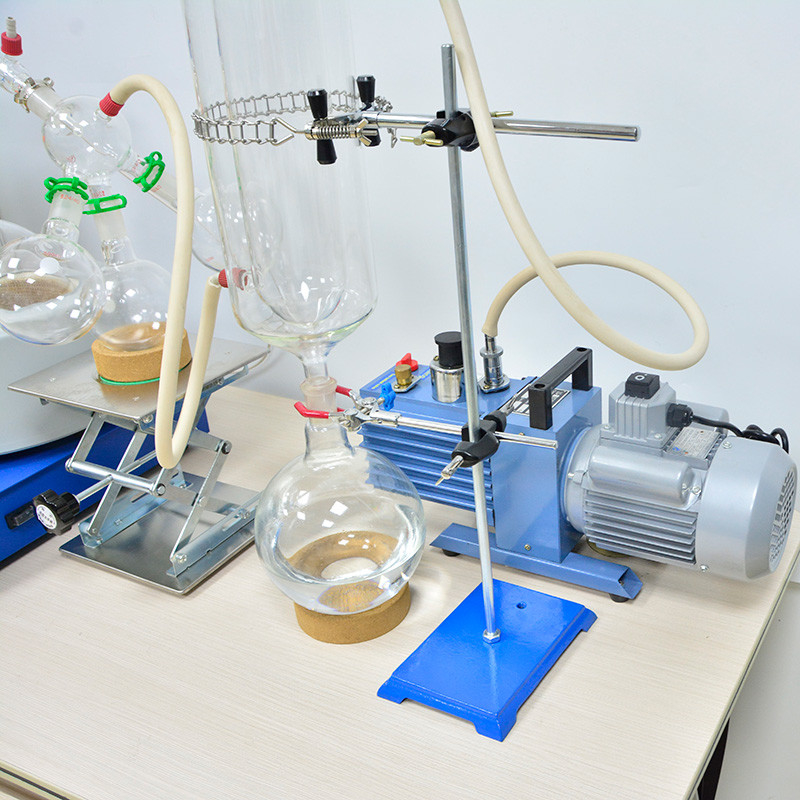

G3.3 2L Glass Short Path Distillation Equipment 4



Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(℃) Room temperature -250
Accuracy(℃) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(℃) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30
