Continuous 380V Short Path Distillation Equipment

Minimum Order Quantity : 1 - 2 Units Price : $1,360.00
Packaging Details : Packaging: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear Condition: New
Power Source: Electric Process: ROTARY
Voltage: 380V/110V Power(W): 250W
Dimension(L*W*H): 480*580*535 MM Weight: 18/24/24 KG
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support
Key Selling Points: Easy To Operate Name: Continuous Distillation
Temperature Control(℃): Digital Temperature Contrd-180 Max Vacuum Degree(Pa): 399.9Pa(<3mmHg)
Main Engine Rotary Speed (rpm): 20-110 Remarks: Destilator Machine
Material: G3.3 Port: Shanghai, Tianjin, Qingdao
High Light:

380V Short Path Distillation Equipment

,

Continuous Short Path Distillation Equipment

Product Description



Short Path Fractional Destilator Machine Continuous Distillation



Product Description





Brief Description

Basic constitution: the column cylinder is equipped with an external heating mantle, a rotor and an internal condenser. The fixing frame of rotor is precisely equipped with the scratch film and anti-splash device. The internal condenser is placed in the center of the evaporator, and the rotor is between the column cylinder and the condenser.



Distillation process: The material should be added from the top of the evaporator and continuously spread to the heating surface through the material covered on the rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharges through the discharge tube on the bottom of the evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.

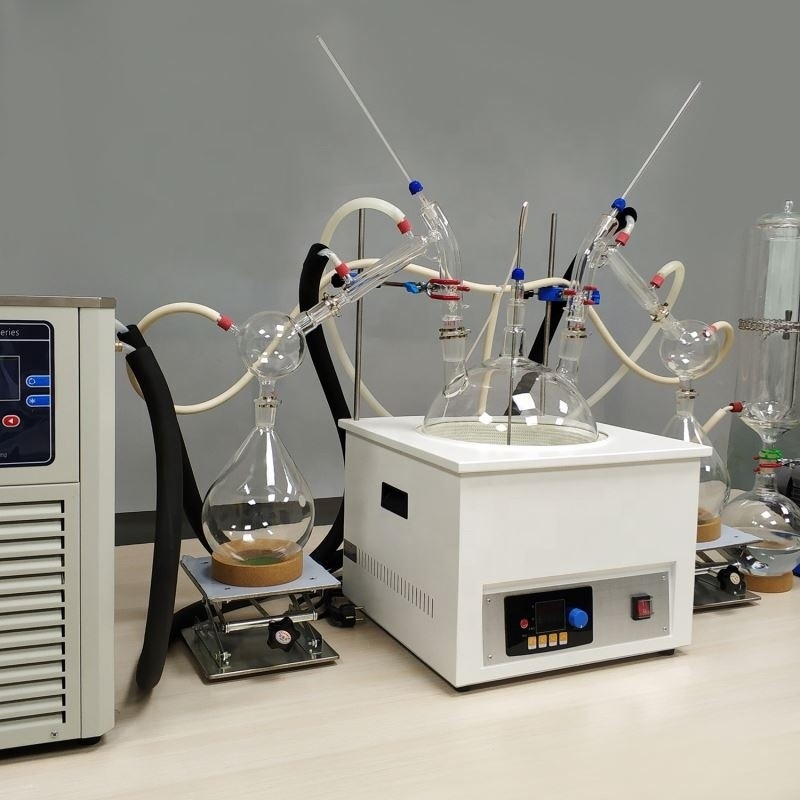

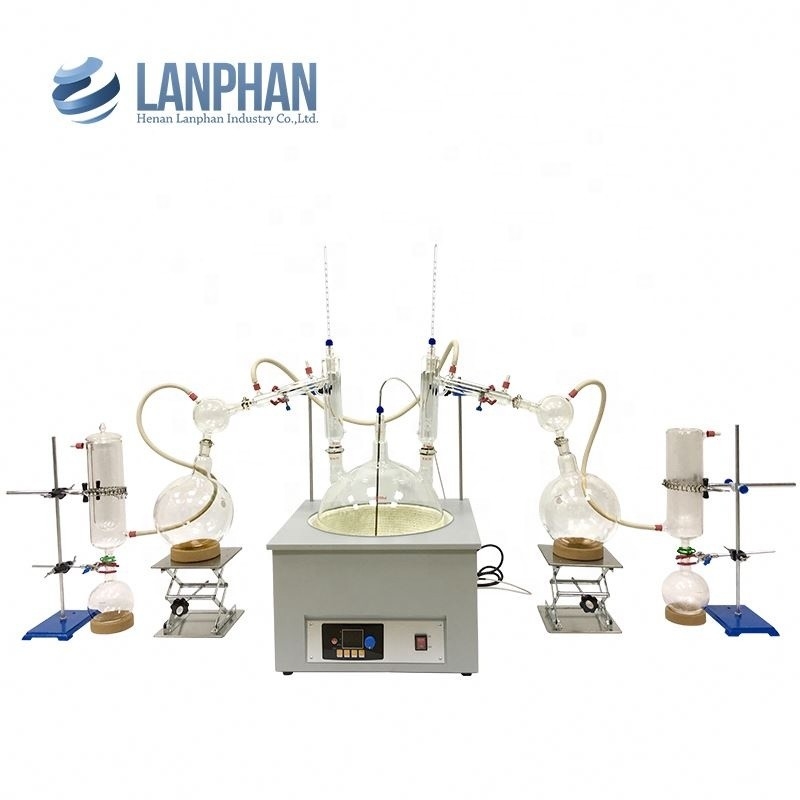

Continuous 380V Short Path Distillation Equipment 0Continuous 380V Short Path Distillation Equipment 1

  Accessories Name Specification Number Unit
1 2-neck Round Bottom Flask 10L,34/45*2,24/40 1 piece
2 Distiller 34/45,24/40,14/20 2 piece
3 Fractionating device 500ml,24/40 2 piece
4 eggplant shaped flask 2000ml,24/40 2 piece
5 cold trap 80*350mm,24/40 1 piece
6 cold trap cover 70mm 1 piece
7 Receiving Flask 2000ml,24/40 1 piece
8 Temperature casing pipe 14/20 2 piece
9 Temperature casing pipe 24/40 1 piece
10 Hollow plug 14/20 2 piece
11 Hollow plug 24/40 1 piece
12 funnel 110mm,24/40 1 piece
13 Mercury thermometer 0-360°C 2 piece
14 GL14 Cover   8 piece
15 mouth clip for Stainless steel bottle  34# 2 piece
16 mouth clip for Stainless steel bottle  24# 4 piece
17 mouth clip for plastic bottle  24# 1 piece
18 silicone tube 8*14 3 meter
19 Wood pallet 140 3 piece
20 Lifting platform (stainless steel) 200*200 2 piece
21 iron stand 140*200 1 piece
22 Cross clip 0-20mm 2 piece
23 Three claw clip large 3 piece
24 Experimental chain clip   1 piece
25 Three links (plastic) 8mm 1 piece
26 vacuum fat (50g) 7501 1 box
Total  49
27 magnetic stirrer heating mantle ZNCL-T 1 set
Accessories main engine   1
Vertical rod   2 set
Cross clip   2 piece
External sensor 500mm 1 piece
internal sensor   1 piece
Tetrafluoro rotors   1 piece
28 rotary vane vacuum pump 2XZ-4 1
29 Temperature Control Low-Temperature Coolant Circulation Pump DLSB-10/25 1

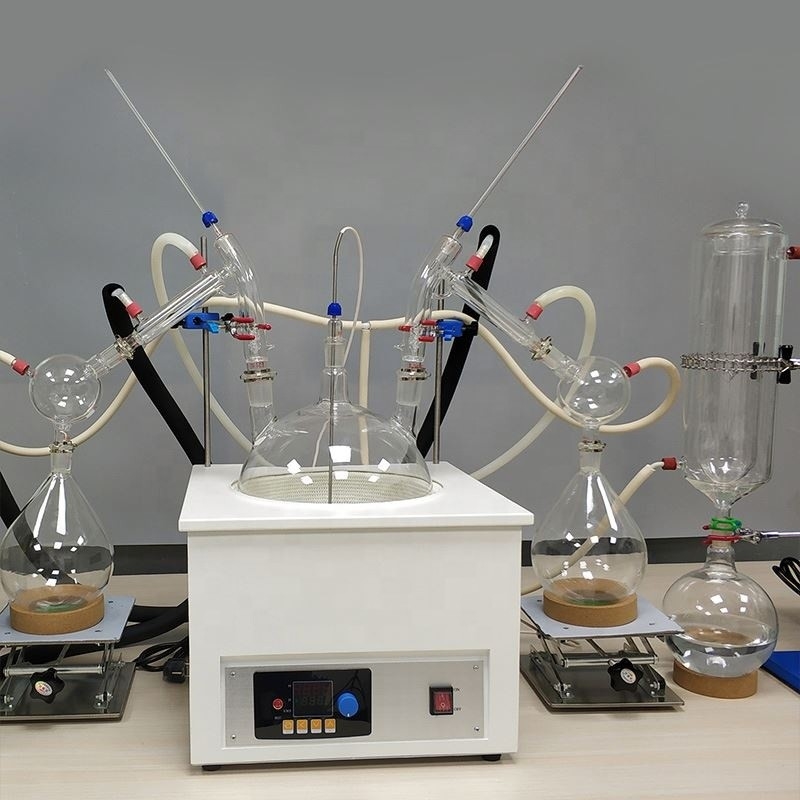

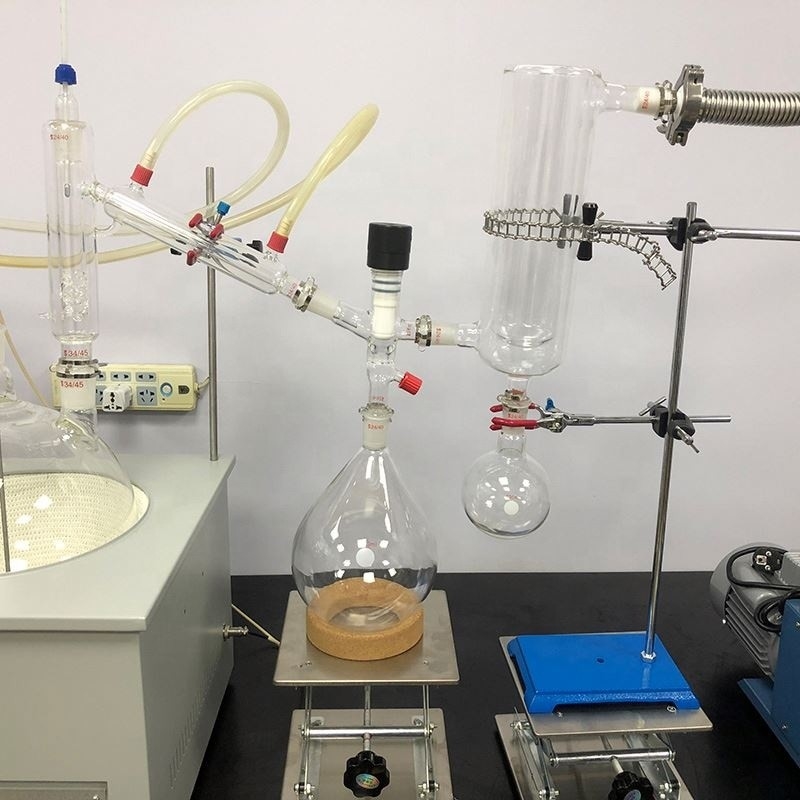

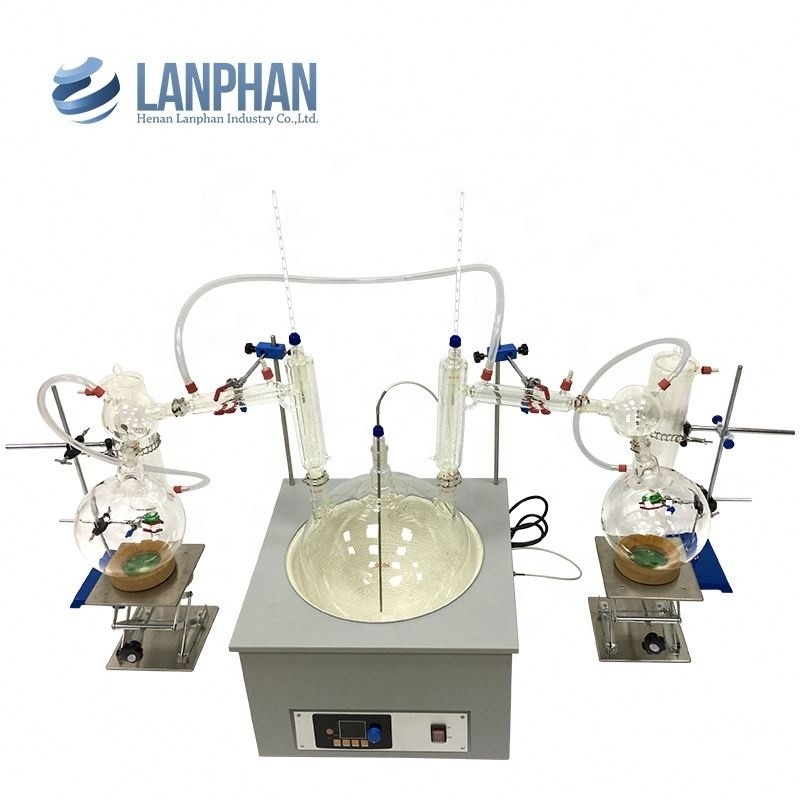

Continuous 380V Short Path Distillation Equipment 2Continuous 380V Short Path Distillation Equipment 3Continuous 380V Short Path Distillation Equipment 4

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(°C) Room temperature -250
Accuracy(°C) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(°C) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30
Related Products

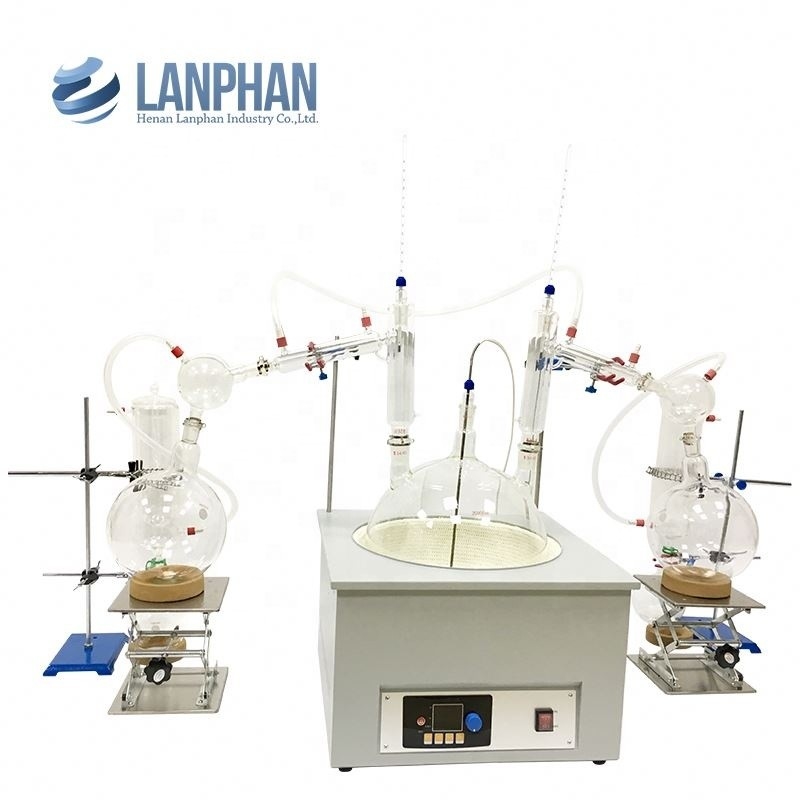

Continuous 380V Short Path Distillation Equipment 5



Continuous 380V Short Path Distillation Equipment 6



Continuous 380V Short Path Distillation Equipment 7

Company Information

Continuous 380V Short Path Distillation Equipment 8

Continuous 380V Short Path Distillation Equipment 9

Continuous 380V Short Path Distillation Equipment 10Continuous 380V Short Path Distillation Equipment 11Continuous 380V Short Path Distillation Equipment 12

Our Services

Pre-sale Service
1. According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types;
2. Provide detailed product performance specification;
3. Provide professional quoted price;
4. Provide 24-hour technical consulting reply.


In-sale Service of continuous distillation
1. Begin to supervise from raw material, its qualified rate can reach to 100%;
2. Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
3. Provide product’s inspection record of key junctures to customers;
4. Provide production schedule photos to customers at regular intervals;
5. Package and transport products strictly accordance with export standard;


After-sale Service of continuous distillation
1. Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
2. When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
3. During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
4. If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
5. Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
