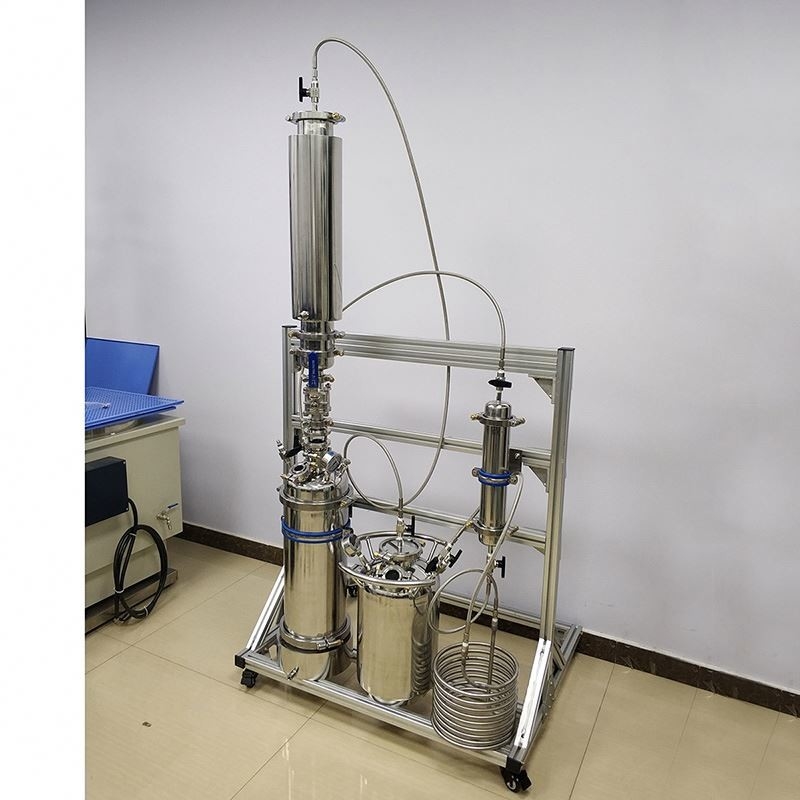

Chemical Closed Loop Extractor Machine SS304 Active Stainless Steel

Minimum Order Quantity : 1 Price : $3,000.00
Packaging Details : Carton, wooden cases or customizable package Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 1000 Unit/Units per Month
Place of Origin: Henan Brand Name: Lanphan
Certification: CE Model Number: L-5LB

Detail Information

Place Of Origin: Henan, China Model Number:: L-5LB
Connection:: Flange Head Code:: Square
Polish:: Mirror Polish Seal:: Flange,mesh Gasket
Technics:: Forged
High Light:

Chemical Closed Loop Extractor Machine


SS304 Closed Loop Extractor Machine


SS304 Closed loop Extractor kit

Product Description

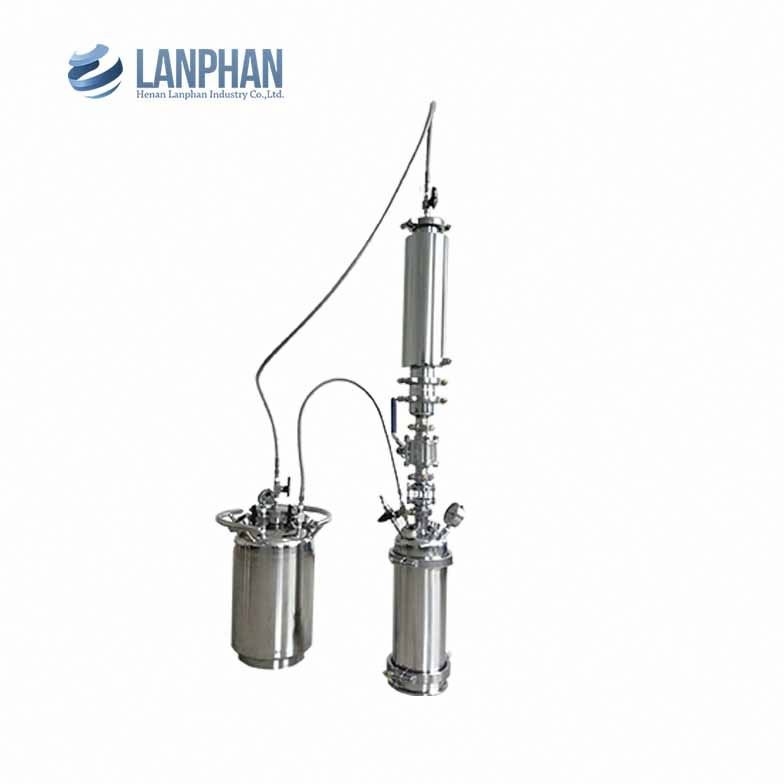

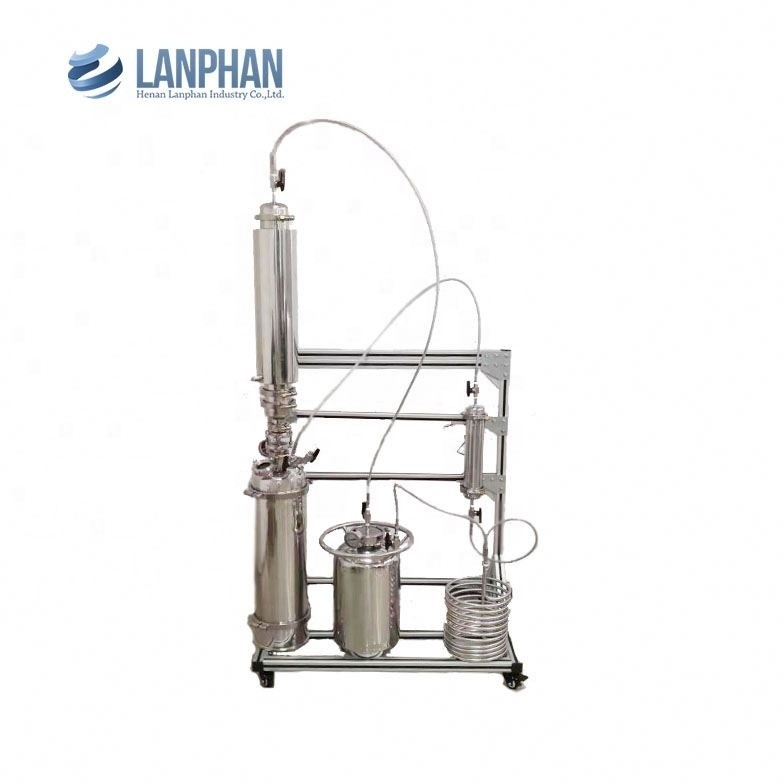

Chemical SS304 Active Stainless Steel Closed Loop Extractor Machine


Product Description


A closed-loop extractor mainly consists of three parts: a solvent tank, a material column and a receiving foundation. Some upgraded versions add a dewaxing column as the fourth part, or equip the material column with a dewaxing structure directly. The closed loop hydrocarbon extraction system is used to conduct a plant extraction in a sealed vacuum system. The closed-loop system can be kept during the plant extraction without exposing any solvent to the air. The butane, propane or the combination of them are generally used as the solvent.

Pharmaceuticals Stainless Steel bho 1lb closed loop extractor


Product Details

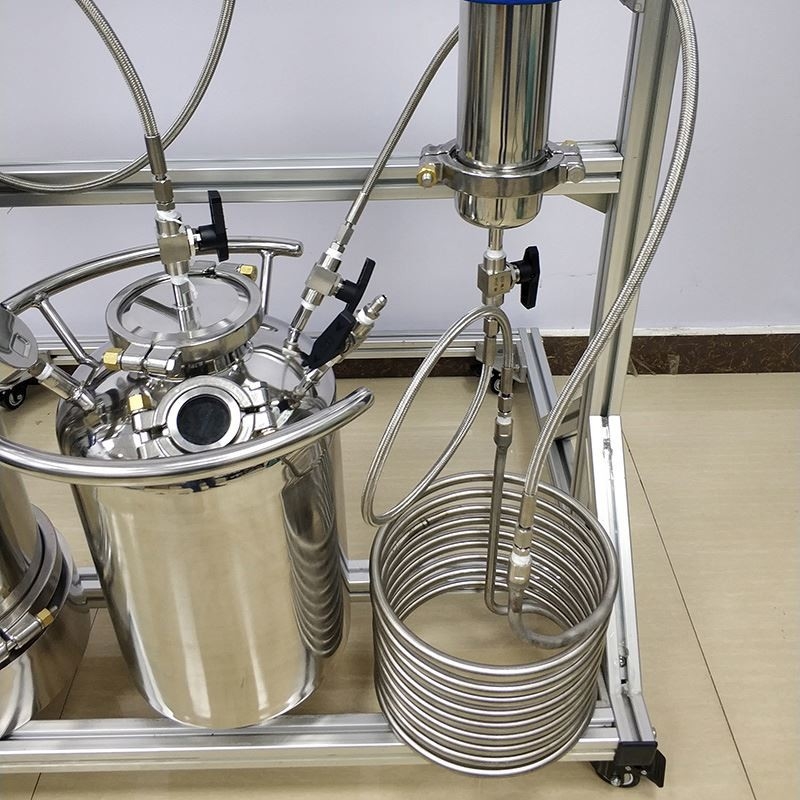

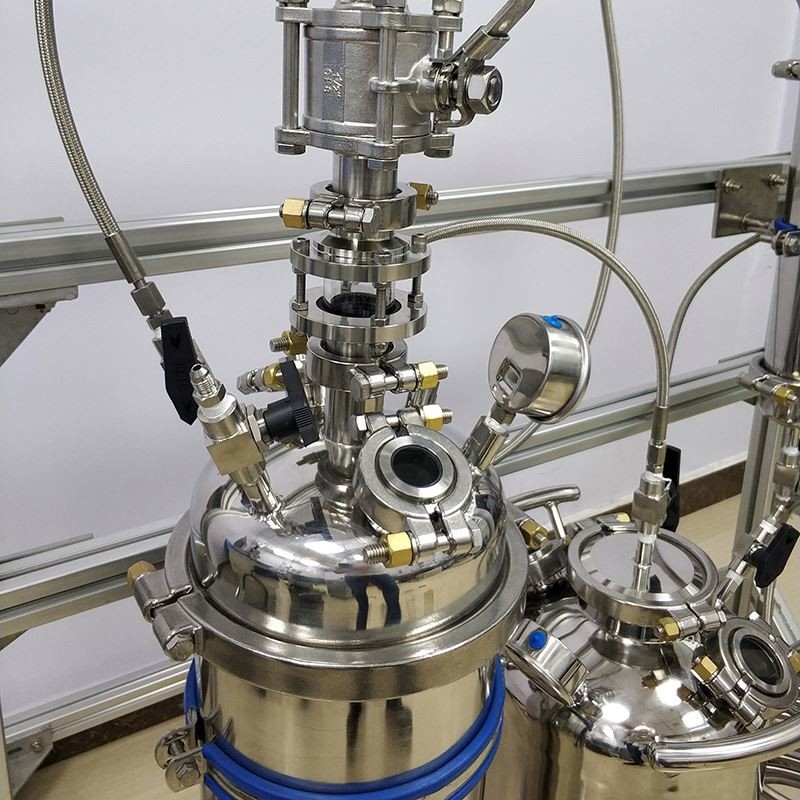

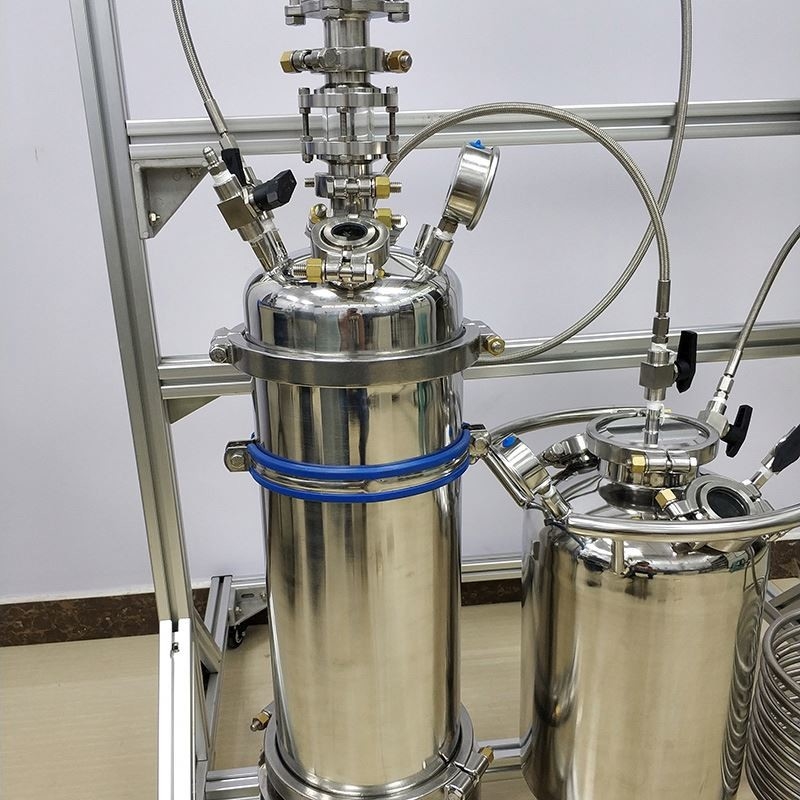

Pharmaceuticals Stainless Steel bho 1lb closed loop extractor


1. High pressure food grade hoses: the tube used to transfer liquid phase butane
2. Solvent tank: the container used to contain solvents
3. Product tubes: the tube used to transfer production
4. Collection chamber: the container used to collect oil
5. Recovery pump:used to provide pressure to recover the solvents
6. Material column: the reactor that cannabis gets extracted


Working Principle

The procedure and structure of closed loop extractor is very complicated, so it is always hard for users to operate it correctly. Then now let us go through the whole working process of closed loop extractor together:

01.Closed loop extractor works from the top of it. Users put the cannabis into the top-fill input, then solvent washes the cannabis in the material column, and oil gets collected as it passes over the material.
02.Solvents with oil will be collected into the collection chamber under the material column.
03.Solvents will be evaporated and recycled in the collection chamber and oil will be left in the collection chamber.
In the whole process, there are always vacuum pump providing vacuum environment and recovery pump providing pressure.


Technical Parameter


Place of Origin Henan,China
polish mirror polish
seal Flange,mesh gasket
Capacity 1LB
Stainless construction SS304
Technics Forged
Shape Reducing
Model Number L-5LB


Company Information

Pharmaceuticals Stainless Steel bho 1lb closed loop extractor

Packaging and Shipping

Pharmaceuticals Stainless Steel bho 1lb closed loop extractor
