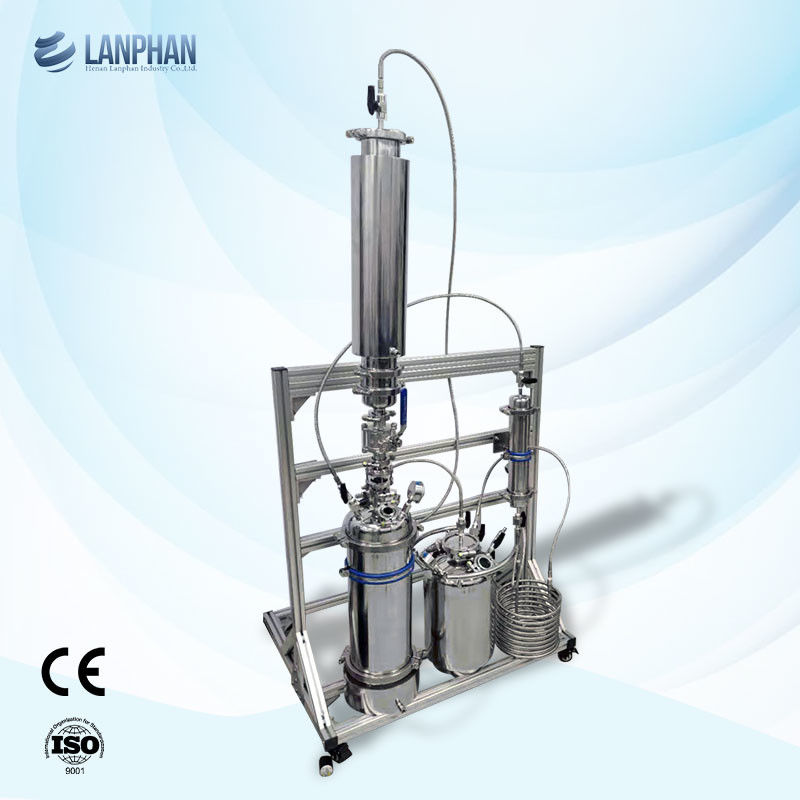

Closed Loop Extraction Machine 1LB CBD Extraction Equipment

Closed Loop Extraction Machine 1LB CBD Extraction Equipment

1LB CBD Extraction Equipment

BHO Oil CBD Extraction Equipment

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

BCLE-1

Contact Us
Request A Quote
Product Details
Product Name:
Closed Loop Extractor
Capacity:
1LB
Polish:
Mirror Polishing
Material:
Ss304
Rated Pressure:
150psi
Gasket Type:
Fluorine Rubber
Highlight:

1LB CBD Extraction Equipment

,

BHO Oil CBD Extraction Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2199
Packaging Details
Carton, wooden cases or customizable package
Delivery Time
7-12 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Sets per Month
Product Description

Closed Loop Extraction Machine 1LB CBD Extraction Equipment



Product Description



A closed loop extractor mainly serves as the cannabis extraction equipment widely used in chemical, metallurgical, food and other industries.

There are several types of closed loop extractors. In terms of ways of solvent injection, closed loop extractors can be classified into the top filled closed loop extractors and the bi-directional closed loop extractors. In terms of ways of solvent movement, closed loop extractors can be classified into the passive closed loop extractors and the active closed loop extractors.



The accessories of closed loop extractor


01. High pressure food grade hoses: the tube used to transfer liquid phase butane
02. Solvent tank: the container used to contain solvents
03. Product tubes: the tube used to transfer production
04. Collection chamber: the container used to collect oil
05. Recovery pump:used to provide pressure to recover the solvents
06. Material column: the reactor that cannabis gets extracted



How does a closed loop extractor work?


The procedure and structure of a closed loop extractor is very complicated, so it is always hard for users to operate it correctly. Then now let us go through the whole working process of a closed loop extractor together:
01.A closed loop extractor works from the top of it. Users put the cannabis into the top-fill input, then solvent washes the cannabis in the material column, and oil gets collected as it passes over the material.
02.Solvents with oil will be collected into the collection chamber under the material column.
03.Solvents will be evaporated and recycled in the collection chamber and oil will be left in the collection chamber.
In the whole process, there are always vacuum pump providing vacuum environment and recovery pump providing pressure.



Product Parameter



Product Name Closed Loop Extractor
Product Model BCLE-1
Volume 1LB
Material Stainless steel 304
Surface Mirror polishing
Standard 3A Health standard
Gasket type Fluorine rubber
Rated pressure 150psi
Operating temperature range ‘-42℃-72℃
System limit vacuum 10 μmHg
Dimension 1260*590*730,89kg



Closed Loop Extraction Machine 1LB CBD Extraction Equipment 0Closed Loop Extraction Machine 1LB CBD Extraction Equipment 1

Closed Loop Extraction Machine 1LB CBD Extraction Equipment 2Closed Loop Extraction Machine 1LB CBD Extraction Equipment 3
