Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
SD-2
Video

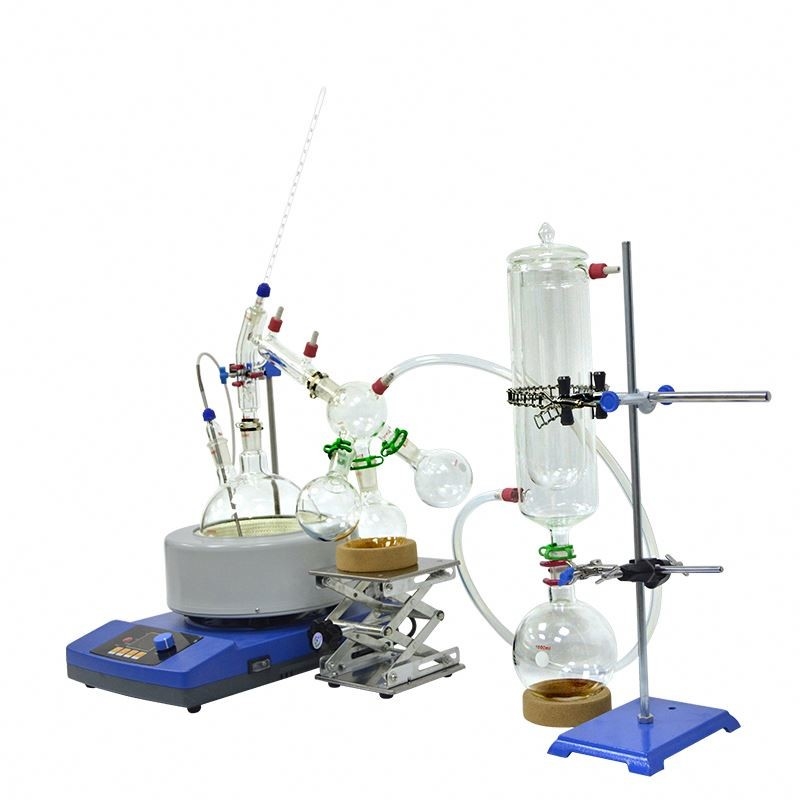

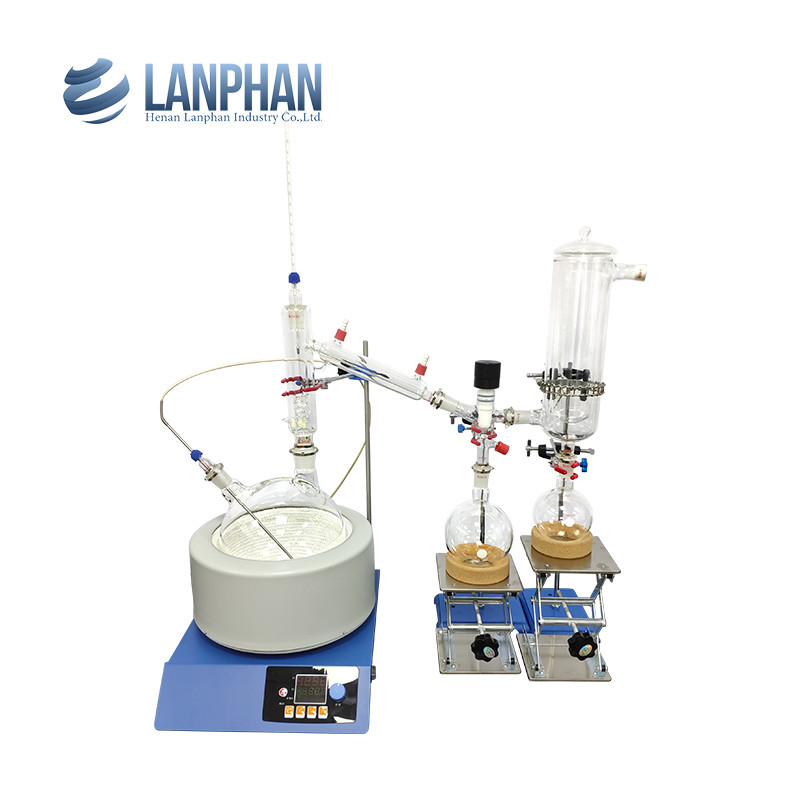

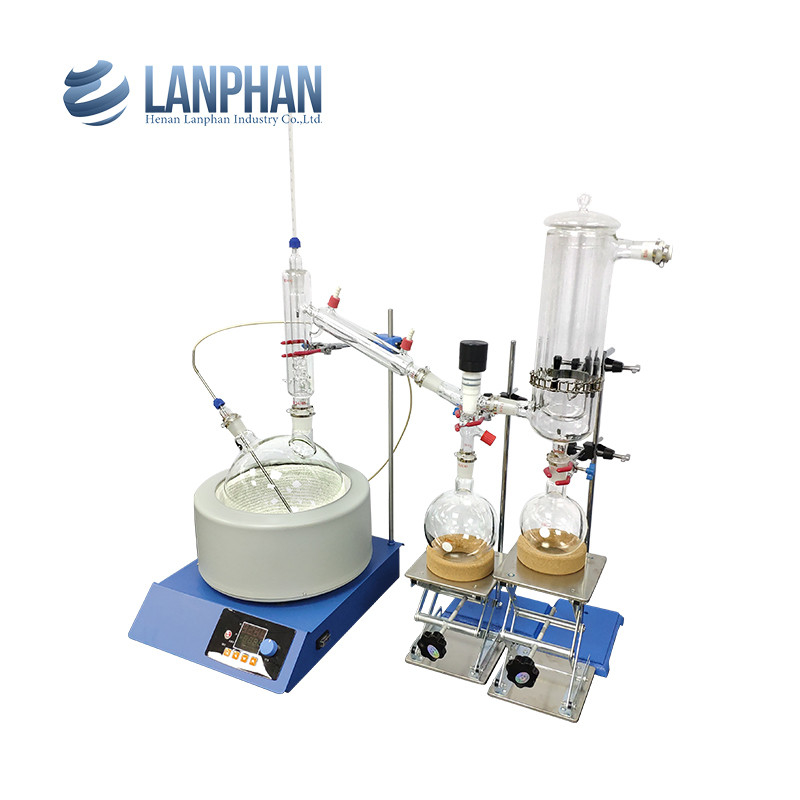

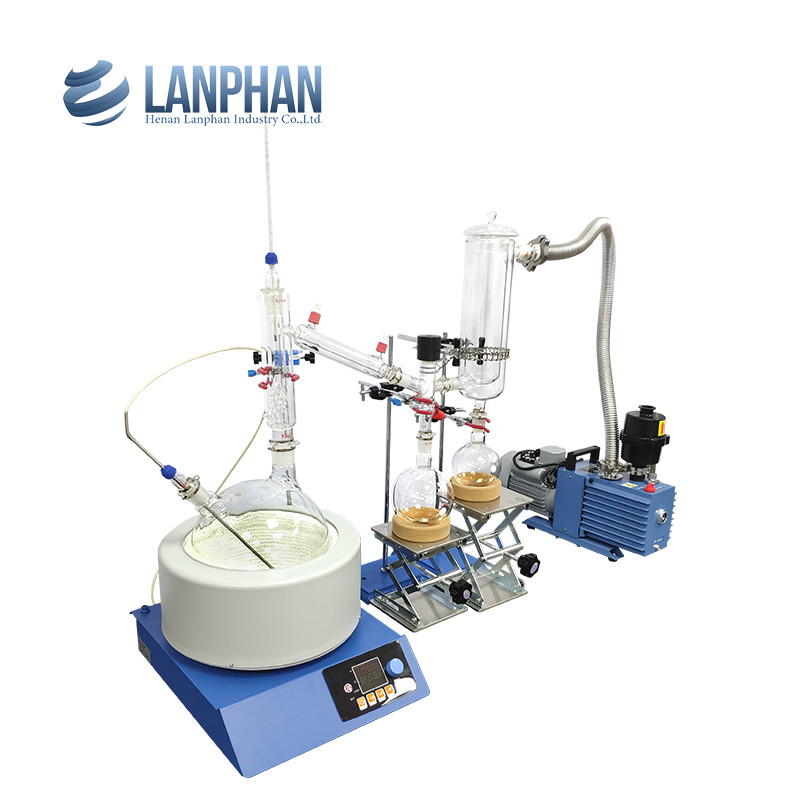

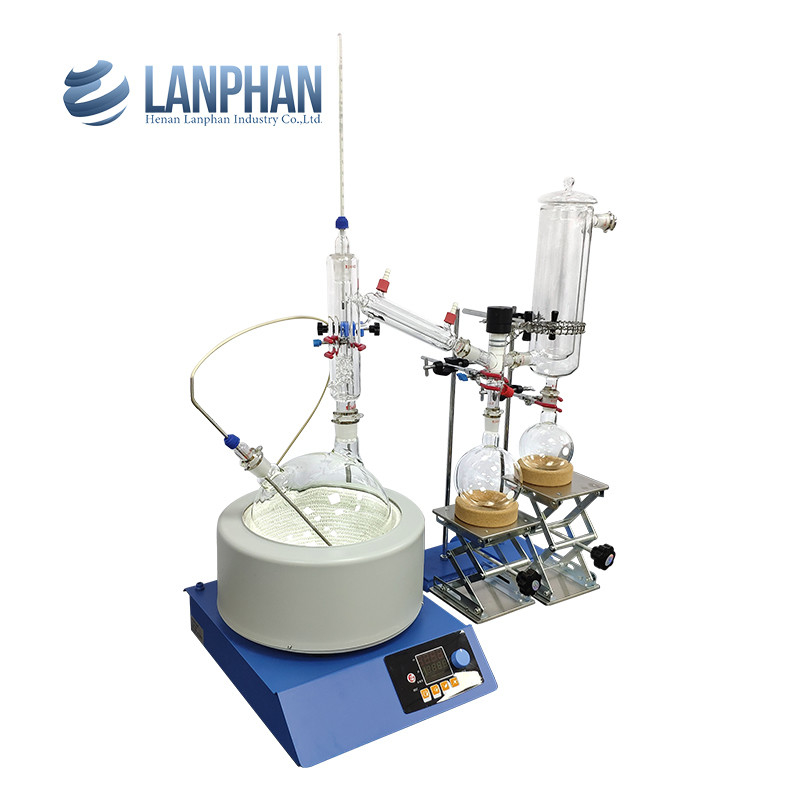

Electric Lab Oil Short Path Distillation Apparatus G3.3
Short Path Distillation of Specification
|
Model
|
SPD-2L
|
SPD-5L
|
SPD-10L
|
SPD-20L
|
|
|
Material
|
Borosilicate Glass 3.3
|
||||
|
Heating Temperature
|
Ambient to 300℃
|
||||
|
Working Pressure
|
Around 5 Pa
|
||||
|
Distillation Vessel
|
Volume(L)
|
2
|
5
|
10
|
20
|
|
Size
|
2×24/40 joint
|
34/45 joint
24/40 joint |
24/40 joint
2×34/45 joint |
45/50 joint
2×29/42 joint |
|
|
Receiving Vessel
|
Volume(ML)
|
2×500 ml
|
1×500ml
1×1000ml |
2×1000ml
2×2000ml |
2×2000ml
2×5000ml |
|
Size
|
24/40 joint
|
24/40 joint
|
24/40 joint
|
29/42 joint
|
|
|
Cold Trap
|
Dry Ice Volume(L)
|
1 L
|
2 PCS×1L
|
||
|
Heating Mantle
|
Heating Power (w)
|
650
|
1100
|
2100
|
3000
|
|
Heating Power (w)
|
50-1800
|
||||
|
Motor Power (w)
|
40
|
||||
|
Vacuum pump
|
Pumping Rate(L/S)
|
2
|
4
|
4
|
6
|
|
Cooling Circulator
|
Cooling Temperature
|
-10℃~85℃
|
|||
|
General
|
Voltage
|
110V 60HZ or 220V 50/60HZ,1 Phase
|
|||
Short Path Distillation Description
As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.
Short Path Distillation Introduction
The electronic contacting thermodetector is adopted, which is sensitive, fast and accurate. The temperature display is more intuitive, with the functions of maximum, minimum, average, unit conversion and HD backlight.
The digital electronic vacuum gauge is adopted, with a large screen for displaying intuitively at real-time. It has the accurate range and different interfaces suitable for various occasions, which is easy to operate.
The distiller adopts the special design of anti-backflow, which can effectively prevent the reflux of condensate, such as the reaction flask. The increased diameter of the distiller can speed up the reaction and distillation and save time.
The spool of the PTFE vacuum valve is made of PTFE material, which is corrosion resistance and more convenient to open and close. It is convenient to regulate the vacuum degree in the reaction chamber by increasing the pressure relief interfaces.
Short Path Distillation Features
A large quantity of distillation;
Heat and high temperature resistance;
Excellent sealing performance;
High transparency;
Steady and firm material;
Intelligent temperature control, and magnetic stirring.
