-60°C 12–14kg/Batch Small Commercial Freeze Dryer Lyophilizer for Food Preservation

-60°C 12–14kg/Batch Small Commercial Freeze Dryer Lyophilizer for Food Preservation

-60°C Freeze Dryer

12–14kg/Batch Lyophilizer

Small Commercial Vacuum Freeze Dryer

Place of Origin:

China,Henan

Brand Name:

Lanphan

Certification:

CE

Model Number:

HFD-9

Contact Us
Request A Quote
Product Details
Product Name:
Food Freeze Dryers For Home Use
Freeze-dried Area:
0.9㎡
Handling Capacity(KG / Batch):
12-14
Number Of Trays:
10 Pcs
Overall Power:
2300W
Capture Water Volume:
12KG/24H
Power Supply:
220V 50HZ(110V / 380V )
Cold Trap Coil Temperature:
<-55℃ (no-load)
Highlight:

-60°C Freeze Dryer

,

12–14kg/Batch Lyophilizer

,

Small Commercial Vacuum Freeze Dryer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$4038/ set
Packaging Details
Wooden Box or Customized Packing
Delivery Time
3-7 work days
Payment Terms
L/C,T/T,Paypal...
Supply Ability
100 Sets per Month
Product Description
-60°C HFD-9 12–14kg/Batch Small Commercial Freeze Dryer Machine for Food
Commercial freeze dryer machine in operation
Commercial Freeze Dryer Applications

A freeze dryer is a specialized drying device that preserves nutrients and flavors through freeze drying technology. The system consists of four main components: drying chamber, vacuum pump, heat source, and condenser.

Freeze dryer applications in various food industries

This commercial freeze dryer is suitable for both home and commercial applications. It effectively processes yogurt, milk, soups, meat sauces, porridge, and various other food products. Ideal for preparing baby food and pet meat snacks, the resulting freeze-dried products are portable and perfect for camping, picnics, and outdoor activities.

Commercial Freeze Dryer Key Advantages

This commercial freeze dryer offers significant benefits for food preservation and processing:

  • Minimizes waste and extends food shelf life up to 25 years
  • Preserves highest nutritional value, appearance, and taste
  • Healthy, additive-free processing suitable for babies and pets
  • Versatile applications for fruits, vegetables, dairy products, meats, and prepared foods
  • Easy operation with automatic drying cycle completion
  • Cost-effective compared to purchasing pre-freeze-dried products
  • Ready-to-eat convenience for immediate use

Stainless steel tray and chamber constructionCompact structure design of freeze dryerTransplex observation door for sample monitoring

Commercial Freeze Dryer Technical Specifications
Technical diagram of freeze dryer components
Parameter Specification
Model HFD-9 Commercial Freeze Dryer
Tray Space 0.9m²
Cold Trap Temperature -55°C
Ultimate Vacuum <2Pa
Power Supply 220V/50HZ (customizable to 110V or 380V)
Processing Capacity 12-14 kg/batch
Material Tray Size 200 × 425mm
Number of Trays 10 pieces
Layer Spacing 35mm
Water Capture Volume 12KG/24H
Overall Power 2300W

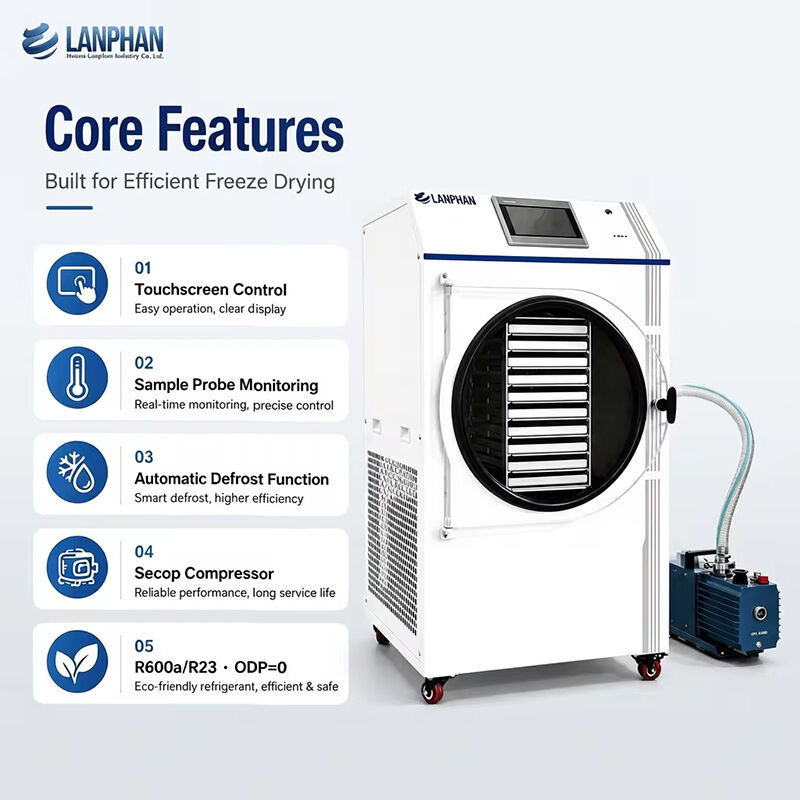

  Commercial Freeze Dryer Details
Detailed view of freeze dryer components and construction
  • Compact structure design for easy maintenance and competitive pricing

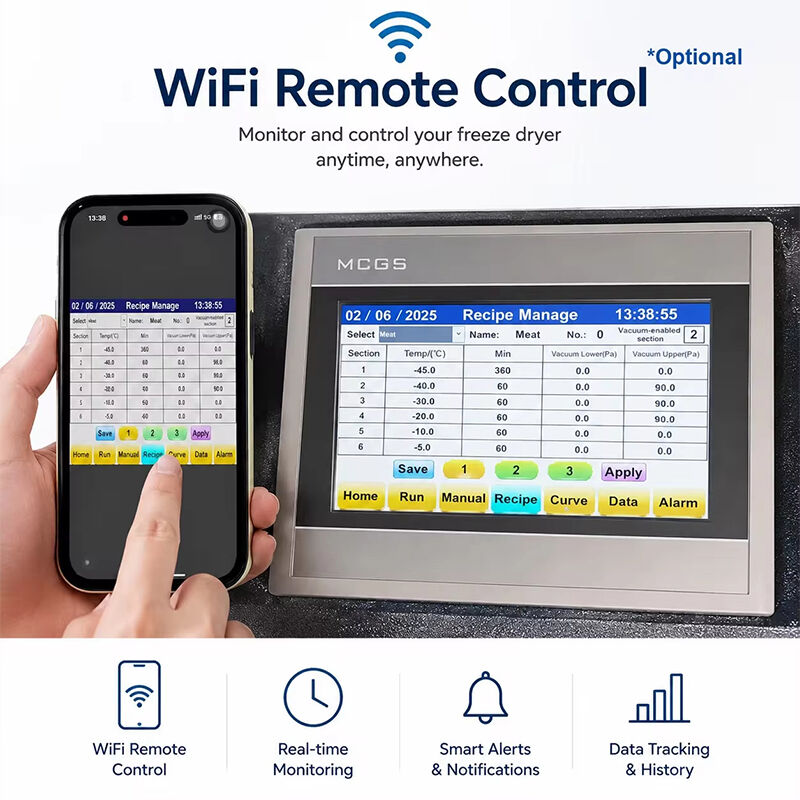

  • Fully automatic control system for simple operation
  • Multifunctional capability for various materials including food, fruits, vegetables, fish, and sea cucumbers
  • Energy-efficient design with electricity-only operation
  • Sturdy stainless steel sample trays and chamber for reliability and safety
  • Easy-to-clean surfaces and components
  • Transparent plexiglass door for direct observation of sample processing
