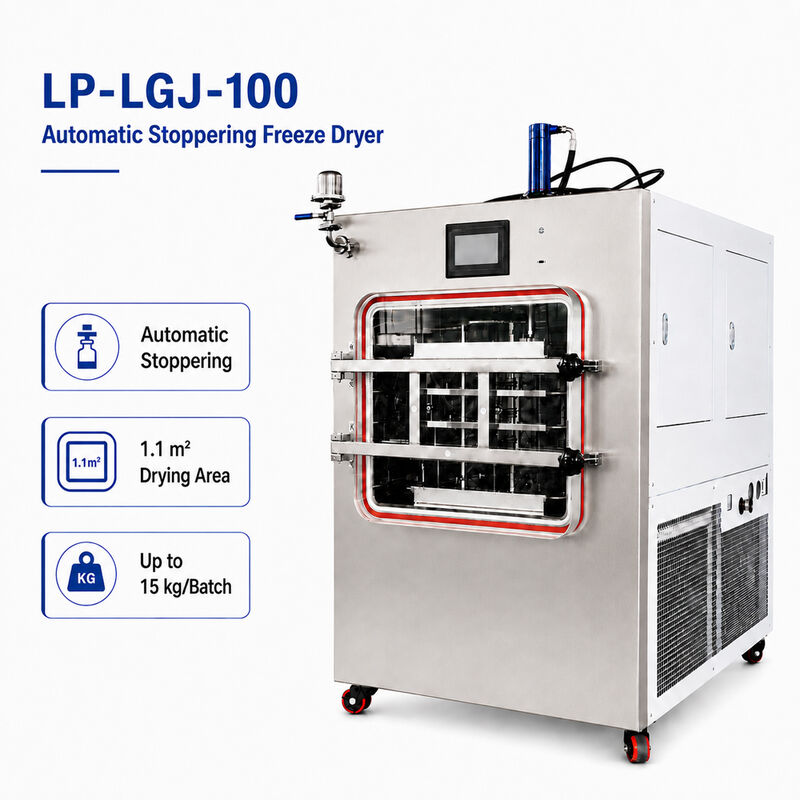

Name: 1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials
Brand: Henan Lanphan Industry Co.,Ltd
SKU: LGJ-100
Price: 21300 USD
Availability: InStock

Home > Products > Vacuum Freeze Dryer >

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

automatic hydraulic vacuum freeze dryer

oil heating freeze dryer for vials

1.1M2 stoppering freeze dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

LGJ-100

Request A Quote

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

Product Details

Type:

Pilot Freeze Dryer

Condition:

New

Capacity:

15kg/batch

Power(w):

7500W

Cold Trap Temperature:

-75℃

Vacuum Degree:

<10 Pa

Main Material:

SS304

After-sales Service Provided:

Online Support

Warranty:

One Year

Dimension(l*w*h):

1140x1720x1910mm

Weight:

742Kg

Highlight:

automatic hydraulic vacuum freeze dryer

oil heating freeze dryer for vials

1.1M2 stoppering freeze dryer

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$21300/unit

Packaging Details

wooden box package

Delivery Time

15 working days

Payment Terms

T/T

Supply Ability

5 units per month

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Get Best Price

-75℃ 15 kg/batch Pilot Freeze Dryer Automatic Hydraulic In-Situ Stoppering Lyophilizer

Get Best Price

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

Get Best Price

Video

Large Stainless Steel Food Freeze Dryer Fruit Flower Industrial Freeze Drying Machine

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

TECHNICAL SPECIFICATIONS

Freeze-Drying Area	1.1 m2
Condenser Temperature(No-load)	≤-75℃
Batch Capacity	15 kg/batch
Ultimate Vacuum (No-load)	< 10 Pa
Tray Size	470*600 mm
Number of Trays	4 trays
Tray Spacing	80 mm
Pumping Speed	15 L/s
Ice Capture Capacity	> 15 kg
Noise Level	<80 dB
Power	7500 W
Main Material	304 Stainless Steel
Power Supply	3-phase 5-wire 380V, optional 220V
Overall Dimensions	114017201910 mm
Net Weight	742 kg

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials

1:1 Industrial-Scale Process Scaling: Utilizes the same silicone oil circulation heating/cooling technology and fluid dynamics design found in production-grade freeze dryers, ensuring seamless process scale-up from R&D to the production line.
GMP/FDA 21 CFR Part 11 Compliance: Equipped with an industrial-grade PLC control system featuring comprehensive audit trails, multi-level access management, and tamper-proof electronic data export capabilities.
Superior Water Capture and Deep Vacuum: Features top-tier international brand refrigeration compressors; the condenser reaches temperatures as low as -75°C, delivering high water-capture efficiency and significantly shortening drying cycles.

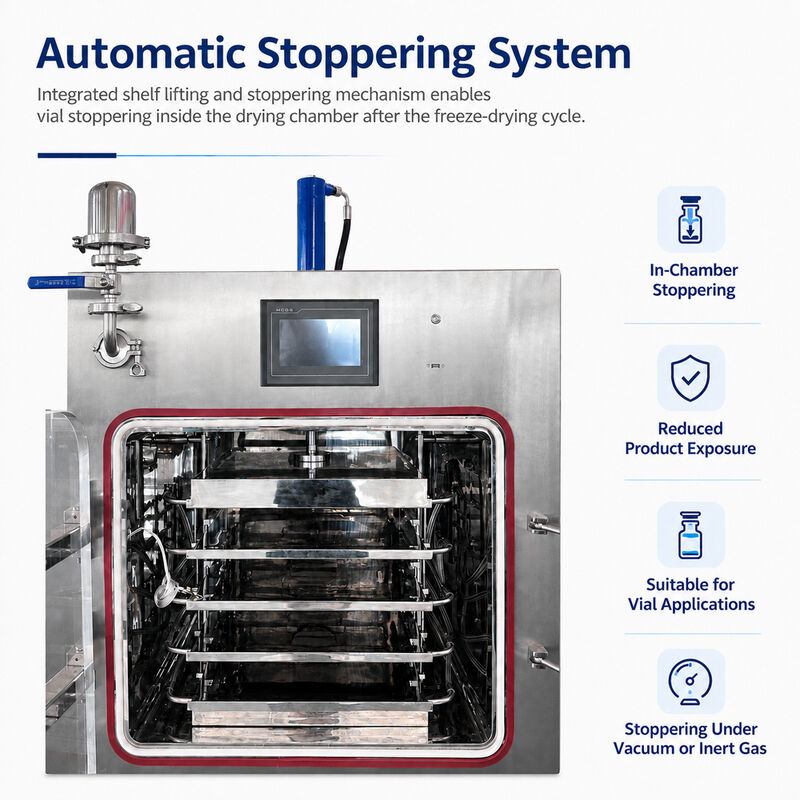

Sterile Stoppering and Sealing Protection: Integrates a high-precision hydraulic/pneumatic stoppering system capable of stoppering vials under vacuum or nitrogen protection, ensuring product sterility and preventing oxidation.

1.1M2 Automatic Hydraulic Stoppering Vacuum Freeze Dryer with Oil Heating for Vials
