Name: 60-70 Kg / Batch Food Vacuum Commercial Freeze Drying Machine Freeze Dryer Lyophilizer
Brand: Henan Lanphan Industry Co.,Ltd
SKU: HFD-50
Price: 12888 USD
Availability: InStock

Home > Products > Vacuum Freeze Dryer >

60-70 Kg / Batch Food Vacuum Commercial Freeze Drying Machine Freeze Dryer Lyophilizer

Batch Food Vacuum Freeze Drying Machine

Vacuum Commercial Freeze Drying Machine

Commercial Freeze Drying Machine

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

HFD-50

Request A Quote

Product Details

Type:

Freeze Dryer Lyophilizer

Condition:

New

Total Power:

7500W

Voltage:

220v/50Hz(can Be Customized 110V Or 380V)

Cold Trap Temperature:

-65℃

Capacity:

60~70kg/batch...

Material Tray Size:

490*540*30mm

Warranty:

1 Year

After-sales Service Provided:

Online Support

Weight:

820KG

Application:

Food, Fruit, Vegetable...

Highlight:

Batch Food Vacuum Freeze Drying Machine

Vacuum Commercial Freeze Drying Machine

Commercial Freeze Drying Machine

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$12888/unit

Packaging Details

wooden box packing

Delivery Time

7-45 working days

Payment Terms

L/C, T/T, Paypal, Alipay...

Supply Ability

20 units per month

-45℃ 5-Tray 130l Blast Freezer For Meat And Chicken Shrimp Small Blast Freezer Factory Price

Get Best Price

Commercial Kitchen Equipment Quick Freezer Shock Freezing Machine Blast Freezer Manufacturer

Get Best Price

High Quality -45°C Shock Freezer Blast Chiller Quick Freezing Machine Blast Freezer for Food

Get Best Price

-45℃ 5 Trays Food Blast Chiller And Shock Freezer Blast Freezer For Meat Chicken Dough

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

60-70 Kg / Batch Food Vacuum Commercial Freeze Drying Machine Freeze Dryer Lyophilizer

Freeze Dryer Lyophilizer Parameter

Model	HFD-50
Tray space	5m2
Cold trap temperature	-70℃
Number of trays	18 pcs
Processing capacity	60 kg/batch -70 kg/batch
Material tray size	490mm540mm30mm
Power supply	220V /110V /380V
Layer Spacing	5cm
Overall power	7.5KW

Freeze Dryer Lyophilizer Application

60-70 Kg / Batch Food Vacuum Commercial Freeze Drying Machine Freeze Dryer Lyophilizer 3

Freeze Dryer Lyophilizer Advantages

1. The 9-tier freeze dryer with 18 trays provides ample space for freeze drying. Temperature sensors are installed on each tier and tray to ensure a constant temperature within a precise range.

2. The water chamber and drying chamber are separated to prevent cross-contamination from moisture or contaminants in the water chamber, maintaining product purity and quality. Furthermore, drying efficiency is enhanced by two independent temperature control and discharge systems, which can be adjusted as needed.

60-70 Kg / Batch Food Vacuum Commercial Freeze Drying Machine Freeze Dryer Lyophilizer 4

The water trap chamber and the drying chamber are separate.

1. Avoid cross contamination: Avoid the moisture or impurities in the water trap chamber to reverse pollute the materials in the drying chamber, so as to ensure the purity and quality of the product.

2.Improve drying efficiency: the drying chamber and the water capture chamber have independent temperature control systems and vacuum systems respectively, which canbe precisely regulated according to their respective needs.

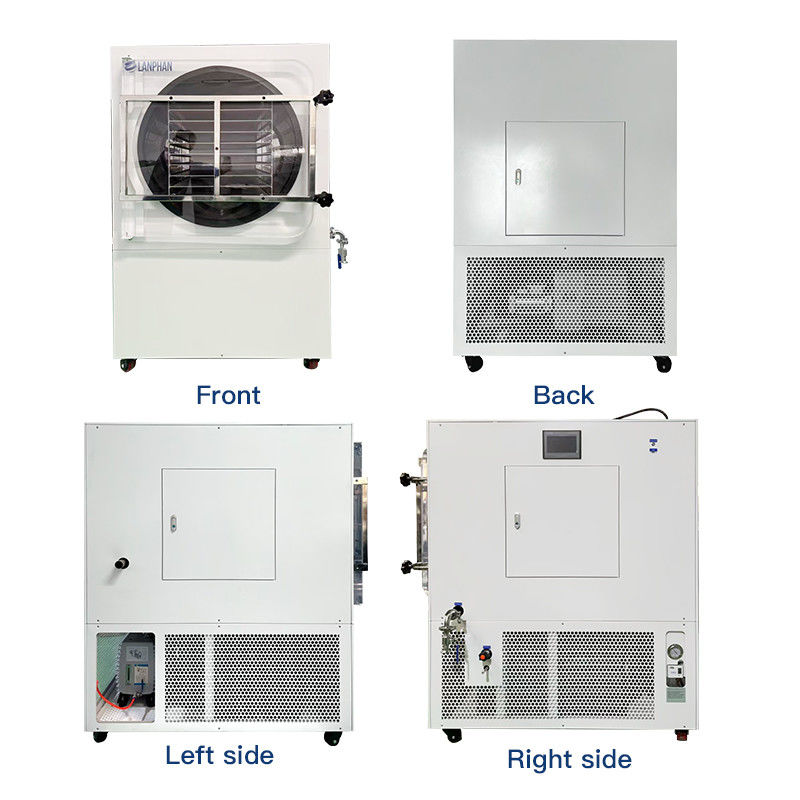

Freeze Dryer Lyophilizer Details

60-70 Kg / Batch Food Vacuum Commercial Freeze Drying Machine Freeze Dryer Lyophilizer 6
