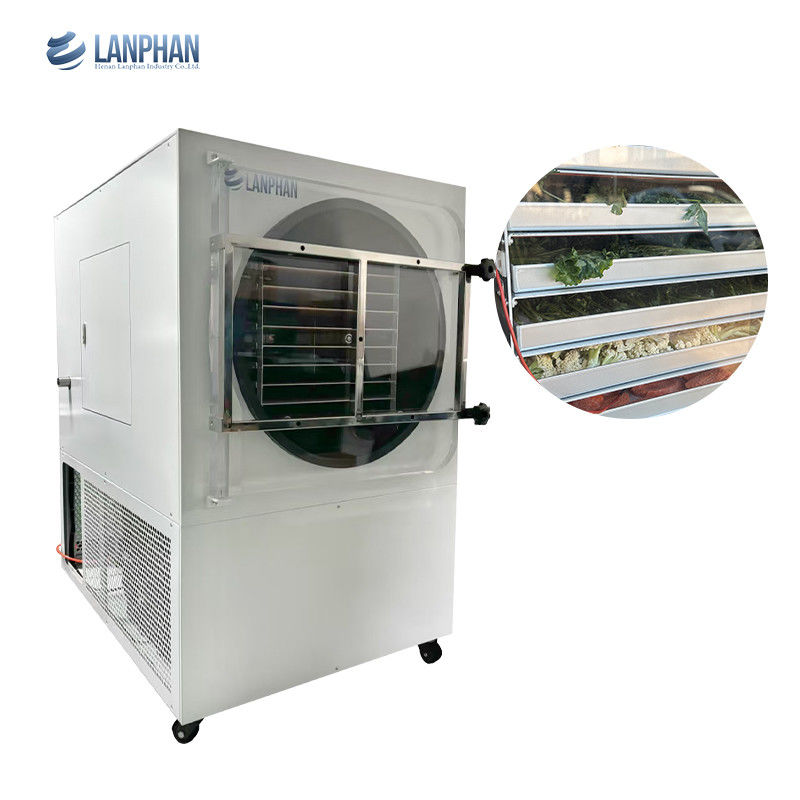

Name: 5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment
Brand: Henan Lanphan Industry Co.,Ltd
SKU: HFD-50
Price: 17999 USD
Availability: InStock

Home > Products > Vacuum Freeze Dryer >

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

5m2 Freeze Dryer

Small Commercial Freeze Dryer

18 Trays Freeze Dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

Model Number:

HFD-50

Request A Quote

Product Details

Type:

Commercial Freeze Drying Equipment

Total Power:

7500W

Voltage:

220v(can Be Customized 110V Or 380V)

Cold Trap Temperature:

-70℃

Capacity:

60~70kg/batch

Material Tray Size:

490mm*540mm*30mm

Warranty:

12 Months

Weight:

820KG

Application:

Fruit, Vegetable,candy,herb,liquid...

Highlight:

5m2 Freeze Dryer

Small Commercial Freeze Dryer

18 Trays Freeze Dryer

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$17999/unit

Packaging Details

wooden box packing

Delivery Time

7-45 working days

Payment Terms

L/C, T/T, Paypal, Alipay...

Supply Ability

25 units per month

5M2 Strawberries Fruit Drying Machine Commercial Freeze Dryer for Pet Food Preservation

Get Best Price

Video

50-70kg Freeze Dryer Fish Beef Chicken Milk Shirp Egg Vacuum Freeze Dryer Drying Machine

Get Best Price

Video

Lager Capacity 60kg 70kg Industrial HFD-50 Vacuum Freeze Dryer Lyophilizer for Food Processing

Get Best Price

Video

Large Scale HFD-50 Vacuum Freeze Dryer 18 Trays 60KG 70KG Lyophilizer Drying Equipment

Get Best Price

+8613783661974

yang@lanphan.com

Contact Now

Product Description

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment

Commercial Freeze Drying Equipment Parameter

1. The 9-layer freeze dryer with 18 trays offers ample freeze-drying space. Temperature sensors are installed on each floor to ensure that the temperature of each layer and tray can be maintained within a specified temperature range.

2. The water trap and drying chamber are separated. This not only prevents cross-contamination by preventing back-contamination of materials in the drying chamber from moisture in the water trap or contaminants, but also protects product purity and quality, increasing drying efficiency. It features independent temperature control and an adjustable vacuum system to meet specific needs.

Model	HFD-50
Tray space	5m2
Processing capacity	60-70 kg/batch
Number of layers	9
Layer Spacing	50mm
Number of trays	18pcs
Material tray size	49054030mm
Power supply	220V/50HZ can be customized 110V or 380V
Overall power	7500W
Cold trap temperature	-65ºC
Machine size	165014002000mm
Weight	820kg

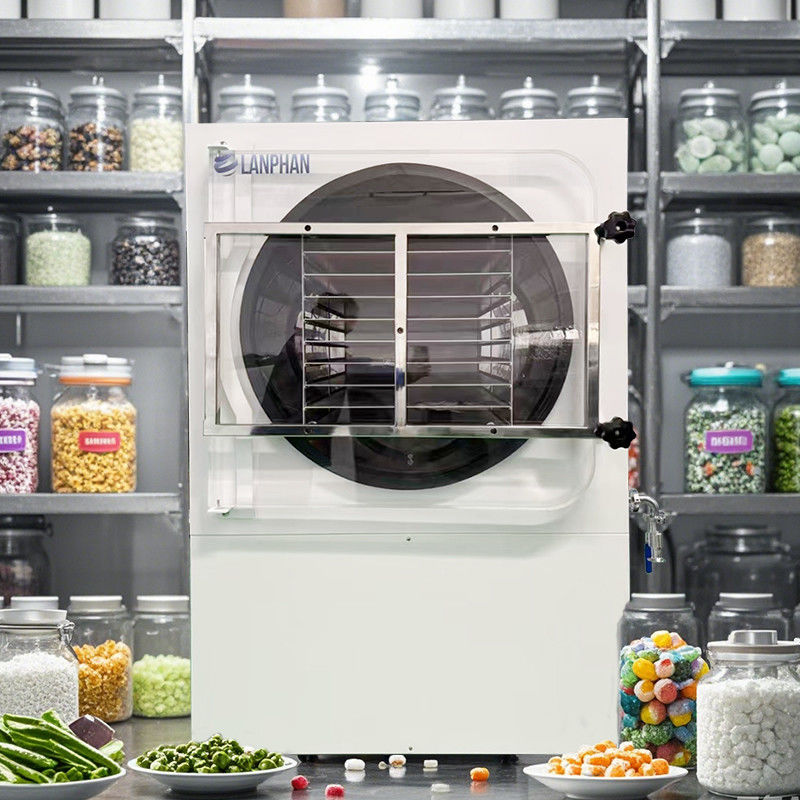

Commercial Freeze Drying Equipment Application

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment 1

Commercial Freeze Drying Equipment Advantages

1. Compact, modern appearance.

2. Transparent acrylic glass door for easy observation of the freeze-drying process.

3. Panel and liner made of SUS304 stainless steel, safe and stable.

4. Acrylic door with flexible hinges to ensure a level of vacuum.

5. Imported key components are low-noise, high-capacity, high-quality, and high-efficiency.

6. Touch screen operation allows one-button start and automatic control of the freeze-drying process, easy and convenient.

7. The freeze-drying process can be set and modified in real time. Freeze-drying data and freeze-drying curves can be displayed.

8. Advanced system, low operating current, and low energy consumption.

9. Rapid one-button defrosting technology with automatic overheating protection.

10. Low-noise commercial vacuum pump. (Oil-free vacuum pump is optional.)

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment 3

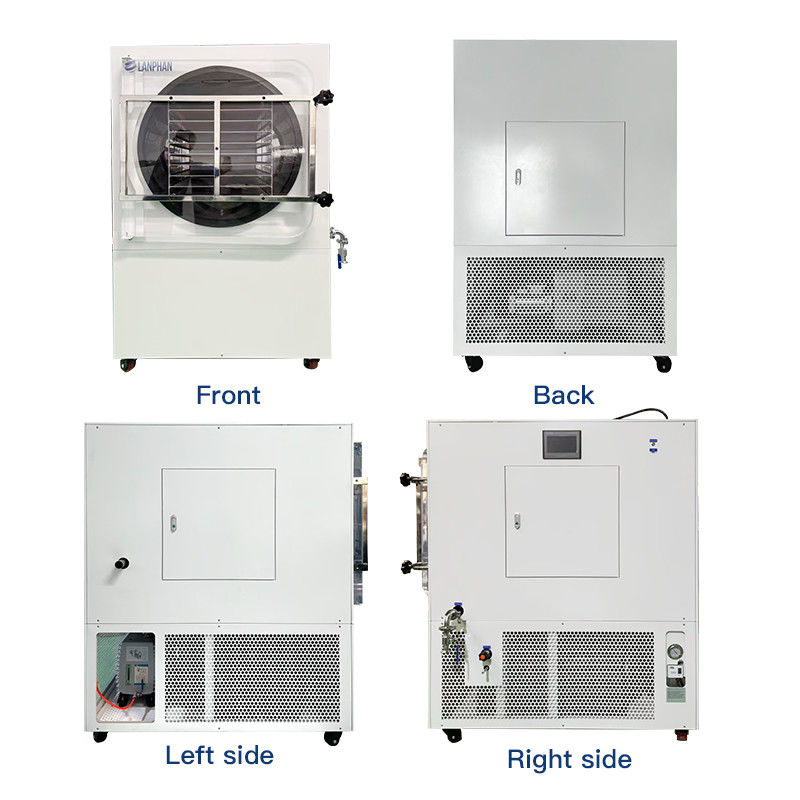

Commercial Freeze Drying Equipment Details

5m2 18 Trays Vacuum Lyophilizer Freeze Dryer Small Commercial Freeze Drying Equipment 6
