Home > Products > Vacuum Freeze Dryer >
Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment

Vegetable Freeze Dryer

Vacuum Freeze Drying Equipment

Double Compressor Freeze Dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

contact us

Model Number:

HFD-50

Contact Us
Request A Quote
Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment
Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment
Product Details
Type:
Vacuum Freeze Drying Equipment
Condition:
New
Total Power:
7.5KW
Voltage:
220v/50Hz(can Be Customized 110V Or 380V)
Cold Trap Temperature:
-70℃
Capacity:
60kg/batch~70kg/batch
Material Tray Size:
490mm*540mm*30mm
Warranty:
12 Months
After-sales Service Provided:
Online Support
Weight:
850KG
Application:
Food, Fruit, Vegetable...
Highlight:

Vegetable Freeze Dryer

,

Vacuum Freeze Drying Equipment

,

Double Compressor Freeze Dryer

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
$18000/unit
Packaging Details
wooden box packing
Delivery Time
10-46 working days
Payment Terms
L/C, T/T, Paypal, Alipay...
Supply Ability
30 units per month
RELATED PRODUCTS
Good price 5M2 Strawberries Fruit Drying Machine Commercial Freeze Dryer for Pet Food Preservation online Video

5M2 Strawberries Fruit Drying Machine Commercial Freeze Dryer for Pet Food Preservation

Get Best Price
Good price 50-70kg Freeze Dryer Fish Beef Chicken Milk Shirp Egg Vacuum Freeze Dryer Drying Machine online Video

50-70kg Freeze Dryer Fish Beef Chicken Milk Shirp Egg Vacuum Freeze Dryer Drying Machine

Get Best Price
Good price Lager Capacity 60kg 70kg Industrial HFD-50 Vacuum Freeze Dryer Lyophilizer for Food Processing online Video

Lager Capacity 60kg 70kg Industrial HFD-50 Vacuum Freeze Dryer Lyophilizer for Food Processing

Get Best Price
Good price Large Scale HFD-50 Vacuum Freeze Dryer 18 Trays 60KG 70KG Lyophilizer Drying Equipment online Video

Large Scale HFD-50 Vacuum Freeze Dryer 18 Trays 60KG 70KG Lyophilizer Drying Equipment

Get Best Price
Contact Us
+8613783661974
yang@lanphan.com
Contact Now
Product Description

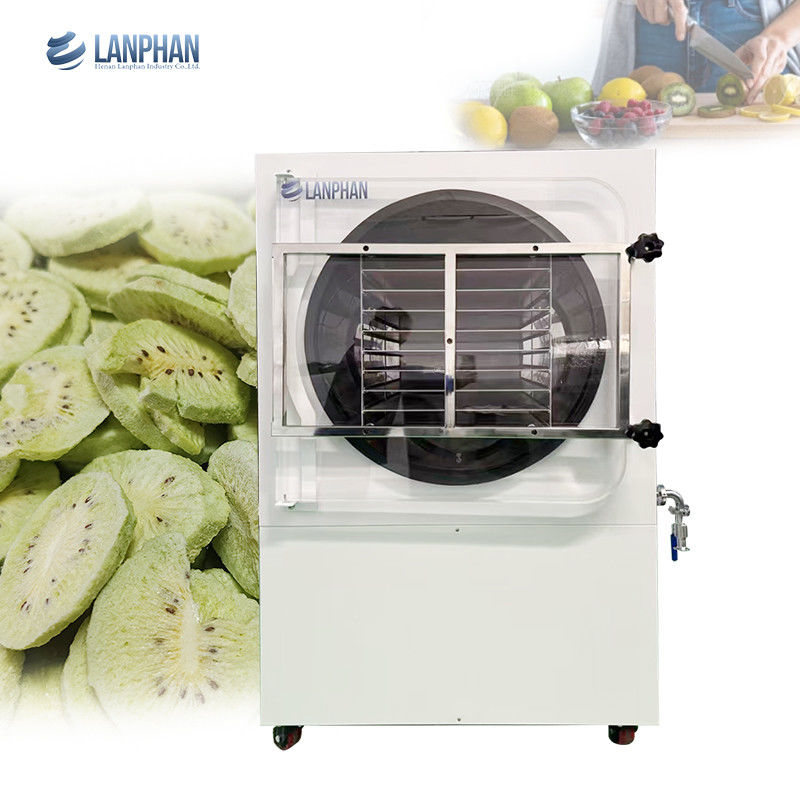

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment

Vacuum Freeze Drying Equipment​ Parameter

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 0

Model HFD-50
Tray space 5m2
Cold trap temperature -70℃
Number of trays 18pcs
Processing capacity 60-70 kg/batch
Material tray size 490*540*30mm
Power supply 220V/50HZ can be customized 110V or 380V
Layer Spacing 50mm
Overall power 7500W

Vacuum Freeze Drying Equipment​ Application

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 1Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 2

Vacuum Freeze Drying Equipment​ Advantages

The 9-layer freeze dryer machine with 18 trays provides sufficient freeze-drying space.
Each layer has a temperature probe to ensure that each layer and each tray can be in a precise temperature environment
Dual compressors
1. Lower condensing temperature: Lower condensing temperature can be achieved, which can be as low as-70 ℃.
2. Stronger refrigeration capacity: two compressors work together, more refrigeration power, faster refrigeration.
3. Higher system stability: Each compressor in the dual compressor system has an independent control system and protection device.
4. More accurate temperature control.

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 3Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 0Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 5

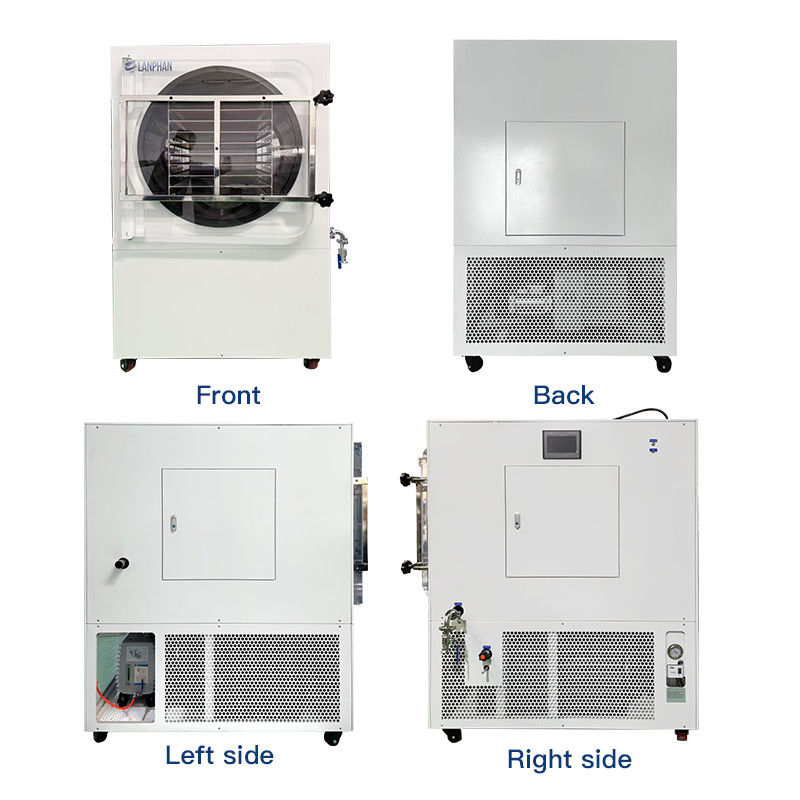

Vacuum Freeze Drying Equipment​ Details

1. Stylish appearance, small size and exquisite;
2. Transparent plexiglass door for easy observation of the lyophilization process;
3. SUS304 stainless steel material plate and liner, safe and secure;
4. Acrylic door with flexbile hinge to ensure vacuum degree
5. Import of key components, low noise, high capacity, high quality and high performance;
6. Touch screen operation, one-button start, automatic control of freeze-drying process, easy and convenient;

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 6

Vacuum Freeze Drying Equipment​ Factory

Double Compressor Vegetable Freeze Dryer Fruit Flower Vacuum Freeze Drying Equipment 7
