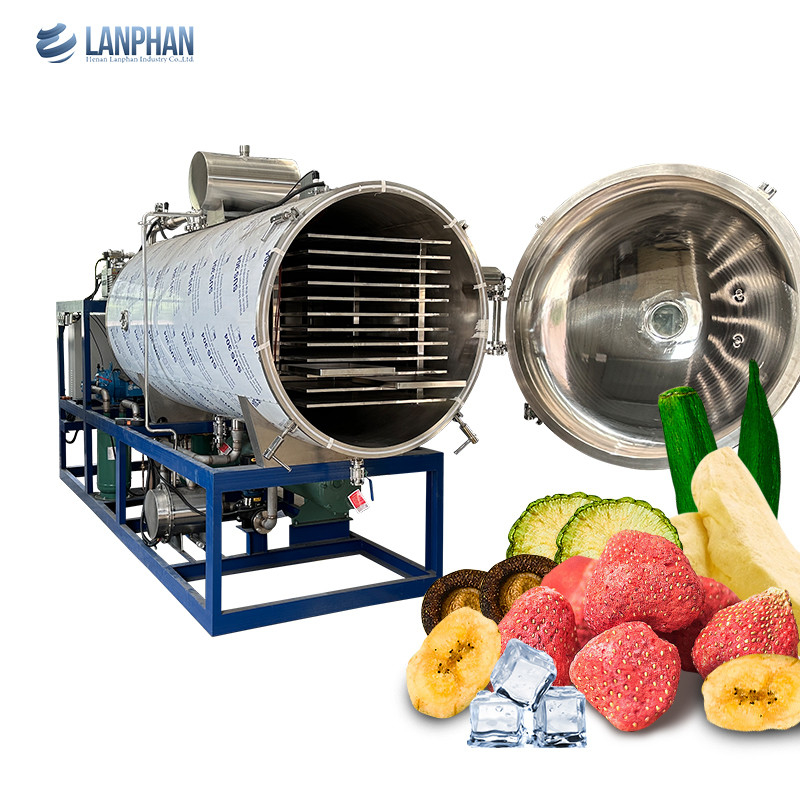

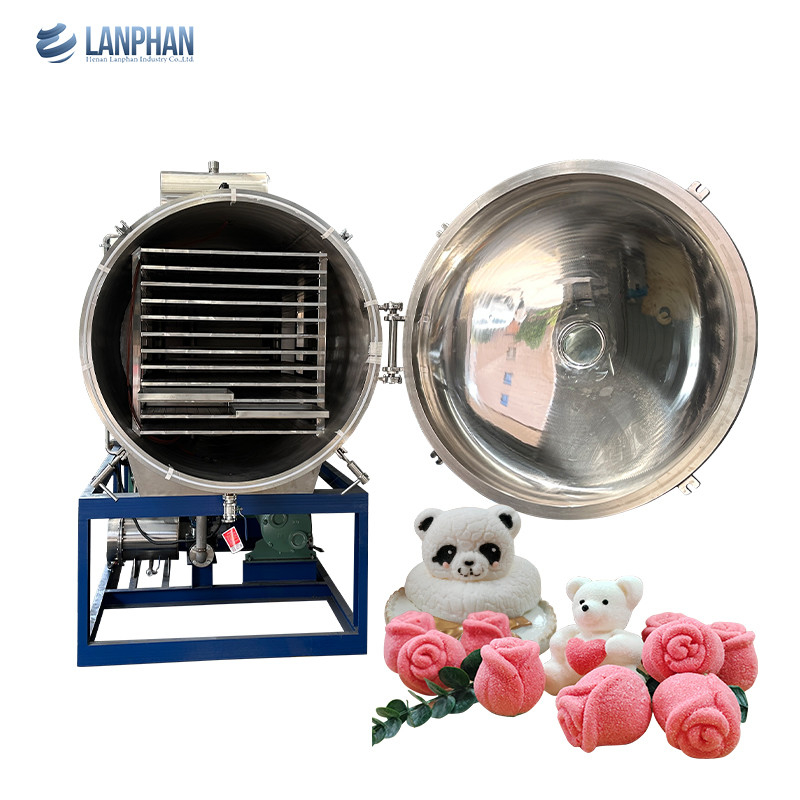

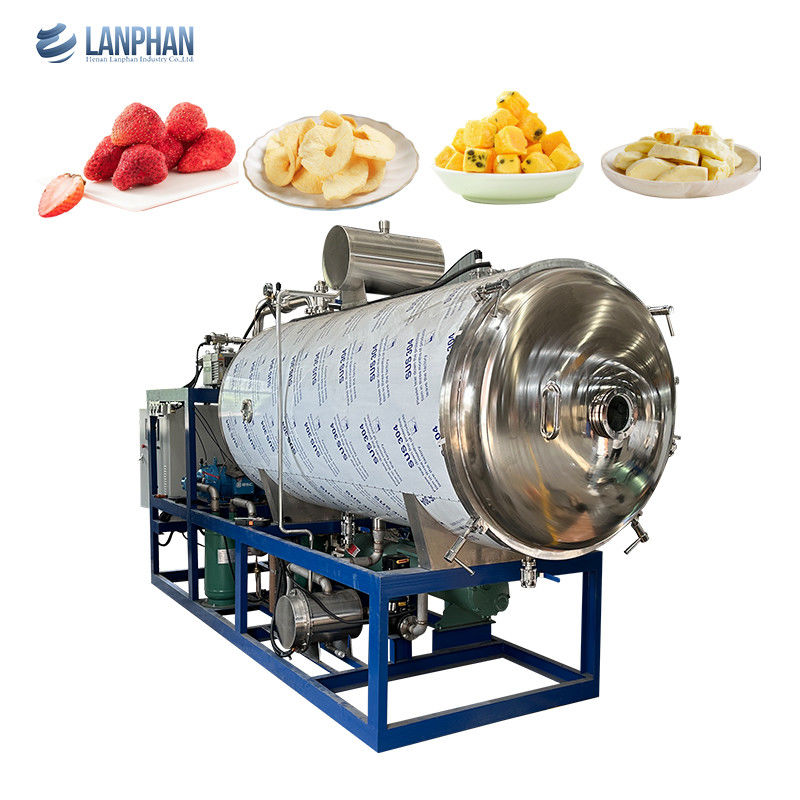

10 Trays Vacuum Freeze Dryer Machine Candy Fruit Tea Milk Food Freeze Dryers For Home Use
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 unit | Price : | $13000/unit |
|---|---|---|---|
| Packaging Details : | wooden box package | Delivery Time : | 15-30 working days |
| Payment Terms : | L/C, T/T，Alipay... | Supply Ability : | 5 units per month |
| Place of Origin: | Henan, China | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | contact us | Model Number: | LPFD |
|
Detail Information |
|||
| Product Name: | Industrial Freeze Drying Equipment | Total Power: | 12kw-170kw |
|---|---|---|---|
| Cold Trap Temperature: | -50℃~-60℃ | Capacity: | 10kg/batch... |
| After-sales Service Provided: | Online Support | Weight: | >1500KG |
| Application: | Biology, Pharmaceuticals, Food... | ||
| High Light: | Fruit Flower Freeze Drying Machine,Large Freeze Drying Machine,Industrial Freeze Drying Machine |
||
Product Description
| Model | LPFD-1 | LPFD-3 | LPFD-5 | LPFD-10 | LPFD-15 | LPFD-20 | LPFD-30 | LPFD-40 | LPFD-50 |
| Input quantity(kg/batch) | 10 | 30 | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| Usable shelf area(m2) | 1.1 | 3.1 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Shelf working t emperature (ºC) | -50~60ºC | ||||||||
| Shelf clearance(mm) | 80 | 70 | 75 | 70 | 85 | 70 | 80 | 75 | 80 |
| Shelf layer | 5+1 | 7+1 | 8+1 | 11+1 | 11+1 | 14+1 | 13+1 | 16+1 | 18+1 |
| Shelf number (pcs) | 6 | 8 | 9 | 12 | 12 | 15 | 14 | 17 | 19 |
| Temperature difference of shelf (ºC) | ±1ºC | ||||||||
| Condenser lowest temperature (ºC) | -50~-65ºC | ||||||||
| Condenser capacity (kg) | 15 | 45 | 75 | 150 | 225 | 300 | 350 | 550 | 600 |
| Cooling method | Water cooling or air cooling | Water cooling | |||||||
| Cooling water consumption (T/hr) | 5 | 5 | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Defrost water consumption (T/hr) | 1 | 1 | 2 | 3 | 5 | 5 | 5 | 5 | 8 |
| Defrost method | Spray and immersion | ||||||||
| Electric heating/Power | 3 kw | 4 kw | 8 kw | 16 kw | 20 kw | 24 kw | 28 kw | 32 kw | 32 kw |
| Operating environment | (Temperature)5ºC-30ºC (Moisture degree)<75% | ||||||||
| Total power | 12 kw | 16.55 kw | 22 kw | 60 kw | 64 kw | 74 kw | 101.2 kw | 120.2 kw | 170 kw |
