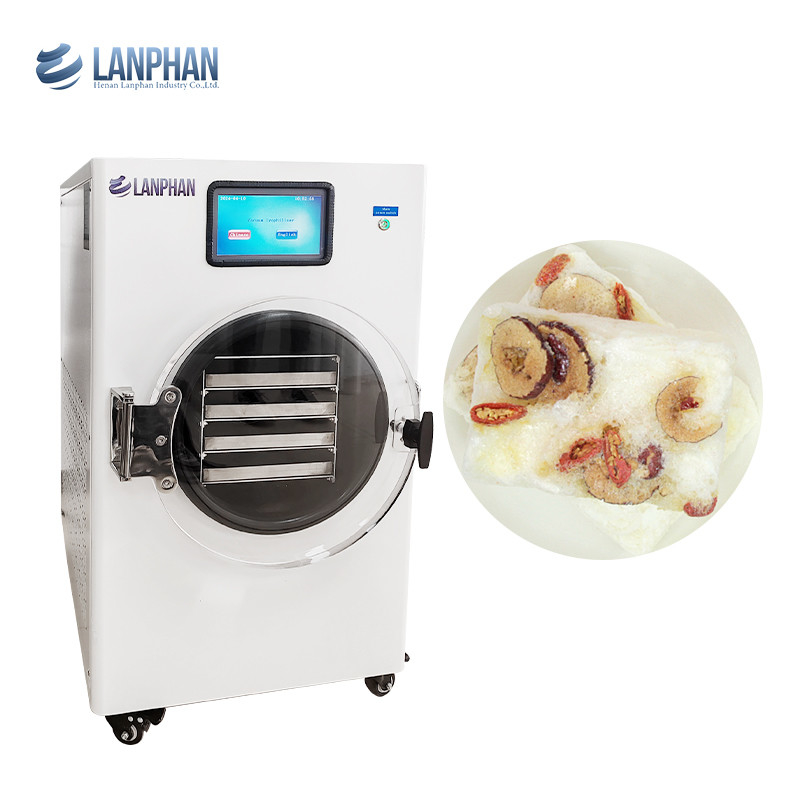

Freeze-dried Bird's Nest Freeze Drying Machine Freeze Drying In Pharmaceutical Industry

Minimum Order Quantity : 1 pc Price : $4500/pc
Packaging Details : wooden box packing Delivery Time : 7-10 work days
Payment Terms : T/T, Western Union, MoneyGram... Supply Ability : 600 pcs per month
Place of Origin: China Brand Name: Lanphan
Certification: CE Model Number: HFD-8

Detail Information

Name: Freeze Drying In Pharmaceutical Industry Power(w): 2.5KW
Application: Food Processing, Medicine Processing, Candy Processing... Freeze Drying Area: 1㎡
Warranty: 12 Months After-sales Service Provided: Online Service
Dimension(l*w*h): 875mmx825mmx1540mm Display: LCD Display
High Light:

Pharmaceutical Freeze Drying Machine

,

Bird's Nest Freeze Drying Machine

Product Description

Industrial Freeze Drying Machine Freeze Drying In Pharmaceutical Industry Food Industry

Main features

  • The machine adopts Danfoss compressor, rapid cooling
  • LCD screen control, easy to operation, and powerful function
  • The door of the drying chamber is made of colorless and transparent organic glass, allowing the entire freeze-drying process to be observed.
  • The vacuum pump adopts international standard KF quick connector connection.
  • Stable performance, easy operation and low noise.

Freeze drying in pharmaceutical industry application

Freeze-dried Bird's Nest Freeze Drying Machine Freeze Drying In Pharmaceutical Industry 0

Vacuum freeze drying technology, also known as sublimation drying, is a method of pre-freezing water-containing substances and sublimating the water under vacuum. The original biological and chemical properties of freeze-dried products remain basically unchanged and are easy to store for a long time. After adding water, it can be restored to the state before freeze-drying and maintain its original biochemical characteristics. Therefore, vacuum freeze-drying technology is widely used in medicine, food, chemical industry, biological products and other fields.

Freeze drying in pharmaceutical industry parameter

Freeze-dried Bird's Nest Freeze Drying Machine Freeze Drying In Pharmaceutical Industry 1

Product Model HFD-8
Freeze-dried area 1 M2
Processing capacity 10-12 kg/batch
Tray quantity 8pcs
Tray size(mm) 265*435*25
Spacing between partitions 40mm
Power(W) 2500
Ultimate vacuum 15Pa
Cold trap temperature ≤-40ºC
Temperature probe independent probe
Compressor French Danfoss brand
Frame Iron frame + Plastic spraying


Attentions

  1. Must use a grounded power outlet.
  2. Working environment temperature≤32℃, the humidity≤80%.
  3. After drying finished, open the vent valve to inflate air at first, then close the vacuum pump to prevent sample contaminated by the pump oil. If a sudden power outage, open the vent valve immediately, and take out the samples as soon as possible, properly stored.
  4. Keep the seal ring clean, and cannot Scrub with organic solvents.
  5. Replace the vacuum pump’s oil after working 100 hours, check and maintenance the pump regularly.
  6. Do not frequently switch power supply and refrigerator, If the refrigerator is shut down caused by operation, at least three minutes to wait, and then restart the refrigerator

Freeze drying in pharmaceutical industry details

8 Trays Freeze Dryer(Customized)
Added automatic defrosting function
Support to store 17 custom recipes
Smaller overall dimensionIndependent probe

Freeze-dried Bird's Nest Freeze Drying Machine Freeze Drying In Pharmaceutical Industry 2

High power vacuum pump
Pure copper motor, strong power
LCD touch screen
Multiple functions and easy to operation
Independent probe
Each of the floors has independent probes for temperature measurement
Auto defrosting
Fast defrosting function, more efficient
Glass doorappearance upgradea
Thickened see-through door for stronger sealing

Freeze drying in pharmaceutical industry Factory

Freeze-dried Bird's Nest Freeze Drying Machine Freeze Drying In Pharmaceutical Industry 3

Freeze drying in pharmaceutical industry product

Freeze-dried Bird's Nest Freeze Drying Machine Freeze Drying In Pharmaceutical Industry 4
