Tomato Milk Powder Centrifugal Spray Dryer 3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle

Tomato Milk Powder Centrifugal Spray Dryer 3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle

Tomato Milk Powder Centrifugal Spray Dryer

Centrifugal Spray Dryer 3000ml/H

Place of Origin:

China

Brand Name:

Lanphan

Model Number:

LPSD-3

Contact Us
Request A Quote
Product Details
Product Name:
Mini Spray Dryer
Type:
3L Two-fluid Mini Spray Dryer
Feeding way:
Peristaltic Pump
Electric Heating Power:
5KW
Power:
7kw/220v
Evaporated Water:
3000ml/h
Maximum Feed Quantity:
3000mL/h Adjustable
Feeding Mode:
Peristaltic Pump Regulation
Application:
Make Milk Powder
Highlight:

Tomato Milk Powder Centrifugal Spray Dryer

,

Centrifugal Spray Dryer 3000ml/H

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
$3650.00 - $3850.00/unit
Packaging Details
wooden box packing
Delivery Time
3-8 work days
Payment Terms
T/T, Western Union, MoneyGram...
Supply Ability
About 1000 Units/Month
Product Description

Tomato Milk Powder 3000ml/H Twin-Fluid Stainless Steel Mini Spray Dryer Nozzle

Mini Spray Dryer

Product name 3L Twin-Fluid Mini Spray Dryer
Air inlet temperature control 30~300℃
Air outlet temperature control 30~140℃
Evaporated water 3000ml/h
The largest feed rate 3000ml/h(adjustable)
Feeding way Peristaltic pump adjustment
Nozzle diameter 1.00mm/0.04inch (optional)
Dryer time 1.0 ~ 1.5 S
Total power 7KW /220V
Draught fan 0.55KW 100m³/h
Air compressor power 1.2KW 108L/min
Electric Heater Power 5KW
Package dimension (L*W*H) 800*800*1450(mm)/31.50*31.50*57.09(inch)
Package Weight 148KG(326.28lbs)



Mini Spray Dryer Main features:

  • The entire system is made of stainless steel, allowing the drying process to be carried out in a pollution-free environment.
  • Built-in oil-free air compressor, the particle size of spray powder is normally distributed, the fluidity is very good, and the noise is very low, less than 60db.
  • The particle size of the dried finished powder is relatively uniform.

Mini Spray Dryer Description

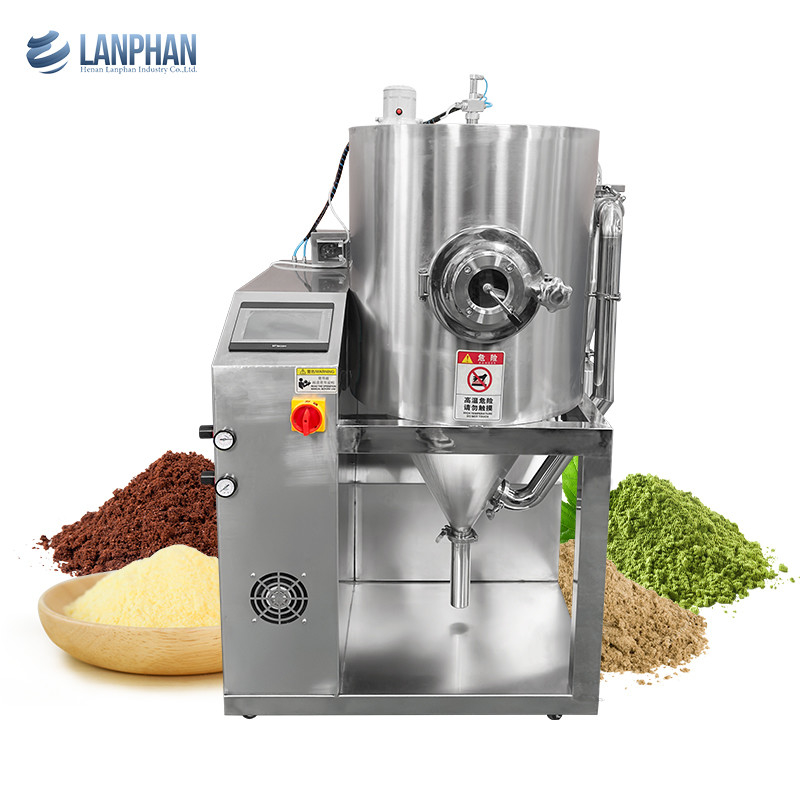

Tomato Milk Powder Centrifugal Spray Dryer  3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle 0

Mini Spray Dryer Structure

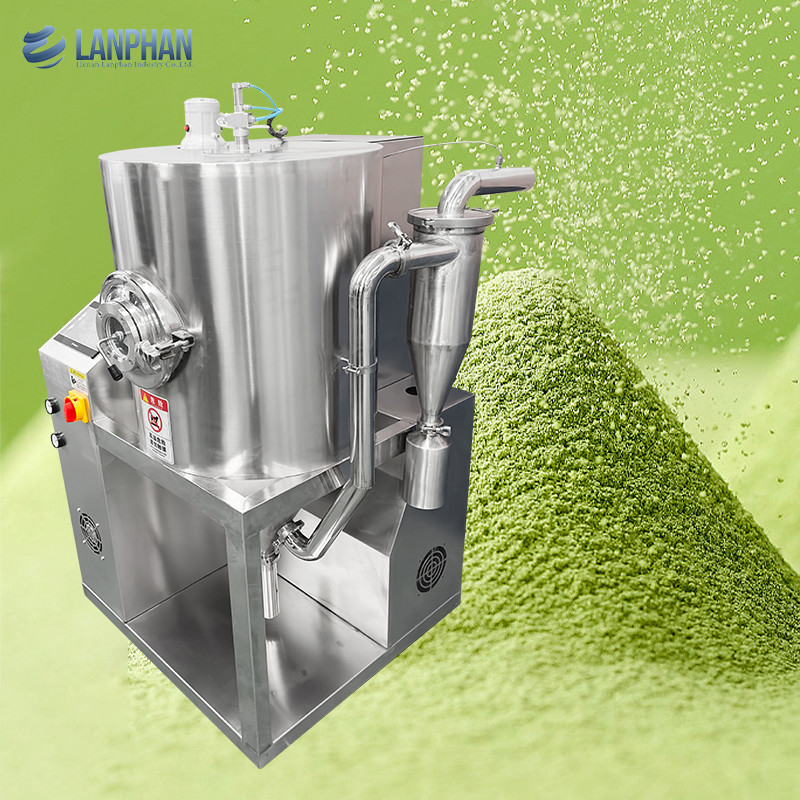

Tomato Milk Powder Centrifugal Spray Dryer  3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle 1

Mini Spray Dryer Details

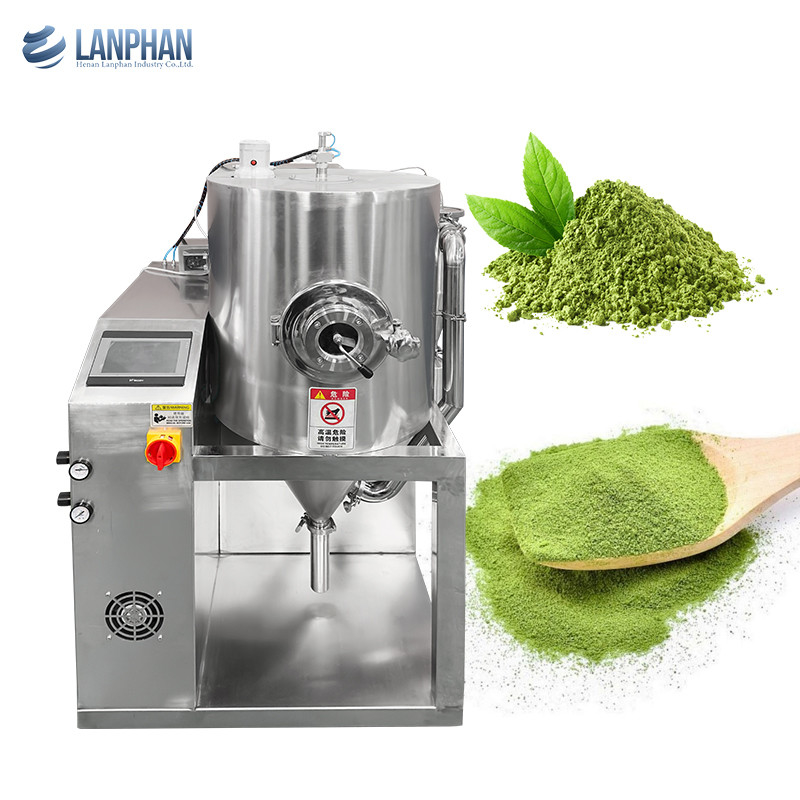

Tomato Milk Powder Centrifugal Spray Dryer  3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle 2

Mini Spray Dryer Application

Tomato Milk Powder Centrifugal Spray Dryer  3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle 3

Mini Spray Dryer Factory

Tomato Milk Powder Centrifugal Spray Dryer  3000ml/H Twin Fluid Stainless Steel Mini Spray Dryer Nozzle 4
