High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder

High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder

Lab Atomizer Food Spray Dryer Machine

Spray Dryer Machine For Milk Powder

Place of Origin:

China

Brand Name:

Lanphan

Model Number:

LPSD-3Pro

Contact Us
Request A Quote
Product Details
Product Name:
Food Spray Dryer
Type:
Centrifugal Food Spray Dryer
Feeding way:
Peristaltic Pump
Electric Heating Power:
6KW
Power:
7kw/220v
Maximum Nozzle Speed:
36000r/min Adjustable
Maximum Feed Quantity:
3000mL/h Adjustable
Minimum Feed Amoun:
50mL/h
Feeding Mode:
Peristaltic Pump Regulation
Application:
Make Milk Powder
Highlight:

Lab Atomizer Food Spray Dryer Machine

,

Spray Dryer Machine For Milk Powder

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
$5,200.00 - $6,500.00/unit
Packaging Details
wooden box packing
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
900 Units/Month
Product Description

High Speed Small Lab Atomizer Food Grade Spray Dryer Machine For Make Milk Powder

Food Spray Dryer



Product name 3L Milk Powder Centrifugal Spray Dryer
Air inlet temperature control 30~300℃
Air outlet temperature control 30~140℃
Evaporated water 1500ml/h~3000ml/h
The largest feed rate 3000ml/h(adjustable)
Feeding way Peristaltic pump adjustment
Nozzle speed 36000r/min(adjustable)
Nozzle diameter 1.00mm/0.04inch(optional)
Dryer time 1.0 ~ 1.5 S
Total power 7KW /220V
Draught fan 0.75KW 140m3/h
Electric Heater Power 6KW
Package dimension (L*W*H) 1100*900*1600(mm) / 43.31*35.43*62.99(inch)
Package Weight 150KG/330.69lbs



Food Spray Dryer Main features:

  • Wide range of use. Depending on the physical properties of the material, hot air drying or cold air modeling can be used. A large number of products with widely different characteristics can be produced by this machine. Commonly used types include the following types: polymers and resins, dyes, color pigments, ceramics, glass, herbicides, insecticides, carbohydrates Categories, dairy and egg products, mixed acids, slaughterhouse by-products, blood and fish products, detergents and surface detergents, fertilizers, organic compounds, inorganic compounds.
  • Dries quickly. After the material liquid is centrifugally sprayed, the surface area is greatly increased. In the high-temperature air flow, 95-98% of the water can be evaporated in an instant, and it takes more than ten seconds to complete the drying time. The production process is simplified and operation control is convenient. It can be dried into powdery products at one time. Most products do not need to be crushed and screened after drying, which reduces the production process, simplifies the production process, and improves the purity of the product.

Food Spray Dryer Description

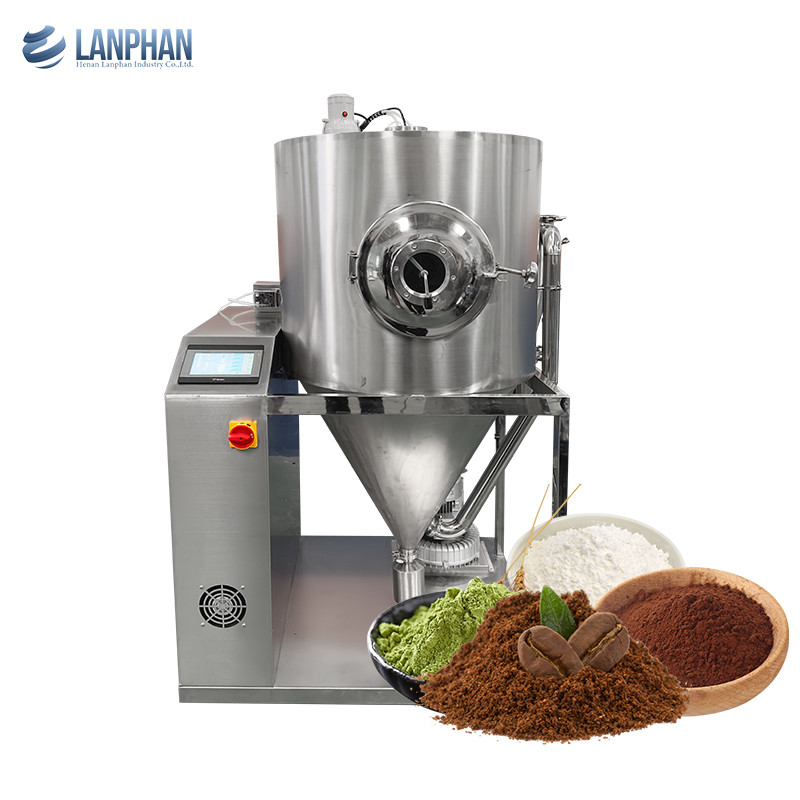

High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder 0

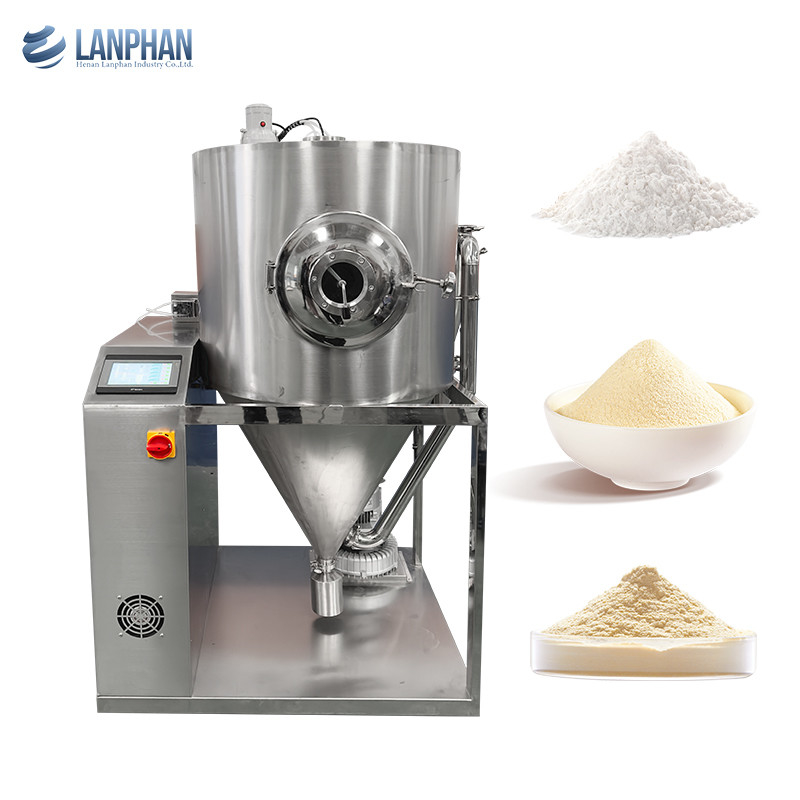

High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder 1

Food Spray Dryer Structure

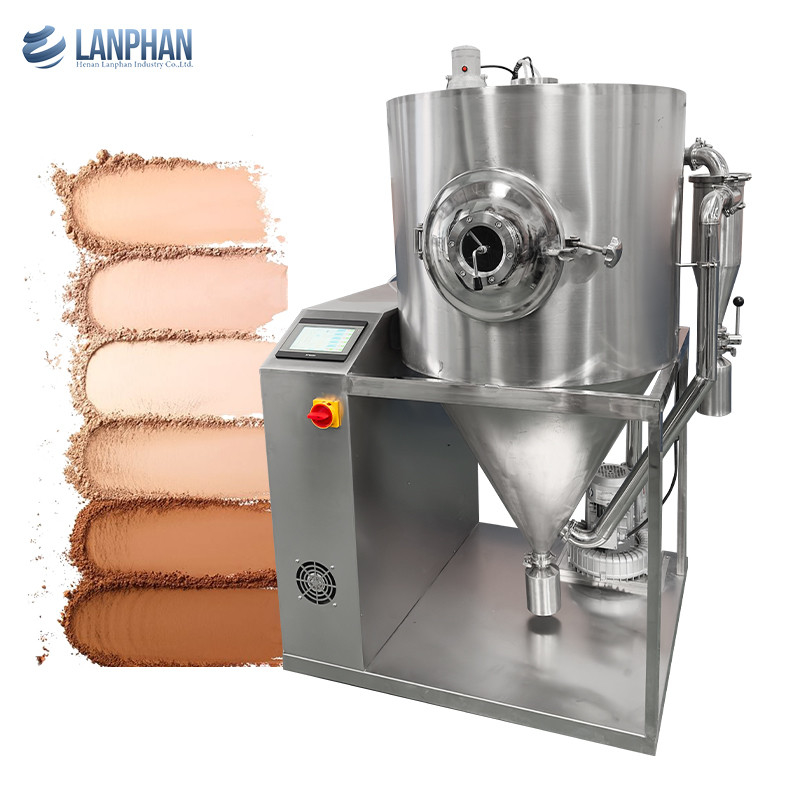

High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder 2

Food Spray Dryer Details

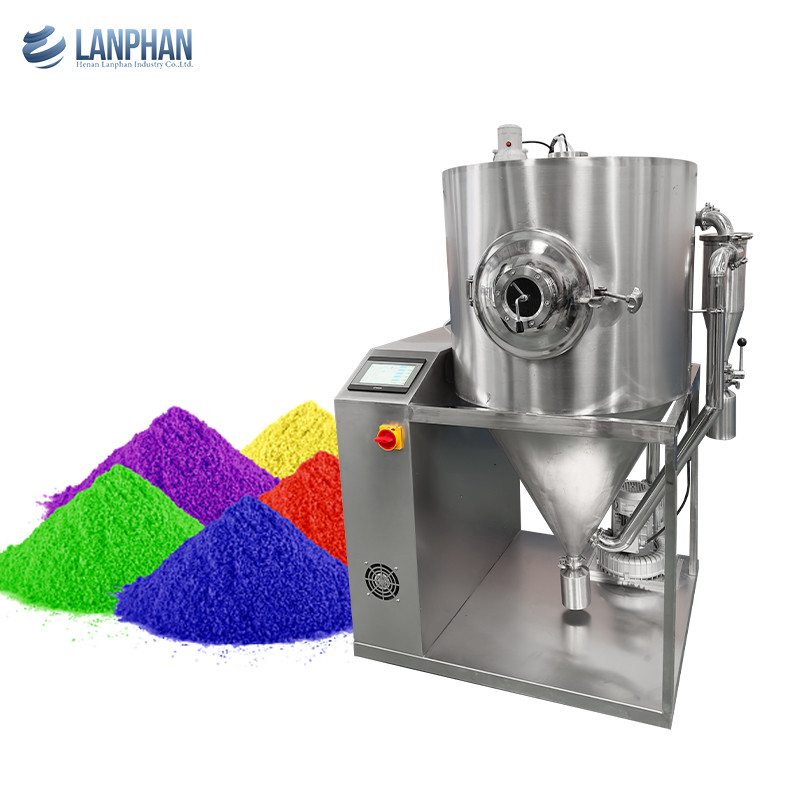

High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder 3

Food Spray Dryer Application

High Speed Small Lab Atomizer Food Spray Dryer Machine For Milk Powder 4
