Place of Origin:
China
Brand Name:
Lanphan
Model Number:
LPSD-3Pro

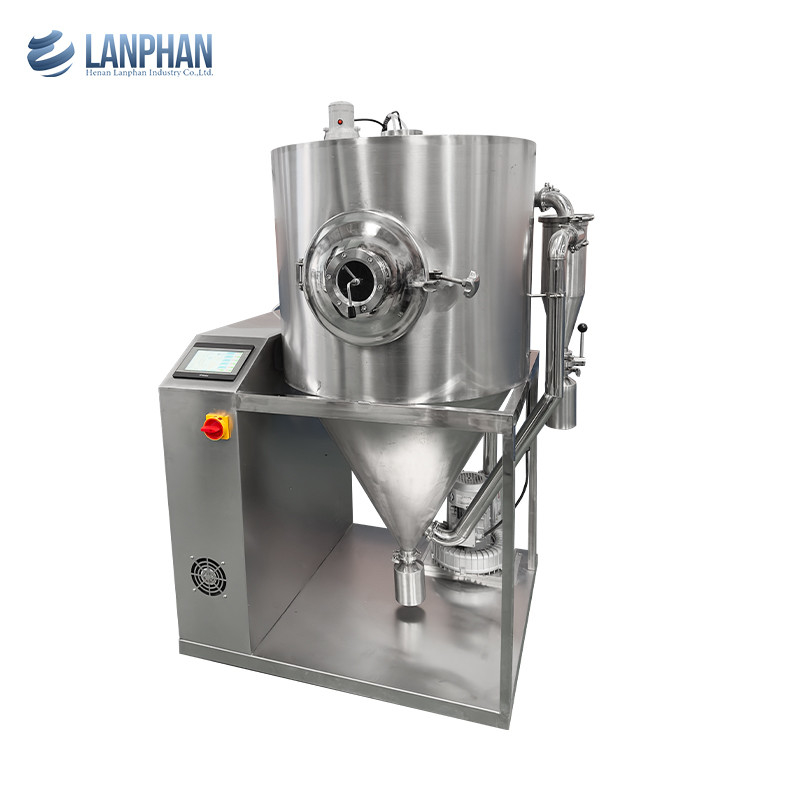

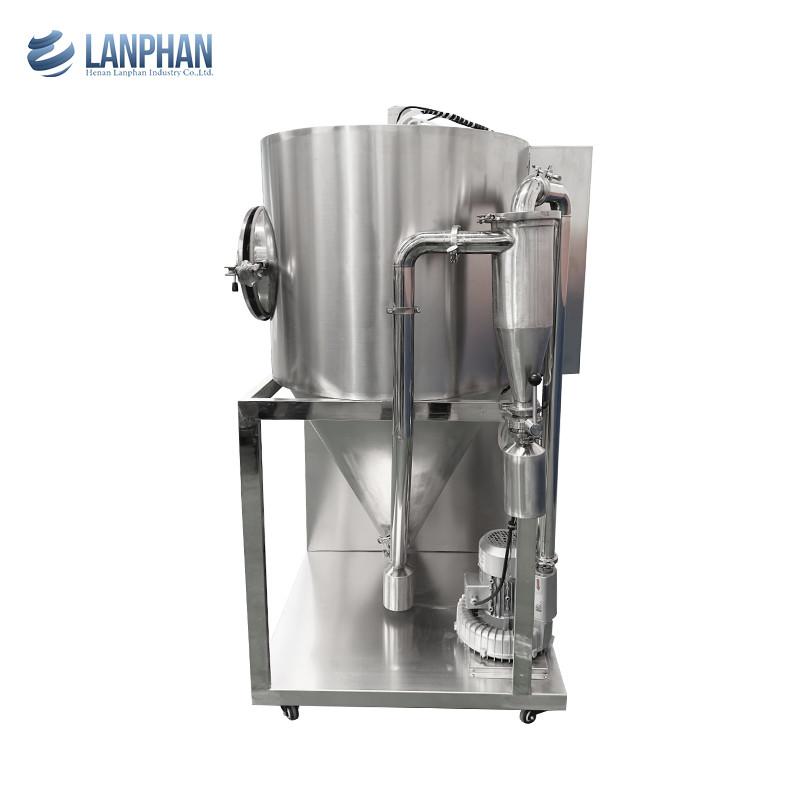

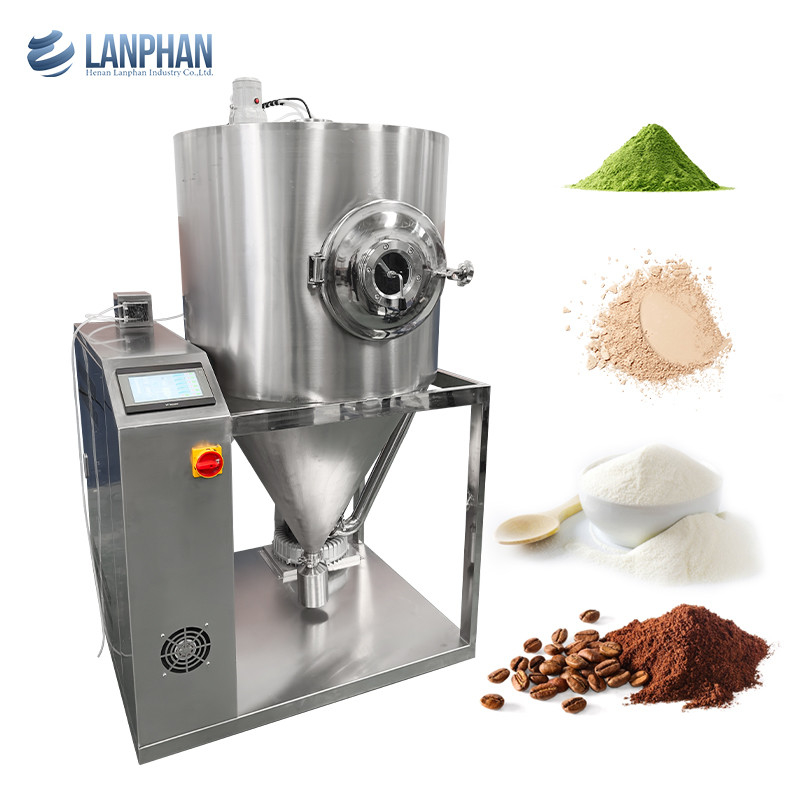

3L Stainless Steel 36000r/min Milk Powder Centrifugal Spray Dryer industrial
Centrifugal Spray Dryer
Product name | 3L Milk Powder Centrifugal Spray Dryer |
Air inlet temperature control | 30~300℃ |
Air outlet temperature control | 30~140℃ |
Evaporated water | 1500ml/h~3000ml/h |
The largest feed rate | 3000ml/h(adjustable) |
Feeding way | Peristaltic pump adjustment |
Nozzle speed | 36000r/min(adjustable) |
Nozzle diameter | 1.00mm/0.04inch(optional) |
Dryer time | 1.0 ~ 1.5 S |
Total power | 7KW /220V |
Draught fan | 0.75KW 140m3/h |
Electric Heater Power | 6KW |
Package dimension (L*W*H) | 1100*900*1600(mm) / 43.31*35.43*62.99(inch) |
Package Weight | 150KG/330.69lbs |
Working principle:
After the air passes through the filter and heating device, it enters the hot air distributor at the top of the drying chamber. The hot air passing through the hot air distributor enters the drying chamber evenly and rotates in a spiral shape. At the same time, the feed liquid is sent to the centrifugal spray head at the top of the drying chamber. The feed liquid is sprayed with effective mist droplets, which greatly increases the surface area of the feed liquid in contact with the hot air, quickly evaporates the moisture, and dry the finished product in a very short time. The finished product is collected by the collection cylinder at the bottom of the dryer, and the exhaust gas is discharged by a centrifugal fan.
Centrifugal Spray Dryer Description
Centrifugal Spray Dryer Structure
Centrifugal Spray Dryer Details

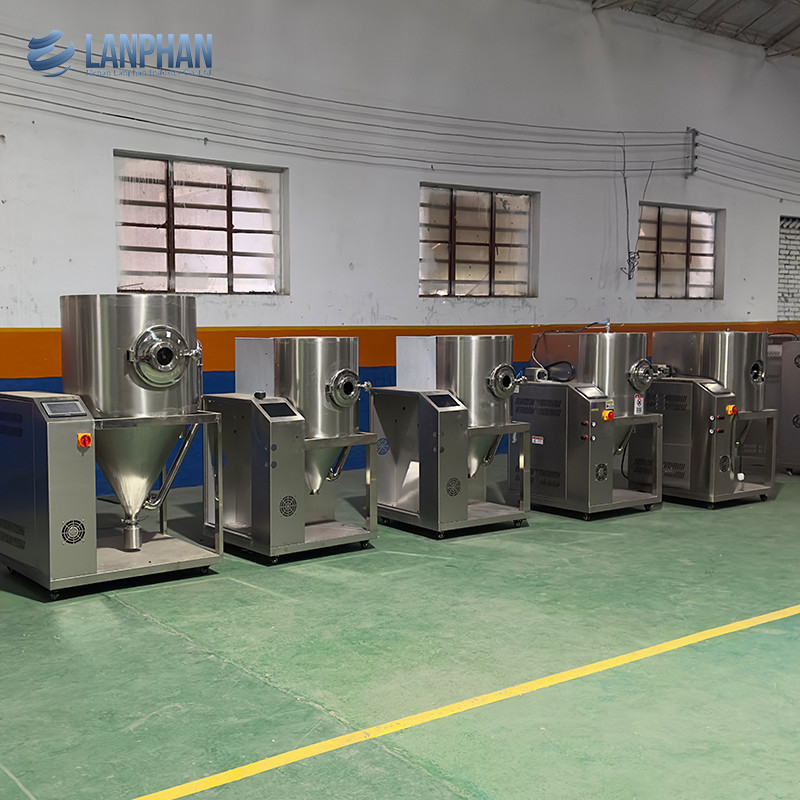

Centrifugal Spray Dryer Factory
