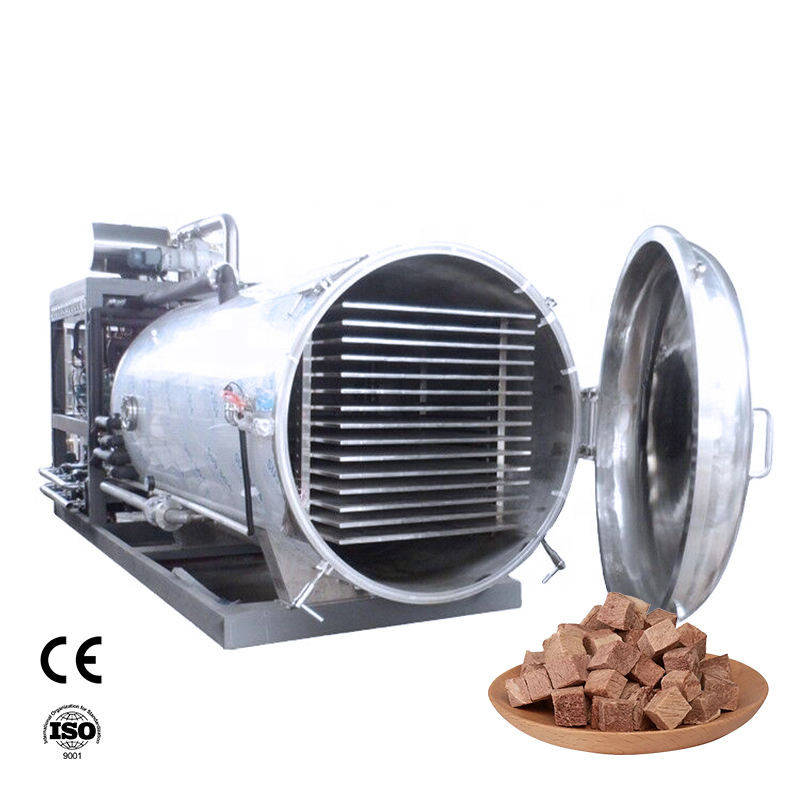

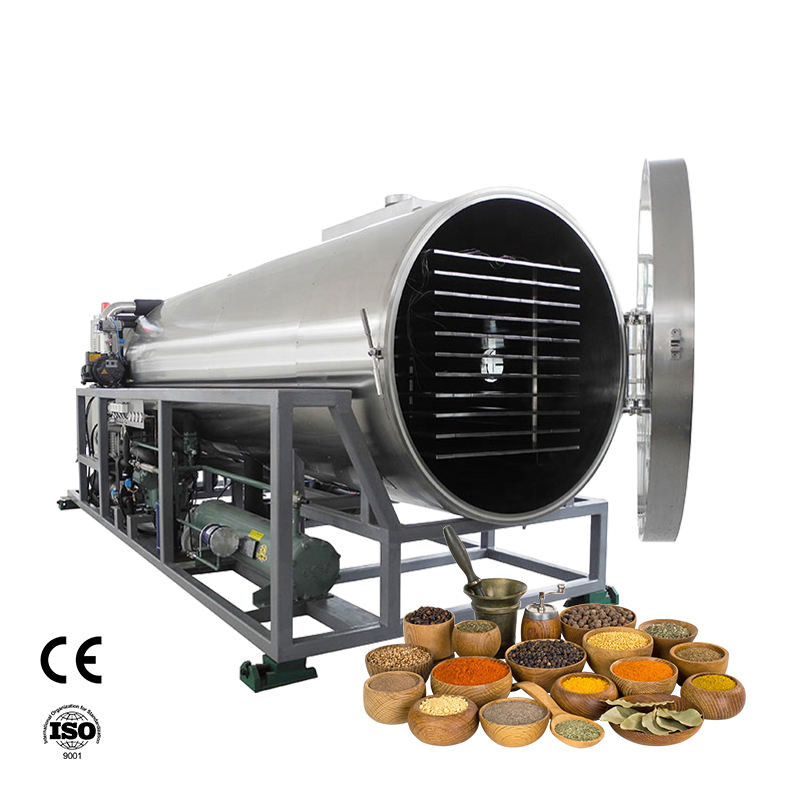

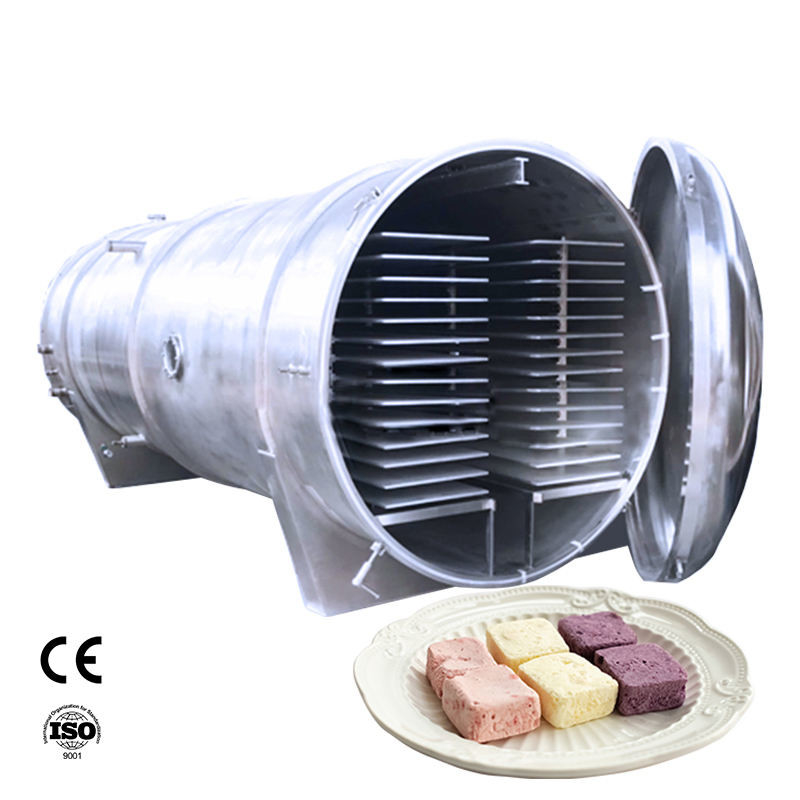

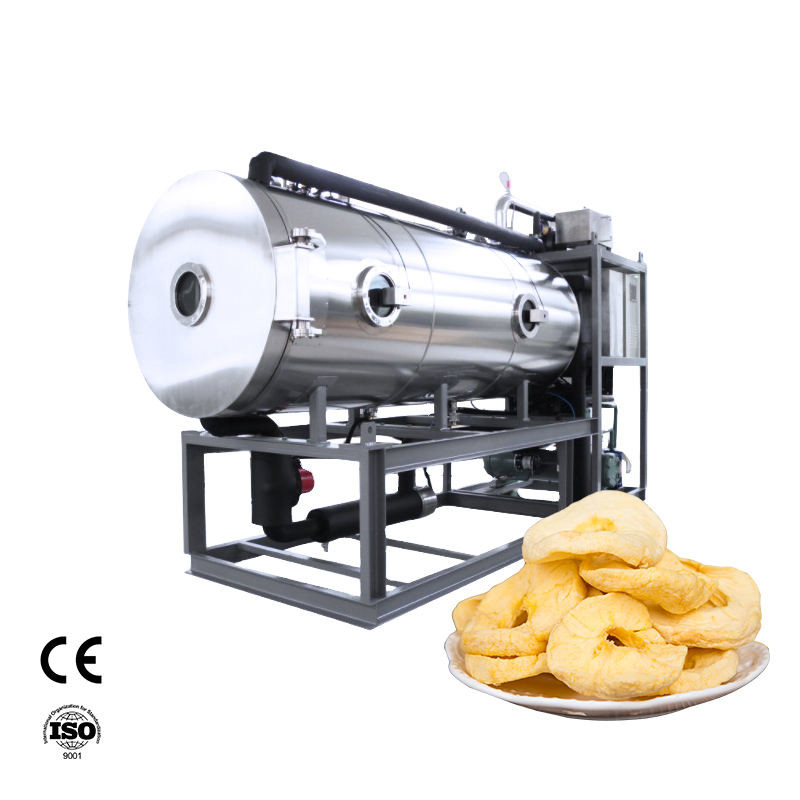

Big Lyophilizer Vacuum Freeze Dryer Machine Food Grade Industrial R507

Big Lyophilizer Vacuum Freeze Dryer Machine Food Grade Industrial R507

Vacuum Freeze Dryer Lyophilizer Machine

Food Grade Industrial Vacuum Freeze Dryer

R507 Vacuum Freeze Dryer Machine

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

FDGY-10

Contact Us
Request A Quote
Product Details
Product Name:
Industrial Freeze Dryer
Effective Trays Square:
10.01㎡
Power Voltage:
380V/50HZ
Chamber Material:
SUS304
Condenser Pipe:
Aluminium Alloy
Water Catch Capacity:
Standard 100kg/batch
Refrigerant Type:
R507
Highlight:

Vacuum Freeze Dryer Lyophilizer Machine

,

Food Grade Industrial Vacuum Freeze Dryer

,

R507 Vacuum Freeze Dryer Machine

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Delivery Time
20-30 working days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
5 units per month
Product Description

Big Lyophilizer Food Grade Industrial Vacuum Freeze Dryer Machine



industrial freeze dryer introduction



An industrial freeze dryer is a specialized equipment used for preparing dried products. It finds wide applications in industries such as food, pharmaceuticals, chemical engineering, biotechnology, etc., to convert liquid or semi-solid substances into dried powders or solid forms through a process involving freezing and vacuum drying. Here is a brief introduction to an industrial freeze dryer.



industrial freeze dryer features



1. Working Principle: Industrial freeze dryers utilize two key steps—freezing and vacuum—to achieve the drying process. Firstly, the substance is frozen into a solid state, and then heat is applied in a vacuum environment. This causes the frozen moisture to transition directly from a solid to vapor state, bypassing the liquid phase, thus achieving rapid drying.



2. Application Fields: Industrial freeze dryers play a vital role across various industries. In the food sector, they are employed to create freeze-dried foods that retain nutritional content, taste, and texture. In pharmaceuticals, they produce stable powdered drugs, extending their shelf life. Furthermore, they are used for producing biologics, enzymes, cell cultures, and more.



3. Industrial Scale: Industrial freeze dryers typically come with larger drying capacities, suitable for large-scale production. Different models offer varying drying capacities and production capabilities to meet specific needs.



4. Temperature and Pressure Control: The equipment is equipped with precise temperature and pressure control systems to ensure optimal conditions during the drying process. This aids in preserving the quality and activity of the products.



5. Operation and Monitoring: Industrial freeze dryers often incorporate advanced automation and monitoring systems, capable of tracking and recording various parameters of the drying process, ensuring controlled and reproducible operations.



6. Product Quality: The freeze-drying process effectively removes moisture from the product, preventing the growth of microorganisms and enzymes, thereby maintaining the long-term stability and activity of the product.



industrial freeze dryer parameter



Effective trays square 10.01㎡
Condenser capacity kg/batch 100kg/batch

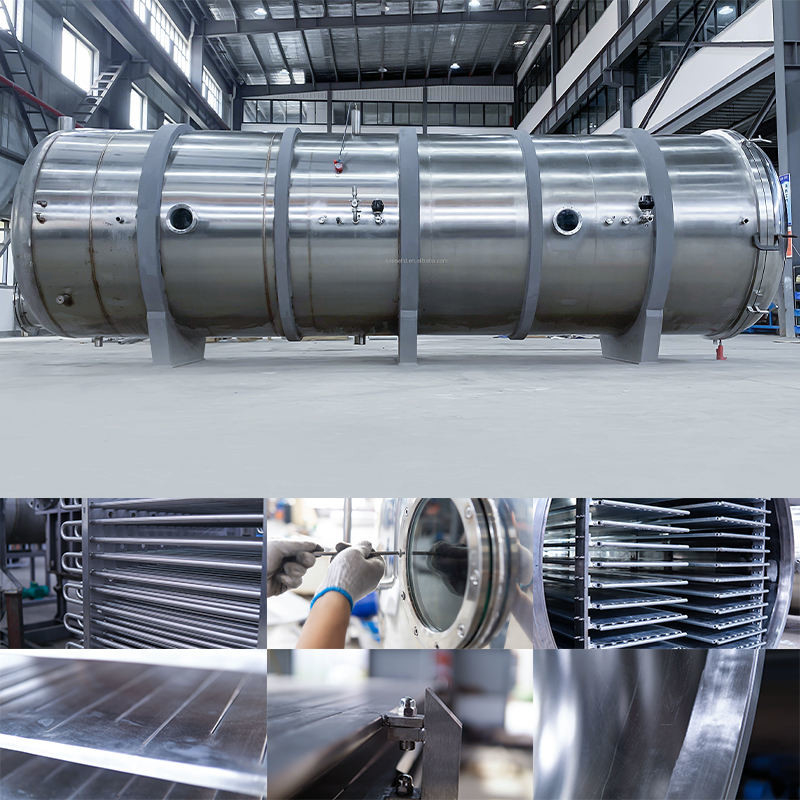

Equipment dimensions Circular chamber,3800*1400*2000mm(L*W*H)
Trays dimension 1300*550*30mm(according to the shelf,can be design and change)
Nr Trays 14pcs(if dimension change,it will change)
Installed Power KW 22.25KW,but will not running all machines all the time
Power Voltage 380V/50HZ
Colling Water(Cooling tower use) about 11.7m³/hr(Recycling,<30℃)



Big Lyophilizer Vacuum Freeze Dryer Machine Food Grade Industrial R507 0Big Lyophilizer Vacuum Freeze Dryer Machine Food Grade Industrial R507 1Big Lyophilizer Vacuum Freeze Dryer Machine Food Grade Industrial R507 2
