High Pressure 200 Liter Vertical Autoclave Steam Sterilizer with 0.22MPa Working Pressure

High Pressure 200 Liter Vertical Autoclave Steam Sterilizer with 0.22MPa Working Pressure

Sterilization Equipment Retort Autoclave

Vertical 200 Liter Retort Autoclave

High Pressure Retort Sterilizer Autoclave

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

LPLS-200LD

Contact Us
Request A Quote
Product Details
Product Name:
LPLS-200LD
Storage Size:
Φ560*760mm
Working Temperature:
134℃
Working Pressure:
0.22MPa
Heating Average:
≤±1℃
Power:
8 Kw
Voltage:
220V/380V
Timer Range:
0-9999mins
Highlight:

Sterilization Equipment Retort Autoclave

,

Vertical 200 Liter Retort Autoclave

,

High Pressure Retort Sterilizer Autoclave

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Packaging Details
Wooden Box or Customized Packing
Delivery Time
10-15 days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
Supply Ability
100 Sets per Month
Product Description
High Pressure Sterilization Equipment Retort Autoclave Vertical Type 200 Liter
Vertical Autoclave Specifications
Parameter Specification
Product Model LPLS-200LD
Chamber Size 200L Φ600×760mm
Storage Size Φ560×760mm
Working Pressure 0.22MPa
Working Temperature 134℃
Max Safety Pressure 0.23MPa
Heating Average ≤±1℃
Timer Range 0-9999mins
Temperature Range 50℃-134℃
Power 8.0KW
Voltage 220V/380V
Package Size 810×810×1500
Gross Weight 205Kg
Vertical Autoclave Applications

The vertical autoclave, also known as a vertical sterilizer, is a common medical device used for high-temperature and high-pressure sterilization of medical instruments, laboratory equipment, and other items. Here are the primary applications:

  • Medical Instrument Sterilization: Widely used in hospitals, clinics, and operating rooms for sterilizing surgical tools, syringes, needles, catheters, and other medical instruments. Effectively kills bacteria, viruses, fungi, and spores to ensure sterility and reduce cross-infection risks.
  • Laboratory Sterilization: Used in scientific research and laboratory work for sterilizing glassware, culture media, reagent bottles, petri dishes, and other equipment. Ensures experimental accuracy, prevents contamination, and provides aseptic conditions for cell culture and microbiology research.
  • Pharmaceutical Sterilization: Employed in pharmaceutical production for sterilizing vials, liquids, injections, and other pharmaceutical products. Ensures product quality and sterility while preventing bacterial and microbial contamination.
  • Medical Waste Disposal: Used in medical waste management for sterilizing used syringes, needles, cotton swabs, and other medical waste. Reduces pathogen risks and complies with environmental and hygiene requirements.

The vertical autoclave plays a critical role in medical, laboratory, and pharmaceutical industries by ensuring the sterility of items and equipment, thereby safeguarding health and safety.

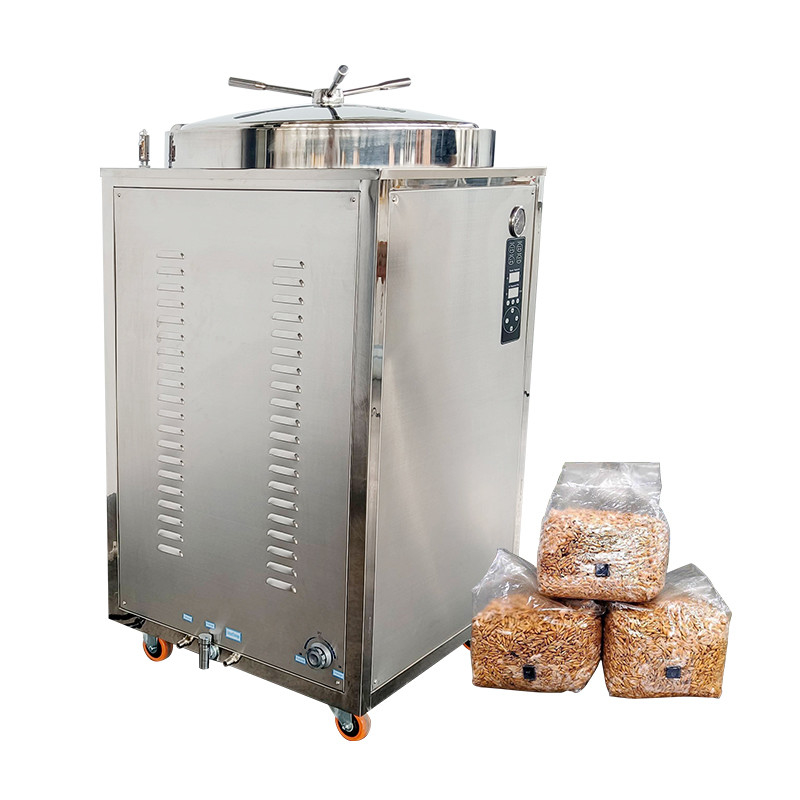

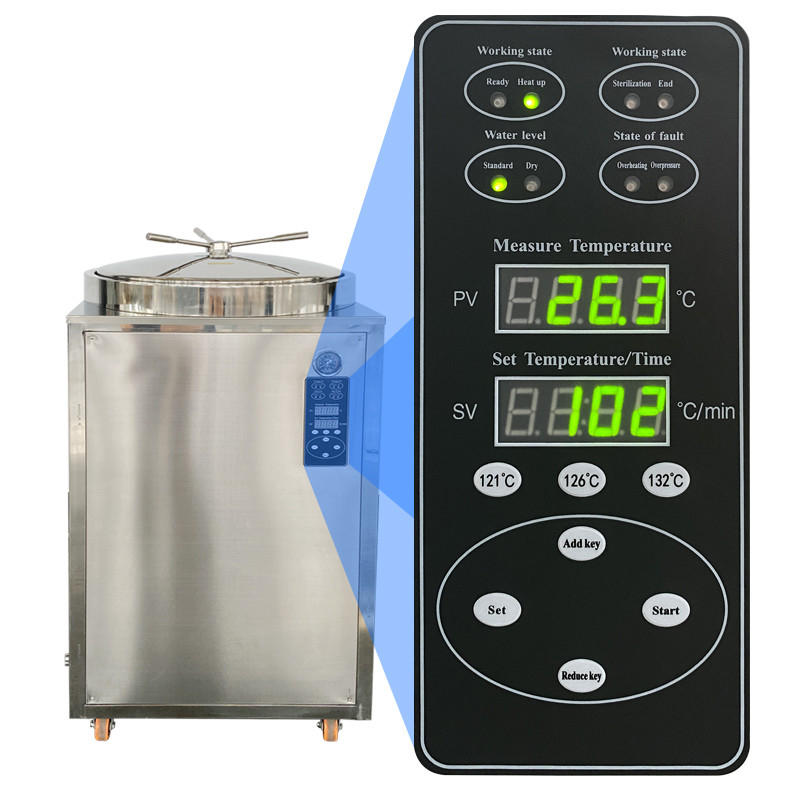

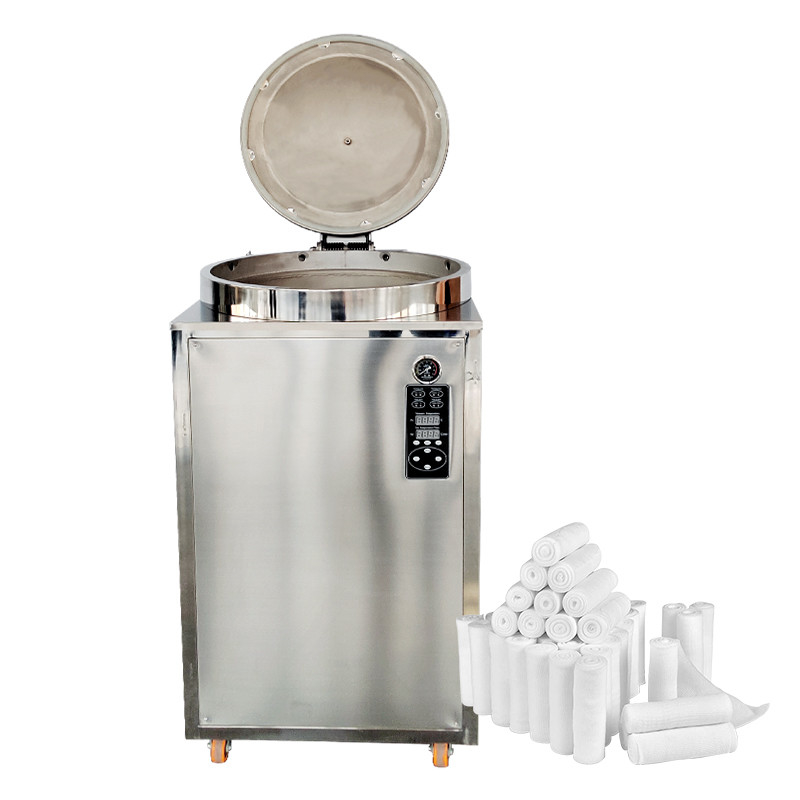

Vertical autoclave front view showing control panel and chamber Vertical autoclave side view displaying dimensions and construction Close-up of autoclave control interface and settings Internal chamber view showing sterilization rack system Autoclave operational view with safety features highlighted Complete autoclave system setup in laboratory environment
