Small Recycling Circulating Water Vacuum Pump Lab Anti Corrosion For DIstillation

Minimum Order Quantity : 1 set Price : $ 195
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: SHZ-DIII

Detail Information

Product Name: Desktop Water Circulating Vacuum Pump Power: 370W
Power Supply: 220V/50HZ 110V/50HZ Flow: 40L/Min
Head: 8 M Frame Material: Anti-corrosion
Mpa: -0.098Mpa Single Head Pumping Capacity: 10L/Min
Number Of Suction Heads: 4 Pcs Security Function: Backflow Prevention Valve
High Light:

Small Recycling Circulating Water Vacuum Pump

,

Circulating Water Vacuum Pump Anti Corrosion

,

Circulating Water Vacuum Pump For DIstillation

Product Description

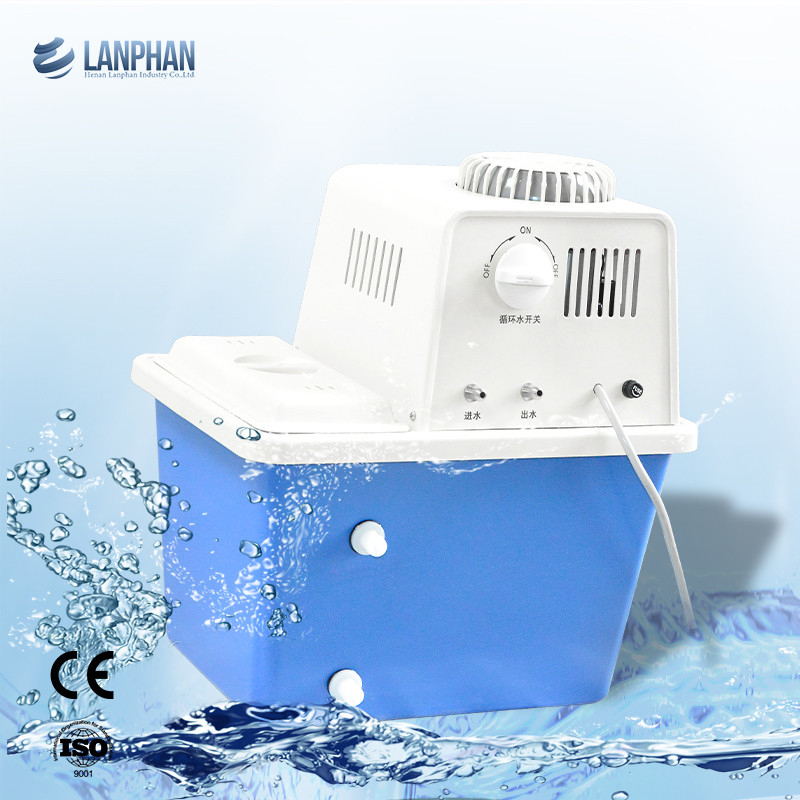

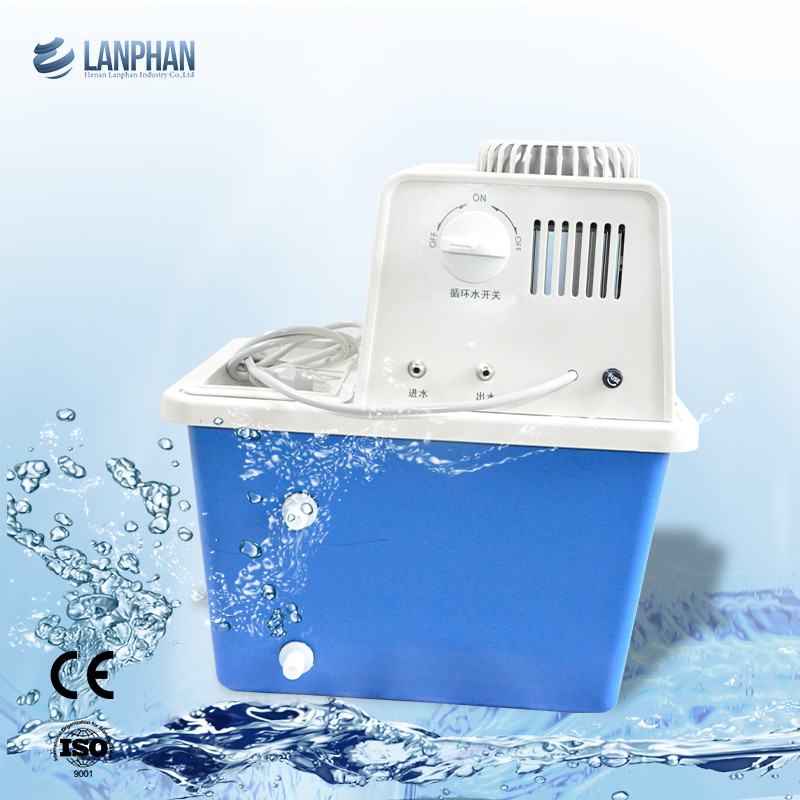

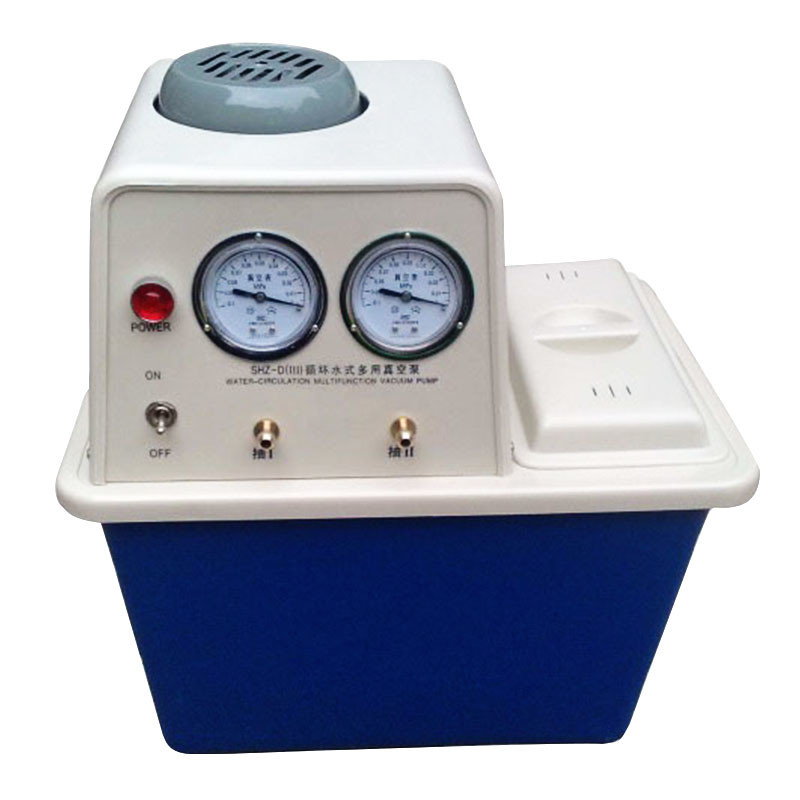

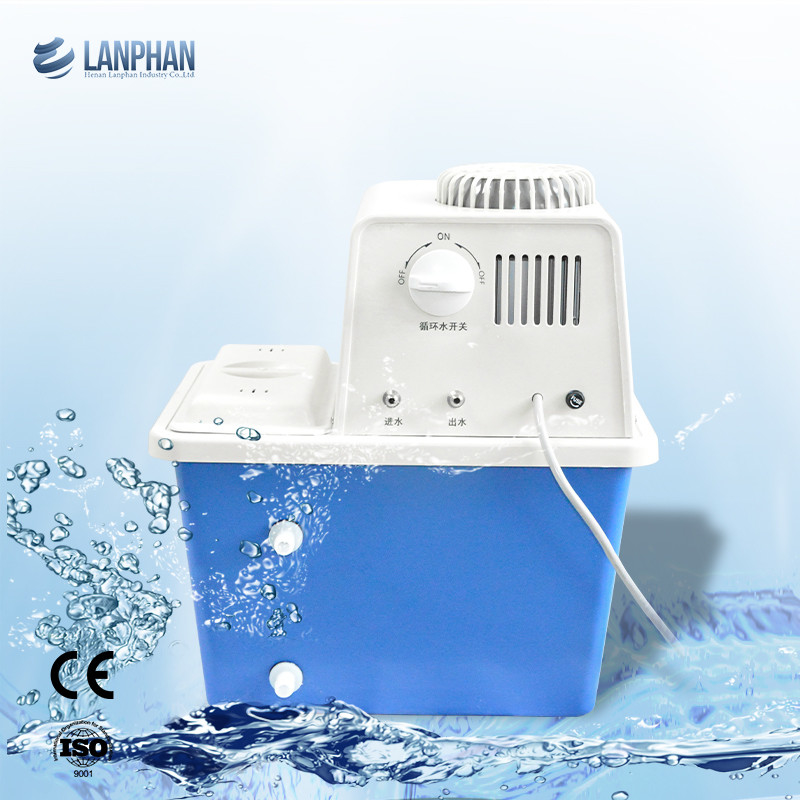

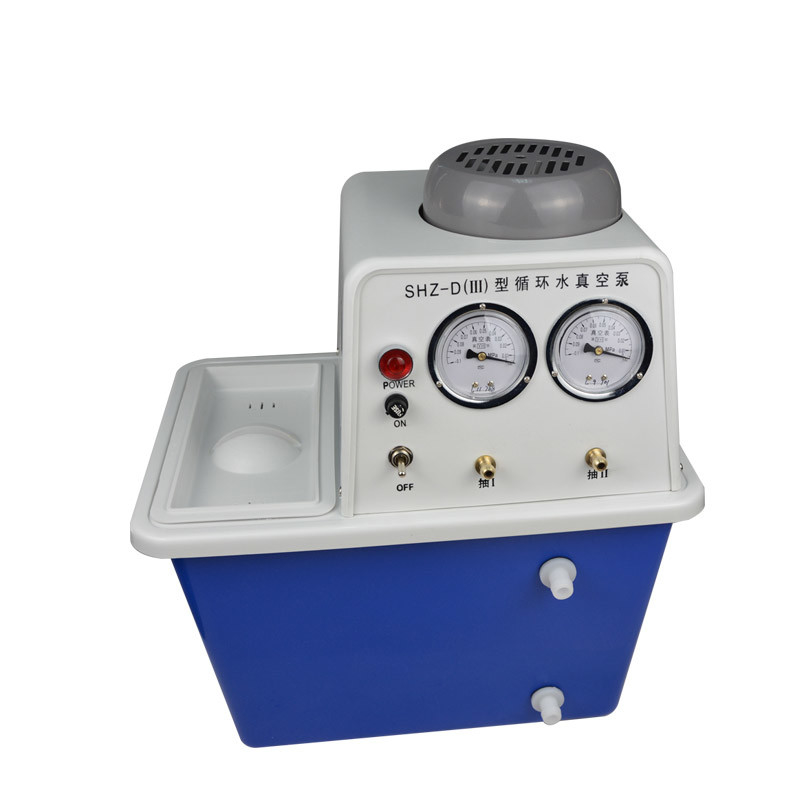

Small Recycling Circulating Water Vacuum Pump Lab Anti-Corrosion For Vacuum DIstillation



Water Circulating Vacuum Pump Advantage

  1. The water saving effect is obvious. Due to the water circulation operation, the water added to the water tank can be cycled back and forth, which overcomes the phenomenon of wasting a lot of water when the tap water method is directly vacuuming.
  2. Multifunctional comprehensive application. In addition to providing vacuum conditions, this machine can also automatically circulate water externally to provide circulating cooling water for the reaction device.
  3. Fashionable and easy to use.
  4. The machine is equipped with five suction nozzles, which can be used to pump air separately or observe the vacuum degree at the same time.
  5. Corrosion resistance, no pollution. The pump parts of this machine are made of stainless steel, and the water tank is made of ABS plastic. It is formed in one time and is not affected by corrosive substances such as acid and alkali.

Water Circulating Vacuum Pump Description



The circulating water vacuum pump uses the rotation of the motor to drive the circulating water and extract the gas in the connecting system, which has achieved the purpose of gradually reducing the pressure in the system. At present, the circulating water pump is often used in the laboratory for decompression filtration and other operations.



This product is a multi-purpose vacuum pump designed with circulating water as the working fluid and the principle of negative pressure generated by jet flow. It provides vacuum conditions for chemical laboratories. This equipment cannot provide circulating cooling water to the reaction device.
It is widely used in evaporation, distillation, crystallization, filtration, decompression, sublimation and other operations. It is an ideal equipment for laboratories in colleges and universities, medical chemical industry, food processing and other fields.



Operation Instructions


1. Add water before starting the machine. Do not run the machine empty. It is strictly forbidden to open the cover with electricity.


2ˎ Preparation, when using the pump for the first time, open the top cover of the pump box and pour in clean cold water. Stop adding water when the water surface is about to rise to the height of the overflow port. Repeat the boot to stop adding water. However, the longest time is to replace the water once a week. If the water quality is seriously polluted and the usage rate is high, the time for replacing the water can be shortened. The ultimate goal is to keep the water quality in the water tank clean.


3. For vacuuming operation, the suction sleeve of the equipment that needs to be vacuumed is closely connected to the suction nozzle of the machine. Check that the circulating water switch should be turned off, turn on the power supply, and turn on the power switch to start the vacuuming operation. The vacuum gauge corresponding to the suction nozzle can observe the vacuum degree.


4. When the machine needs to work continuously for a long time, the water temperature in the water tank will rise, which will affect the vacuum degree. At this time, the water hose can be connected to the water source (tap water) to keep the water temperature in the water tank from rising. Stabilize the vacuum.



Water Circulating Vacuum Pump Parameters



Product Name Desktop Water Circulating Vacuum Pump
Power 370W
Power Supply

220V/50HZ

110V/50HZ

Flow 40L/Min
Head 8M
Frame Material Anti-corrosion
Mpa -0.098Mpa
Single head pumping capacity 10L/Min
Number of suction heads 4 pcs
security function Backflow prevention valve
T-junction PP
check valve Brass PTFE valve core
Tank material pvc
Dimension 400*300*450mm
Weight 10.7KG
