Mini Lab Rotary Vane Vacuum Pump System 1700 R/Min Anti Corrosion

Minimum Order Quantity : 1 set Price : $299 per set
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-12 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan,China Brand Name: Lanphan
Certification: CE ISO Model Number: 2XZ-4

Detail Information

Pump Speed(L/S): 4 Ultimate Pressure(Pa): 6×10ˉ²
Rotary Speed(r/min): 1700 R/min Motor Power(KW): 0.55
Working Voltage(V/HZ): 220/50 HZ Condation: New
High Light:

Mini Lab Rotary Vane Vacuum Pump

,

1700 r/min Rotary Vane Vacuum Pump

,

50 HZ Rotary Vane Vacuum Pump

Product Description

Mini Lab Rotary Vane Vacuum Pump System Anti Corrosion



Rotary Vane Vacuum Pump Application



1. Whit the inlet port widely opened to atmosphere the pump is not allowed to work more than one minute.



2. The pump is not suitable for pumping over-oxidized, poison, explosive and corrosive gas as well as gases which react chemically with the pump oil contain particles of dust.



3. The pump is one of the basic equipment to exhaust a sealed vessel. It can be used either independently as main and can also be served as for pump for booster pump diffusion pump and molecular pump or as holding pump for a vacuum system and as a pre-pumping for different kinds of the pumps.



4. The pump is allowed to work continuously for many hours at a stretch under atmospheric temperature of 5℃-40℃ and intake pressure below 1230pa.While the pumped gas containing moisture of a relative humidity of more than 90% gas-ballast valve should be open.



Rotary Vane Vacuum Pump Specification



Parameters/Models 2XZ-4
Pump speed(L/s) 4
Ultimate pressure(Pa) 6×10ˉ²
Rotary speed(r/min) 1700
Motor power(Kw) 0.55
Working voltage(V/HZ) 220/50
Inlet Diam(mm) I.D.
O.D. KF-25
Dimensions(mm) Length 520
Width 140
Height 250
Weight(kg) 25


Rotary Vane Vacuum Pump Operating procedure





1. The pump should be erected on a dry airy and clean place.



2. The pump, with a handle at top and with four rubber pillarets at footings, is of portable type .Therefore in most case the pump is merely placed at a flat and stable surface.



3. To wire the motor, note the direction of rotation viewing from the fan end of the motor, the rotation should be clockwise.



4. The diameter of the pipe, which joints the vessel to be exhausted and the pump, should not be smaller than that of the inlet port of the pump. The pipe should be short and should have as few bends as possible in order to reduce the loss of pumping

speed. Meantime leakage of the pipe should be noticed .If rubber pipe is adopted, the pipe should preferably be desulfurized.



5. When the pump is started with the inlet port widely opened to atmosphere, little amount of oil mist will be brought out. It might affect the working environment, use plastic pipe to lead it away to open air.



6. The pump is equipped with such device which can prevent suck-duck of oil when it is stopped. Therefore it is not necessary to mount a magnetic operated valve on the inlet port.

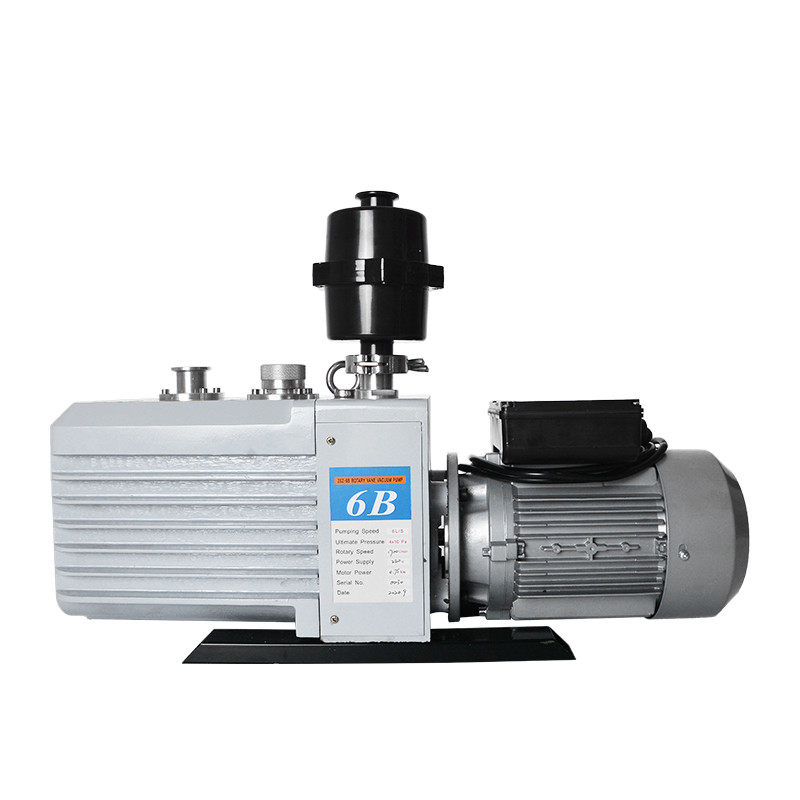

Mini Lab Rotary Vane Vacuum Pump System 1700 R/Min Anti Corrosion 0

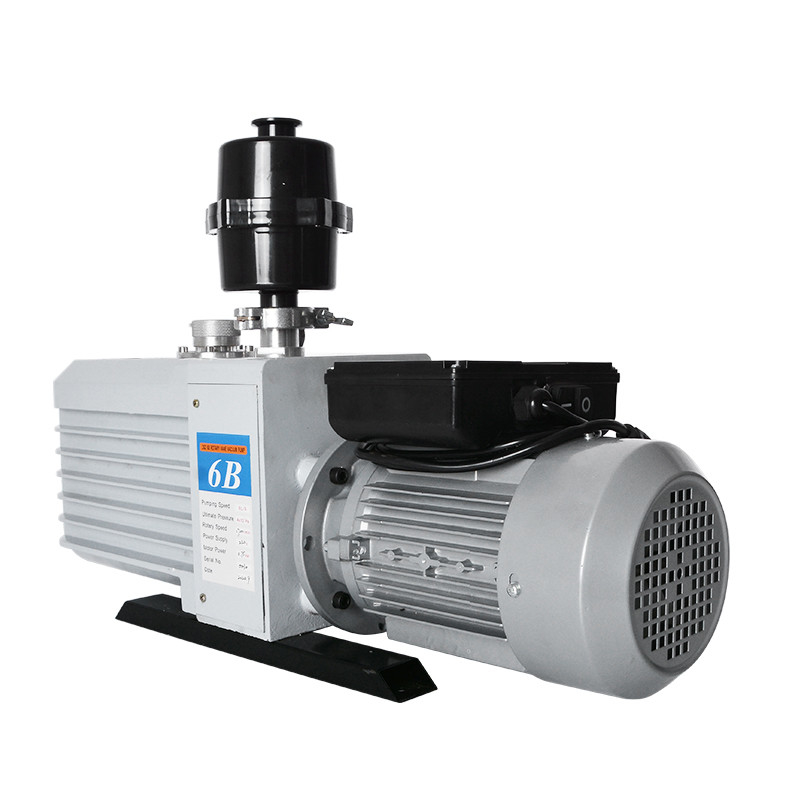

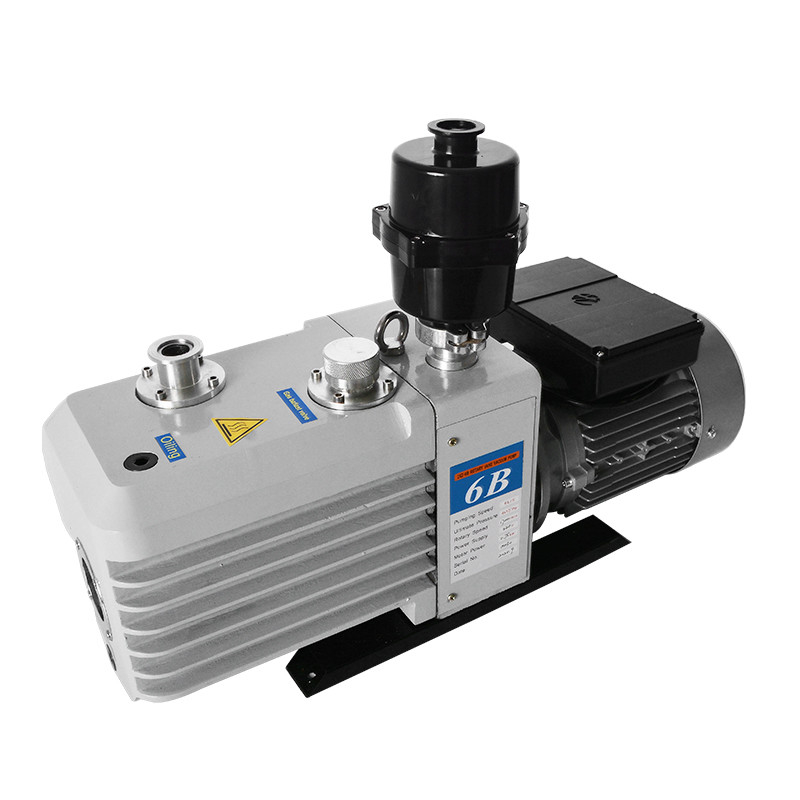

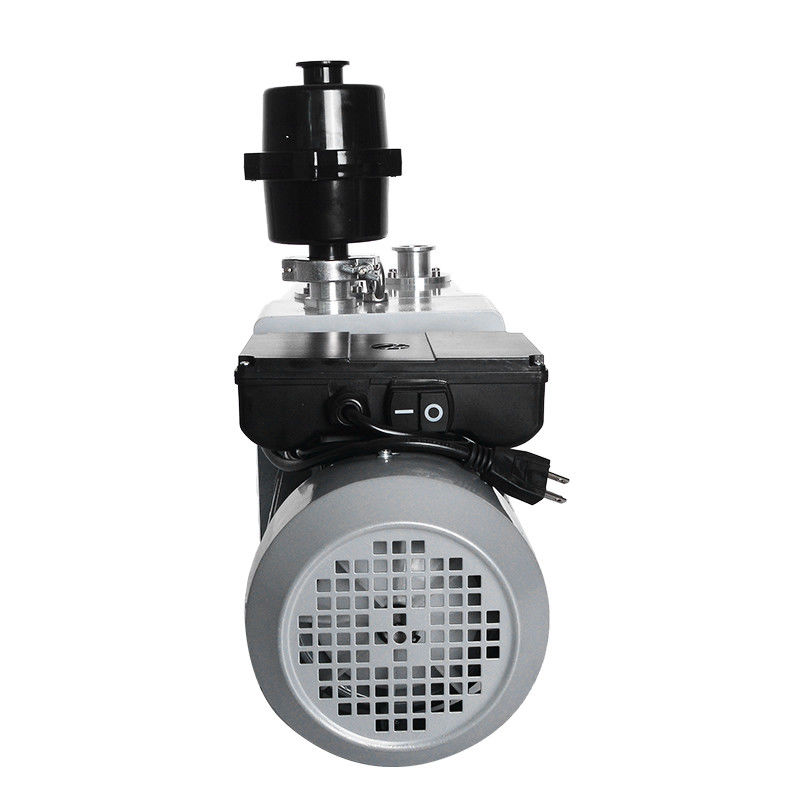

Mini Lab Rotary Vane Vacuum Pump System 1700 R/Min Anti Corrosion 1Mini Lab Rotary Vane Vacuum Pump System 1700 R/Min Anti Corrosion 2Mini Lab Rotary Vane Vacuum Pump System 1700 R/Min Anti Corrosion 3Mini Lab Rotary Vane Vacuum Pump System 1700 R/Min Anti Corrosion 4
