6 Trays Vacuum Freeze Drying Equipment Large-Scale Production Freeze Dryer In Food Industry
Contact Person : admin
Phone Number : +8613783661974
WhatsApp : +8613783661974
| Minimum Order Quantity : | 1 set | Price : | $2950 |
|---|---|---|---|
| Packaging Details : | Wooden Box or Customized Packing | Delivery Time : | 10-15 days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union | Supply Ability : | 100 Sets per Month |
| Place of Origin: | China | Brand Name: | Lanphan |
|---|---|---|---|
| Certification: | CE ISO | Model Number: | HFD-4 |
|
Detail Information |
|||
| Product Name: | Home Freeze Dryer | Freeze-dried Area: | 0.4㎡ |
|---|---|---|---|
| Ultimate Vacuum: | 15pa (no-load) | Power Supply: | 220V 50HZ |
| Power: | 1550W | Handling Capacity: | 4-6KG / Batch |
| Layer Spacing: | 45mm | Lyophilizer: | ≤-35℃ |
| High Light: | LCD control Vacuum Home Lyophilizer,5KG / batch Vacuum Freeze Dryer,Food Mini Vacuum Lyophilizer |
||
Product Description
Freeze Dryer Parameter
| Product Model | HFD-4 |
| Freeze-dried Area | 0.4㎡ |
| Cold Trap Coil Temperature | ＜-40℃ (no-load) |
| Ultimate Vacuum | 15pa (no-load) |
| Power Supply | 220V 50HZ |
| Power | 1550W |
| Handling Capacity | 4-6KG / batch |
| Layer Spacing | 45mm |
| Weight | 80KG |
| Material Tray Size | 200mm x 450mm four layers |
| Dimension | 510mm x 700mm 850mm |
Freeze Dryer Introduction
Vacuum freeze drying is the removal of water or other solvents from the frozen samples. During the whole drying process, the sample is in liquid state and the temperature is generally lower than -10. The purpose of vacuum freeze drying is to restore the original characteristics of the sample after rehydration.
Because the drying process is carried out at low temperature, it can be used for some materials such as proteins, which are easy to be denatured at high temperature, and can ensure that the properties of other compounds will not change.
Most of the biological products, such as tissues, tissue extracts, bacteria, vaccines and serum, were changed into dry samples by vacuum freeze-drying. Vacuum freeze drying is the most gentle process to preserve the biochemical properties of sensitive tissue or other tissues. It is also the best method for drying inorganic materials, such as nano particles, because the surface area of particles is almost unchanged.
Freeze Dryer Application
HFD-4 vacuum freeze dryer is a kind of freeze-drying machine widely used in high performance laboratory. Freeze dry glass flask and serum bottle of solid and liquid samples. A variety of containers can be carried out on the same freeze dryer:
The pre freeze shelf surface temperature control
The samples of freeze-dried can be carried out in the user defined temperature
Dry in the limit temperature of freezing - user defined samples, high vacuum drying, and can remove capillary bound water molecules.

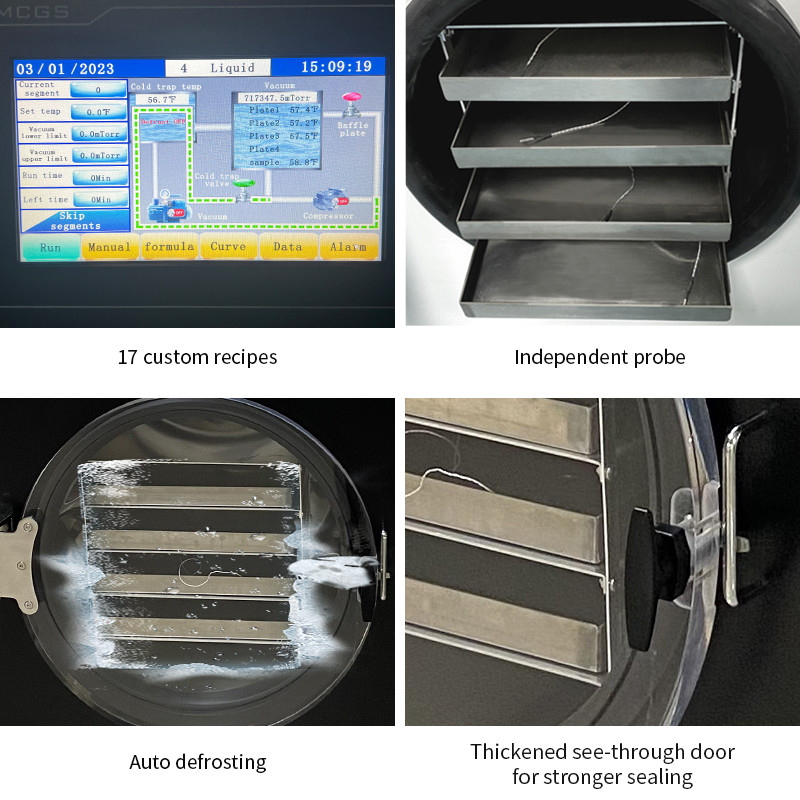

Freeze Dryer Features
(1) The machine adopts Tecumseh or Secop, rapid cooling
(2) LCD control system, easy to operation, and powerful function
(3) The dry room door is made of colorless transparent organic glass, and the whole process of freeze drying can be observed.
(4) The vacuum pump is connected by international standard KF quick connector.
(5) Stable performance, easy operation and low noise.
