Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
KWD-HFD-1

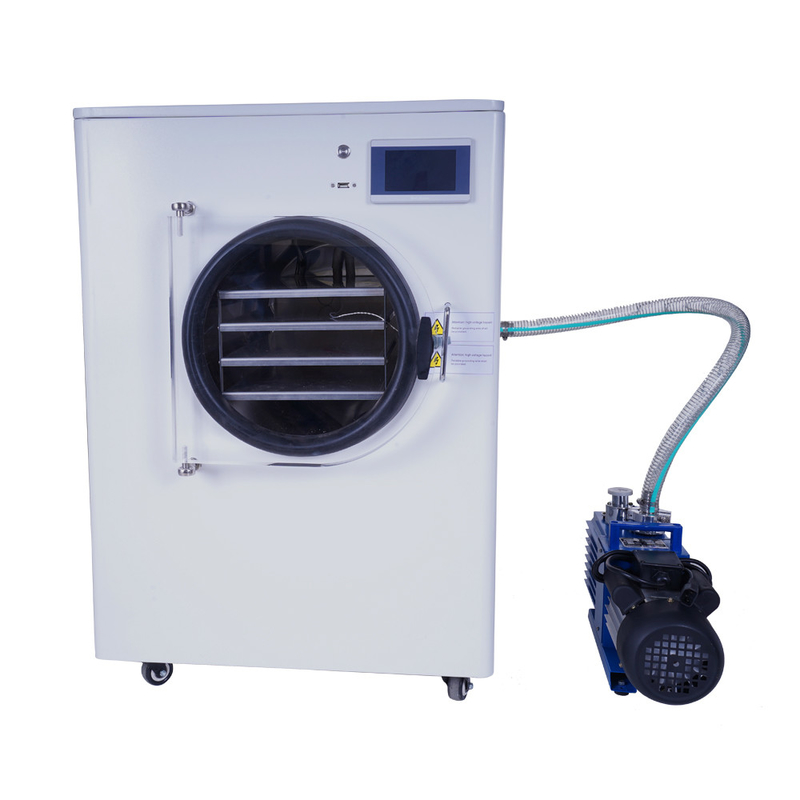

Sublimation Home Freeze Dryer Food Steak
What is a freeze dryer
A freeze dryer is one of the most common and essential drying equipment, which is used to dry food ingredients by utilizing the freeze drying method.
It usually consists of four components, including a drying chamber, a vacuum pump, a heat source and a condenser.
Freeze dryer can be divided into commercial, laboratory, industrial, and household. It is widely used in food, pharmaceutical and other industries.
Freeze Dryer Features
With sample pre-freezing function
The cold trap captures ice evenly;
Intelligently record and export data
Integrated structure, small size, easy to use, no leakage
Materials in contact with the product meet food grade requirements
The cold trap is made of stainless steel, which is anti-corrosion and easy to clean
Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.
strong ice capture ability International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.
Freeze Drying Technology
Drying is one of the ways to keep substances from spoiling. The product obtained by drying is reduced in volume, hard in texture, and easy to lose nutrients.
Freeze-drying technology is to pre-cool substances containing a lot of moisture and then sublime them under vacuum conditions. Freeze-dried products greatly retain the nutrients of the original product.
Is a freeze dryer worth it
Home freeze dryer is widely used in the food industry. It can be used for freeze drying of fruits, vegetables, candy, meat. The freeze dryer is easy to operate. Compared to dehydrated foods, freeze-dried foods greatly retain the nutrients of the product. It can also be used in the pet food industry.
Freeze Dryer Parameter
| Product Model | KWD-HFD-1 |
| Freeze-dried Area | 0.1㎡ |
| Cold Trap Coil Temperature | ＜-40℃ (no-load) |
| Ultimate Vacuum | 15pa (no-load) |
| Power Supply | 220V 50HZ |
| Power | 750W |
| Handling Capacity | 1-2KG / batch |
| Layer Spacing | 45mm |
| Weight | 50KG |
| Material Tray Size | 140mm x 278mm three layers |
| Dimension | 400mm x 550mm x700mm |

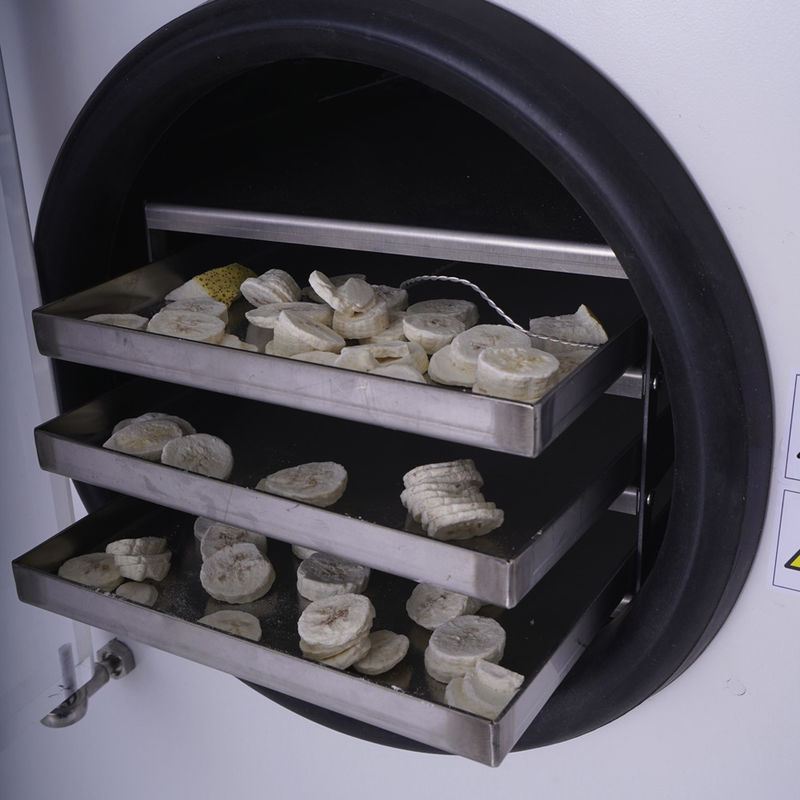

Freeze Dryer Detail
