12600 pieces / h Rotary Tablet Press Machine Automatic Speed Rotary Food Stuff

Product Details:
Place of Origin: Henan
Brand Name: Lanphan
Certification: CE
Model Number: ZP-9A
Payment & Shipping Terms:
Minimum Order Quantity: One unit
Price: $2711
Packaging Details: Carton, wooden cases or customizable package
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Unit/Units per Month

Detail Information

Product Name: Tablet Press Machine Voltage: 220V
Condation: New Warranty: 1 Year

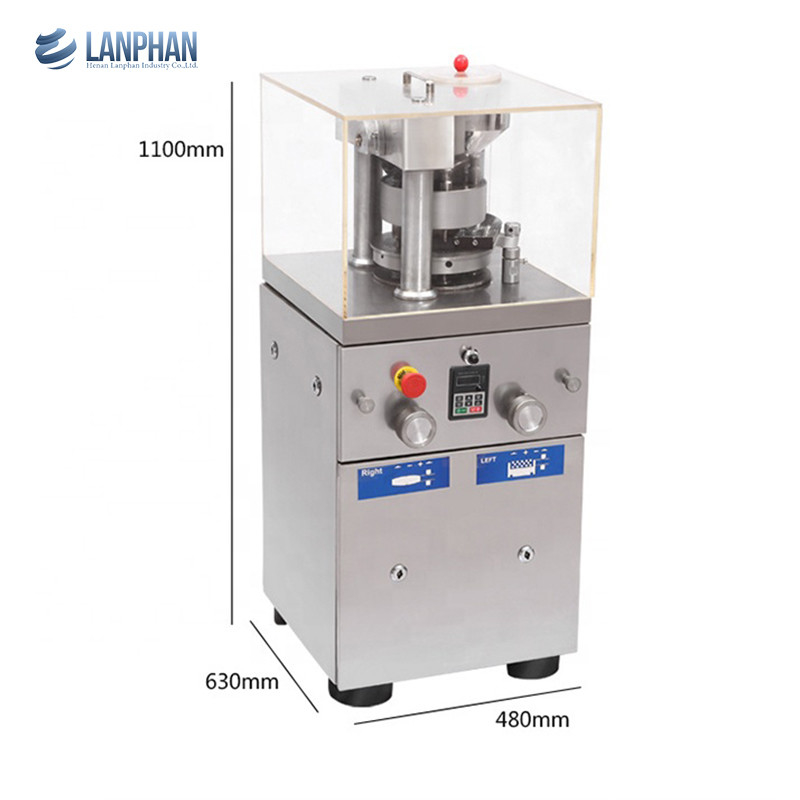

Dimension: 480mm*620mm*1020mm Production Capacity: 12600 Pieces / Hour
Number Of Die (paid): 9 Max Tablet Pressure (kN): 60
Max Tablet Diameter (mm): 18 Max Filling Depth (mm): 15
High Light:

12600 Pieces / H Rotary Tablet Press Machine

,

Food Stuff Rotary Tablet Press Machine

,

12600 Pieces / H rotary tablet compression machine

Product Description

Tablet Press Machine Automatic Speed Rotary Food Stuff Rotary



Tablet Press Machine Details



1. This machine is a small rotary tablet press equipment. The main motor adopts frequency converter stepless speed regulation, the starting speed is low, and the production speed is continuously adjustable;
2. Imported frequency converter, with manual control of tablet weight function, main motor overload protection, main pressure overload protection function;
3. The main drive system adopts worm gear reducer, which has large output torque, high transmission efficiency, stable transmission, low noise and long service life;
4. The tablet pressing room is completely sealed, and all parts in contact with the medicine are made of stainless steel or non-toxic polymer materials, which fully meets the requirements of GMP;
5. According to customer needs, it can realize the pressing function of ring-shaped tablet and the pressing function of spherical tablet.



Tablet Press Machine Description



This machine is an automatic rotating and continuous tableting machine, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, as well as in the chemical, food, and electronics industries. The outer cover is a fully enclosed form, the material is stainless steel, and the internal table is made of stainless steel. The surface of the turntable has been specially treated to maintain the surface gloss and prevent cross-contamination, which meets the requirements of GMP. The doors and windows equipped with transparent glass can clearly observe the state of the pressing, and can be fully opened, which is easy for internal cleaning and maintenance. All controllers and operating parts are reasonably arranged. The frequency conversion speed regulating device is adopted for electrical speed control, which is convenient to operate, stable in rotation, safe and accurate. All transmission devices are arranged inside the machine to keep the machine parts clean. Equipped with overload protection device, when the pressure is overloaded, it can automatically stop.



Application



1. Used in chemical, food, electronics and other industries to compress various granular raw materials into tablets;

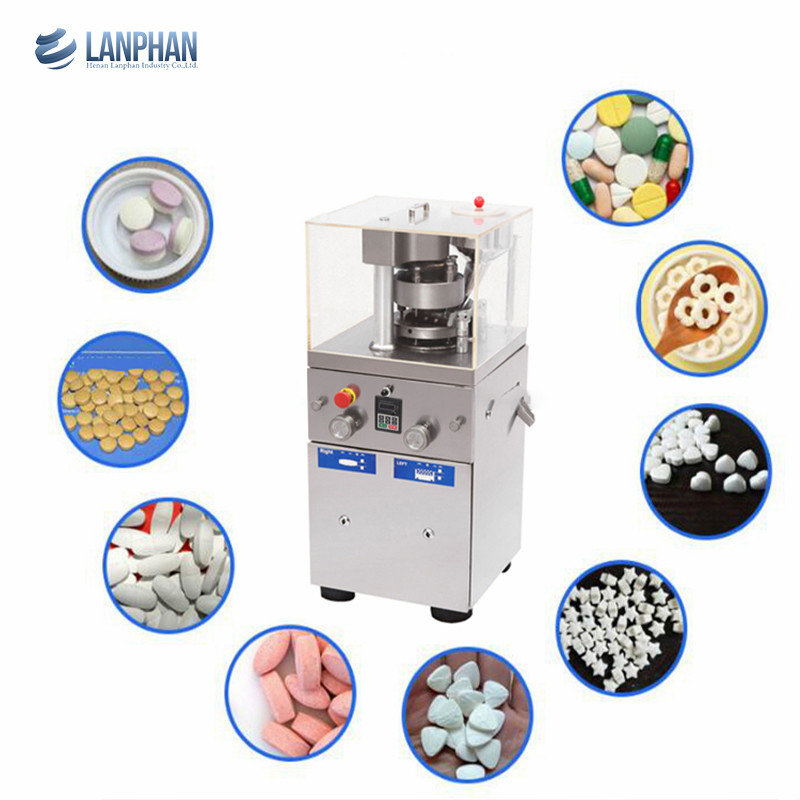

2. Used for small batch production, pressing various shapes of tablets. Such as round tablets, special-shaped tablets, ring tablets, graphic tablets, double-sided lettering tablets and other tablets, calcium tablets, etc.;
3. It is mainly suitable for the small batch production of special medicines in various medical research institutes, laboratories of universities, pharmaceutical research and development centers, and large pharmacies;



Tablet Press Machine Parameters



Model ZP-5 ZP-7 ZP-9
Number of die (paid) 5 7 9
Max tablet pressure (kN) 60 60 60
Max tablet diameter (mm) 18mm
Max filling depth (mm) 15 15 15
Maxtablet thickness (mm) 6 6 6
Turntablespeed (rev/min) 30 30 30
Production capacity (pieces/hour) 9000 12600 16200
Motor power (kw) 2.2
Dimensions (mm) 960*660*1230
Weight (kg) 308
