2l Stainless Steel Centrifugal Atomizer Spray Dryer Lab Small Scale Mini For Instant

Minimum Order Quantity : 1 set Price : $3200
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-15 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: 2L

Detail Information

Name: 2l Small Spray Dryer Nozzle Diameter: 1mm
Air Compressor Power: 0.2kw Maximum Air Pressure: 1020pa
Fan Power: 0.55kw Electric Heater Power: 3KW AC220V
Evaporation: 2000ml/h Maximum Feeding Capacity: 2000ml/h
High Light:

2l Centrifugal Atomizer Spray Dryer

,

Stainless Steel Centrifugal Atomizer Spray Dryer

,

1mm Centrifugal Atomizer Spray Dryer

Product Description

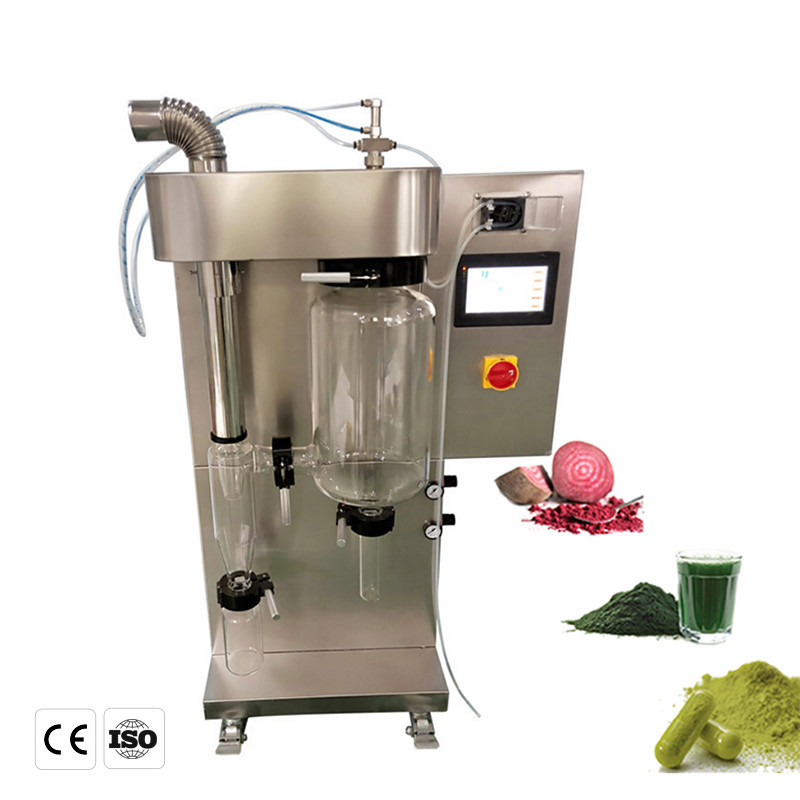

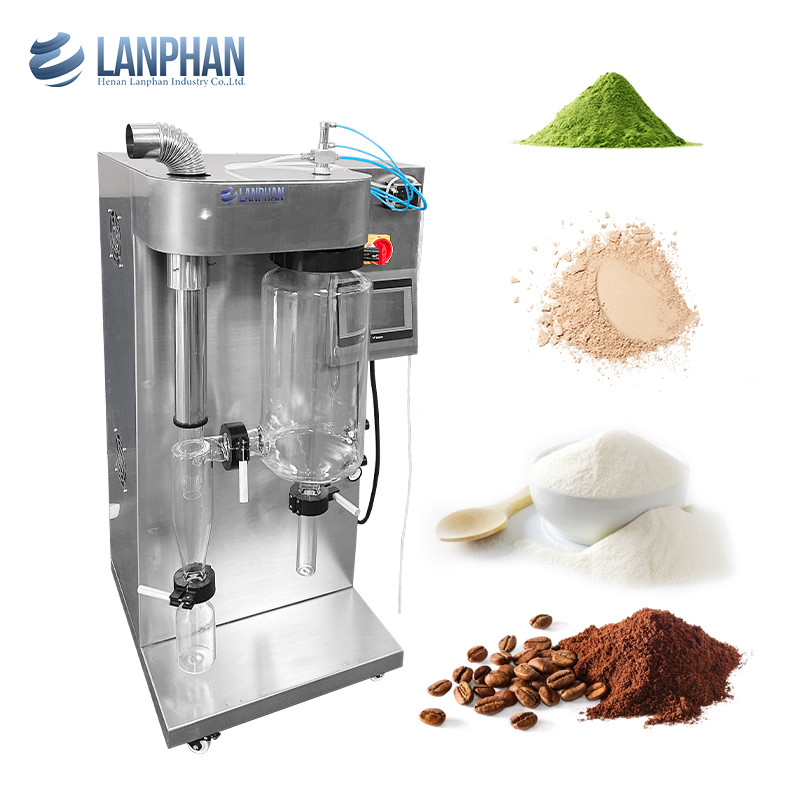

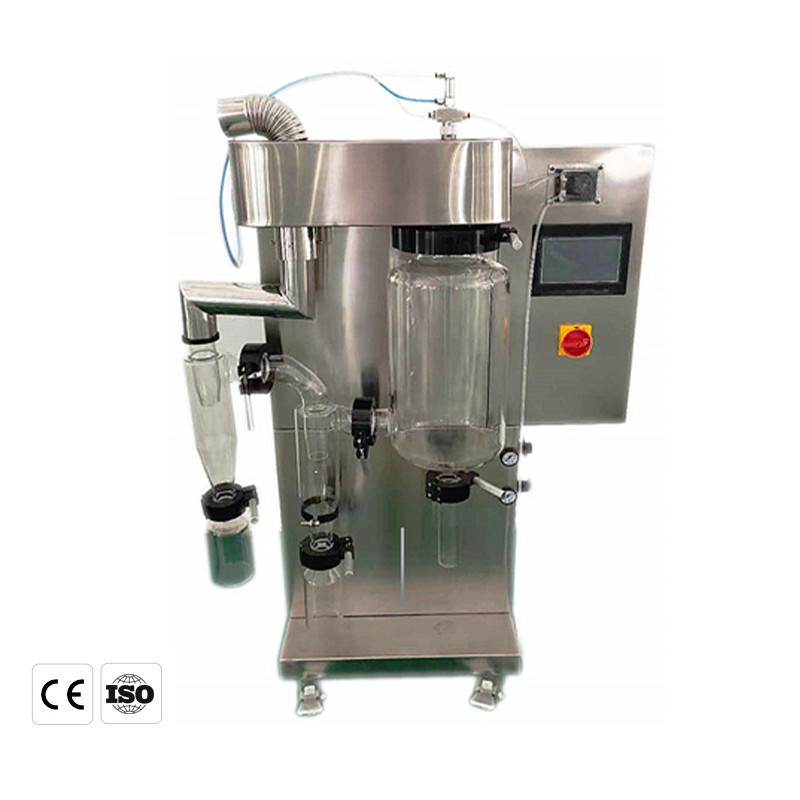

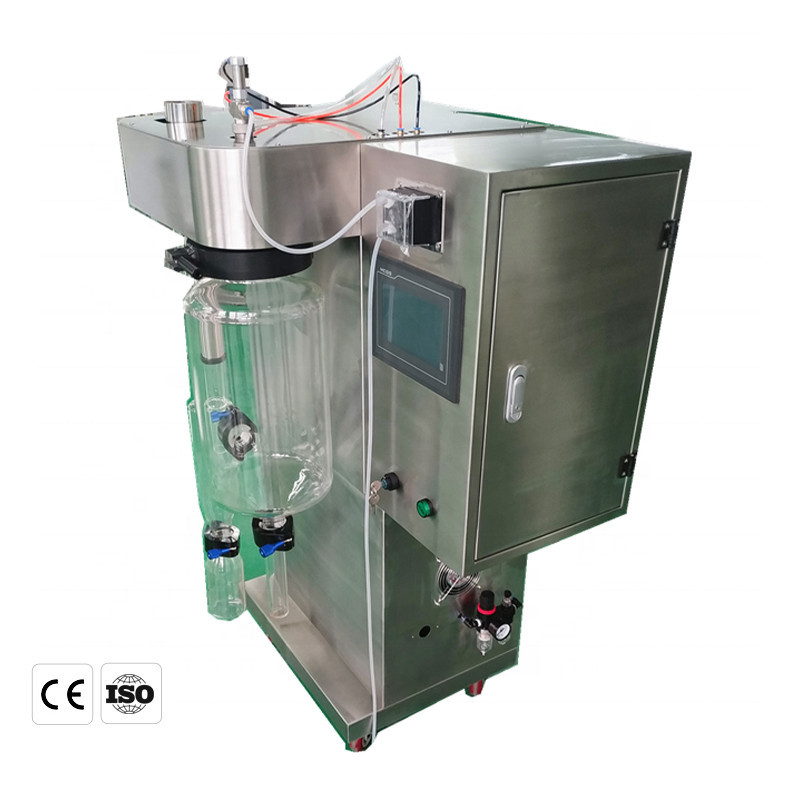

2l Stainless Steel Lab Small Scale Mini Centrifugal Atomizer Spray Dryer For Instant Coffee Fruit Juice Milk



Spray Dryer Parameter



Air inlet temperature 30~300℃
Air outlet temperature 30~150℃
Electric heater power 3KW AC220V
Evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight

125KG



Spray Dryer Features



Use PID controller, the accuracy of heating temperature is around±1°C.

A filter has been equipped to the inlet unit to prevent the sample from contamination.

The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution. To make sure the process conducted steady and smoothly.

Narrow size distribution, more than 95% of the dry powders are in the same range of particles.

Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.

Innovative tower wall purging device, improves the material recycling rate.



Spray Dryer Description



Spray dryer is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.

Experimental spray dryer, compact design, self-contained, no other facilities can be run. One-click startup, color large LCD touch screen operation. Fully automatic or manual monitoring two modes of operation. It is the smallest volume, the least noise, drying effect is very excellent a spray dryer.



2l Stainless Steel Centrifugal Atomizer Spray Dryer Lab Small Scale Mini For Instant 02l Stainless Steel Centrifugal Atomizer Spray Dryer Lab Small Scale Mini For Instant 12l Stainless Steel Centrifugal Atomizer Spray Dryer Lab Small Scale Mini For Instant 22l Stainless Steel Centrifugal Atomizer Spray Dryer Lab Small Scale Mini For Instant 3
