Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
FFE-200L
hemp cbd distillation equipment single effect vacuum falling film evaporator
Product Description
A single-effect falling film evaporator can be used to evaporate extract liquid under reduced pressure or vacuum condition so that ethanol and liquid material can be separated, condensed and recycled.
Product parameter
200 Type Single-effect Falling Film Evaporator
| Serial Number | Name | Material | Specification | Quantity | |
| 1 | Falling Film Heater | Shell Pass 304, Tube Pass 304 | 12m2 | 1 | |
| 2 | Evaporation Chamber | 304 | 0.5m3 | 1 | |
| 3 | Condenser | Shell Pass 304, Tube Pass 304 | 16m2 | 1 | |
| 4 | Condensate Collection Tank | 304 | 100L | 1 | |
| 5 | Intermediate Tank | 304 | 200L | 1 | |
| 6 | Connecting Pipes inside the Equipment | 304 | Ф25-Ф159 | Full set | |
| 7 | Valve inside the Equipment | 304 | DN15-DN40 | Full set | |
| 8 | Bolts, Gaskets, etc. | 304 | Inside the system | Full set | |
| 9 | Evaporator Operating System | Stainless steel manual operation cabinet | Full set | ||
| 10 | Internal Cable Tray | Pure copper cable | 1 | ||
| 11 | Meter | Thermometer, pressure gauge, etc. | Full set | ||
| 12 | Feed Pump | 304 | Q=2,H=20,1.5Kw | 1 | |
| 13 | Discharge Pump | 304 | Q=2,H=20,1.5Kw | 1 | |
| 14 | Condensate Pump | 304 | Q=1,H=16,1.1Kw | 1 | |
| 15 | Vacuum Pump | 304 | Suction volume 450L/Min,1.5KW | 1 | |
| 16 | Vacuum Cooler + water tank | 304 | 1 | ||
| 17 | Steam Generator | 100kg×2,(72KW×2) | 1 | ||
| 18 | Polishing Fee | Food Grade | 1 | ||
| 19 | Bracket | Stainless steel | Skid-mounted | 1 |

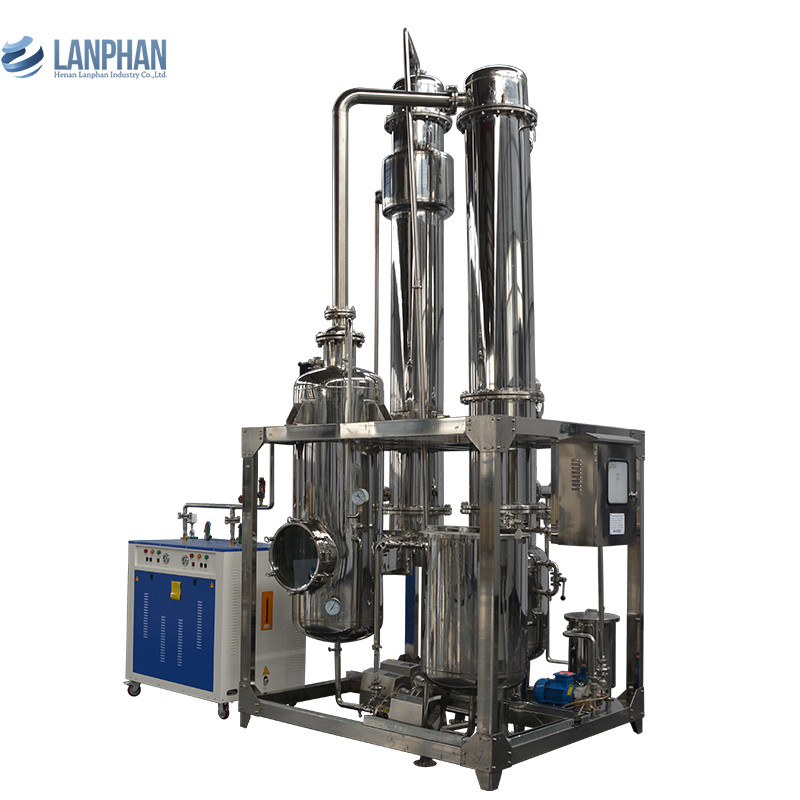

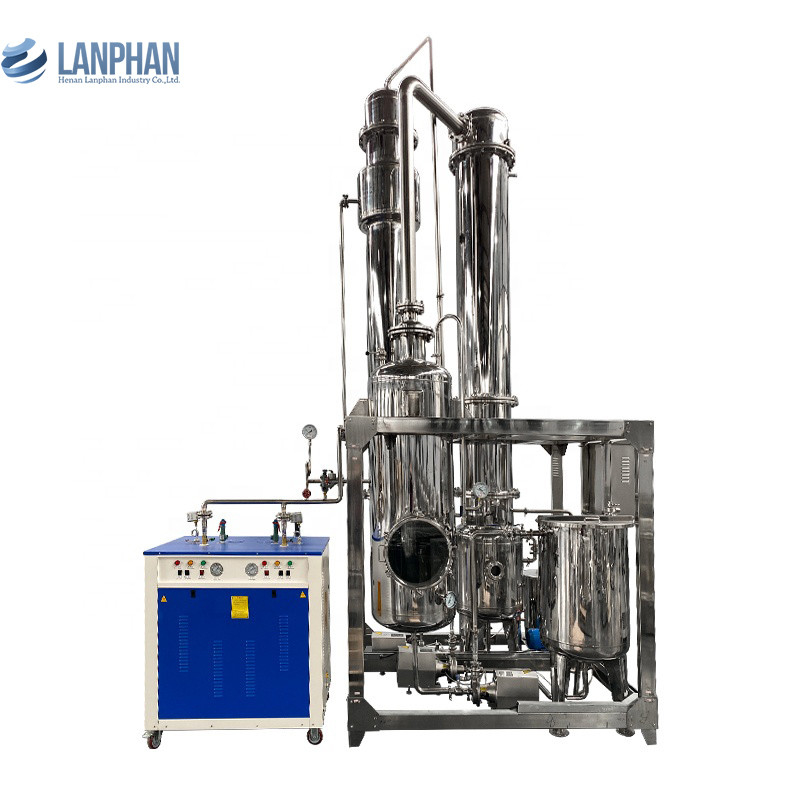

PRODUCT DISPLAY
The single-effect falling film evaporator used for evaporating ethanol solution is different from the one used for evaporating general aqueous solution. The ethanol has a relatively low boiling point, which is volatile. It’s easy to evaporate ethanol solution under reduced pressure or vacuum condition. So it’s relatively difficult to condense and recycle ethanol steam with a smaller evaporation area. Thus the heat exchange area of the condenser is larger. To obtain a better cooling effect, the two-stage or several-stage method is frequently used for cooling and recycling, which also varies from the evaporation of general aqueous solution.
