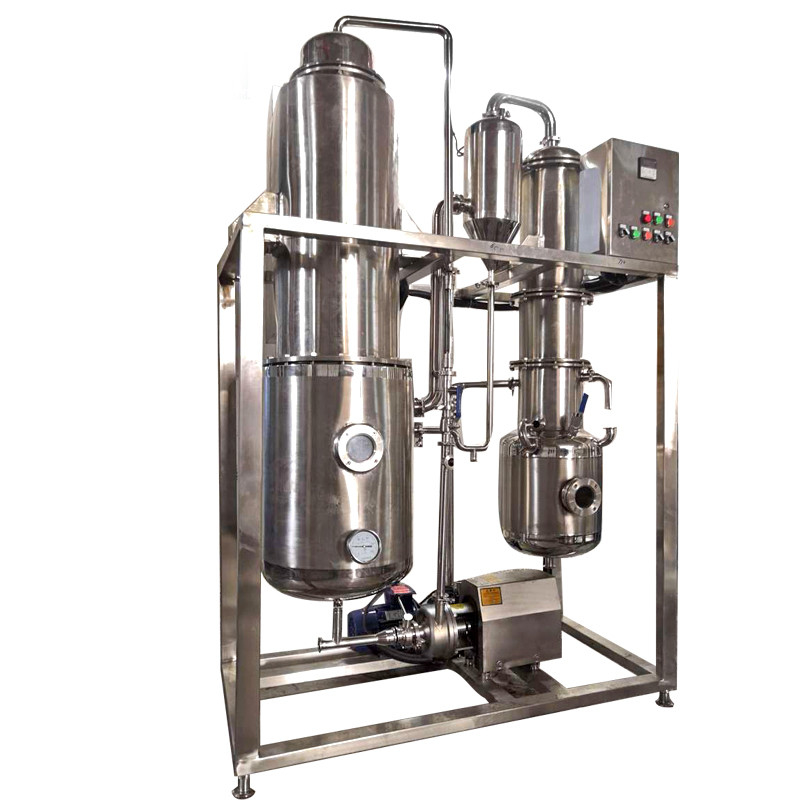

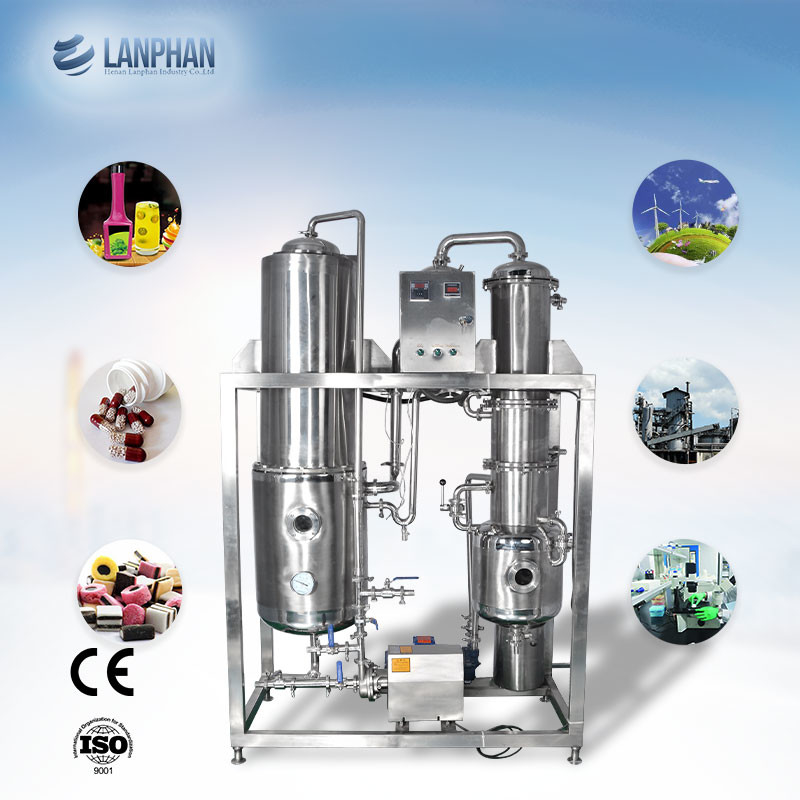

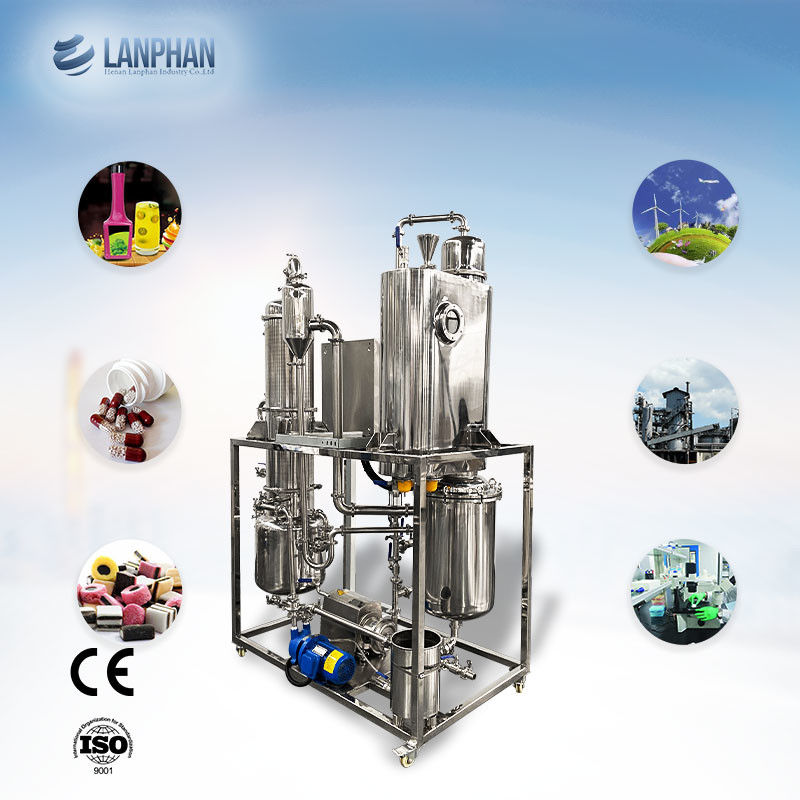

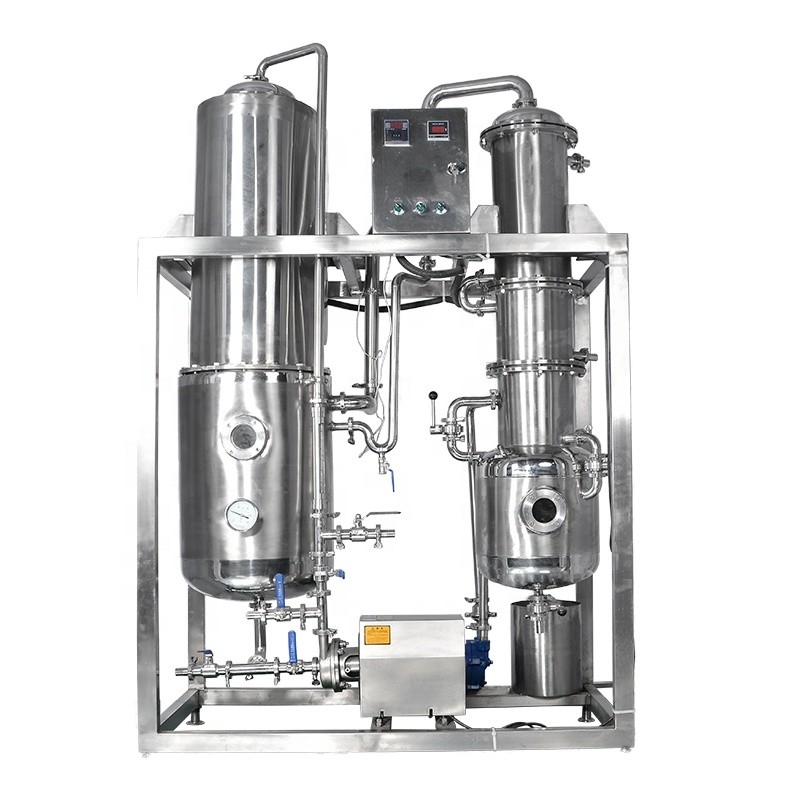

20L Falling Film Evaporator Ethanol Distillation Tower Thin Layer

Minimum Order Quantity : 1 Price : $13390
Packaging Details : Wooden Box or Customized Packing Delivery Time : 15-20 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 10 Sets per Week
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: FFE-20L

Detail Information

Product Name: Falling Film Evaporator Evaporation Rate (L/H): 20
Heating Area: 1.2 ㎡ Cooling Area: 1.5 ㎡
Power: 2.4kw Power Supply: 220V 60Hz
High Light:

20L Falling Film Evaporator

,

Ethanol Distillation Falling Film Evaporator

,

20L Ethanol Distillation Tower

Product Description

Falling Film Evaporator Description



A single-effect falling film evaporator can be used to evaporate extract liquid under reduced pressure or vacuum condition so that ethanol and liquid material can be separated, condensed and recycled.



Working Principle



The liquid material is distributed evenly into each falling film tube by distributors and flows downward along the tube wall in the form of liquid film. The liquid material is evaporated during the process of flowing downward under actions of gravity and secondary steam flow. The liquid material and secondary steam are separated basically after reaching the lower part of falling film tubes and separated completely after reaching the separation chamber.



Falling Film Evaporator Applications



A single-effect falling film evaporator is widely used in food, dairy, chemical, pharmaceutical, biological engineering, environmental engineering and deep processing of corn. For example, it is applicable for the evaporation and concentration of aqueous solution, organic solvent solution, fruit and vegetable juice, milk, egg product, vitamin C, collagen, infusion of tea, sodium glutamate and other liquid materials. It is especially suitable for the evaporation and concentration of heat-sensitive materials, because the beneficial elements can be protected to the greatest extent during the heating and evaporation of materials.



Falling Film Evaporator  Parameter



Product Model FFE-20
Evaporation Rate (L/H) 20
Heating Area (spuare meter) 1
Condensing Area (square meter) 2+0.5
Vacuum Degree (Mpa) -0.095
Heating Power (KW) 15
Feed Pump (KW) 0.75
Water Circulating Vacuum Pump (KW) 0.75
Power Supply 220V/60Hz Three Phase








20L Falling Film Evaporator Ethanol Distillation Tower Thin Layer 4
