Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : L/C, D/A,, Western Union Supply Ability : 1000
Place of Origin: China Brand Name: Lanphan
Certification: ISO Model Number: DZF6090

Detail Information

After-sales Service Provided: Overseas Third-party Support Available Name: Advanced Vacuum Clean Heating Drying Oven With Ce Certificated
Inner Container Material: 304 SS(1Cr~18Ni9Ti) Inner Container Size(mm): 450*450*450
Temperature Control Range: RT+10~250℃ Vacuum Degree: 0.098Mpa
High Light:

SS304 Vacuum Drying Oven

,

2000W Vacuum Drying Oven

,

PID Self Tuning Lab Vacuum Oven

Product Description

product description:

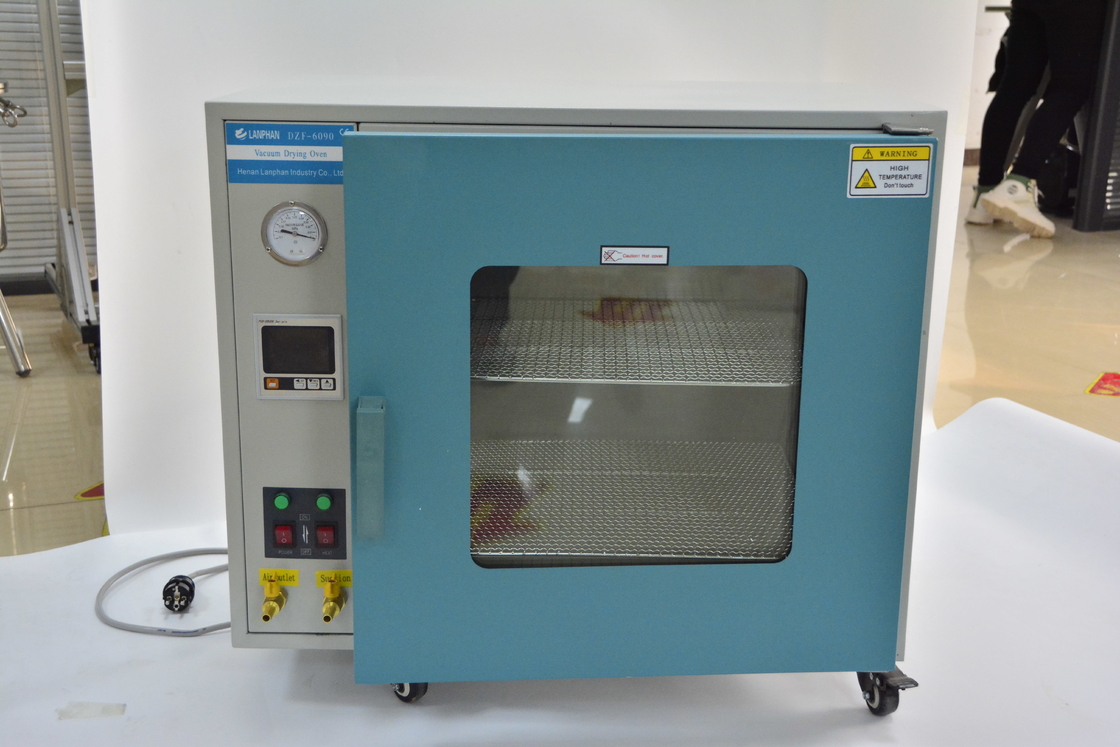

DZF6090 vacuum drying oven (2000W) is specially designed for drying heat sensitive, easily decomposed and easily oxidized substances. It can be filled with inert gas, especially some items with complex composition can be dried quickly. The power of the DZF6090 vacuum drying oven is 2000W, and the inner tank size is 450 * 450 * 450mm. The double-layer vacuum glass door improves the thermal insulation performance, and the observation window has less fogging, and the dry objects can be observed more clearly.



The working principle of DZF6090 vacuum drying oven (2000W):
The built-in microcomputer processor uses the electrical signal generated by the on-off operation of the feedback value to control the heating element. After PID self-tuning (manually adjustable), the corrected parameters will be automatically locked, and the correct signal will be processed to keep the temperature constant within the set range Inside, the front panel'vacuum meter' displays the vacuum degree of the studio. There is a special exhaust valve in front of the machine, which can draw out the air in the vacuum chamber for vacuum drying operation. The rest of the switches and control devices are also evenly arranged on the front panel, which is simple and convenient to operate. The chassis of the whole machine is small in size, light in weight, power saving, and high in thermal efficiency. It is especially suitable for drying a small amount of samples.

Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 0

product details:

The studio adopts high-quality steel plate or sanitary stainless steel plate, strong anti-corrosion;

Bulletproof double-layer temperature-resistant tempered glass window, allowing your observation work to be clear at a glance;

The dual-screen digital display panel adjusted by touch keys makes your settings or readings more intuitive;

The tightness of the box door can be adjusted, and the integrally formed synthetic silicon sealing ring ensures that the box body maintains a high degree of vacuum.

Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 1

Product features of DZF6090 vacuum drying oven (2000W):
1. DZF6090 vacuum drying oven (2000W) studio adopts high-quality steel plate or sanitary stainless steel plate, strong anti-corrosion;

2. Bulletproof double-layer temperature-resistant tempered glass window, allowing your observation work to be clear at a glance;

3. The heat source adopts the built-in S-type riot resistance tube, which is safe and reliable, and the heating time is reduced by more than 50%, and the honeycomb heat conduction window makes the working space evenly heated;

4. The microcomputer temperature controller controls the temperature accurately and triggers quickly;

5. The dual-screen digital display panel adjusted by touch keys makes your settings or readings more intuitive;

6. The tightness of the box door can be adjusted, and the integrally formed synthetic silicon sealing ring ensures that the box body maintains a high degree of vacuum.

Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 2Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 3Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 4Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 5Chemical Research SS304 Vacuum Drying Oven 2000W PID Self Tuning 6

After-sales service:

1:Lifetime service, free replacement of non-human damaged parts within one year;

2. Warranty compensates for replacement of artificially damaged parts at the purchase (processing) price;

3. After the warranty period, continue to provide users with high-quality technical services and enjoy preferential purchase of spare parts;

4. Provide remote technical consultation and free installation video.

5. Overseas training services for technical engineers can be provided
