Vacuum Drying Oven Anti Corrosion Explosion 91L

Minimum Order Quantity : 1 set Price : $2500
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: China Brand Name: Lanphan
Certification: CE ISO Model Number: DZF 6090

Detail Information

Product Name: DZF 6090 Vacuum Drying Oven Voltage: 220V 50Hz
Heating Power: 2400w Maximum Vacuum Degree: -0.098Mpa
Volume: 91L Inner Material: 304 Stainless Steel
Warranty: 1 Year Customization: Yes
High Light:

50L Bho Vacuum Drying Oven

,

Lab Bho Vacuum Drying Oven

,

Bulletproof Vacuum Drying Oven

Product Description

Vacuum Drying Oven Parameter



product model DZF6010 DZF6020 DZF6050 DZF6090 DZF6210 DZF6500
voltage 220V 50HZ
heating power 400W 800W 1400W 2400W 4000W 4000W
temp control range RT+10~200℃
temperature resolution 0.1℃ / ±1℃
Maximum vacuum degree —0.098Mpa
working environment temp +5~40℃
inner dimension(mm)W×D×H 200×200×200 300*300*280 400*400*345 450×450×450 560×600×640 630×810×845
total dimension(mm)W×D×H 595*420*420 630*510*475 715*570*540 770*630*700 760*790*1770 930*1050*1990
volume 8L 25L 55L 91L 215L 431L

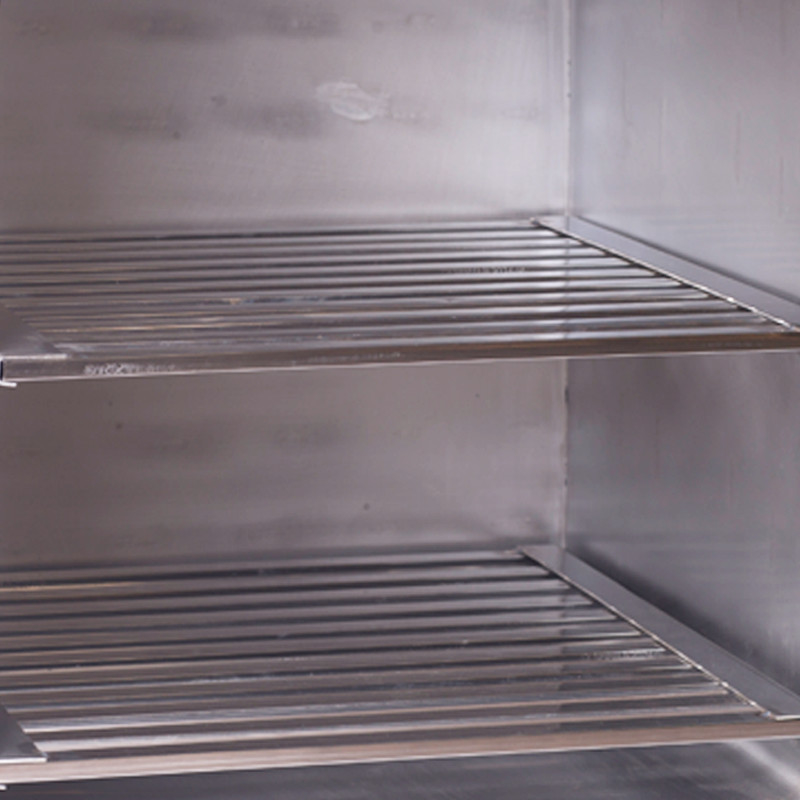

material tray 1pc 1pc 2pcs 2pcs 3pcs 4pcs



Vacuum Drying Oven Description

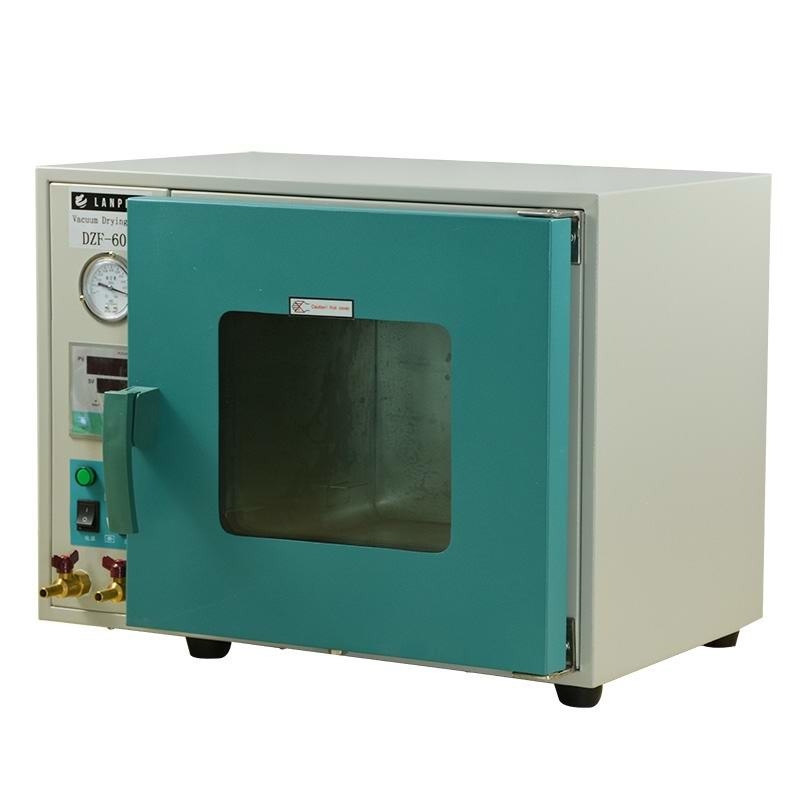

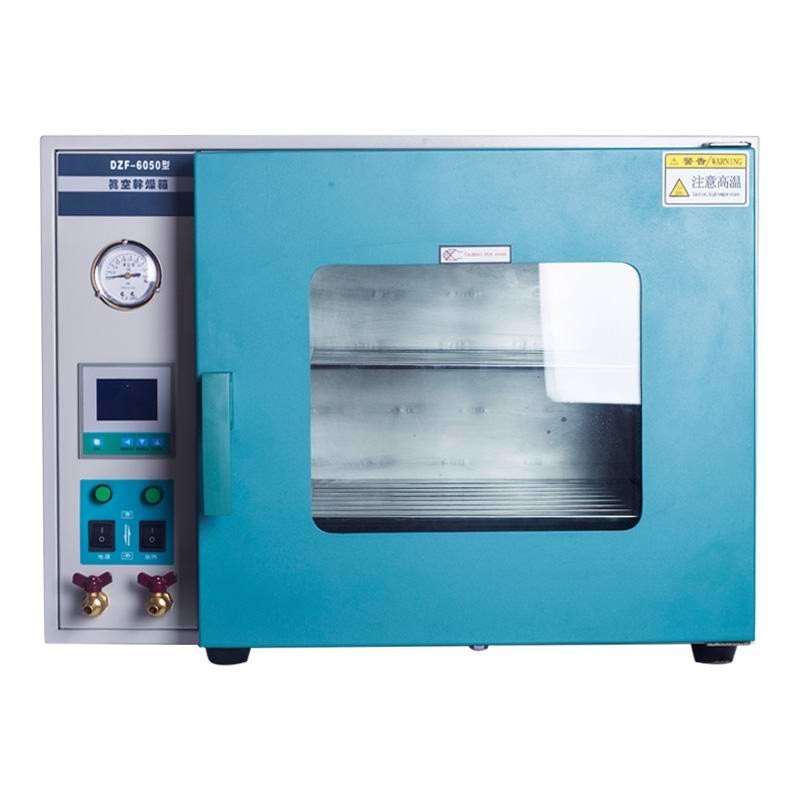

DZF6090 vacuum drying oven (2400w) is specially designed for drying heat-sensitive, easily decomposed and easily oxidized substances, and can be filled with inert gas, especially some items with complex composition can be quickly dried. The power of DZF6090 vacuum drying oven is 2400W, the size of the inner tank is 450×450×450 mm, and the double-layer vacuum glass door is adopted, which increases the thermal insulation performance, and the observation window has reduced fogging, which can more clearly observe the dried items.



Vacuum Drying Oven Features


1. DZF6090 vacuum drying oven (2400W) studio adopts high-quality steel plate or sanitary stainless steel plate, strong anti-corrosion;



2. Bulletproof double-layer temperature-resistant tempered glass window, allowing your observation work to be clear at a glance;



3. The heat source adopts the built-in S-type riot resistance tube, which is safe and reliable, and the heating time is reduced by more than 50%, and the honeycomb heat conduction window makes the working space evenly heated;



4. The microcomputer temperature controller controls the temperature accurately and triggers quickly;

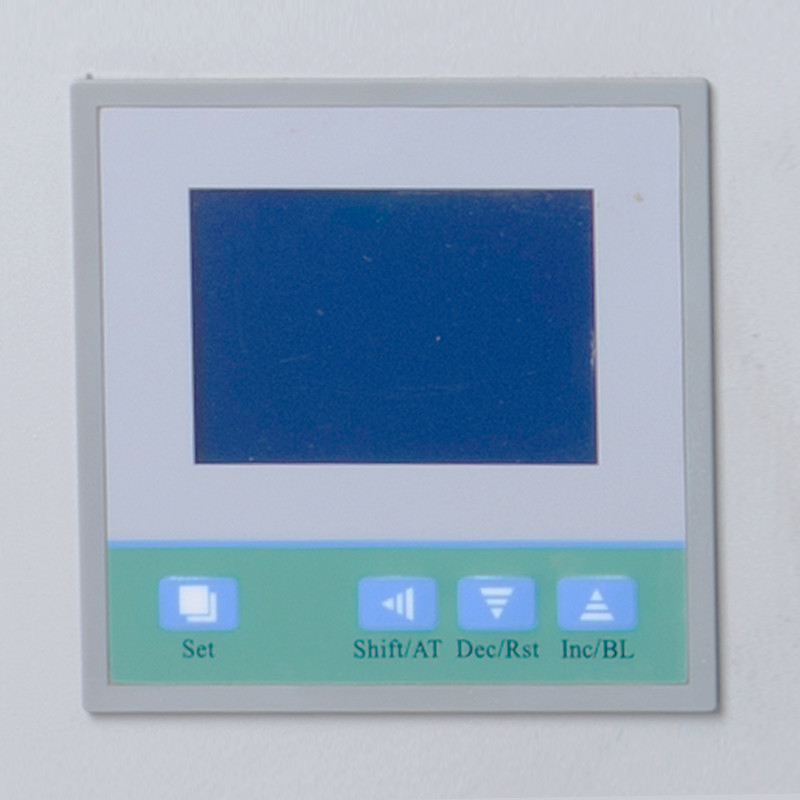

5. The dual-screen digital display panel adjusted by touch keys makes your settings or readings more intuitive;



6. The tightness of the box door can be adjusted, and the integrally formed synthetic silicon sealing ring ensures that the box body maintains a high degree of vacuum.





Vacuum Drying Oven Anti Corrosion Explosion 91L 0



Vacuum Drying Oven Anti Corrosion Explosion 91L 1Vacuum Drying Oven Anti Corrosion Explosion 91L 2Vacuum Drying Oven Anti Corrosion Explosion 91L 2

Vacuum Drying Oven Anti Corrosion Explosion 91L 4Vacuum Drying Oven Anti Corrosion Explosion 91L 5Vacuum Drying Oven Anti Corrosion Explosion 91L 6
