Essential Oil 250W Small Short Path Distillation Kit

Minimum Order Quantity : 1 - 2 Units Price : $1,796.00
Packaging Details : Packaging: carton or wooden case package, customized package is available. Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops After Warranty Service: Video Technical Support, Online Support
Local Service Location: United States Showroom Location: United States
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 YEAR
Core Components: Bearing, Gearbox, Motor, Pressure Vessel, Gear Condition: New
Power Source: Electric Process: ROTARY
Voltage: 380V/110V Power(W): 250W
Dimension(L*W*H): 480*580*535 MM Weight: 18/24/24 KG
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support
Key Selling Points: Easy To Operate Name: Evaporador Industriales
Temperature Control(℃): Digital Temperature Contrd-180 Max Vacuum Degree(Pa): 399.9Pa(<3mmHg)
Main Engine Rotary Speed (rpm): 20-110 Remarks: Essential Oil Home Distillation
Material: G3.3 Port: Shanghai, Tianjin, Qingdao
High Light:

Essential Oil Small Short Path Distillation Kit


250W Small Short Path Distillation Kit

Product Description


Thc Destillation Essential Oil Home Distillation Evaporador Industriales


Product Description


The pressure difference between the boiling film and condensing surface is the driving force of the stem flow, and the minimum pressure will cause the flowing of steam. Under the 1mbar, the operation requires that there is the shortest distance between the boiling surface and condensing surface. The evaporator manufactured based on the principle is called the short-path distillation. The short-path distillation (molecular distillation) is equipped with a inside condenser which is opposite to the heating surface, and make the operation pressure reduce to under 0.001mbar. Its relative low boiling temperature is very suitable for the material with heat sensitive and high boiling point.


Distillation process: The material should be added from the top of the evaporator and continuously spread to the heating surface through the material covered on the rotor. Then, the scratch film is capable of scratching the material into a thin and flowing liquid film. During this process, the light molecular exceeded the heating surface form the condense liquid on inside condenser without any collision. Then, the molecular flows along the condenser tube, and discharges through the discharge tube on the bottom of the evaporator. The residue liquid (heavy molecule) is collected on the circular channel under the heating zone, and flows through the discharge tube on one side.

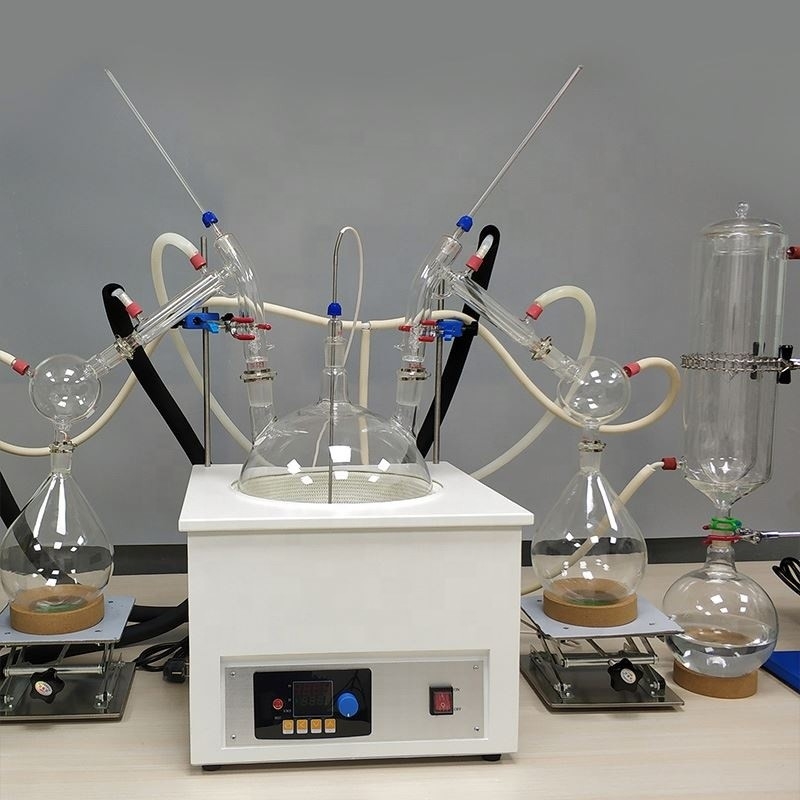

Essential Oil 250W Small Short Path Distillation Kit 0

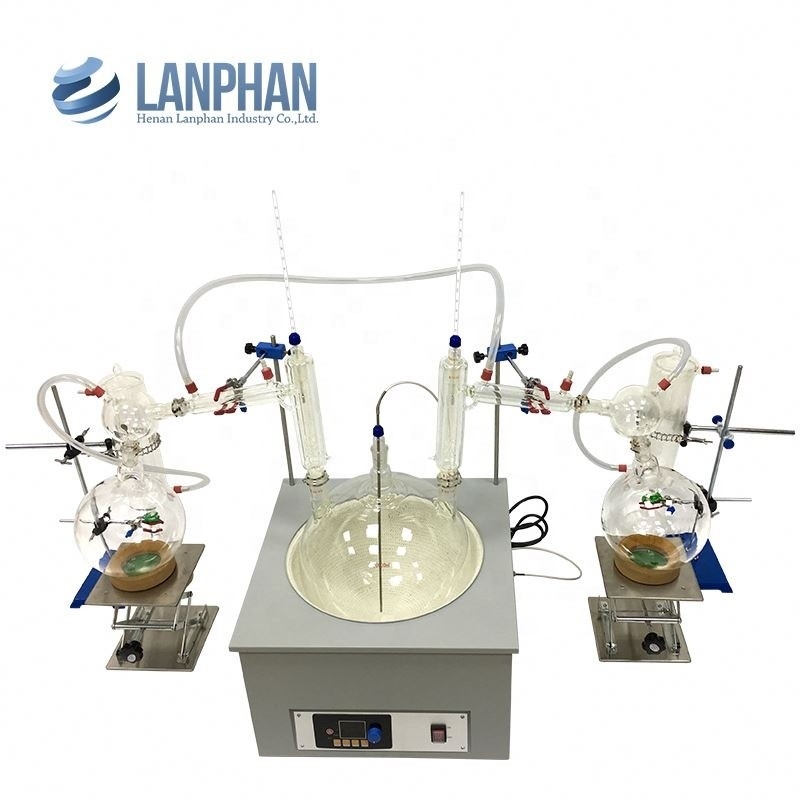

Essential Oil 250W Small Short Path Distillation Kit 1

  Accessories Name Specification Number Unit
1 2-neck Round Bottom Flask 10L,34/45*2,24/40 1 piece
2 Distiller 34/45,24/40,14/20 2 piece
3 Fractionating device 500ml,24/40 2 piece
4 eggplant shaped flask 2000ml,24/40 2 piece
5 cold trap 80*350mm,24/40 1 piece
6 cold trap cover 70mm 1 piece
7 Receiving Flask 2000ml,24/40 1 piece
8 Temperature casing pipe 14/20 2 piece
9 Temperature casing pipe 24/40 1 piece
10 Hollow plug 14/20 2 piece
11 Hollow plug 24/40 1 piece
12 funnel 110mm,24/40 1 piece
13 Mercury thermometer 0-360°C 2 piece
14 GL14 Cover   8 piece
15 mouth clip for Stainless steel bottle  34# 2 piece
16 mouth clip for Stainless steel bottle  24# 4 piece
17 mouth clip for plastic bottle  24# 1 piece
18 silicone tube 8*14 3 meter
19 Wood pallet 140 3 piece
20 Lifting platform (stainless steel) 200*200 2 piece
21 iron stand 140*200 1 piece
22 Cross clip 0-20mm 2 piece
23 Three claw clip large 3 piece
24 Experimental chain clip   1 piece
25 Three links (plastic) 8mm 1 piece
26 vacuum fat (50g) 7501 1 box
Total  49
27 magnetic stirrer heating mantle ZNCL-T 1 set
Accessories main engine   1
Vertical rod   2 set
Cross clip   2 piece
External sensor 500mm 1 piece
internal sensor   1 piece
Tetrafluoro rotors   1 piece
28 rotary vane vacuum pump 2XZ-4 1
29 Temperature Control Low-Temperature Coolant Circulation Pump DLSB-10/25 1

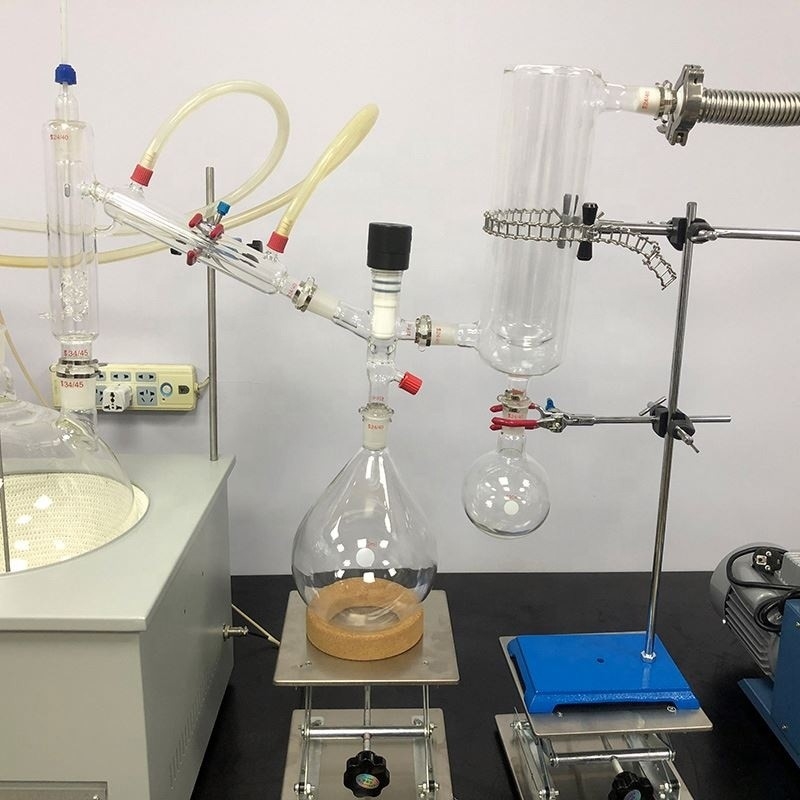

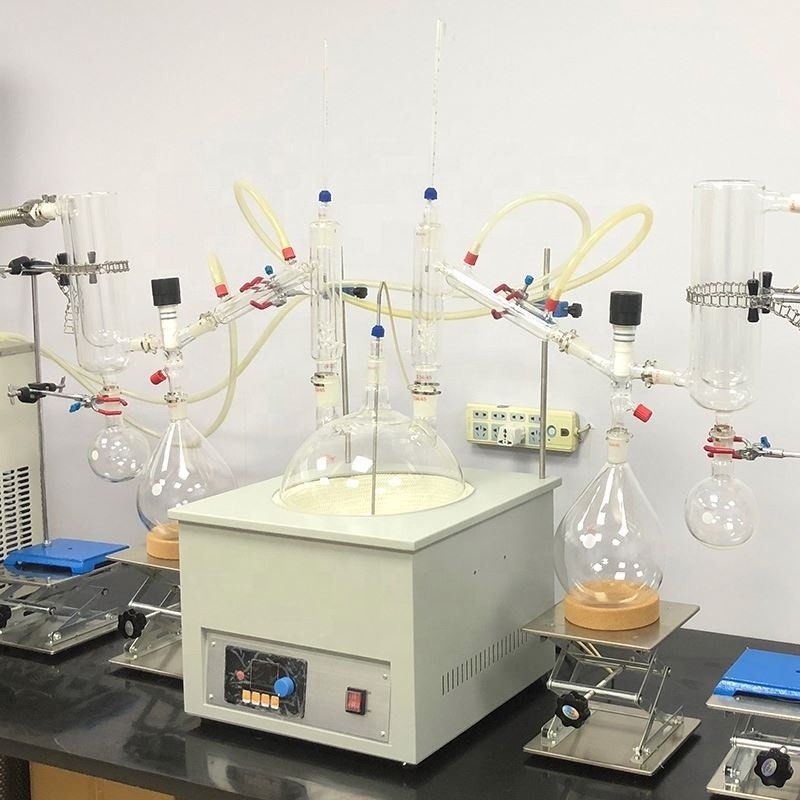

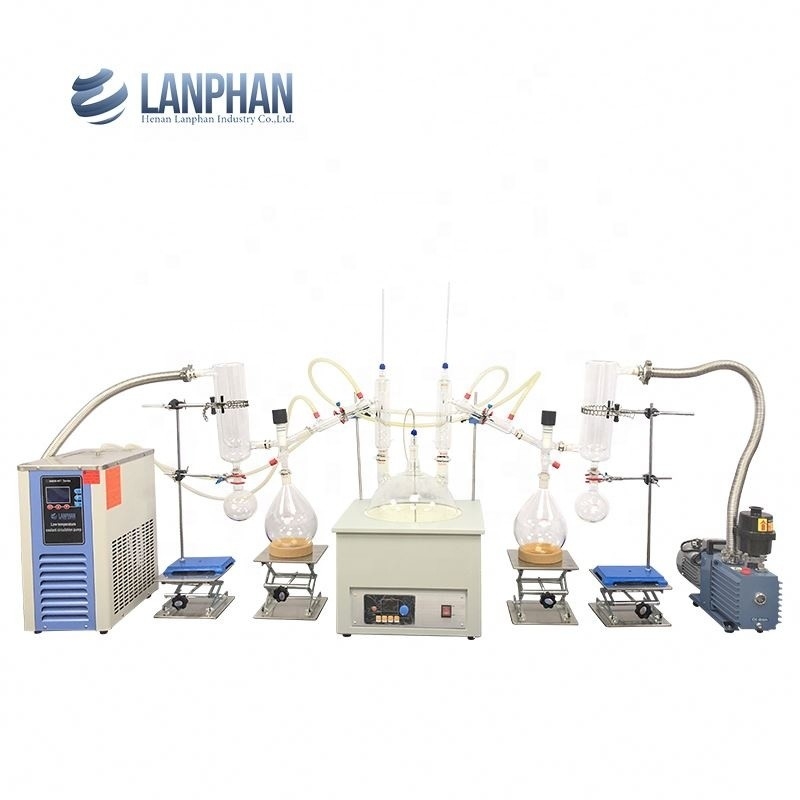

Essential Oil 250W Small Short Path Distillation Kit 2Essential Oil 250W Small Short Path Distillation Kit 3Essential Oil 250W Small Short Path Distillation Kit 4

Short-Path Distillation
Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(°C) Room temperature -250
Accuracy(°C) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(°C) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size 450*450*600 580*580*735 850*850*600
Weight 18 24 30
