Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3

Minimum Order Quantity : 1 set Price : $ 850
Packaging Details : Wooden Box or Customized Packing Delivery Time : 5-8 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000 Set/Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: SPD-5

Detail Information

Product Name: Short Path Distillation Product Model: SPD-5
Material: High Borosilicate G3.3 Working Pressure: ≤5Pa
Heating Temperature: About 300℃ Receiving Flask: 1000ml
Cold Trap: 1L Stirring Power: 40W
High Light:

Crystallizer Short Path Distillation Equipment

,

650W Short Path Distillation Equipment

,

650W Essential Oil Distiller

Product Description

Short Path Distillation Equipment Lab Crystallizer 5L



Short Path Distillation Equipment Description



As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.



Short Path Distillation Equipment Advantages



Compared to other separation methods, such as extraction, filtration and crystallization, it has the advantage that no other solvents than system components are required, thus ensuring that no new impurities are introduced.



Short Path Distillation Equipment Features

  1. High yield;
  2. High temperature resistance;
  3. Excellent sealing performance;
  4. High transparency;
  5. Durable material;
  6. Good corrosion resistance;
  7. Intelligent temperature control, and magnetic stirring.

Precautions for Use

  1. Check whether the inlet and outlet valves of the refrigeration equipment are normally opened and whether the pressure is in the normal range.
  2. Check whether the power supply of each device is turned on.
  3. With the electric heating, the surface temperature of the external heating body is relatively high. Don’t touch it with your hands to avoid burns.
  4. Check whether the ethanol in the low and constant temperature tank is enough.
  5. Check whether the liquid nitrogen in the tank is sufficient.
  6. Check if the connection between the cold trap and the equipment is greatly sealed.

Short Path Distillation Parameters



Product Model SPD-5
Material High Borosilicate Glass
Working Pressure ≤5Pa
Heating Temperature ~300℃
Reaction Flask 5L
Receiving Flask 1000ml
Cold Trap 1L
Collecting Flask 1000ml
Heating Power 1100W
Stirring Speed 50-1800RPM
Stirring Power 40W
Voltage 110V-220V

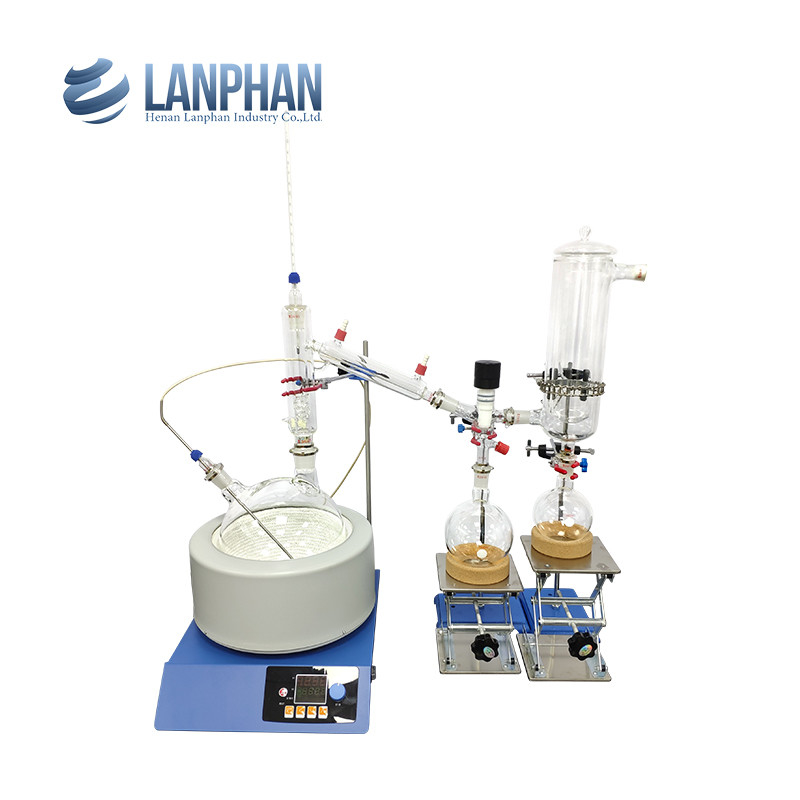

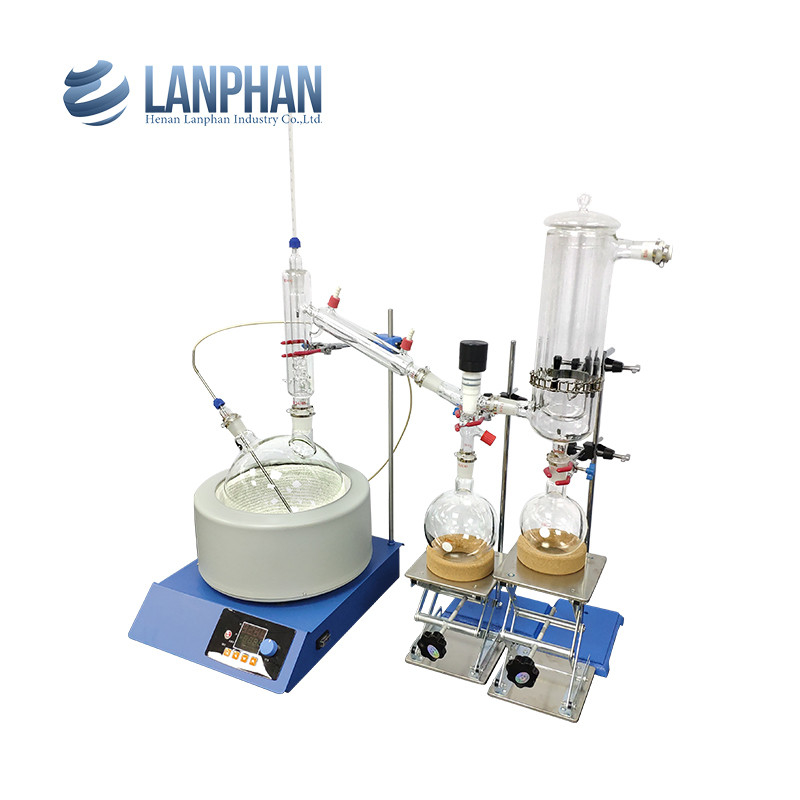

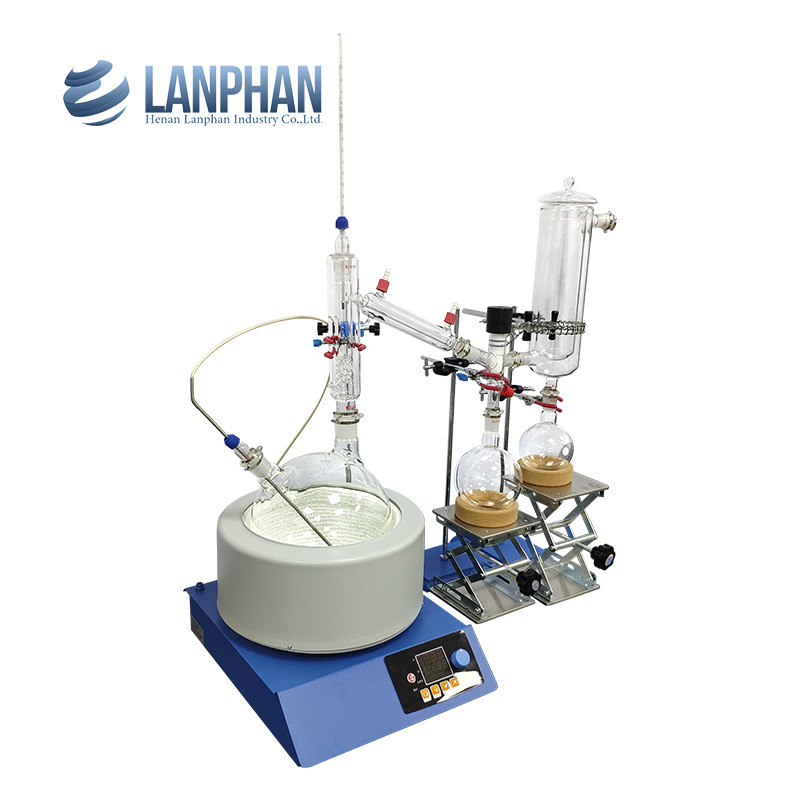

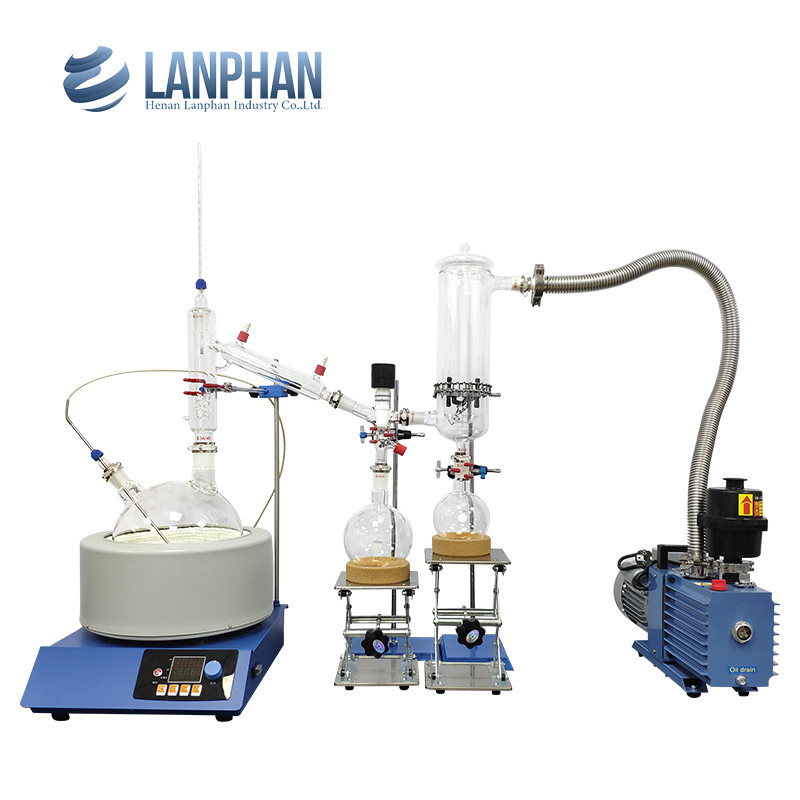

Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3 0Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3 1Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3 2Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3 3Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3 4Short Path Distillation Equipment Lab Crystallizer High borosilicate G3.3 5
