10l/H Centrifugal Atomizer Spray Dryer For Ceramic High Speed

10l/H Centrifugal Atomizer Spray Dryer For Ceramic High Speed

Centrifugal Atomizer Spray Dryer

Centrifugal Atomizer Spray Dryer For Ceramic

10l/H Centrifugal Atomizer Spray Dryer

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

10L

Contact Us
Request A Quote
Product Details
Product Name:
10l Spray Dryer
Water Evaporation (ml/h):
10kg/H
Maximum Feeding Capacity (ml/h):
10000
Centrifugal Nozzle Speed:
22000rpm
Total Power:
28kw/380v
Minimum Feeding Amount (ml/h):
200
Highlight:

Centrifugal Atomizer Spray Dryer

,

Centrifugal Atomizer Spray Dryer For Ceramic

,

10l/H Centrifugal Atomizer Spray Dryer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden Box or Customized Packing
Delivery Time
7-15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 Sets per Month
Product Description

Technical parameters



Air inlet temperature control 50~300℃ Air outlet temperature control 80~90℃
Evaporated water 10000mL/H The largest feed rate 10000 ml/h
Electric heater 15KW C380V Draught fan 2.2KW
Maximum quantity of wind 263 m3/h Maximum air pressure 686Pa
Equipment external dimensions 2200*1300*2400(mm)L*W*H Nozzle diameter 5.00mm
Equipment Weight 600KG Operating environment temp. 10~40℃





Spray Dryer operating step:



  • Start red total power supply.
  • LCD screen: Chinese and English.
  • Start fan.
  • Start heating set 150-220 (general common temperature).
  • Outlet temperature reach over 80 degree.
  • Start atomizer.
  • Outlet temperature between 85-100.
  • Start peristaltic pump feeding material, peristaltic pump set 20. (please note: before start peristaltic pump, please ensure drying tower and collection flask is dryer, without water or liquid ).
  • Outlet temperature reach over 100 degrees, peristaltic pump speed set 30.40.50.60.70.80.90.100.
  • Outlet temperature is controlled by the set air inlet temperature and peristaltic pump material feeding quantity.

Spray Dryer Application



This type spray drying machine is mainly suitable for laboratory to make the liquid material directly into micro powder, without before drying, filtration, concentration and smash, for all solution such as emulsion, suspending liquid, it has a broad applicability.

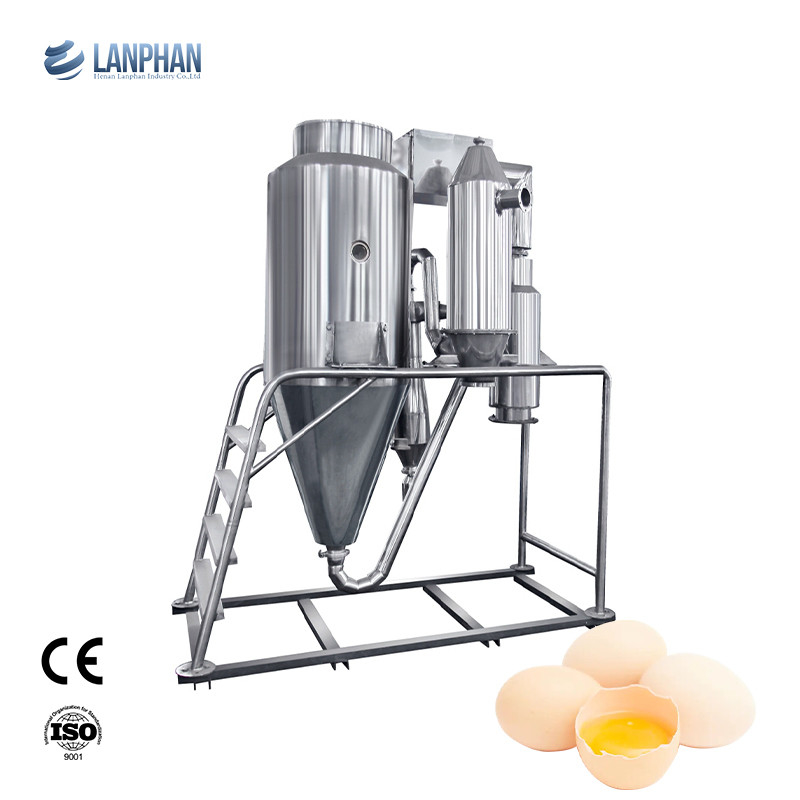

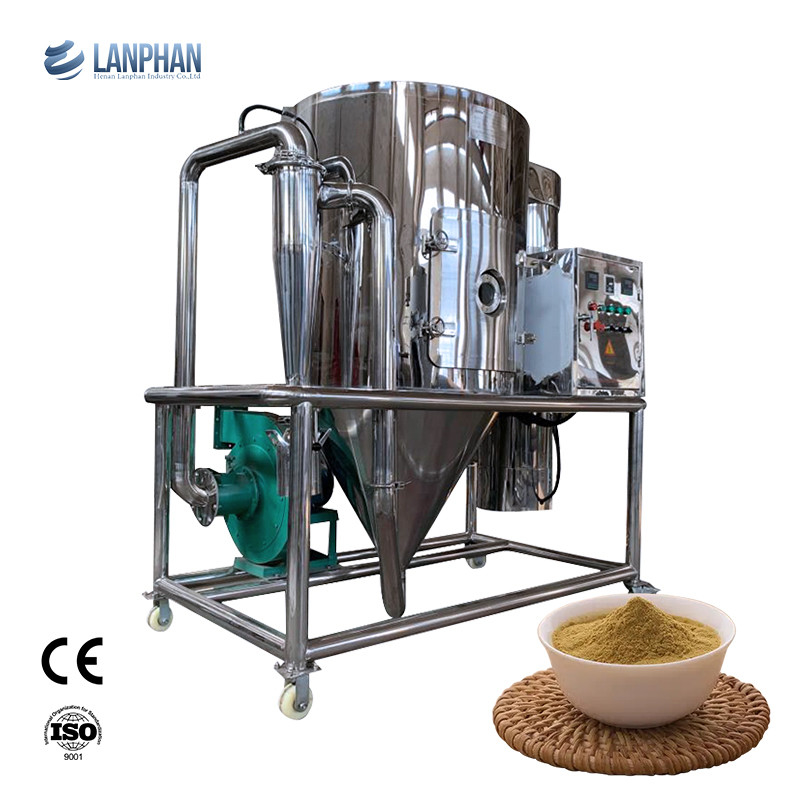

10l/H Centrifugal Atomizer Spray Dryer For Ceramic High Speed 010l/H Centrifugal Atomizer Spray Dryer For Ceramic High Speed 1

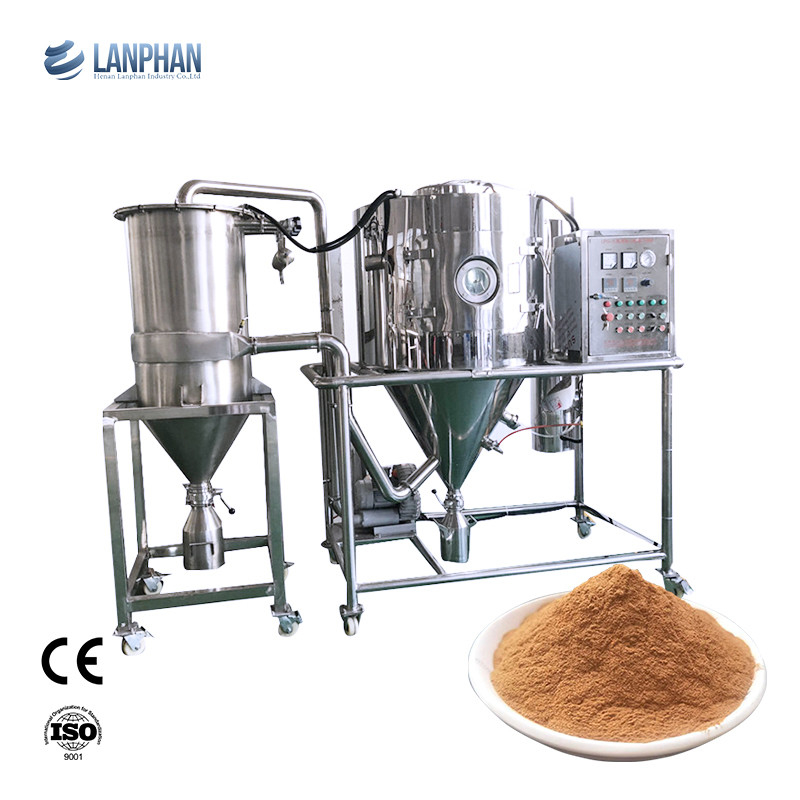

10l/H Centrifugal Atomizer Spray Dryer For Ceramic High Speed 2
