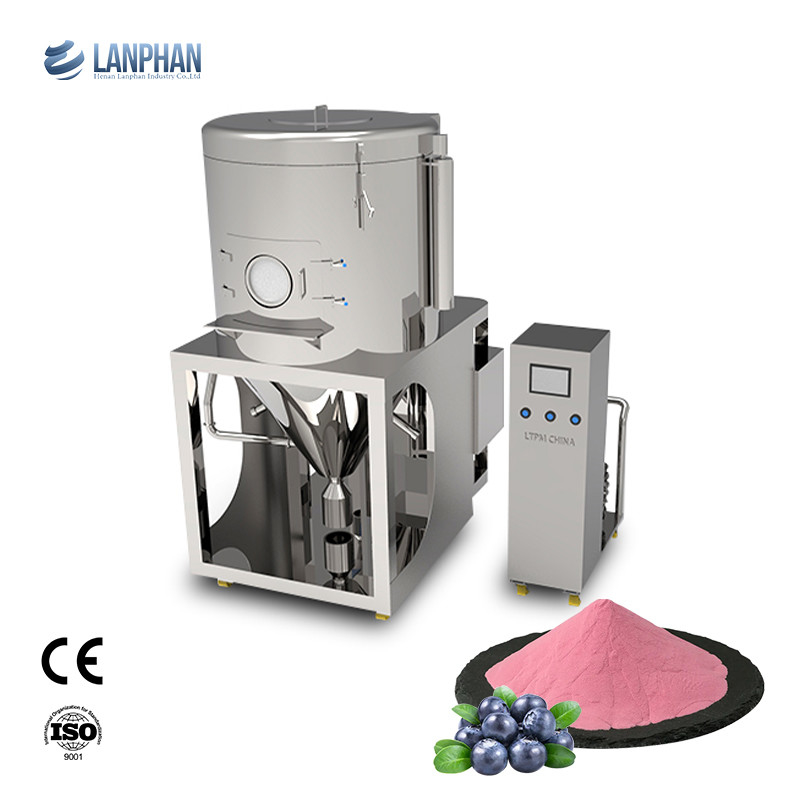

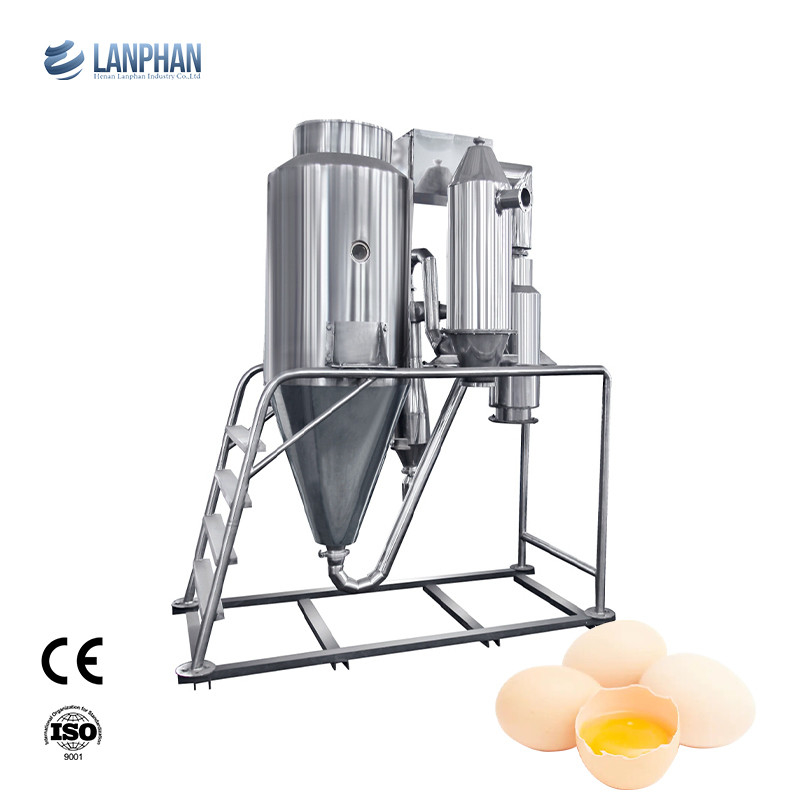

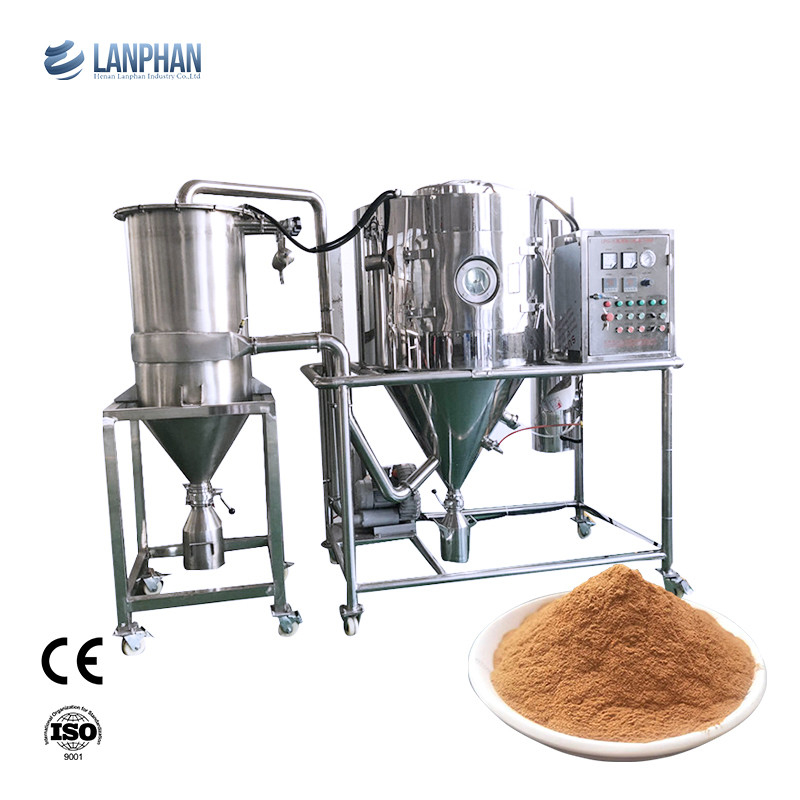

Pilot Centrifugal Spray Dryer Industrial 10L High Speed

Minimum Order Quantity : 1 set Price : $11299
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: HF-10

Detail Information

Product Name: Large Spray Dryer Maximum Feeding Capacity (ml/h): 10000
Minimum Feeding Amount (ml/h): 200 Inlet Air Temperature Control (℃): 180-250
Air Outlet Temperature Control (℃): 80-90 Centrifugal Nozzle Speed: 22000rpm
Water Evaporation (ml/h): 10kg/h Temperature Control Accuracy (℃): ±1
High Light:

Pilot Centrifugal Spray Dryer

,

Industrial 10L Centrifugal Spray Dryer

,

High Speed Centrifugal Spray Dryer

Product Description

Industrial 10L High Speed Pilot Centrifugal Spray Dryer



Product Application



This type spray drying machine is mainly suitable for laboratory to make the liquid material directly into micro powder, without before drying, filtration, concentration and smash, for all solution such as emulsion, suspending liquid, it has a broad applicability.



Spray drying machine Operation



Before power on this spray dryer, please check with below steps:

  • Whether have installed well sealing material, and then connect tubes, in order to guarantee not let the without heating air enter into the drying chamber.
  • Lock all doors and observation hole, and check whether have leakage.
  • At the bottom of the machine body and the bottom of the cyclone separator has a pollination device, before installation should check whether the seal ring is off, must not loose and then tighten pollination. Pollination device must be clean and dry.
  • Check the centrifugal fan rotation direction is correct.
  • The regulation butterfly valve of the centrifugal fan outlet whether is open. Don't put the butterfly valve closing, otherwise will damage the electric heater and air inlet pipes, this must cause enough attention.
  • Feed pump connecting pipe is connected well, the motor and pump rotation direction whether is correct.
  • The spray head at drying chamber top position, whether cover well, in order to avoid air leakage.

Product Parameter



Product Name Large Spray Dryer
Inlet air temperature control (℃) 180~250
Air outlet temperature control (℃) 80~90
Centrifugal nozzle speed 22000rpm
Water evaporation (ml/h) 10kg/H
Maximum feeding capacity (ml/h) 10000
Minimum feeding amount (ml/h) 200
Mode of feed Peristaltic pump regulation
Temperature control accuracy (℃) ±1
Mean drying time (s) 1~1.5
Total Power 28kw/380v
Stainless steel drying tower size (mm) Diameter1400 height 2700
Product Dimension(mm) 2500x1500x2600
Package Dimension(mm) 2600x1600x2800



Pilot Centrifugal Spray Dryer Industrial 10L High Speed 0Pilot Centrifugal Spray Dryer Industrial 10L High Speed 1Pilot Centrifugal Spray Dryer Industrial 10L High Speed 2
