Place of Origin:
Henan, China
Brand Name:
Lanphan
Certification:
CE ISO
Model Number:
2L

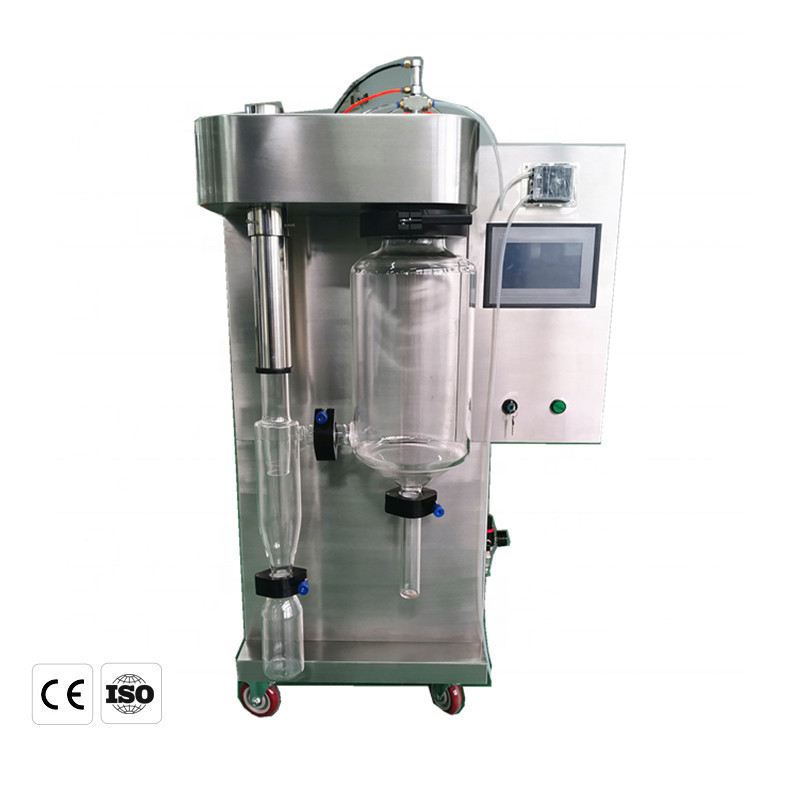

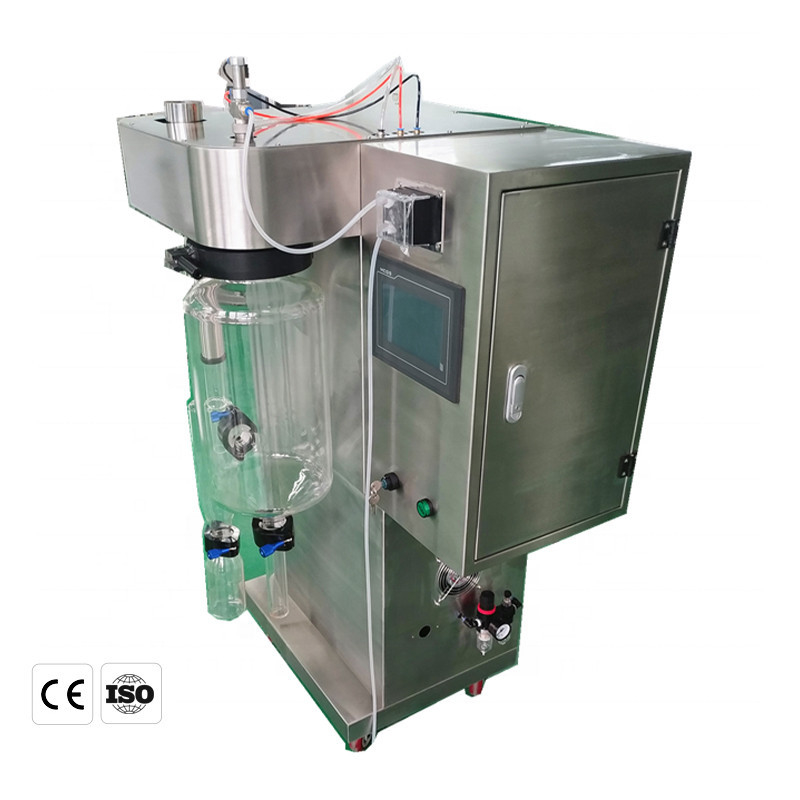

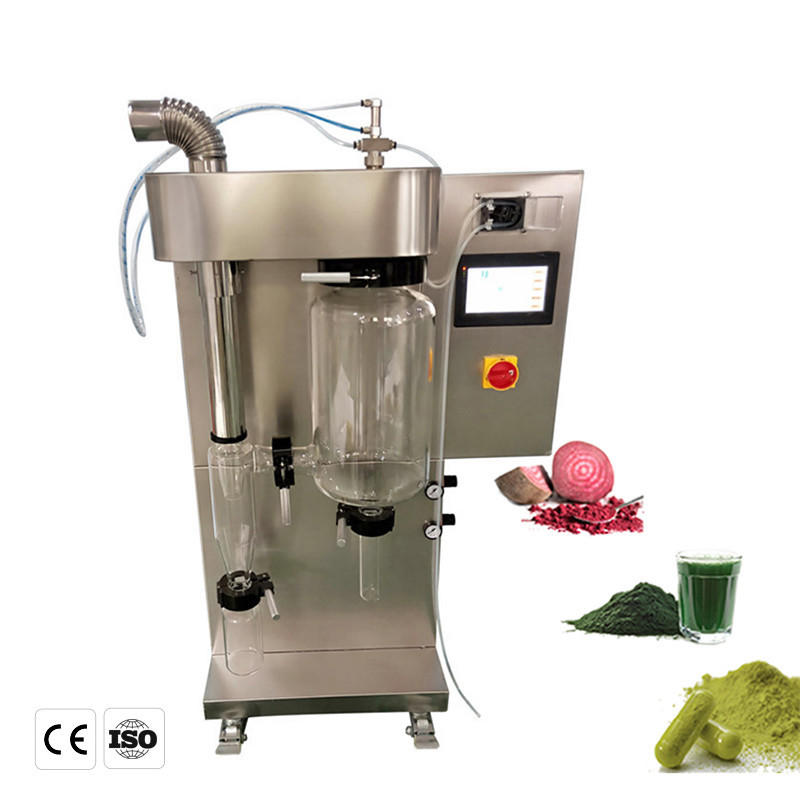

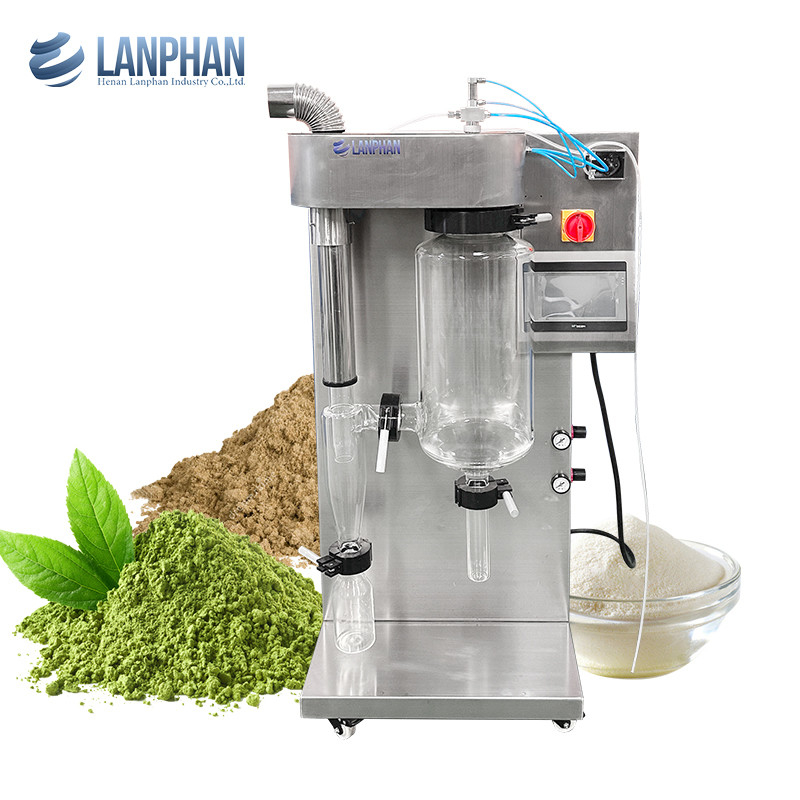

Lab 2L Stainless Steel Mini Small Scale Milk Solvent Powder Instant Coffee Atomizer Centifugal Spray Dryer
Spray dryer Description
Spray dryer is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.
Spray dryer Features
1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won't be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving tank are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Two-flow spray atomizing structure, whole machine is made of high quality stainless steel, compact design no accessory equipment is needed.
10. Use PID controller, the accuracy of heating temperature is around±1°C.
Spray Dryer Parameter
Air inlet temperature | 30~300℃ |
Air outlet temperature | 30~150℃ |
Electric heater power | 3KW AC220V |
Evaporation | 2000mL/H |
Maximum feeding capacity | 2000mL/H |
Fan power | 0.55KW |
Maximum air volume | 5.6m³/min |
Maximum air Pressure | 1020Pa |
Air compressor power | 0.2KW |
Nozzle diameter | 1.00mm |
Operating Temperature | 10~40℃ |
Dimension | 800 x 650 x 1300 ( mm ) |
Weight | 125KG |
