380V/50HZ Vacuum Food Freeze Dryer Industrial Lyophilization Machine

Product Details:
Place of Origin: Henan, China
Brand Name: Lanphan
Certification: CE ISO
Model Number: FDGY-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5 units per month

Detail Information

Product Name: Industrial Freeze Dryer Effective Trays Square: 10.01㎡
Power Voltage: 380V/50HZ Chamber Material: SUS304
Condenser Pipe: Aluminium Alloy Water Catch Capacity: Standard 100kg/batch
Refrigerant Type: R507 Trays Dimension: 1300*550*30mm
Installed Power (KW): 22.25KW
High Light:

Vacuum Food Freeze Dryer


Industrial Lyophilization Machine


380V Vacuum Food Freeze Dryer

Product Description

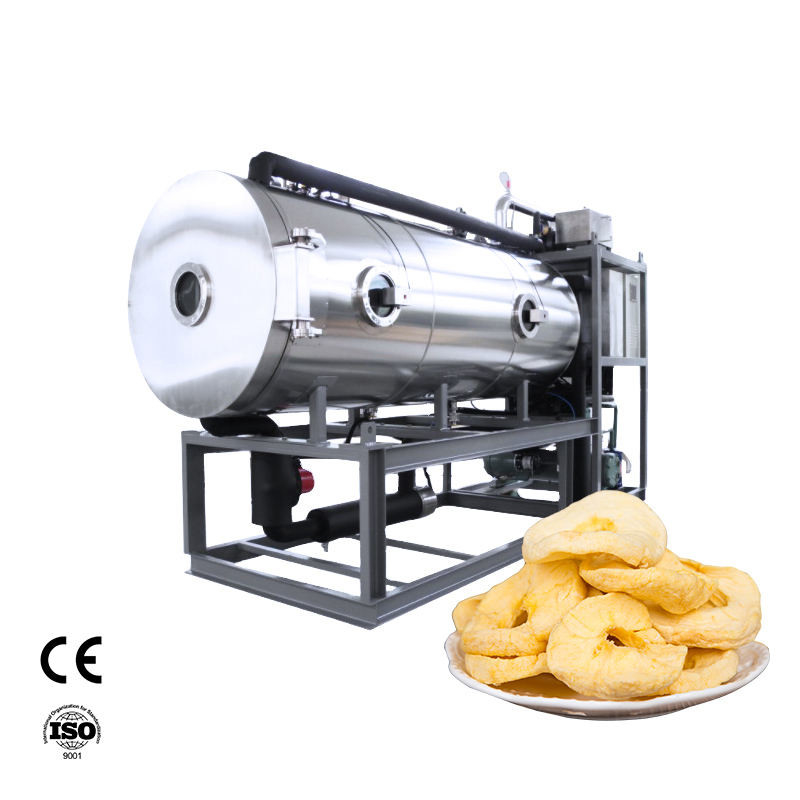

Industrial Lyophilizers Lyophilization Machine Vacuum Food Freeze Dryer


industrial freeze dryers application


The application of industrial freeze dryers in the food industry is extensive and crucial. These advanced machines play a significant role in preserving the quality, flavor, and nutritional value of various food products. Here are some key applications of industrial freeze dryers in the food industry.



industrial freeze dryer parameter


Effective trays square 10.01㎡
Condenser capacity kg/batch 100kg/batch
Equipment dimensions Circular chamber,3800*1400*2000mm(L*W*H)
Trays dimension 1300*550*30mm
Nr Trays 14pcs
Installed Power KW 22.25KW
Power Voltage 380V/50HZ
Colling Water(Cooling tower use) about 11.7m³/hr(Recycling,<30℃)



industrial freeze dryer features


1. Working Principle: Industrial freeze dryers utilize two key steps—freezing and vacuum—to achieve the drying process. Firstly, the substance is frozen into a solid state, and then heat is applied in a vacuum environment. This causes the frozen moisture to transition directly from a solid to vapor state, bypassing the liquid phase, thus achieving rapid drying.


2. Application Fields: Industrial freeze dryers play a vital role across various industries. In the food sector, they are employed to create freeze-dried foods that retain nutritional content, taste, and texture. In pharmaceuticals, they produce stable powdered drugs, extending their shelf life. Furthermore, they are used for producing biologics, enzymes, cell cultures, and more.


3. Industrial Scale: Industrial freeze dryers typically come with larger drying capacities, suitable for large-scale production. Different models offer varying drying capacities and production capabilities to meet specific needs.


4. Temperature and Pressure Control: The equipment is equipped with precise temperature and pressure control systems to ensure optimal conditions during the drying process. This aids in preserving the quality and activity of the products.


5. Operation and Monitoring: Industrial freeze dryers often incorporate advanced automation and monitoring systems, capable of tracking and recording various parameters of the drying process, ensuring controlled and reproducible operations.


6. Product Quality: The freeze-drying process effectively removes moisture from the product, preventing the growth of microorganisms and enzymes, thereby maintaining the long-term stability and activity of the product.



380V/50HZ Vacuum Food Freeze Dryer Industrial Lyophilization Machine 0380V/50HZ Vacuum Food Freeze Dryer Industrial Lyophilization Machine 1380V/50HZ Vacuum Food Freeze Dryer Industrial Lyophilization Machine 2
