Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer

Minimum Order Quantity : 1 unit Price : $3650.00 - $3850.00/unit
Packaging Details : wooden box packing Delivery Time : 5-8 work days
Payment Terms : T/T, Western Union, MoneyGram... Supply Ability : 1000 Units/Month
Place of Origin: China Brand Name: Lanphan
Model Number: LPSD-3

Detail Information

Product Name: Spray Dryer Atomizer Type: 3L Two-fluid Spray Dryer Atomizer
Feeding way: Peristaltic Pump Electric Heating Power: 5KW
Power: 7kw/220v Evaporated Water: 3000ml/h
Maximum Feed Quantity: 3000mL/h Adjustable Feeding Mode: Peristaltic Pump Regulation
Application: Make Milk Powder
High Light:

Atomizer Spray Dryer Machine

,

Spray Dryer Machine For Tomato Powder

Product Description

Laboratory Small Twin-Fluid Spray Dryer Atomizer Spray Dryer Machine For Tomato Powder

Spray Dryer Atomizer

Product name 3L stainless steel  Spray Dryer Atomizer
Air inlet temperature control 30~300℃
Air outlet temperature control 30~140℃
Evaporated water 3000ml/h
The largest feed rate 3000ml/h(adjustable)
Feeding way Peristaltic pump adjustment
Nozzle diameter 1.00mm/0.04inch (optional)
Dryer time 1.0 ~ 1.5 S
Total power 7KW /220V
Draught fan 0.55KW 100m³/h
Air compressor power 1.2KW 108L/min
Electric Heater Power 5KW
Package dimension (L*W*H) 800*800*1450(mm)/31.50*31.50*57.09(inch)
Package Weight 148KG(326.28lbs)



Spray Dryer Atomizer Main features:

  • The original nozzle (dual-fluid nozzle) is highly efficient. (optional centrifugal nozzle)
  • Fully automatic control: One-button startup. After setting the spray process parameters, the peristaltic pump starts automatically when the temperature reaches the predetermined temperature. The running animation is displayed on the touch screen, and the operation process is clearly displayed. When shutting down, just press the stop button and the machine will automatically shut down safely.

Spray Dryer Atomizer Description

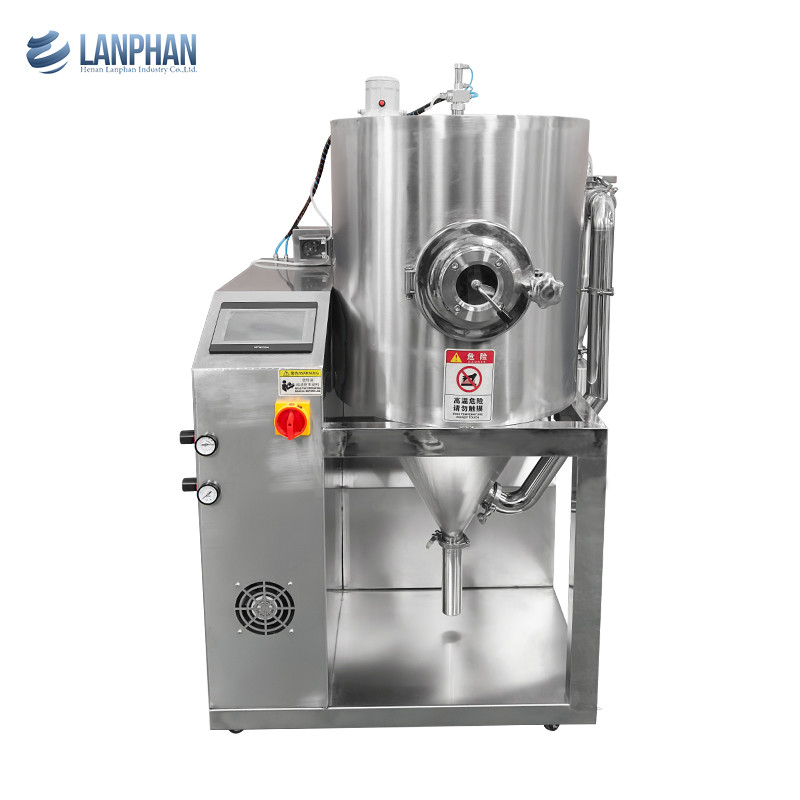

Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer 0

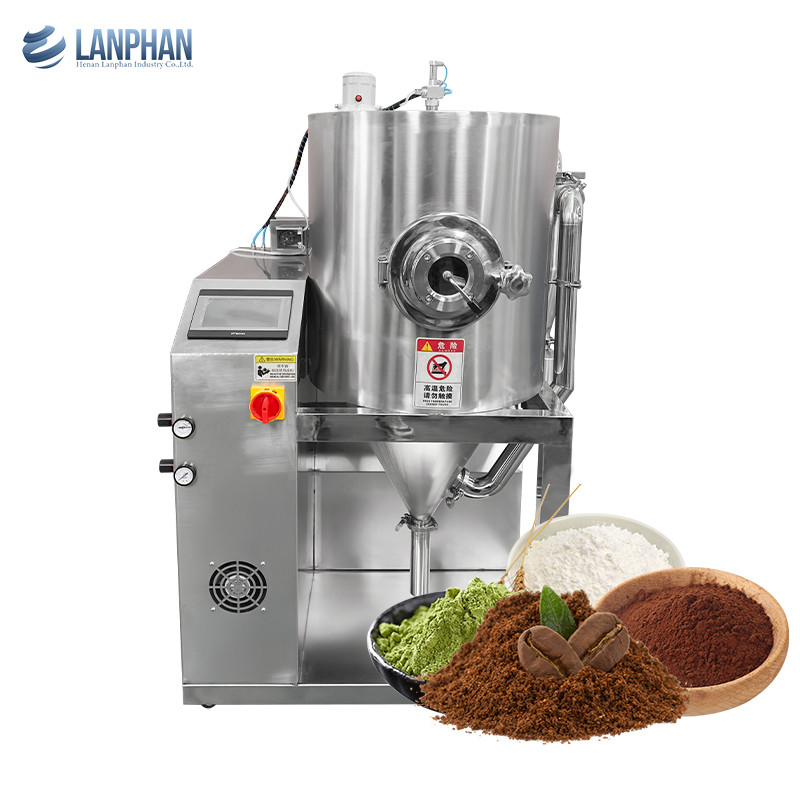

Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer 1

Spray Dryer Atomizer Structure

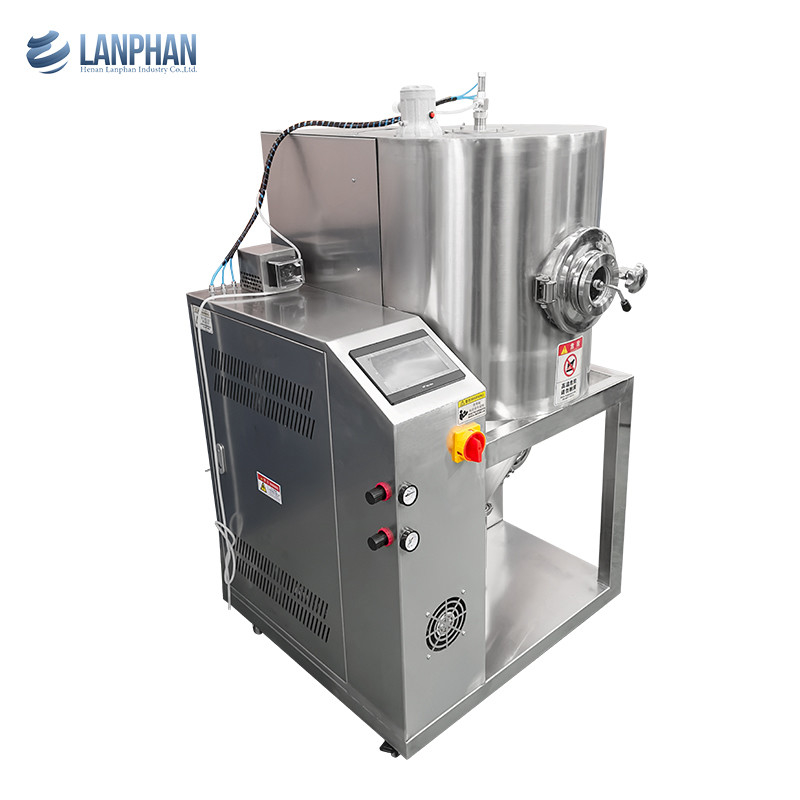

Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer 2

Spray Dryer Atomizer Details

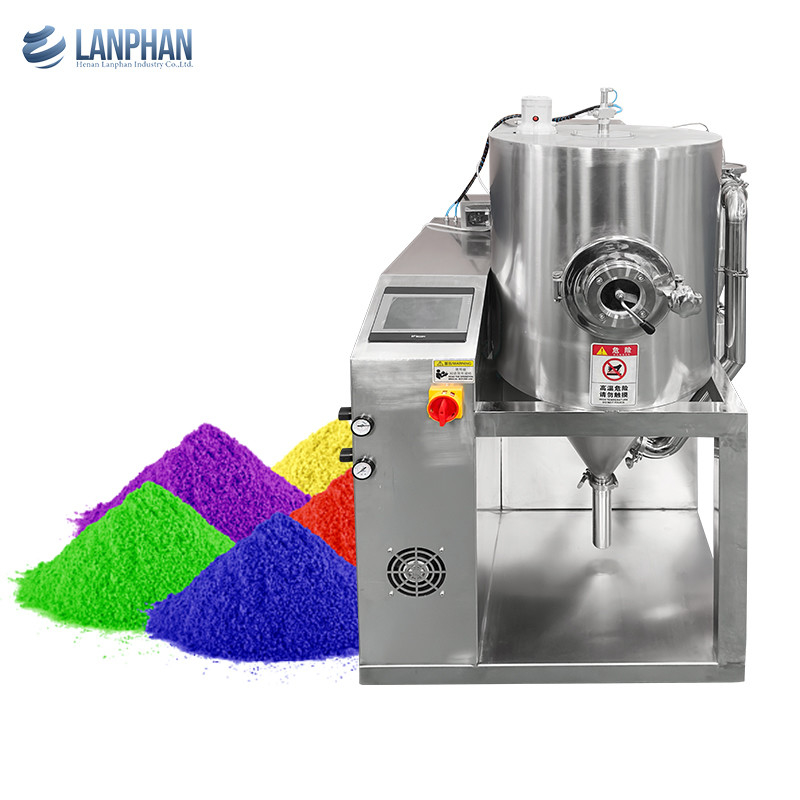

Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer 3

Spray Dryer Atomizer Application

Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer 4

Spray Dryer Atomizer Factory

Atomizer Spray Dryer Machine For Tomato Powder Laboratory Small Twin Fluid Spray Dryer 5
