Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale

Egg Powder Spray Drying Machine

7kw Powder Spray Drying Machine

Place of Origin:

China

Brand Name:

Lanphan

Model Number:

LPSD-3Pro

Contact Us
Request A Quote
Product Details
Product Name:
Spray Dryer Drying Machine
Type:
Centrifugal Spray Dryer Drying Machine
Air Inlet Temperature Control:
30~300℃
Air outlet Temperature Control:
30~140℃
Feeding way:
Peristaltic Pump
Average Drying Time:
1.0~1.5S
Power:
7kw/220v
Dimension(l*w*h):
43.31*35.43*62.99(inch)
Application:
Herbal Extract Honey Egg Milk Powder
Highlight:

Egg Powder Spray Drying Machine

,

7kw Powder Spray Drying Machine

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
$5,200.00 - $6,500.00/unit
Packaging Details
wooden box package
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
800 Units/Month
Product Description

7kw 3000ml/H Laboratory Scale Animal Blood Coffee Egg Powder Spray Dryer Drying Machine

Spray Dryer Drying Machine



Product name 3L Milk Powder Centrifugal Spray Dryer
Air inlet temperature control 30~300℃
Air outlet temperature control 30~140℃
Evaporated water 1500ml/h~3000ml/h
The largest feed rate 3000ml/h(adjustable)
Feeding way Peristaltic pump adjustment
Nozzle speed 36000r/min(adjustable)
Nozzle diameter 1.00mm/0.04inch(optional)
Dryer time 1.0 ~ 1.5 S
Total power 7KW /220V
Draught fan 0.75KW 140m3/h
Electric Heater Power 6KW
Package dimension (L*W*H) 1100*900*1600(mm) / 43.31*35.43*62.99(inch)
Package Weight 150KG/330.69lbs



Spray Dryer Drying Machine Main features:

  • Due to the instantaneous completion of the drying process, the particles of the product can basically maintain a spherical shape similar to liquid droplets, and the product has good dispersibility, fluidity, and solubility.
  • Simplified production process and convenient operation control. Spray drying is usually used for solvents with a moisture content of 40-60%. Even if the moisture content of special materials is up to 90%, they can be dried into powder products at one time. Most products do not need to be crushed and screened after drying, which reduces the production process, simplifies the production process and provides the purity of products. The particle size, precision, and moisture content of the product can be adjusted by changing the operating conditions within a certain range, making control and management very convenient.

Spray Dryer Drying Machine Description

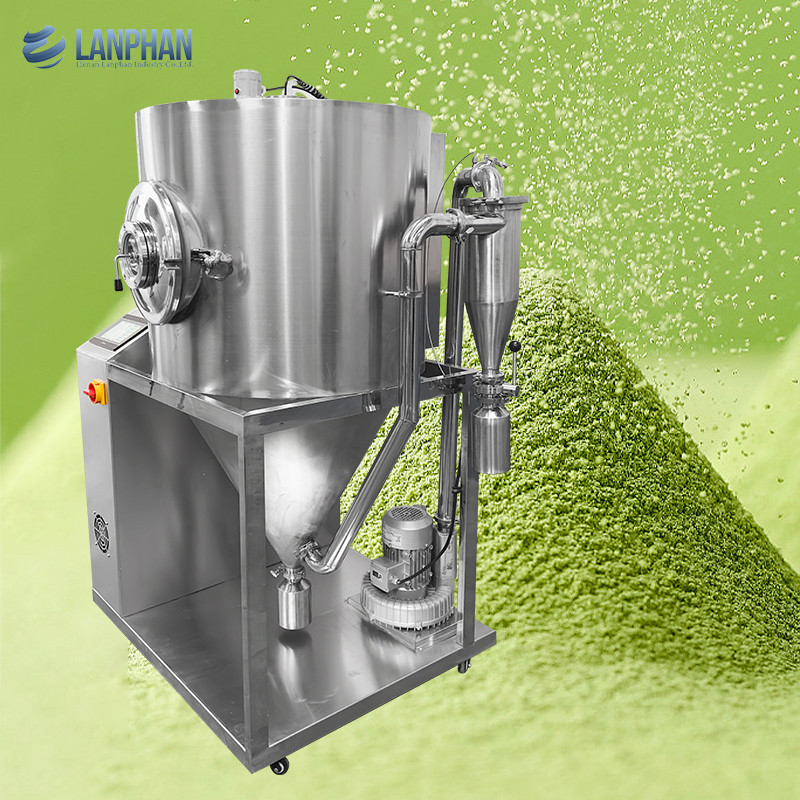

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale 0

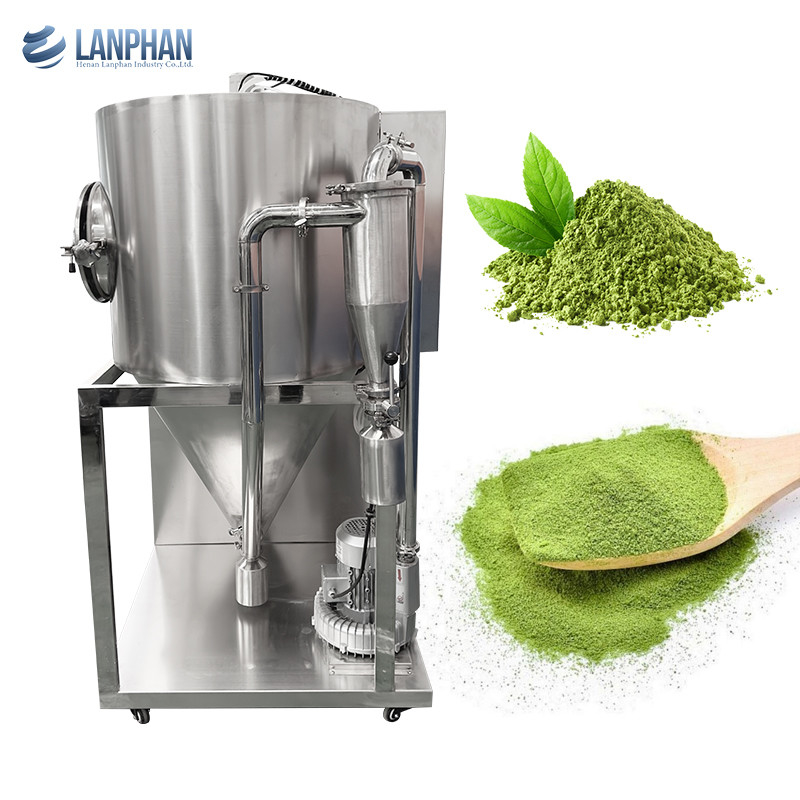

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale 1

Spray Dryer Drying Machine Structure

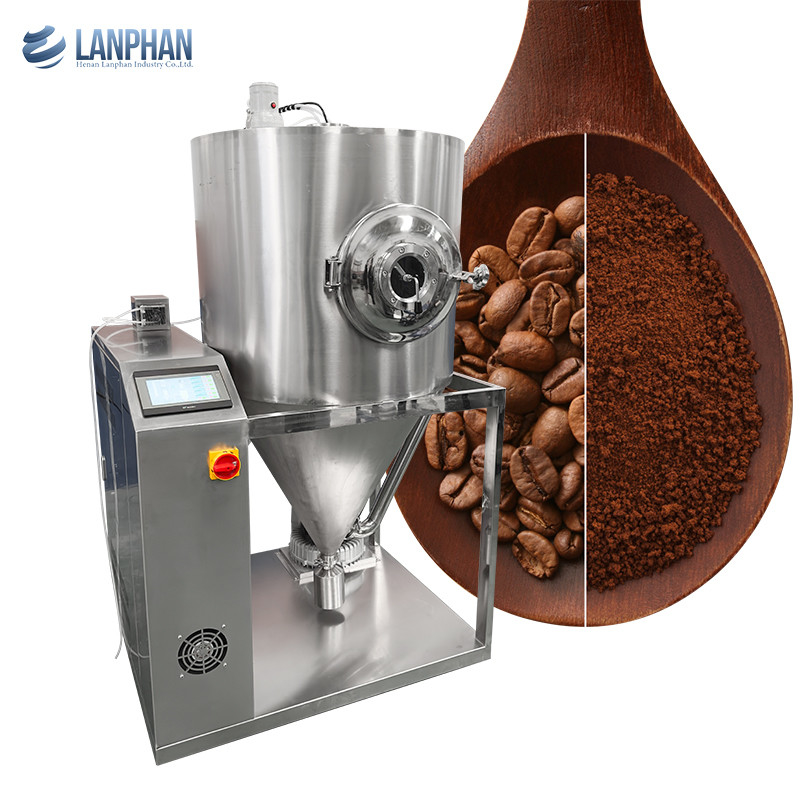

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale 2

Spray Dryer Drying Machine Details

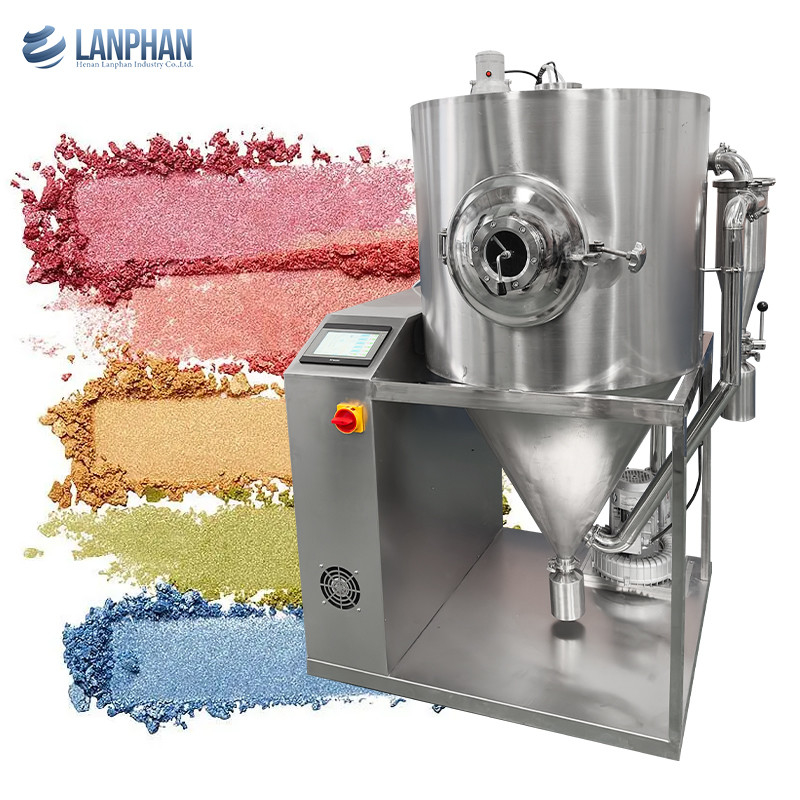

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale 3

Spray Dryer Drying Machine Application

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale 4

Spray Dryer Drying Machine Factory

Animal Blood Coffee Egg Powder Spray Drying Machine 7kw 3000ml/H Laboratory Scale 5
