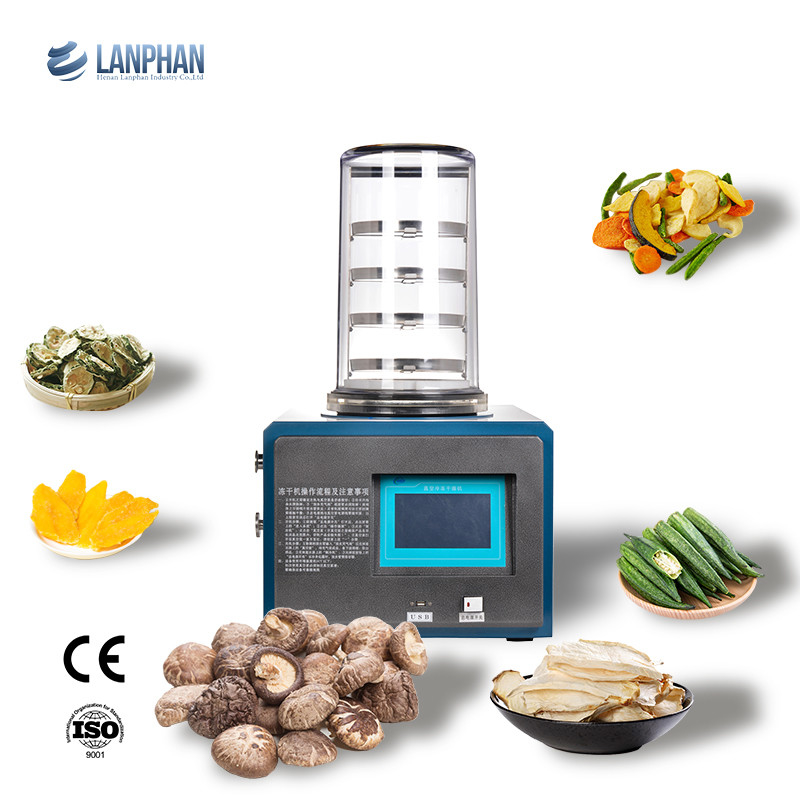

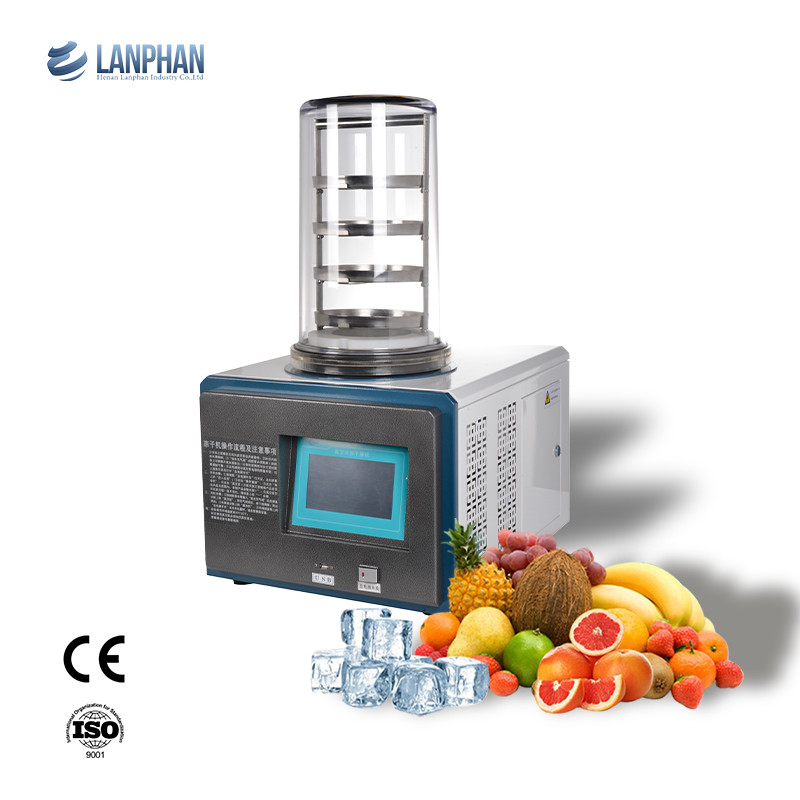

Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure

Minimum Order Quantity : 1 set Price : $ 1700-2300
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-15 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, Supply Ability : 100 Sets per Month
Place of Origin: Henan Brand Name: Lanphan
Certification: CE ISO Model Number: ZLGJ-10

Detail Information

Product Name: Laboratory Freeze Dryer Pumping Rate: 2L/S
Water Capture Capacity: 3-4kg/24h Cooling Mode: Air Cooling
Weight: 48kg Dimension: 520*600*400(mm)
Freeze-dried Area: 0.1㎡ Ultimate Vacuum: Below 5Pa (no Load)
High Light:

Cold Trap Temperature Vacuum Freeze Dryer

,

2L/S Vacuum Laboratory Freeze Dryer

,

Integrated Structure Vacuum Laboratory Freeze Dryer

Product Description

Laboratory Cold Trap Temperature Mini Vacuum Freeze Dryer



Lab Freeze Dryer Parameter



Product Modle ZLGJ-10(normal type) ZLGJ-10(Multi-manifold type) ZLGJ-10(Gland type) ZLGJ-10(Manifold gland type)
Freeze-dried Area 0.1 0.1 0.08 0.08
Cold Trap Coil Temperature ≤-55℃(no load),≤-80℃(no load)
Ultimate Vacuum ≤5Pa(no load)
Pumping Rate 2L/S
Water Capture Capacity 3-4kg/24h
Cooling Method air cooling



Lab Freeze Dryer Description



Experimental vacuum freeze dryer is widely used in medicine, pharmaceutical, biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the state before freeze-dried and retain the original biochemical characteristics after adding water. It is suitable for laboratory use and can meet the requirements of routine lyophilization in most laboratories.



Lab Freeze Dryer Features



1. integrated structure design, small size, easy to use, no leakage.
2. All materials in contact with the product are made of inert materials to meet the requirements of GLP.
3. The cold trap and drying rack are made of stainless steel, corrosion-proof and easy to clean.
4. cold trap opening, no inner coil, with sample pre-freezing function, no need for low temperature refrigerator.
5. specialized gas diversion technology, cold trap ice uniform, ice capture ability is strong.
6. international famous brand compressor, high efficiency and energy saving, long service life, low noise.
7. well-known brand vacuum pump, pumping speed, to achieve a higher limit vacuum degree.
8. vacuum pump protection function, can set the vacuum pump start cold trap temperature, protect the service life of vacuum pump.
9. 7 inch true color industrial embedded touch screen +SH-HPSC-II modular controller, high control precision, stable and reliable performance.
10. intelligent data recording system, real-time record and display cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be viewed through the computer printing and a variety of operations.
11. can set the user level and password, decentralization for operation management.
12. powerful sensor calibration function, to ensure the accuracy of long-term use of the measured value.





Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 0Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 1Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 2

Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 3Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 4Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 5Mini Vacuum Freeze Dryer Laboratory Cold Trap Temperature Integrated Structure 6
