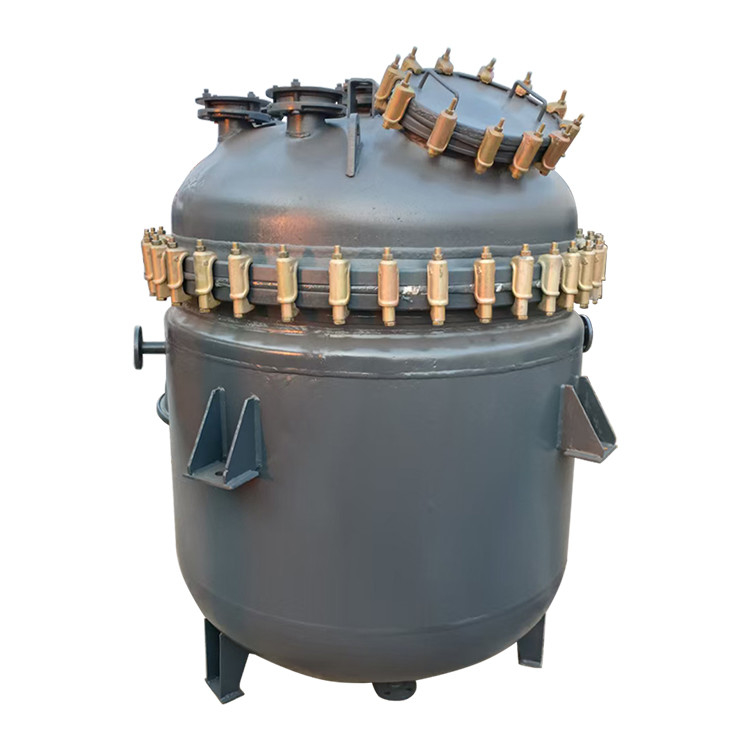

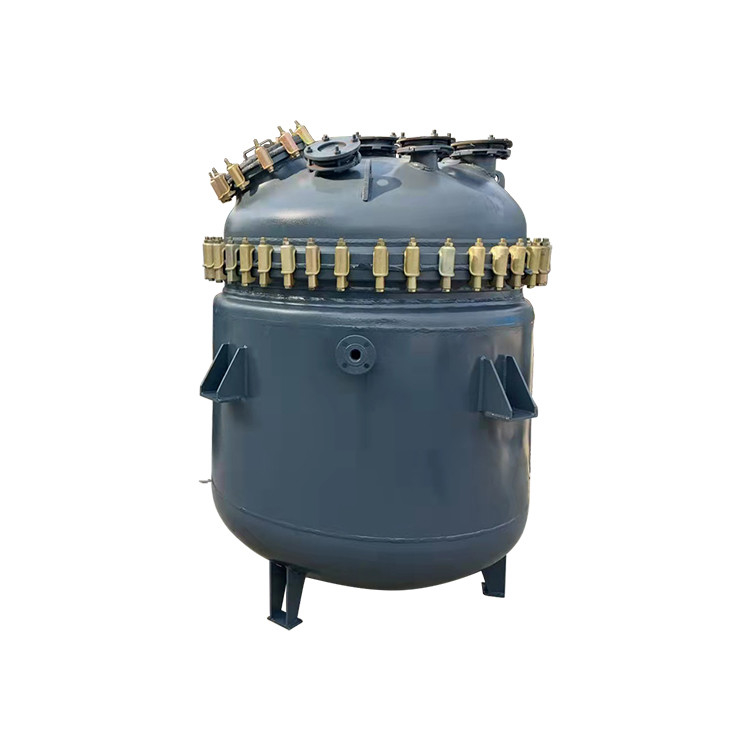

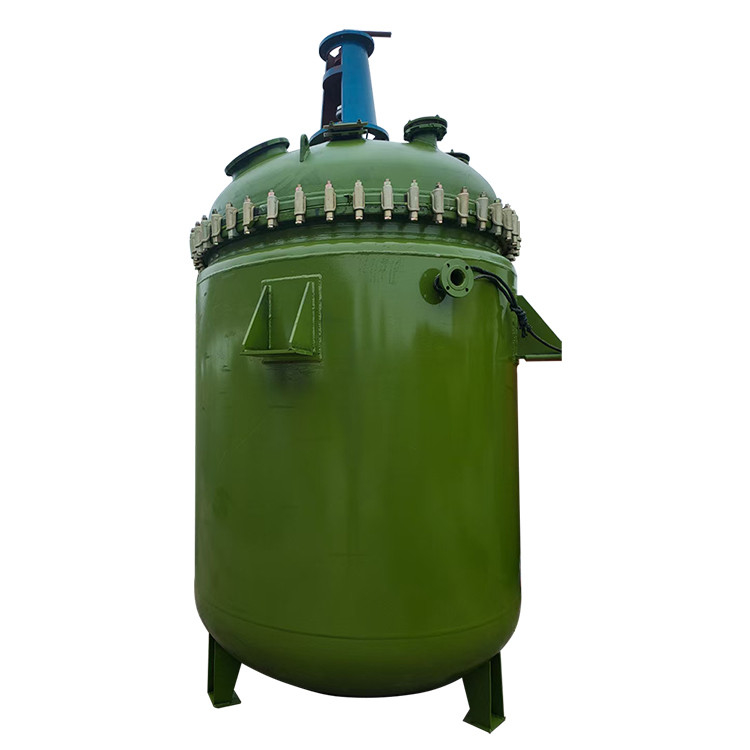

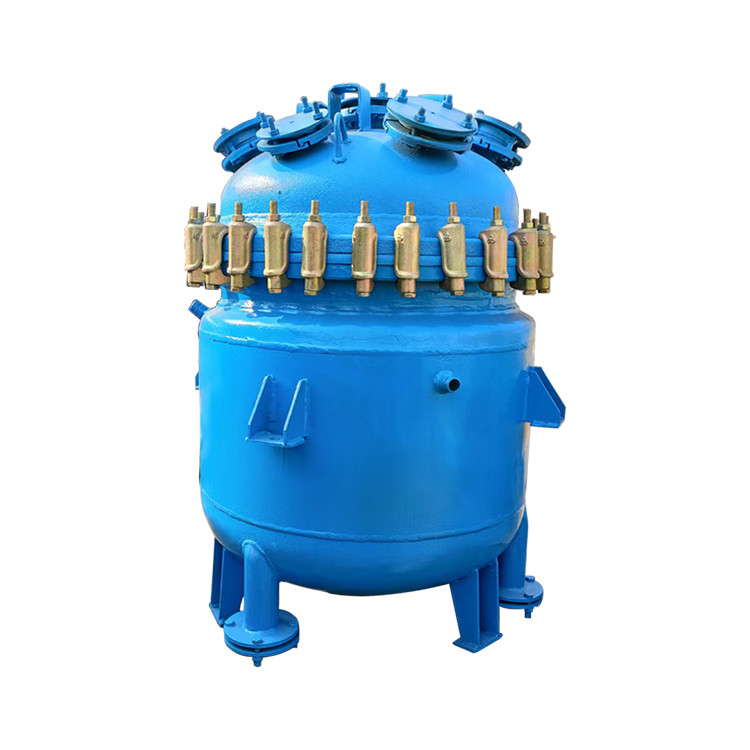

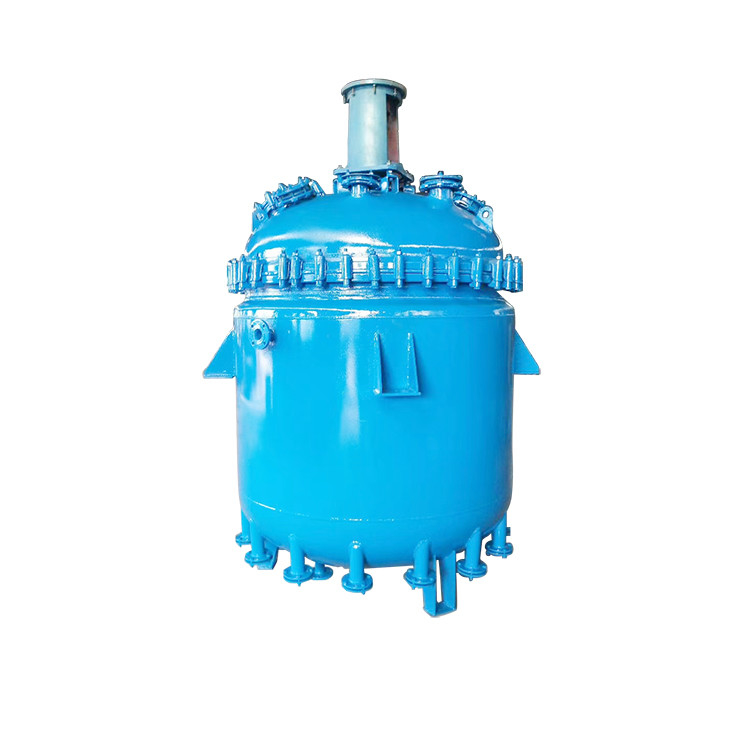

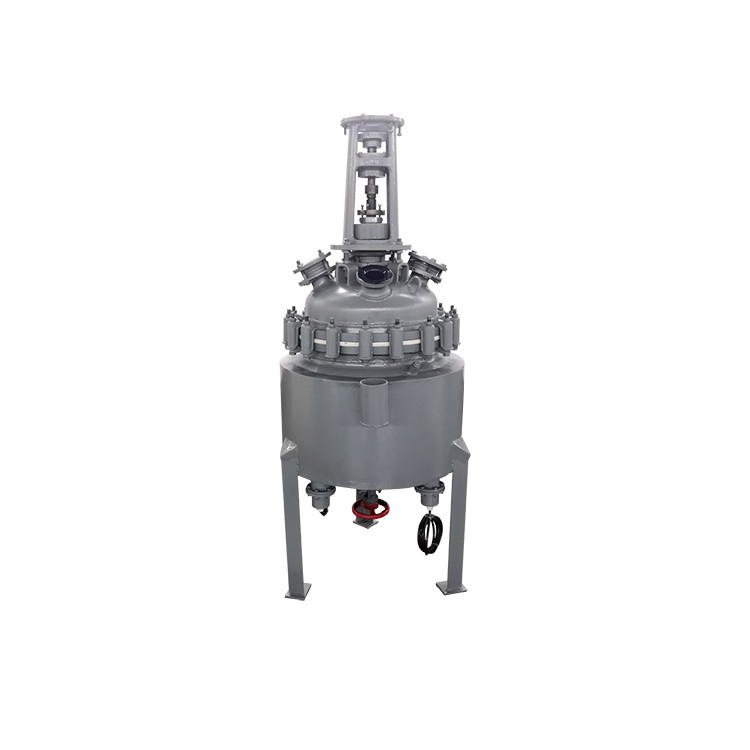

High Finish Glass Enamel Reactor Chemical 100L Glass Lined Mixing Reactor

Minimum Order Quantity : 1 Set Price : US $4,599-9,636
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-10 Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 Sets Per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: K-100

Detail Information

Product Name: Glass-lined Reactor Capacity: 100L
Material: Q345R+High Performance Enamel Operating Temperature: Rt~200℃
Sstirring Method: Paddle-type Stirring Speed: 0-130rpm
Voltage: 220V/380V Stirring Power/KW: 1.5
High Light:

High finish Glass Lined enamel Reactor

,

100L Glass Lined Mixing enamel Reactor

,

Glass Lined Mixing Reactor

Product Description

Glass-lined Reactor Description


The glass-lined reactor has the dual advantages of the stability of glass and the strength of metal container, which is an excellent corrosion-resistant chemical equipment.



Through the structural design and parameter configuration of the reactor, the functions of heating, evaporation, cooling and low-speed mixing can be realized.



The glass-lined reactor is a container for physical or chemical reaction, which is made of glass-lined enamel containing high silica lining the inner surface of the steel reactor, and it is firmly adhered to the metal surface after being burned at a high temperature.


Glass-lined reactors are also known as: enamel reaction tanks, glass-lined decomposition pots, glass-lined polymerization kettles, etc.



Glass-lined Reactor Application


When using an enamel reaction kettle, you should understand the medium in advance to ensure that it is used within its normal range of use.



Glass-lined reactors are currently widely used in petroleum, chemical, rubber, pesticide, dye, pharmaceutical, food and other industries to participate in vulcanization, nitration, hydrogenation, alkylation, polymerization, condensation and other processes.

Glass-lined reactors have good corrosion resistance, which are widely used in chemical and other industries. Attention should also be paid to its range of use to ensure better results.



(1)  Hydrofluoric acid and fluoride-containing ion medium.

(2)  Phosphoric acid, the concentration is more than 30%, and the temperature is higher than 180°C.

(3)  Sulfuric acid, concentration 10%~30%, temperature higher than 200°C.

(4)  lye, pH≥12, temperature higher than 100°C.


Glass-lined Reactor Features


  1. High pressure resistance; several levels of 0.2Mpa, 0.4MPa, 0.6Mpa, 1.0MPa can be designed;
  2. Corrosion resistance; strong corrosion resistance to various concentrations of inorganic acids, organic acids, organic solvents and weak bases;
  3. Mechanical shock resistance; mechanical shock resistance index is 220-10-3J; avoid hard object impact during use;
  4. Temperature shock resistance; temperature rapid change resistance; cold shock 110°C, thermal shock 120°C;
  5. High insulation; porcelain surface can pass 20KV high voltage test;
  6. High finish; non-stick and easy to clean.

Glass-lined Reactor Parameters


Model K-50 K-100 K-200 K-300 K-500 K-1000
Capacity 50L 100L 200L 300L 500L 1000L
Pressure -1~4Bar
Operating Temperature Rt~200℃
stirring Method paddle-type
Stirring Speed 0-130rpm
Stirring Power/KW 1.1 1.5 2.2 2.2 3 4
Heating Method Electric Heating
Heating Power/KW 9 9 12 12 18 45
Material Q345R+High Performance Enamel
Voltage 220V/380V
