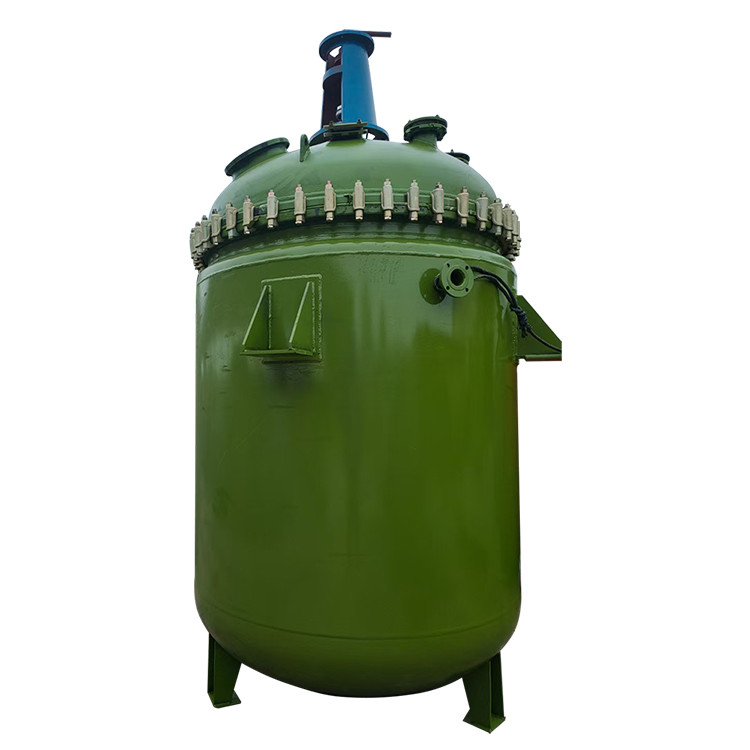

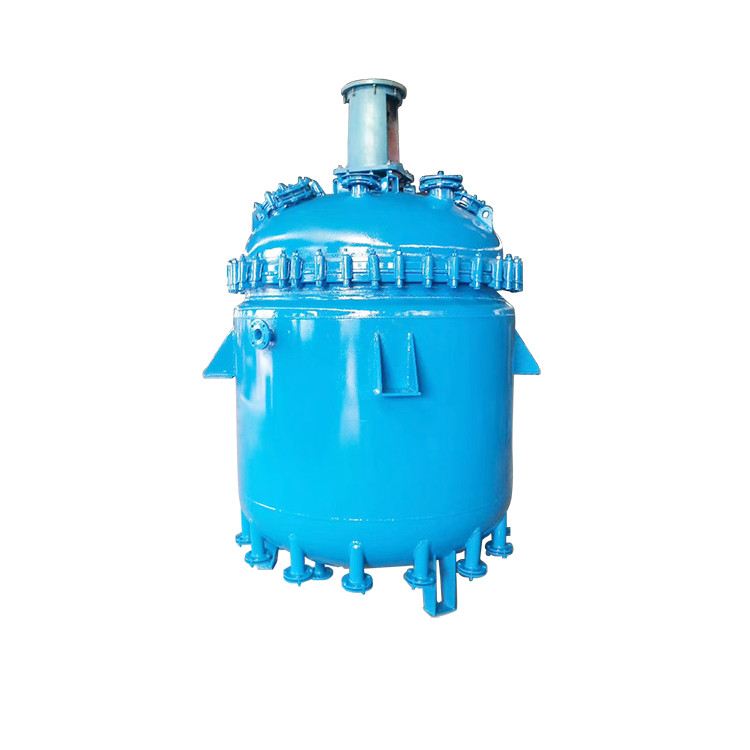

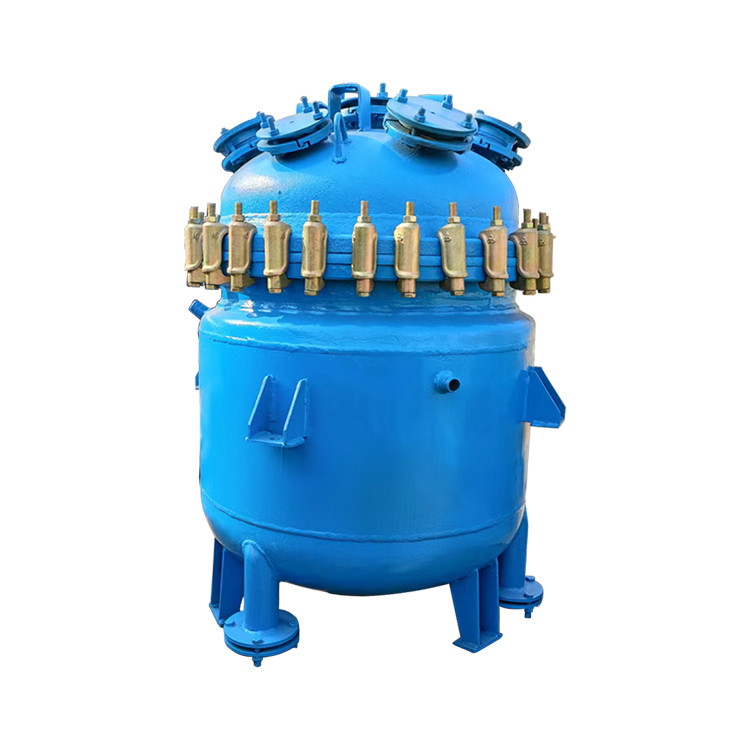

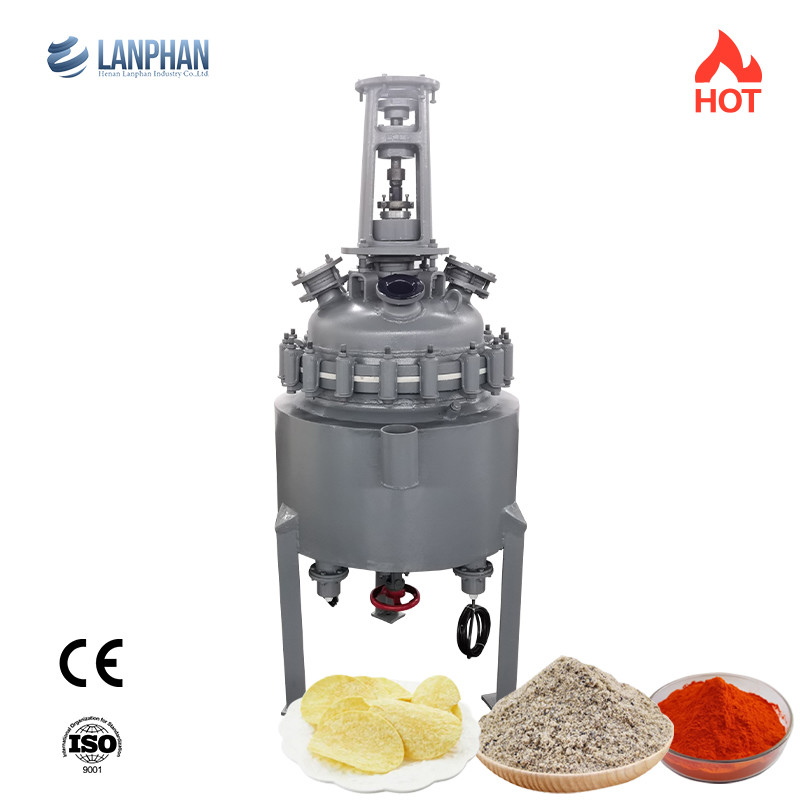

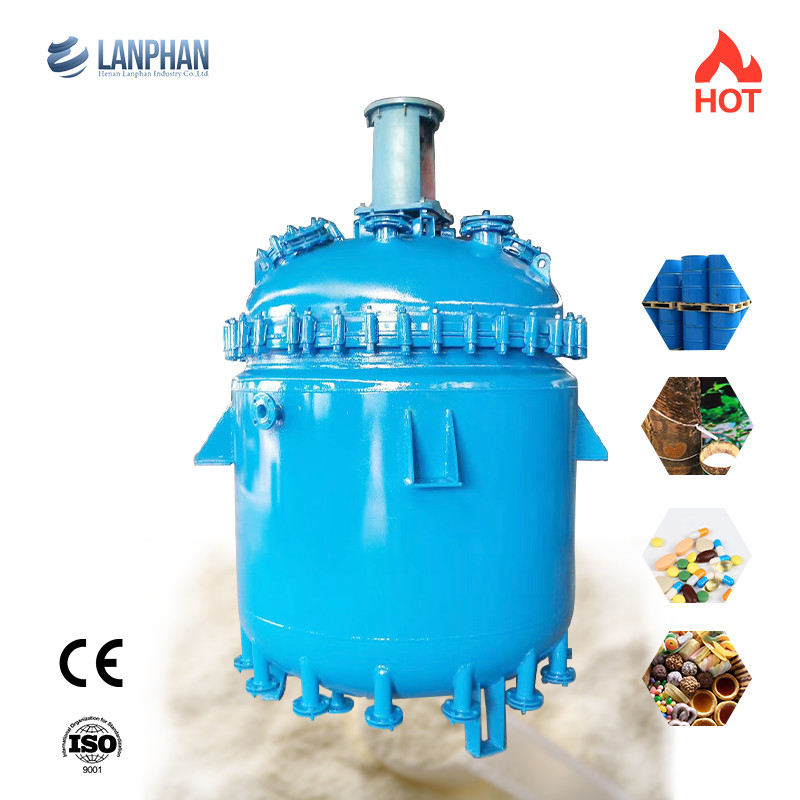

50L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles

Minimum Order Quantity : 1 Set Price : US $4,599-9,636
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-10 Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 Sets Per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: K-50

Detail Information

Product Name: Glass-lined Reactor Stirring Method: Paddle-type
Capacity: 50L Pressure: -1~4Bar
Operating Temperature: Rt~200℃ Stirring Power/KW: 1.1
Stirring Speed: 0-130rpm Heating Method: Electric Heating
High Light:

glass lined decomposition pots

,

glass lined polymerization kettles

,

Electric Heating Glass Lined Reactor

Product Description

Glass-lined Reactor Application

Glass-lined reactors are currently widely used in petroleum, chemical, rubber, pesticide, dye, pharmaceutical, food and other industries to participate in vulcanization, nitration, hydrogenation, alkylation, polymerization, condensation and other processes.

Glass-lined reactors have good corrosion resistance, which are widely used in chemical and other industries. Attention should also be paid to its range of use to ensure better results.

Glass-lined Reactor Description

The glass-lined reactor is a container for physical or chemical reaction, which is made of glass-lined enamel containing high silica lining the inner surface of the steel reactor, and it is firmly adhered to the metal surface after being burned at a high temperature.
Glass-lined reactors are also known as: enamel reaction tanks, glass-lined decomposition pots, glass-lined polymerization kettles, etc.


Glass-lined Reactor Features


  1. High pressure resistance; several levels of 0.2Mpa, 0.4MPa, 0.6Mpa, 1.0MPa can be designed;
  2. Corrosion resistance; strong corrosion resistance to various concentrations of inorganic acids, organic acids, organic solvents and weak bases;
  3. Mechanical shock resistance; mechanical shock resistance index is 220-10-3J; avoid hard object impact during use;
  4. Temperature shock resistance; temperature rapid change resistance; cold shock 110°C, thermal shock 120°C;
  5. High insulation; porcelain surface can pass 20KV high voltage test;
  6. High finish; non-stick and easy to clean.

Glass-lined Reactor Parameters


Model K-50 K-100 K-200 K-300 K-500 K-1000
Capacity 50L 100L 200L 300L 500L 1000L
Pressure -1~4Bar
Operating Temperature Rt~200℃
stirring Method paddle-type
Stirring Speed 0-130rpm
Stirring Power/KW 1.1 1.5 2.2 2.2 3 4
Heating Method Electric Heating
Heating Power/KW 9 9 12 12 18 45
Material Q345R+High Performance Enamel
Voltage 220V/380V


50L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 0

50L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 150L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 250L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 350L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 450L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 550L Electric Heating Glass Lined Reactor Decomposition Pots / Polymerization Kettles 6
