50L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick

Minimum Order Quantity : 1 Set Price : US $4,599-9,636
Packaging Details : Wooden Box or Customized Packing Delivery Time : 7-10 Days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 Sets Per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: K-50

Detail Information

Product Name: Glass-lined Reactor Condition: New
Capacity: 50L Pressure: -1~4Bar
Operating Temperature: Rt~200℃ Stirring Power/KW: 1.1
High Light:

Mechanical shock resistance Glass Lined Reactor

,

non stick Glass Lined Reactor

,

Pilot Glass Lined Reactor

Product Description

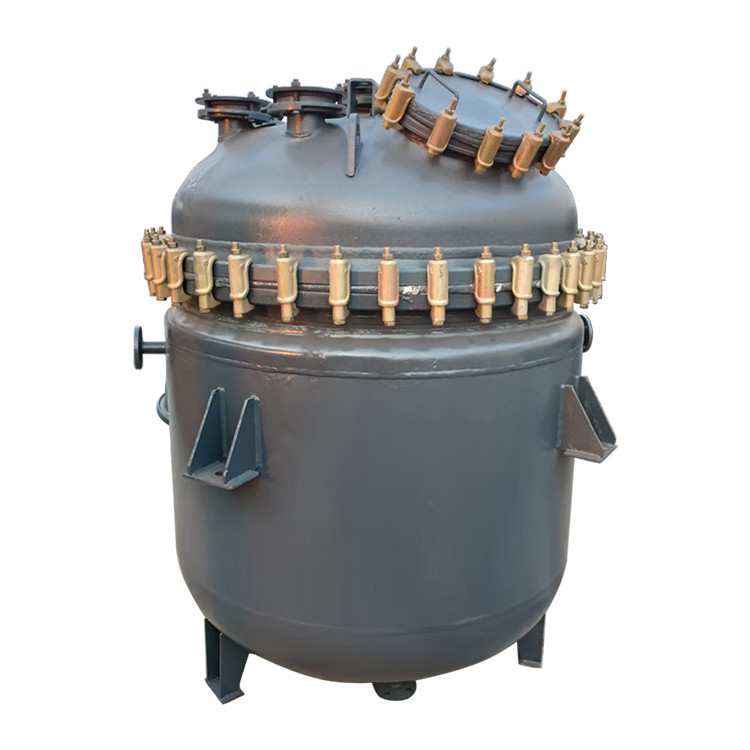

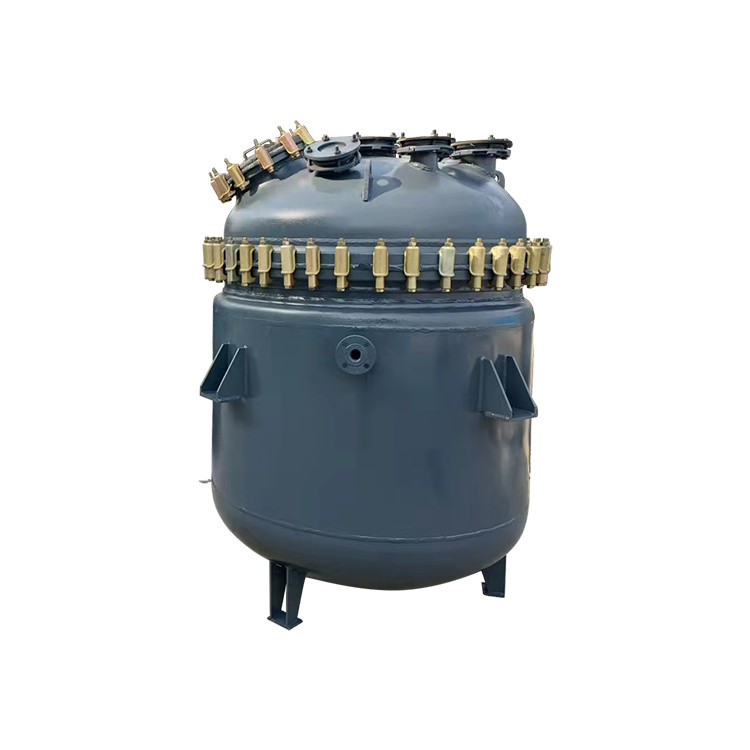

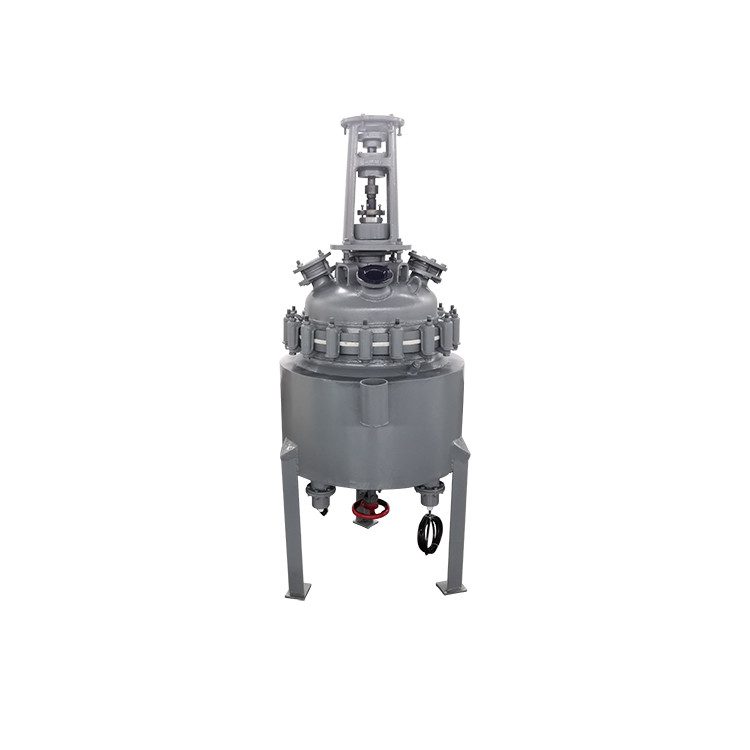

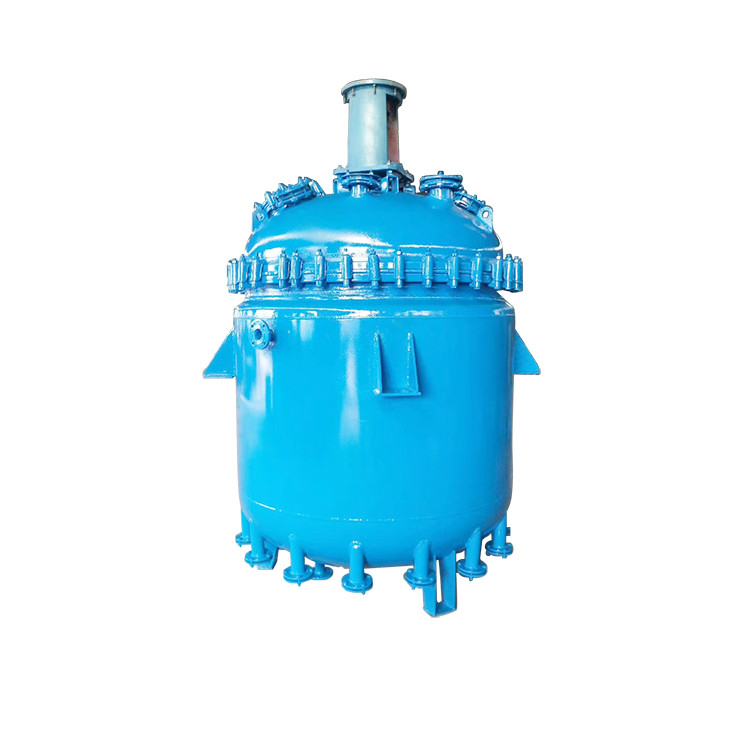

50L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick



Glass-lined Reactor Parameters



Model K-50 K-100 K-200 K-300 K-500 K-1000
Capacity 50L 100L 200L 300L 500L 1000L
Pressure -1~4Bar
Operating Temperature Rt~200℃
stirring Method paddle-type
Stirring Speed 0-130rpm
Stirring Power/KW 1.1 1.5 2.2 2.2 3 4
Heating Method Electric Heating
Heating Power/KW 9 9 12 12 18 45
Material Q345R+High Performance Enamel
Voltage 220V/380V



Glass-lined Reactor Description



The glass-lined reactor is a container for physical or chemical reaction, which is made of glass-lined enamel containing high silica lining the inner surface of the steel reactor, and it is firmly adhered to the metal surface after being burned at a high temperature.

Glass-lined reactors are also known as: enamel reaction tanks, glass-lined decomposition pots, glass-lined polymerization kettles, etc.



Glass-lined Reactor Application



(1) Hydrofluoric acid and fluoride-containing ion medium.
(2) Phosphoric acid, the concentration is more than 30%, and the temperature is higher than 180°C.
(3) Sulfuric acid, concentration 10%~30%, temperature higher than 200°C.
(4) lye, pH≥12, temperature higher than 100°C.
When using an enamel reaction kettle, you should understand the medium in advance to ensure that it is used within its normal range of use.



Glass-lined Reactor Features

  1. High pressure resistance; several levels of 0.2Mpa, 0.4MPa, 0.6Mpa, 1.0MPa can be designed;
  2. Corrosion resistance; strong corrosion resistance to various concentrations of inorganic acids, organic acids, organic solvents and weak bases;
  3. Mechanical shock resistance; mechanical shock resistance index is 220-10-3J; avoid hard object impact during use;
  4. Temperature shock resistance; temperature rapid change resistance; cold shock 110°C, thermal shock 120°C;
  5. High insulation; porcelain surface can pass 20KV high voltage test;
  6. High finish; non-stick and easy to clean.

50L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 050L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 150L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 250L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 350L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 450L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 550L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 6

50L Pilot Glass Lined Reactor Mechanical Shock Resistance Non Stick 7
