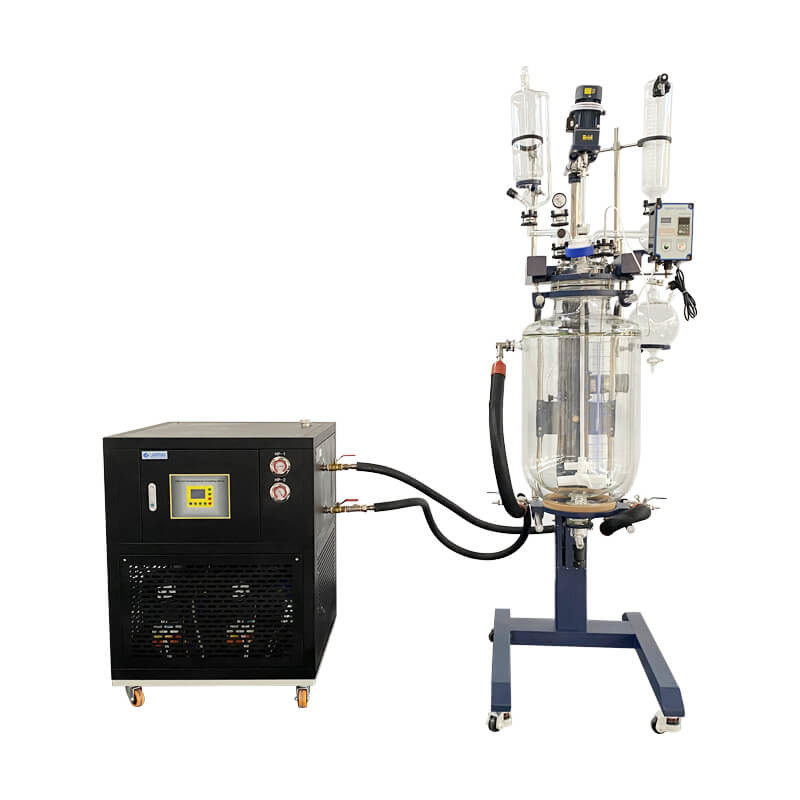

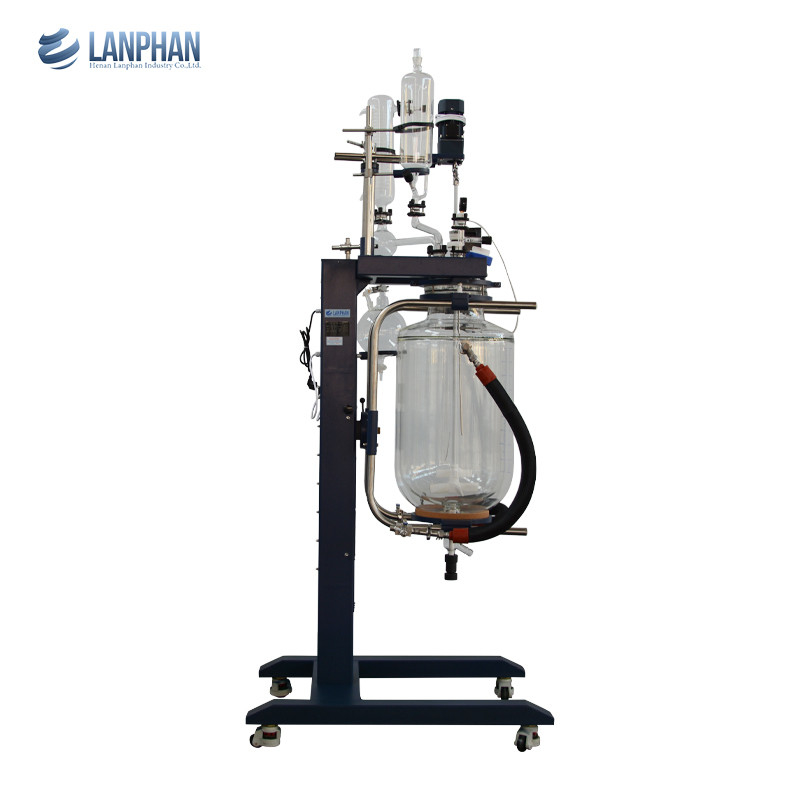

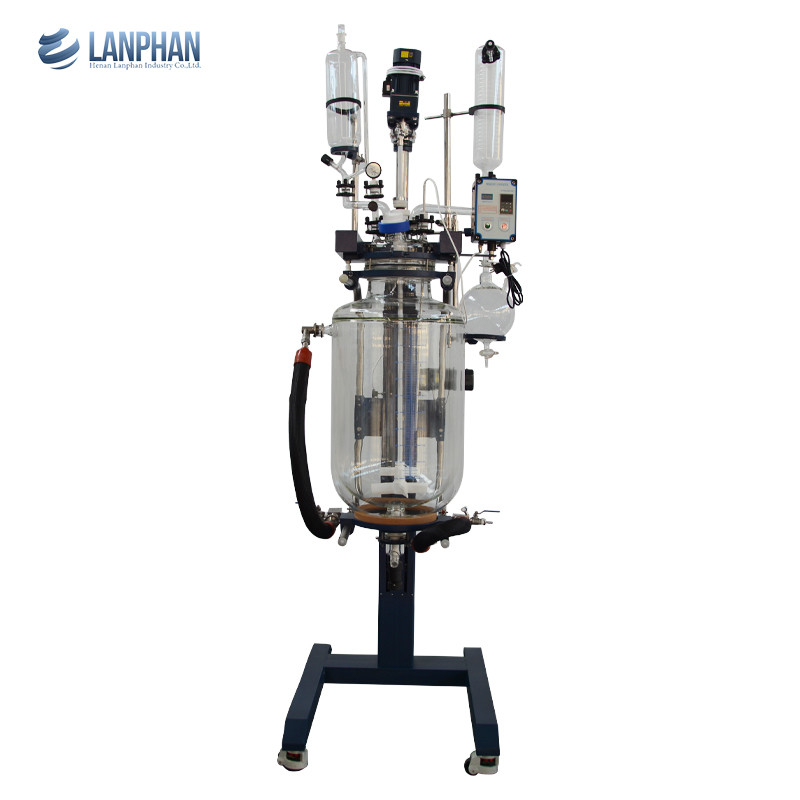

Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask

Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask

Chemical Stirring Lab Glass Reactor

Ex-proof Lab Glass Reactor

Chemical Stirring laboratory glass reactor

Place of Origin:

Henan, China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

YHGF-30L

Contact Us
Request A Quote
Product Details
Product Name:
Glass Reactor
Constant Pressure Funnel (L):
2
Condensing Area (㎡):
0.3
Bottom Valve Height (mm):
450
Rotating Speed (r/min):
0-650
Explosion-proof Motor Power (W):
180
Normal Motor Power (W):
200
Condation:
New
Warranty:
1 Year
Collecting Flask (L):
3
Highlight:

Chemical Stirring Lab Glass Reactor

,

Ex-proof Lab Glass Reactor

,

Chemical Stirring laboratory glass reactor

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$1999
Packaging Details
Wooden Box or Customized Packing
Delivery Time
5-8 work days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set/Sets per Month
Product Description

Glass Lifting Reactor Chemical Stirring Ex-Proof Jacketed Cylinder Flask

Glass Reactor Application
The glass lift reactor is mainly used for material synthesis, distillation, concentration and other experiments, and is widely used in pharmaceuticals, petrochemicals, biology, new energy, electronic semiconductors, scientific research units and other fields. The glass lift reaction kettle can be used with other devices to reflect the temperature value, acidity value, viscosity value (torque), stirring speed value and paragraph programming control of the reaction material in real time.
Glass Reactor Description

Glass Reactor
Jacketed reactor; high borosilicate glass (GG17) material
Working volume: 10L
Split lower discharge valve
Kettle cover: can be installed with stirrer, constant pressure dropping funnel, reflux condenser, temperature sensor, solid feeding, liquid feeding, etc.
The kettle cover and the kettle body are connected by handwheel lifting and extrusion type sealing.
All parts in contact with liquid are made of borosilicate glass or PTFE, which has excellent corrosion resistance.
The design of parallel steel base makes the fuselage run more stably. This unit is equipped with casters for easy mobility.
The entire system can be moved simultaneously, ensuring stability and flexibility.

Stirring
The overhead mixing system ensures the stability of the whole set of equipment.
Double sealed bearings ensure high sealing of the system.
Available in glass, stainless steel, and PTFE-coated fluorine
The stirring paddle is made of PTFE and double-layer stirring. The stirring paddle can be replaced according to the experimental requirements.

Vacuum
Various models of vacuum pumps and pressure pumps are available.
Diaphragm vacuum pump
Rotary Vane Oil Sealed Vacuum Pump
Circulating water type multi-purpose vacuum pump

Temperature Control
Display stirring speed; frequency conversion; constant speed stirring; stable operation.
YHGF-2 series rotary lift double-layer glass reaction kettle can be equipped with ZN intelligent biochemical reaction device produced by our company, which can reflect the temperature value, acidity value, viscosity value (torque), stirring speed value and paragraph programming control of the reaction material in real time; Control the speed and time of the feeding pump; connect with the computer to realize the functions of remote real-time data acquisition, control, recording and curve drawing.


Glass Reactor Features

The kettle body can be raised and lowered manually, which is convenient for feeding and taking out bulk crystals. It can be rotated 0~360° ; easy to clean.
New design, more stable operation.
The sealing method of flange connection; no vacuum grease sealing; good sealing; high vacuum.
The drugs in the kettle are fully mixed and reacted, which is convenient for cleaning and prevents cross-contamination of drugs.
The glass interface is sealed with a flange to avoid the phenomenon that the vacuum silicone grease seal is difficult to open;
YHGF-2 series rotary lift double-layer glass reactor is connected with full flange interface, which can withstand positive pressure up to 0.03Mpa.


Glass Reactor Parameter


ModelYHGF-10LYHGF-20LYHGF-30LYHGF-50LYHGF-100LYHGF-150L
Constant Pressure Funnel (L)112225
Condensing Area0.20.20.30.30.60.6
Collecting Flask (L)/33355
Bottom Valve Height (mm)350450450500500650
Reactor MaterialMade of GG-17 high borosilicate glass, thickness ≥5mm


Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask 0Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask 1Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask 2
Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask 3Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask 4Chemical Stirring Lab Glass Reactor Ex-proof Jacketed Cylinder Flask 5
