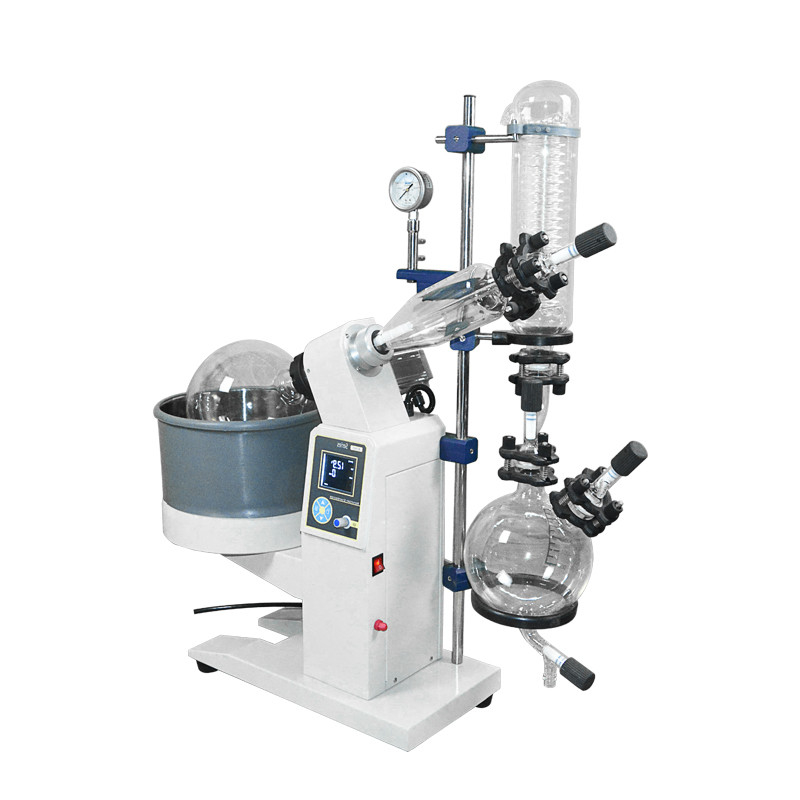

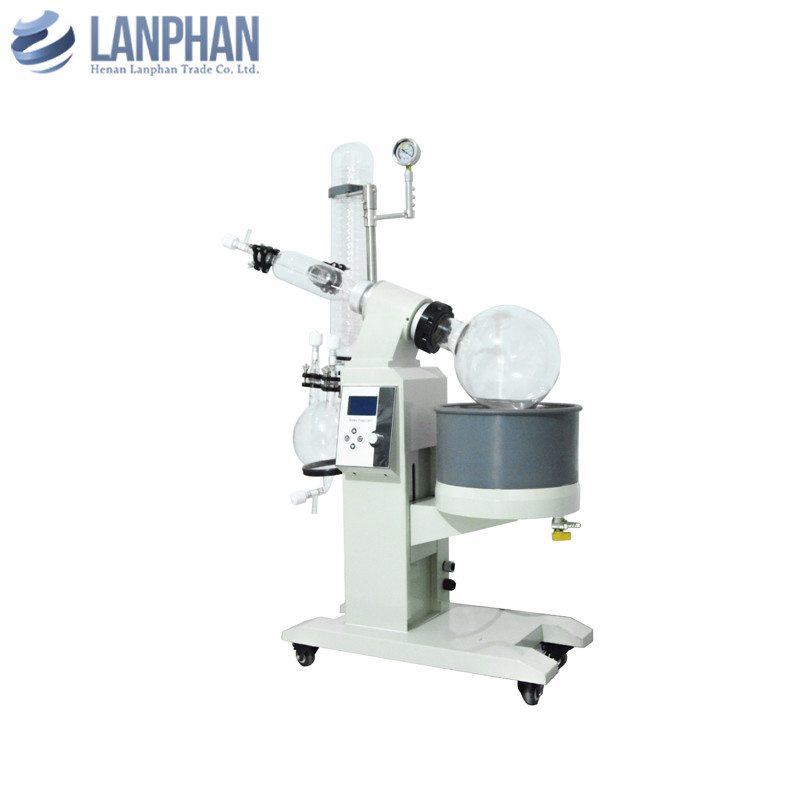

5L Chemical Glass Distiller Equipment Electrical Lifting Rotary Vacuum Evaporator

Minimum Order Quantity : 1 Price : Can discuss
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 1000
Place of Origin: Henan Brand Name: Lanphan
Certification: CE Model Number: R-1005

Detail Information

Name: Rotary Evaporator Model: R-1005
Rotary Flask: 5L Receiving Flask(L): 3L
Heating Temperature(℃): RT-250℃ Lifting Function: Electrical Lifting
High Light:

5L Chemical Glass Distiller Equipment


Electrical Lifting Rotary Vacuum Evaporator


30W Rotary Vacuum Evaporator

Product Description

5l mini chemical glass distiller equipment vacuum rotary vacuum evaporator price

Product Description


The R-1005Rotary Evaporator adopts stepless speed regulation to make the glass rotating flask rotate at a constant speed. Materials can form a large area of uniform thin film on the inner wall of the flask. Then the rotating flask is heated evenly by the intelligent constant temperature water bath, and the material is evaporated rapidly under the vacuum condition. The solvent steam is recycled in the receiving flask after being cooled by the high efficiency glass condenser.


Product Parameter


Model R-1005 R-1010 R-1020 R-1050
Ambient temperature (C) 5~25
Rotating speed (rpm) 5-120
Rotary motor (W) 30 60 60 100
Heating Temperature (C) Digital temperature control, constant temperature -250C
Maximum vacuum degree (Pa) 399.9Pa(under 3mmHg)
Rotary flask (L) 5 10 20 50
Receiving flask (L) 3 5 10 20
Evaporative capacity (L/H) 2-water 3-water 5-water 9-water
5.4-Ethanol 8-Ethanol 14.3-Ethanol 25-Ethanol
Water bath material Stainless steel
Water bath size (mm) 280X170 350X220 450X250 550X320
Lifting (mm) 0-140 0-180 0-180 0-180
Power (KW) 2 3 5 6.5
Voltage(V/Hz) Single-phase 220V/60HZ (Voltage can be customized)
Dimension (mm) 765x400X1070 920X550X1700 1250X600X2100 132X770X2340


Application Scenario


Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical, biopharmaceutical and other industries.The rotary evaporator is developed under the condition of vacuum negative pressure, using the principle of constant temperature heating and thin film evaporation. R-1020 Rotary Evaporator is especially suitable for the concentration and purification of easily decomposed biological products; it is a necessary basic instrument for colleges and universities, with small size, simple structure and low price.
