Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
R-1050

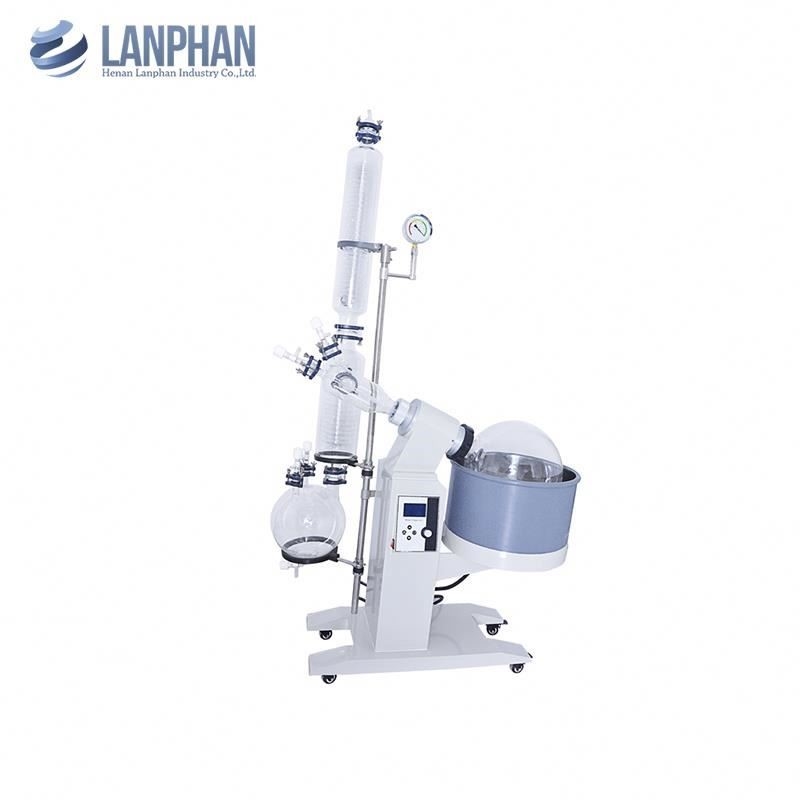

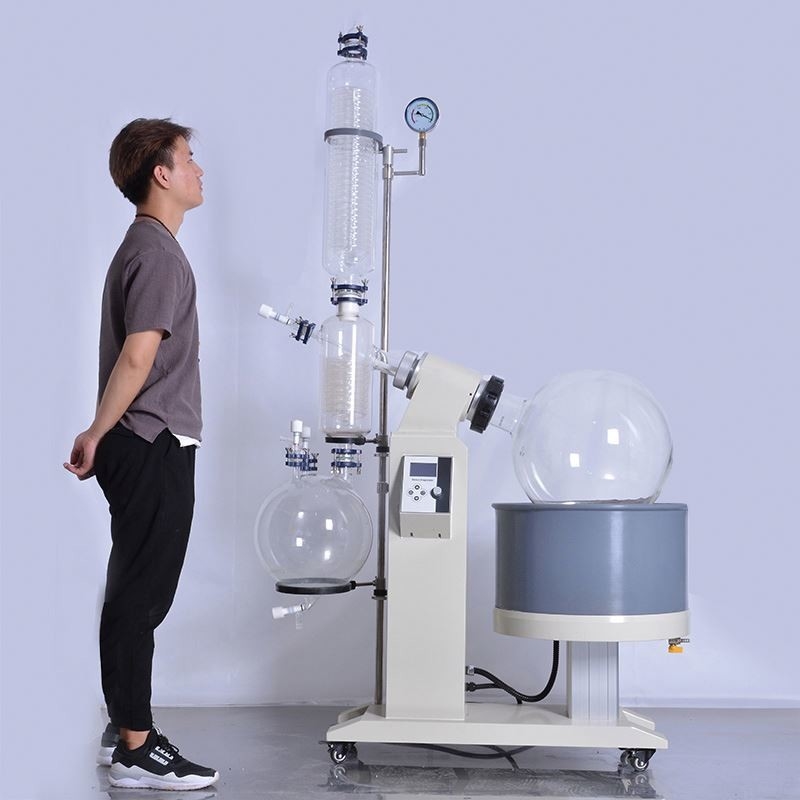

50L double experimental cannabis rotary evaporation ethanol equipment
Product Description
The maximum capacity of a R-1050 rotary evaporator is 2000ml, the rotating speed is from 5rpm to 120rpm, and the motor power is 60W. It adopts fully automatic control of temperature, rotating speed and bath’s lifting. The rotary evaporator can rotate to form a thin film and evaporate efficiently under constant temperature and negative pressure, and then it can condense the solvent for recycling. It is especially suitable for crystallization and separation of heat-sensitive materials as well as solvent recoveryProduct
Parameter
| Model | R-1010 | R-1020 | R-1030 | R-1050 |
| Rotary Flask | 10L φ95mm (Flange mouth) |
20L φ125mm (Flange mouth) |
30L φ125mm (Flange mouth) |
50L φ125mm (Flange mouth) |
| Receiving Flask | 5L*2Pcs | 10L*2Pcs | 20L*2Pcs | 20L*2Pcs |
| Rotary Speed | 20~120r/min | 20~120r/min | 20~900r/min | 20~900r/min |
| Rotary Motor | 250W | |||
| Condenser | 2Pcs*Main Condenser+Assistant Condenser | |||
| Heating Bath | Stainless Steel Water/oil Bath | |||
| Temp.Range | Water:RT~99°C Oil:RT~200°C,±0.1°C | |||
| Attainable Vacuum | ≤0.1Mpa(1Bar,750Torr) | |||
| Evaporative Power | H2O≥3.2L/h, Alcohol≥6.5L/h | H2O≥5L/h, Alcohol≥11L/h | H2O≥7L/h, Alcohol≥15.3L/h | H2O≥9L/h, Alcohol≥19L/h |
| Lift Type | Electric Lift | |||
| Lifting Stroke | 0~200mm | 0~200mm | 0~200mm | 0~200mm |
| Bath Power | 3KW | 3KW | 6KW | 6KW |
| Voltage | 220V/60Hz,1-Phase | |||
Support Products
1.Rotary evaporator matching use with circulating water vacuum pump to offer a vacuum environment for reduced pressure distillation, they are widely used for vacuum filtration, vacuum evaporation, vacuum degassing, etc..
2.Rotary evaporator matching use with GDSZ series high and low temperature circulating pump to quickly cooling or warming, the circulating pump is an efficient equipment for quick temperature adjustment.
3.Rotary evaporator matching use with DLSB series low temperature cooling liquid circulating pump to conduct chemical reaction and medicine storage which requires low temperature environment.
