Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer

Minimum Order Quantity : 1 Price : $3750
Packaging Details : Carton, wooden cases or customizable package Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 1000 Unit/Units per Month
Place of Origin: Henan Brand Name: Lanphan
Certification: CE Model Number: R-1050

Detail Information

Product Name: Lab Rotary Evaporator Voltage: 380V/50HZ
Heating Power: 8KW Vacuum Degree: 0.098Mpa
Rotating Motor Power: 100W Lifting Motor Power: 60W
High Light:

Explosion Proof Lab Rotary Evaporator

,

50l Vacuum Crystallizer

,

100w Lab Rotary Evaporator

Product Description

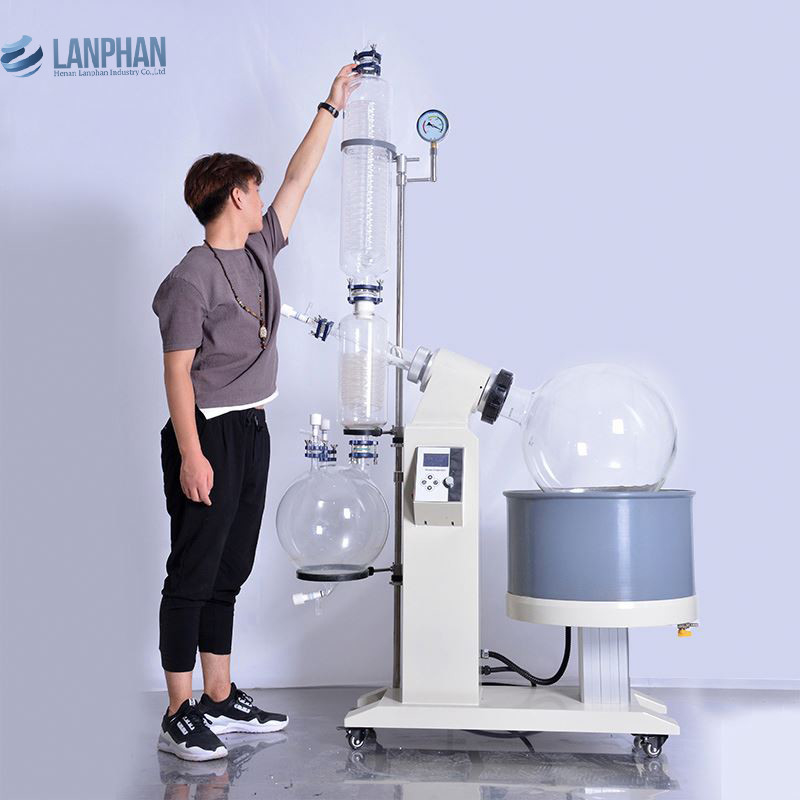

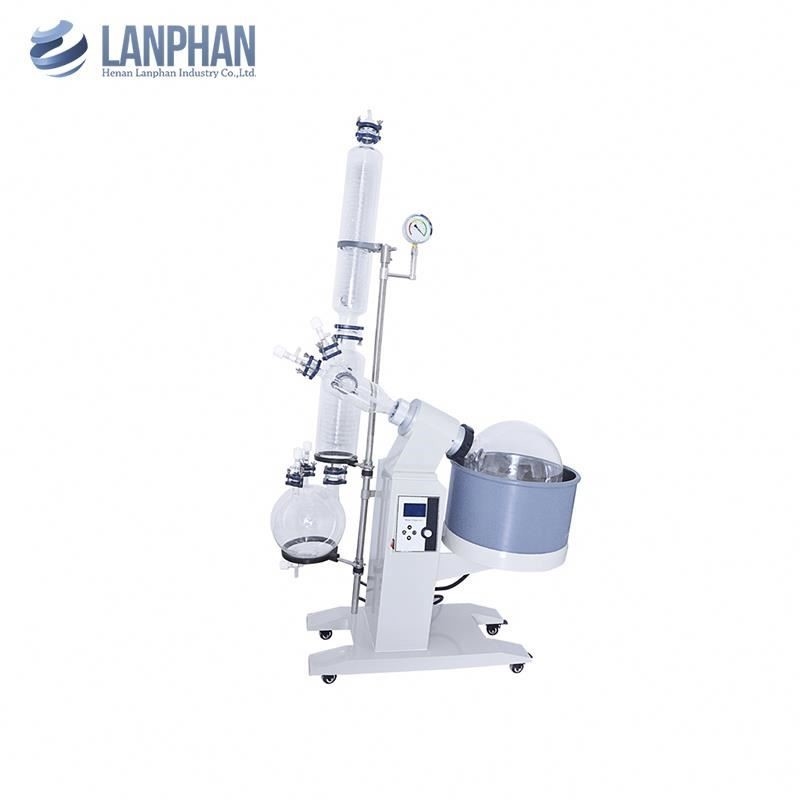

Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer



Rotary Evaporator Description



The rotating bottle capacity of R-1050 rotary evaporator is 50L, the maximum capacity of receiving bottle is 50L, the speed is 5-120 rpm, and the motor power is 100W. The main energy source of R-1050 is equipped with universal wheels, which can be moved, the bath can be automatically raised and lowered, and the speed control and temperature control center on the main machine platform makes the operation extremely convenient. The brushless motor makes it safe and low noise. Equipped with dual condensers (main and auxiliary condensers), the condensation effect is better and the recovery rate is higher. Because the rotary evaporator works under vacuum conditions, the contact parts are made of high-temperature resistant materials-borosilicate glass and polytetrafluoroethylene materials, which are especially suitable for heat-reactive materials and the concentration, crystallization, separation and solvent recovery of stainless steel. Corrosive materials.



Advantage



1. Explosion proof is optional for 5L,10L,20L,30L and 50L
2. One year warranty
3. Customized styles,Meet different needs
4. Turnkey project to equip you with the best solution



Rotary Evaporator Parameter



Model R- 5L R- 10L R- 20L R-50L
Ambient temperature (°C) 5~25
Rotating speed (rpm) 5-120
Rotary motor (W) 30 60 60 100
Heating Temperature (°C) Digital temperature control, constant temperature -250°C
Maximum vacuum degree (Pa) 399.9Pa(under 3mmHg)
Rotary flask (L) 5 10 20 50
Receiving flask (L) 3 5 10 20
Evaporative capacity (L/H) 2-water 3-water 5-water 9-water
5.4-Ethanol 8-Ethanol 14.3-Ethanol 25-Ethanol
Water bath material Stainless steel
Water bath size (mm) Φ280×170 Φ350×220 Φ450×250 Φ550×320
Lifting (mm) 0-140 0-180 0-180 0-180
Power (KW) 2 3 5 6.5
Voltage(V/Hz) Single-phase 220V/60HZ (Voltage can be customized)
Dimension (mm) 765×400×1070 920×550×1700 1250×600×2100 1320×770×2340

Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer 0



Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer 1

Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer 2

Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer 3



Certiefications



Lab Rotary Evaporator Explosion Proof 50L Vacuum Crystallizer 4
