Place of Origin:
Henan
Brand Name:
Lanphan
Certification:
CE
Model Number:
R-1050

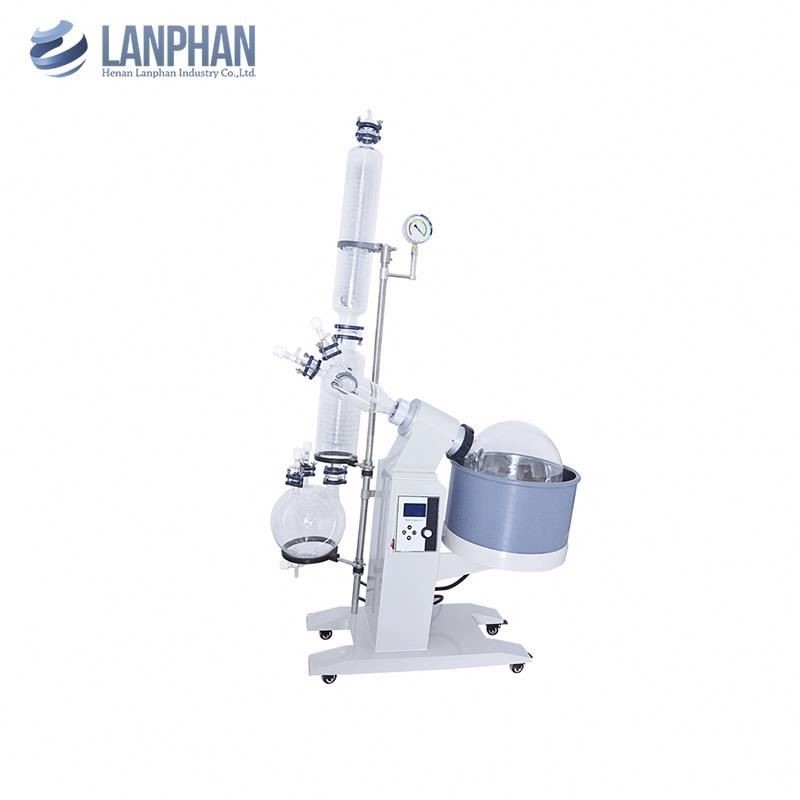

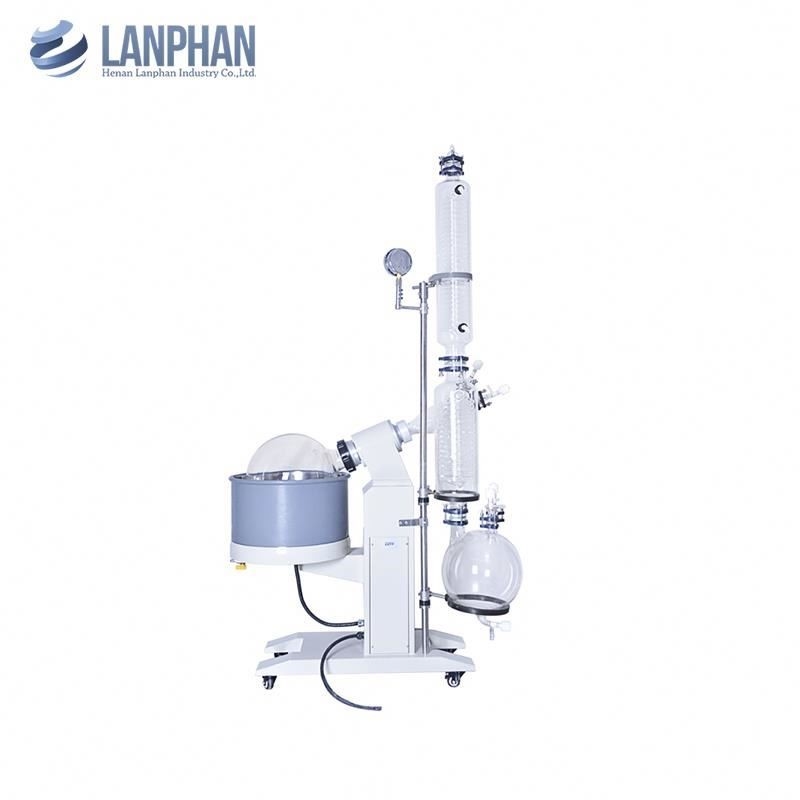

50 liter crystallizer equipment vacuum distillation rotary evaporator
R-1050 rotary evaporator has rotary flask and receiving flask, which has better condensation effect and higher recovery rate. It is especially suitable for the concentration, crystallization, separation and solvent recovery of metal materials such as heat-sensitive materials, corrosive materials and stainless steel, because it works under vacuum conditions, and the parts in contact with the materials are made of borosilicate glass and polytetrafluoroethylene materials. It is heat resistant.
Product parameter
| Model | R- 5L | R- 10L | R- 20L | R-50L |
| Ambient temperature (°C) | 5~25 | |||
| Rotating speed (rpm) | 5-120 | |||
| Rotary motor (W) | 30 | 60 | 60 | 100 |
| Heating Temperature (°C) | Digital temperature control, constant temperature -250°C | |||
| Maximum vacuum degree (Pa) | 399.9Pa(under 3mmHg) | |||
| Rotary flask (L) | 5 | 10 | 20 | 50 |
| Receiving flask (L) | 3 | 5 | 10 | 20 |
| Evaporative capacity (L/H) | 2-water | 3-water | 5-water | 9-water |
| 5.4-Ethanol | 8-Ethanol | 14.3-Ethanol | 25-Ethanol | |
| Water bath material | Stainless steel | |||
| Water bath size (mm) | Φ280×170 | Φ350×220 | Φ450×250 | Φ550×320 |
| Lifting (mm) | 0-140 | 0-180 | 0-180 | 0-180 |
| Power (KW) | 2 | 3 | 5 | 6.5 |
| Voltage(V/Hz) | Single-phase 220V/60HZ (Voltage can be customized) | |||
| Dimension (mm) | 765×400×1070 | 920×550×1700 | 1250×600×2100 | 1320×770×2340 |
R SERIES
R SERIES Rotary Evaporator has large contact area, high evaporation efficiency, low noise, good sealing performance, and convenient use. Can be used to process foamed materials.
