Detail Information |
|||
| Name: | Re-501 Rotary Evaporator | Lifting Distance: | 120mm |
|---|---|---|---|
| Glass Material: | GG-17 | Recycling Bottle Volume: | 3L |
| High Light: | Distillation Lab Rotary Evaporator,Lab Rotary Evaporator 20L,120mm Lifting Lab Rotary Evaporator |
||
Product Description
China Distillation Equipment Rotovap 5L 10L 20L 50L Vacuum Rotary Evaporator

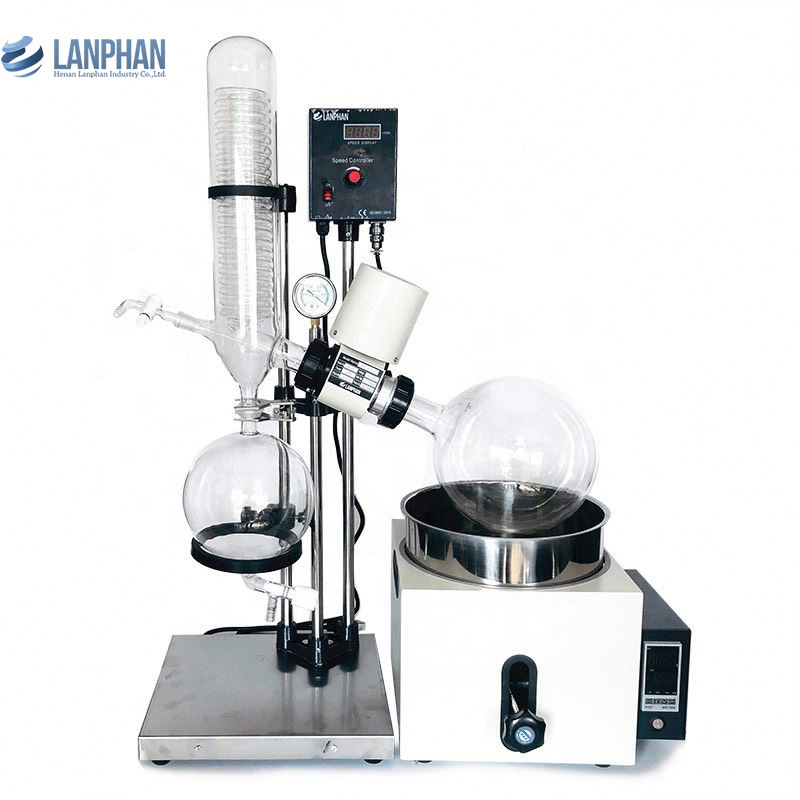

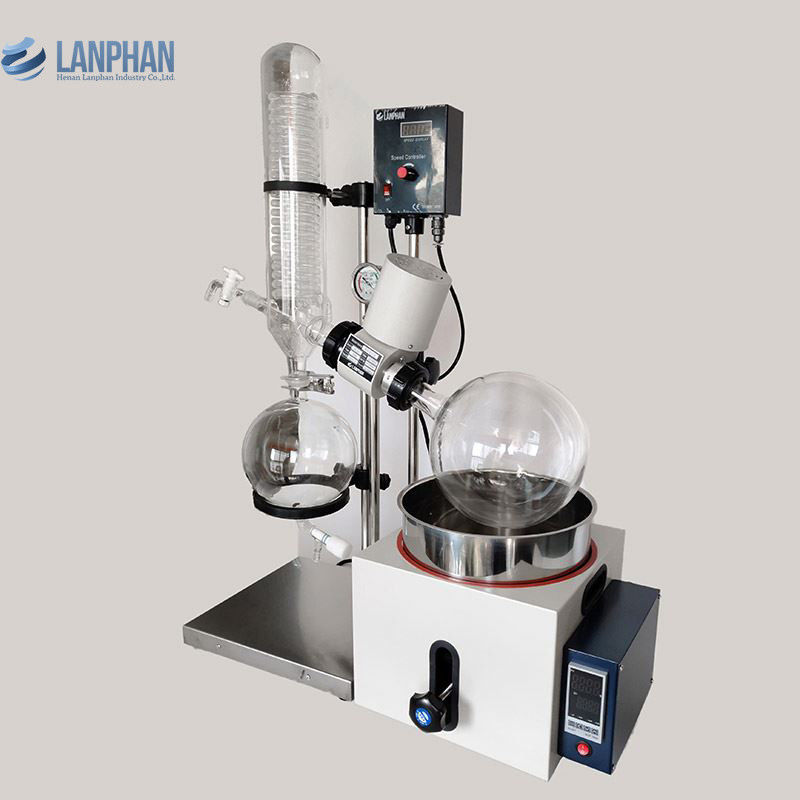

RE-501 Rotary evaporator is the basic rotary evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component.
Product parameter
| Basic Parameter | Type | RE-501 |
| Glass Material | GG-17 | |
| Support Material | stainless steel | |
| Shell Material | Antisepsis Plastic Spraying 310*320*240mm | |
| Inner Container Material | stainless steel 280*170mm | |
| Baseboard Size | 350*330mm | |
| Volume of Rotary Bottle | 5L ¢50 flange aperture | |
| Volume of Recycling Bottle | 3L 35# ground aperture | |
| Vacuum Degree | 0.098Mpa | |
| Rotating Power | 40W | |
| Rotating Speed | 0-120rpm | |
| Heating Power | 2KW | |
| Temperature Control Range of Bath Kettle | 400°C | |
| Temperature Accuracy | ±1°C | |
| Voltage/Frequency (V/Hz) | 220V/50Hz | |
| Up and Down Distance | 120mm | |
| Shape Size(mm*mm*mm) | 700*335*1009mm | |
| Package Size(mm*mm*mm) | 1040*620*410 0.26 m³ | |
| Package Weight (KG) | 38 | |
| Function Allocation | Speed Adjustment Mode | Electrodeless Speed Regulation |
| Rotate Speed Display Mode | Digital Display | |
| Temperature Display Mode | Digital Display K Type Sensor | |
| Temperature Control Mode | Smart Temperature Control | |
| Sealing Mode | PTFE Sealing | |
| Condenser | Vertical Condenser 100*510mm 29#Standard Aperture | |
| Up and Down Mode | Manual Up and Down of Bath Kettle | |
| Continuous Charging | Standard Aperture Feeding Valve | |
| Vacuum Display Mode | Vacuum Meter | |
| Optional Equipping | Anti-splash Device | Equipping Transparent Cover of Bath Kettle |
| Anti-explosion | Anti-explosion Frequency Changer, Anti-explosion Dynamo EX40We | |
| Frame Part | Plastic Spraying or PTFE Spraying |
Related Products
Application field
Rotary evaporators are mainly used for concentration, crystallization, drying, separation and solvent recovery in medicine,
chemical and biochemical industries. Under the vacuum condition, the rotating flask is heated at a constant temperature, and can rotate at a constant speed. Then the material can form a large area of thin film in the inner wall of the flask, evaporating efficiently. The solvent steam can be cooled by efficient glass condenser and recycled in the receiving flask, greatly enhancing the evaporation efficiency.
