Chemical Thinner Water Vacuum Hydrocarbon Thinner Solvent Recycling Machine

Minimum Order Quantity : 1 Set Price : $5900
Packaging Details : Wooden Box or Customizable Packing Delivery Time : 7 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 50 Sets Per Month
Place of Origin: Henan,China Brand Name: Lanphan
Certification: CE ISO Model Number: LPA-20

Detail Information

Product Name: Solvent Recycling Machine Total Volume: 28 L
Charging Volume: 20 L Recovery Time: About 3 Hours
Heating Temperature: 50~210℃ Coolong Method: Air Cooling
Environment Temperature: 5~30℃ Charging Method: Manual Charging
High Light:

3000pcs/h Desktop Tablet Press Machine

,

1400rpm Desktop Tablet Press Machine

,

17MM Filling Depth Tablet Press Machine

Product Description

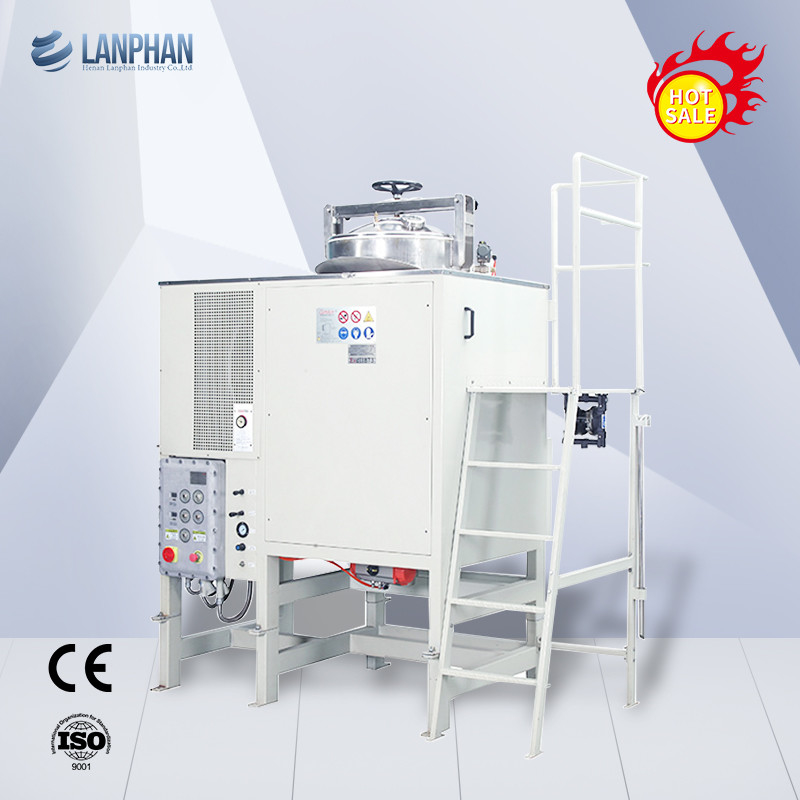

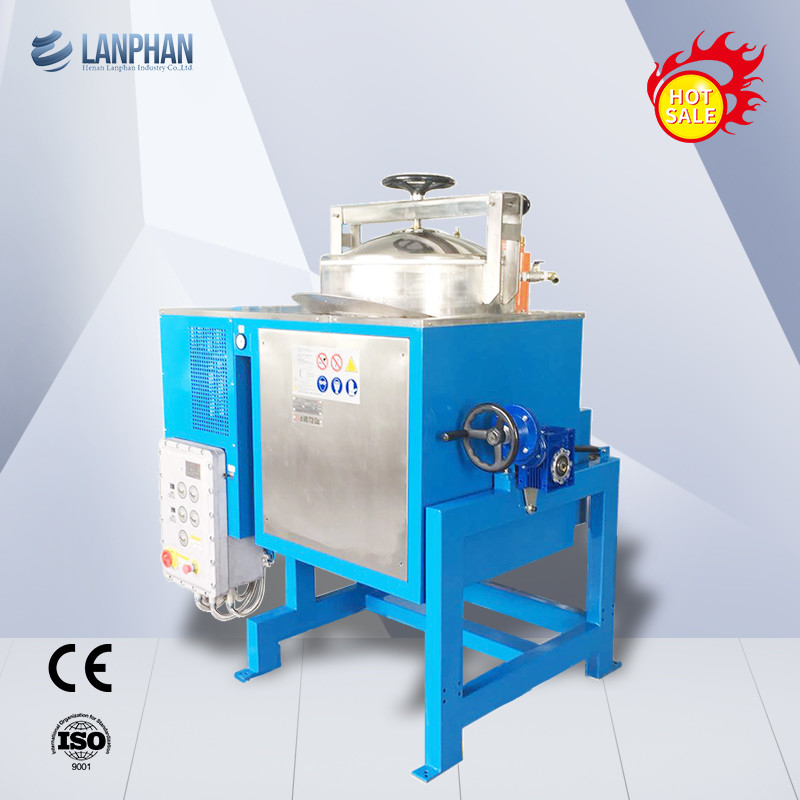

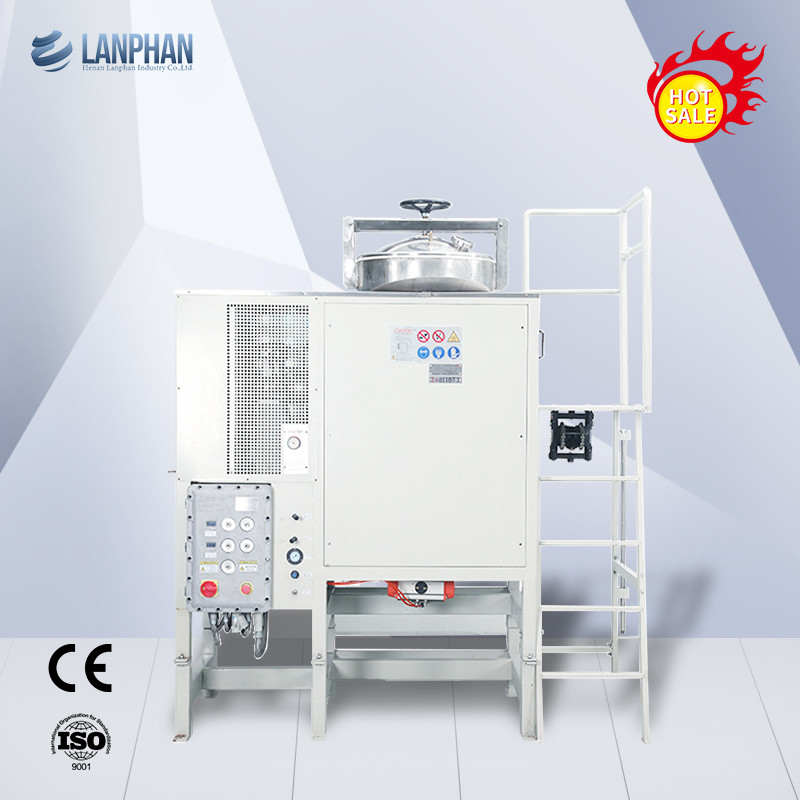

Chemical Thinner Water Vacuum Hydrocarbon Thinner Solvent Recycling Machine



Product Description

Solvent recovery machine is a special equipment to regenerate and recycle waste organic solvents. Discarded or colored waste solvents (such as diluent, EA, CH2Cl2, xylene and most of the organic solvents used for cleaning) are reduced to clean solvents through this equipment, and then put into production or experiments to achieve multiple use of solvents.



Product Advantage

Performance Advantages:

  • Automatic feeding function: automatic operation of equipment, automatic feeding and stop feeding, liquid level control
  • Explosion-proof observation window: monitor and view the recycling process at any time;
  • Explosion-proof sound and light alarm system: 12 safety designs are convenient and safe;
  • Operation mode: one-key start; automatic feeding, recycling, shutdown
  • Slag discharge method: dumping; safe and convenient handling;
  • Feeding method: automatic feeding is more efficient and safe;
  • The whole machine adopts explosion-proof structure; the performance is safe and stable;
  • The internal heat exchange area is increased and the recovery rate is faster.
  • OMRON CNC heating segment recovery: color display digital temperature control, dual-stage heating, three-stage timing recovery

Security Advantages:

  • Feeding overtime protection: If the feeding is not completed within the preset time, close the feeding valve, shut down and alarm;
  • Feeding liquid level protection: When the feeding liquid level reaches the working liquid level, the feeding valve is closed; the system enters the recovery program.
  • Over-level protection: If the feeding liquid level reaches the ultra-high liquid level, close the feeding valve, shut down and alarm;
  • Bucket negative pressure monitoring and protection: The vacuum value is detected after the preset time is reached; if the preset value is not reached, shutdown and alarm;
  • Bucket positive pressure monitoring and protection: Real-time monitoring of pressure; when the preset pressure value is exceeded, the equipment stops heating and alarms;
  • Over temperature protection: When the oil temperature reaches the over-temperature set value, the equipment stops heating and alarms.
  • Cooling water shortage protection: If the cooling water failure causes poor cooling effect, the machine will be shut down and alarmed;
  • Solvent outlet temperature protection: If the solvent outlet temperature is too high due to poor heat dissipation, the equipment will shut down and alarm;
  • Vacuum tank over-level protection: When the recovered liquid level reaches the over-liquid protection level, the equipment shuts down and alarms.
  • Motor overload protection: When the motor fails and overloaded, the equipment shuts down and alarms.
  • System overload protection: When the equipment is overloaded, the circuit breaker will automatically cut off.
  • Power-off protection: If the equipment is powered off abnormally, the equipment will not start immediately after the power is reconnected;

Product Parameter



Product Model LPA-20 LPA-30 LPA-60 LPA-200
Total Volume 28 L 46 L 80 L 330 L
Charging Volume 20 L 32 L 60 L 225 L
Recovery Time about 3 hours about 4~5 hours about 4~5 hours about 4~5 hours
Heating Temperature 50~210℃ 50~210℃ 50~210℃ 50~210℃
Coolong Method air cooling air cooling air cooling air cooling
Environment Temperature 5~30℃ 5~30℃ 5~30℃ ﹣20~50℃
Charging Method Manual Charging Manual Charging Manual Charging Manual Charging
Discharging Method Dumping Dumping Dumping Dumping
Recovery Rate ≥95% ≥95% ≥95% ≥95%
Power 220V/50HZ 220V/50HZ 220V/50HZ 3P/380V/50HZ
Dimension 790×535×1240 825×638×1280 587×827×1480 2100×1130×1950
Net Weight 93 KG 122 KG 136 KG 629 KG
