Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity

Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity

Glass Water Cryogenic Liquid Storage Tank

250m3 Cryogenic Liquid Storage Tank

stainless steel cone bottom tanks

Place of Origin:

China

Brand Name:

Lanphan

Certification:

CE ISO

Model Number:

ZLGJ-30

Contact Us
Request A Quote
Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity
Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity
Product Details
Product Name:
Vacuum Freeze Dryer
Total Power:
4500 W
Cooling Method:
Air-cooled
Pumping Speed:
6L/S
Water Catching Capacity:
6 Kg/24h
Freeze-drying Area:
0.4㎡
Highlight:

Glass Water Cryogenic Liquid Storage Tank

,

250m3 Cryogenic Liquid Storage Tank

,

stainless steel cone bottom tanks

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Delivery Time
10-12 days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,
RELATED PRODUCTS
Good price Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity online Video

Laboratory Freeze Dryer with 0.4㎡ Freeze-drying Area, Air-cooled System, and 6 kg/24h Water Catching Capacity

Get Best Price
Good price Pilot Laboratory Vacuum Freeze Dryer with 4 kg/24h Water Catching Capacity, Air-cooled Cooling, and 220VAC 50Hz Power Supply online Video

Pilot Laboratory Vacuum Freeze Dryer with 4 kg/24h Water Catching Capacity, Air-cooled Cooling, and 220VAC 50Hz Power Supply

Get Best Price
Good price Lanphan Large Capacity Medical Laboratory Pilot Freeze Dryer Price online Video

Lanphan Large Capacity Medical Laboratory Pilot Freeze Dryer Price

Get Best Price
Good price 6kg/24h Water Capture Capacity Laboratory Freeze Dryer with Air Cooling and Stainless Steel Cold Trap online

6kg/24h Water Capture Capacity Laboratory Freeze Dryer with Air Cooling and Stainless Steel Cold Trap

Get Best Price
Contact Us
+8613783661974
yang@lanphan.com
Contact Now
Product Description
Laboratory Lyophilizer Dryer Freeze Drying Machine Fruit Vegetable
The pilot freeze dryer is a device used for freeze-drying food and other substances. Freeze-drying is a process that involves freezing the material at low temperatures and removing the moisture under vacuum conditions, preserving the quality of the material and extending its shelf life.
Technical Specifications
Parameter Value
Freeze-drying area 0.4㎡
Cold trap coil temperature ＜-75℃ (without load)
Ultimate vacuum Below 10 Pa (without load)
Pumping speed 6L/s
Water catching capacity 6 kg/24h
Cooling method Air-cooled
Defrost mode High-temperature defrosting
Main unit dimensions 880*735*1320 (mm)
Total power 4500 W
Material trays 4, with dimensions of 295*335*30 (mm)
Main power supply 220VAC, 50Hz
Transportation Ambient temperature -40℃ to 50℃
Applications
Pilot freeze dryers are widely used in food processing, biotechnology, and other fields to freeze-dry various food products, medications, and biological preparations, preserving their original flavor, nutrients, and activity.
Key Features
  • Compact structure and small footprint
  • Utilize freezing and vacuum systems to rapidly lower the temperature of the material and remove the moisture through sublimation
  • Adjustable parameters for freezing and vacuum to accommodate the processing requirements of different substances
  • The equipment is usually made of stainless steel, making it easy to clean and maintain
  • Equipped with an automatic control system to monitor and regulate parameters such as temperature, pressure, and time throughout the freeze-drying process
Product Images

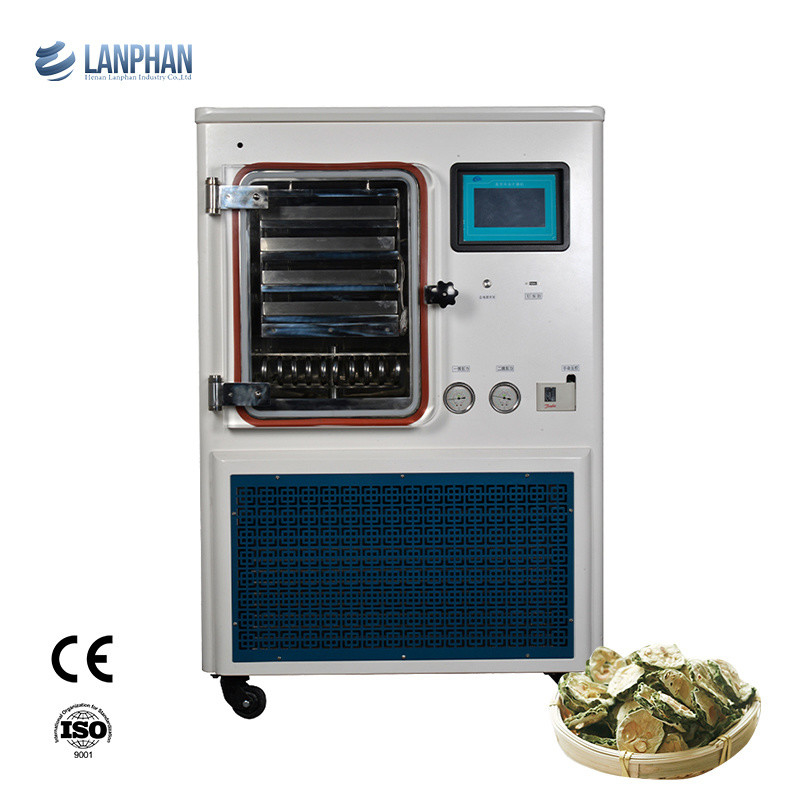

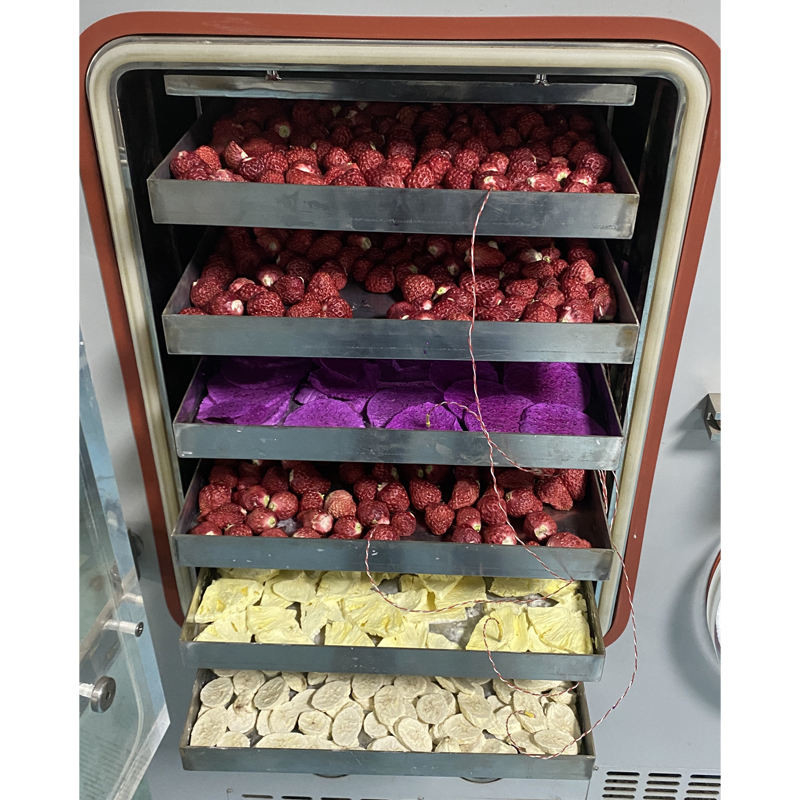

Laboratory freeze dryer front view Laboratory freeze dryer side view Laboratory freeze dryer operational view
