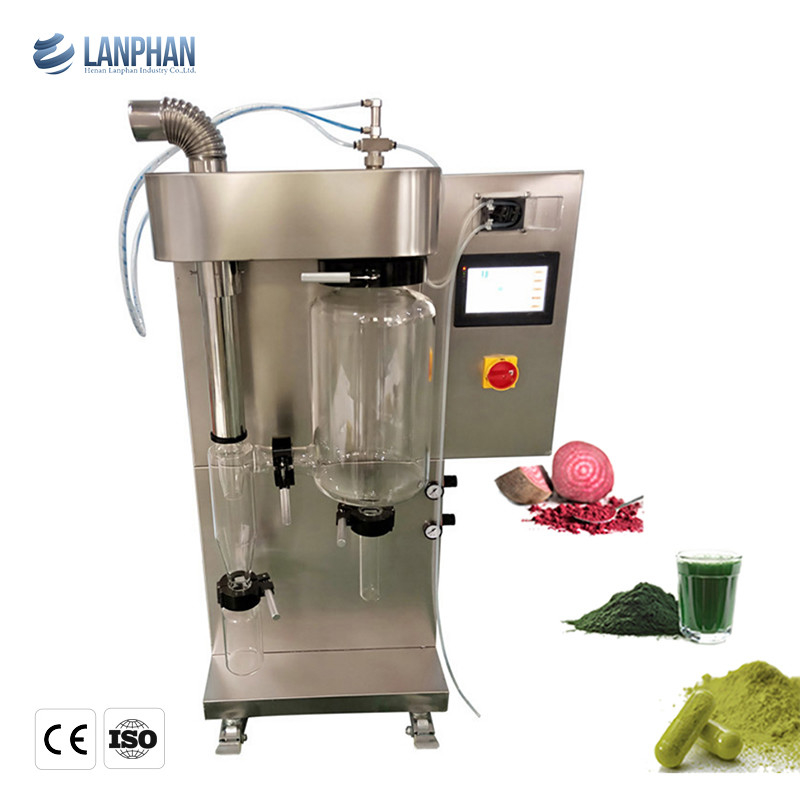

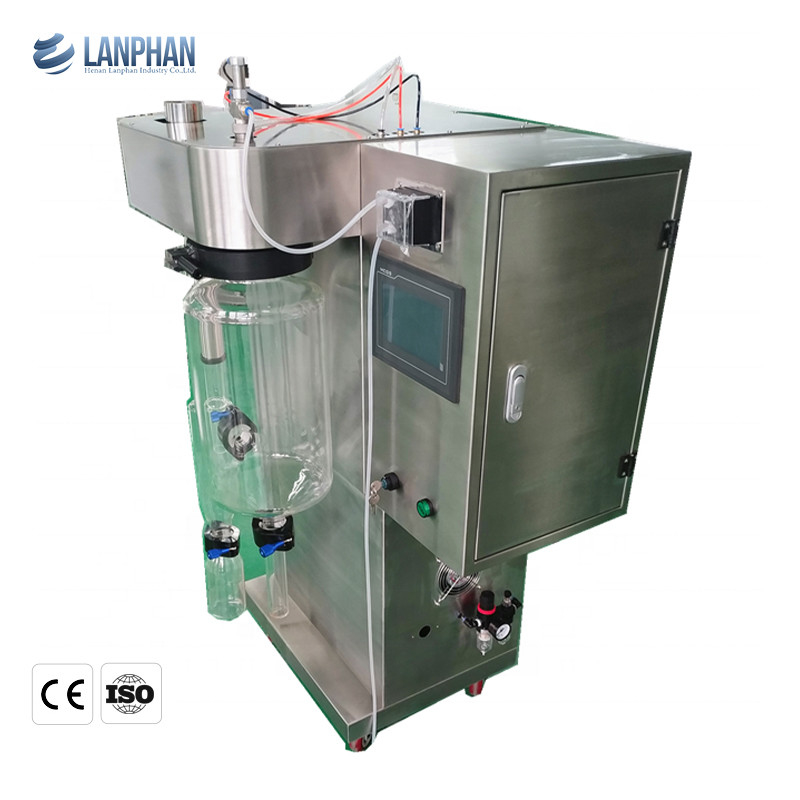

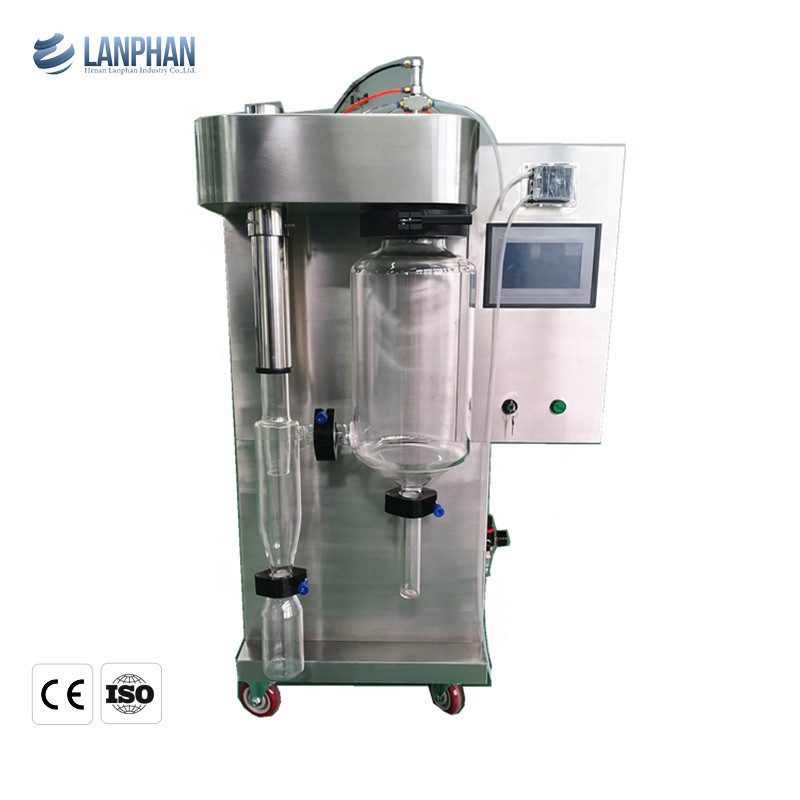

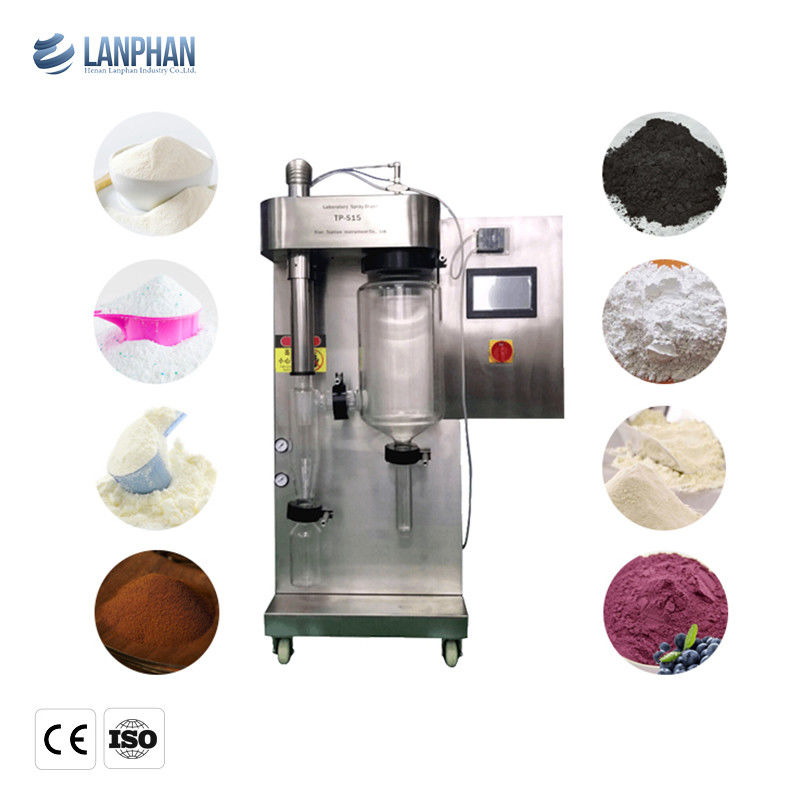

Automatic Atomizer Centrifugal Spray Dryer Stainless Steel Lab Scale Powder 2L

Minimum Order Quantity : 1 set Price : $2800
Packaging Details : Wooden Box or Customized Packing Delivery Time : 10-15 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 100 Sets per Month
Place of Origin: Henan, China Brand Name: Lanphan
Certification: CE ISO Model Number: HF-2

Detail Information

Product Name: 2L Spray Dryer Electric Heater Power: 3KW AC220V
Fan Power: 0.55kw Maximum Air Volume: 5.6m³/min
Maximum Air Pressure: 1020pa Air Compressor Power: 0.2kw
High Light:

Automatic Atomizer Centrifugal Spray Dryer

,

Powder 2L Centrifugal Spray Dryer

,

Lab Scale Stainless Centrifugal Spray Dryer

Product Description

Automatic Stainless Steel Lab Scale Powder Atomizer Spray Dryer 2L



Product Description



Experimental spray dryer, compact design, self-contained, no other facilities can be run. One-click startup, color large LCD touch screen operation. Fully automatic or manual monitoring two modes of operation. It is the smallest volume, the least noise, drying effect is very excellent a spray dryer.



Product Parameter



Air inlet temperature control 30~300℃
Air outlet temperature control 30~150℃
Electric heater power 3KW AC220V
evaporation 2000mL/H
Maximum feeding capacity 2000mL/H
Fan power 0.55KW
Maximum air volume 5.6m³/min
Maximum air Pressure 1020Pa
Air compressor power 0.2KW
Nozzle diameter 1.00mm
Operating Temperature 10~40℃
Dimension 800 x 650 x 1300 ( mm )
Weight 125KG



Product Features

  1. Special for lab research, Min 20-30ml liquid to finish one test
  2. All borosilicate glass for easy visual monitoring of process status.
  3. Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.
  4. Easy to clean and very simple to assemble and break down.
  5. The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands
  6. inlet/outlet temperature is accurate controlled by PID
  7. The unit is self contained and supplied complete and ready for immediate operation.
  8. Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.
  9. Product feeding with RS2559605 rotary pump, capacity is adjustable
  10. Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.



Automatic Atomizer Centrifugal Spray Dryer Stainless Steel Lab Scale Powder 2L 0Automatic Atomizer Centrifugal Spray Dryer Stainless Steel Lab Scale Powder 2L 1Automatic Atomizer Centrifugal Spray Dryer Stainless Steel Lab Scale Powder 2L 2Automatic Atomizer Centrifugal Spray Dryer Stainless Steel Lab Scale Powder 2L 3Automatic Atomizer Centrifugal Spray Dryer Stainless Steel Lab Scale Powder 2L 4
